KLINGER® Graphite Laminate PSM

Gasket & Sealing Material · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified

KLINGER® Graphite Laminate PSM by Klinger AG Egliswil. DNV TA certificate TAP00001U8.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Compressibility35 - 45 %
Recovery12 - 18 %
Compression creep (16 h/ 50 MPa/ 300°C)≥ 46 MPa
Density of the graphite layer1.0 g/cm3
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

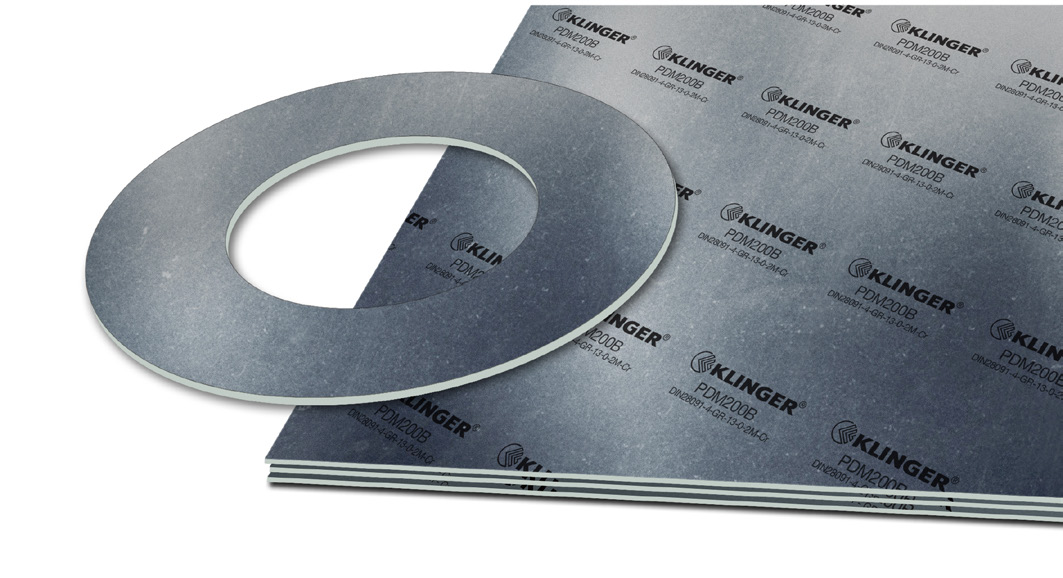

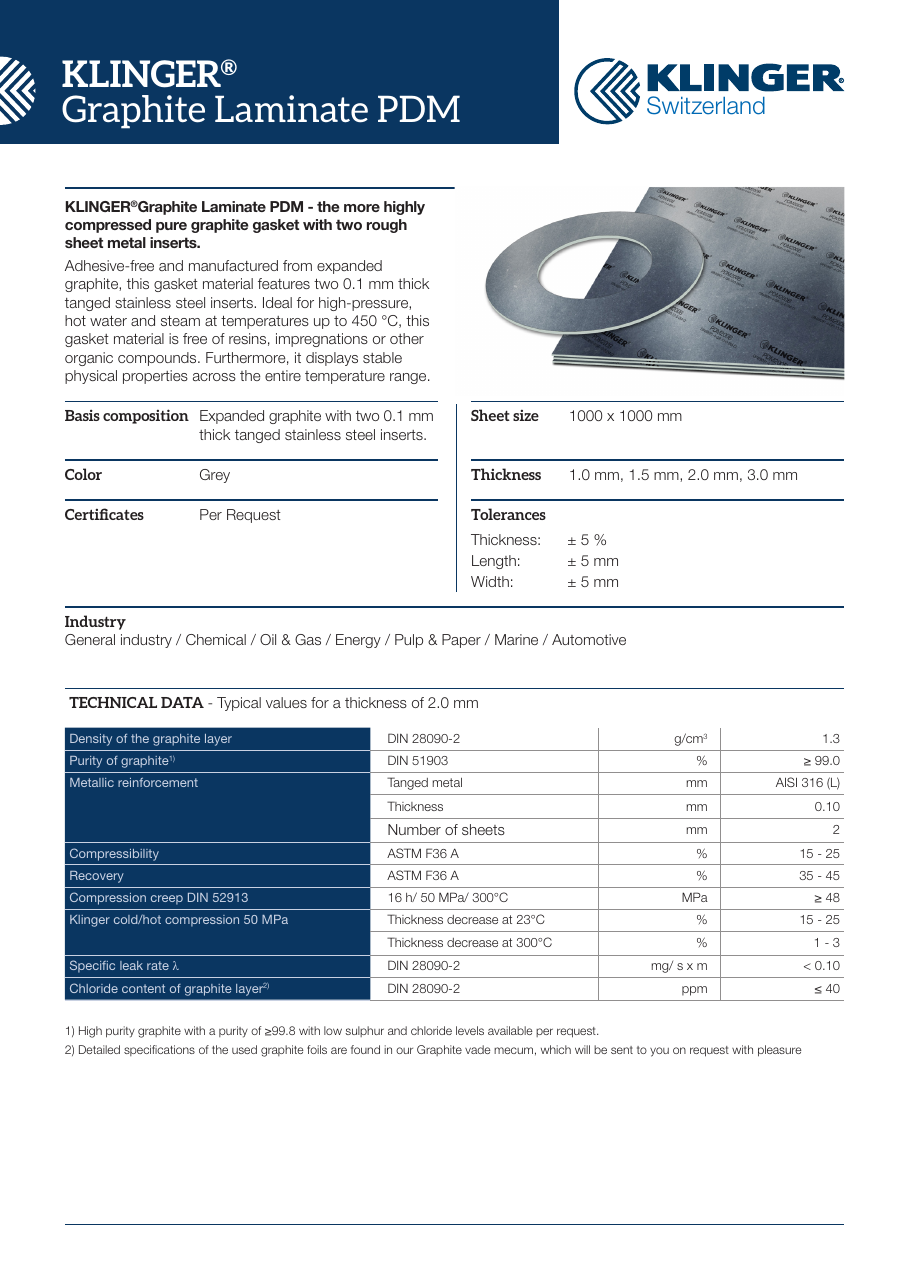

“KLINGER®Graphite Laminate PDM - the more highly compressed pure graphite gasket with two rough sheet metal inserts. Adhesive-free and manufactured from expanded graphite, this gasket material…”

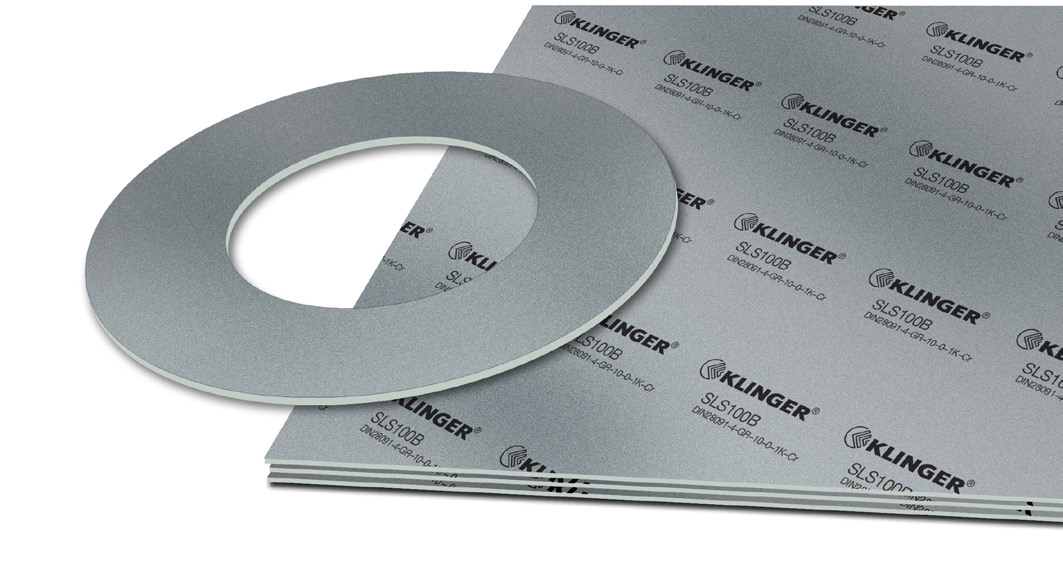

Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Photo (0132a4aeece2_S1-10 S. 1)
Photo · 0132a4aeece2_S1-10 · S. 1
Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Photo (0132a4aeece2_S1-10 S. 3)
Photo · 0132a4aeece2_S1-10 · S. 3
Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Photo (0132a4aeece2_S1-10 S. 5)
Photo · 0132a4aeece2_S1-10 · S. 5
Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Photo (0132a4aeece2_S1-10 S. 7)
Photo · 0132a4aeece2_S1-10 · S. 7
Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Photo (0132a4aeece2_S1-10 S. 9)
Photo · 0132a4aeece2_S1-10 · S. 9
Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Drawing (0132a4aeece2_S1-10 S. 1)
Drawing · 0132a4aeece2_S1-10 · S. 1

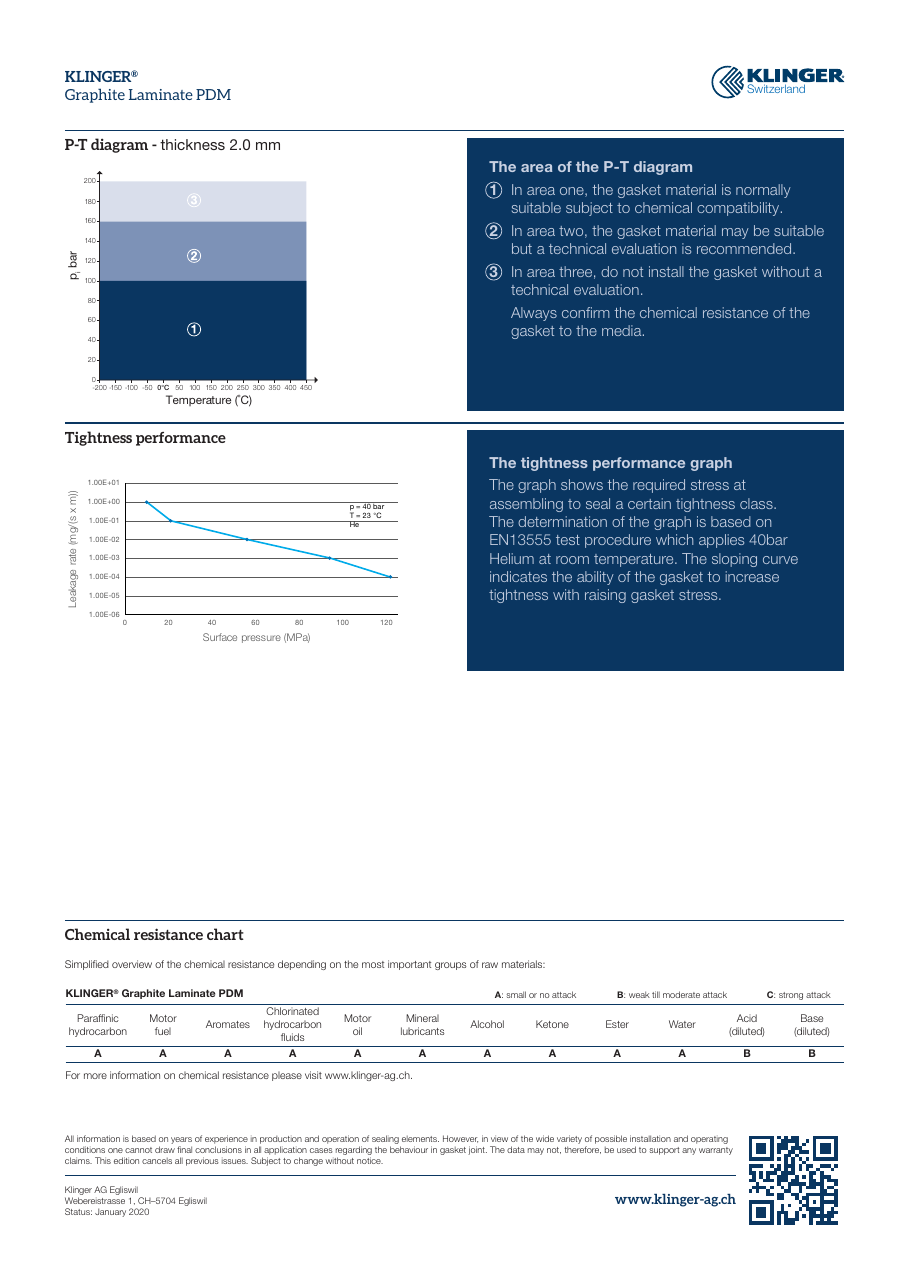

Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Drawing (0132a4aeece2_S1-10 S. 2)
Drawing · 0132a4aeece2_S1-10 · S. 2

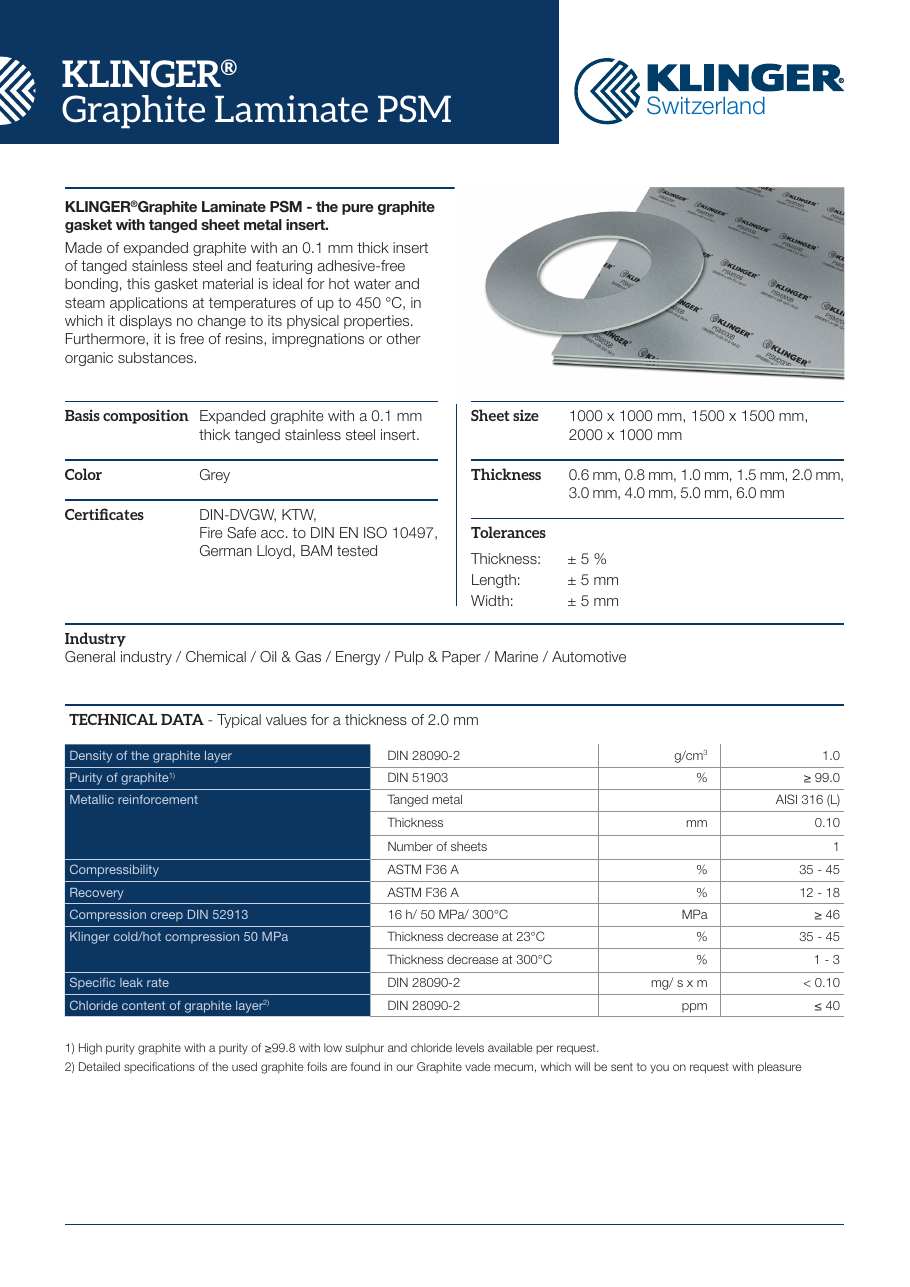

Klinger AG Egliswil KLINGER® Graphite Laminate PSM – Drawing (0132a4aeece2_S1-10 S. 3)
