Klinger AG Egliswil

Klinger® Graphite Laminate HL

Gasket & Sealing Material · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Sheet size1000 x 1000 mm, 1500 x 1500 mm
Thickness1.5 mm, 2.0 mm, 3.0 mm
Density of the graphite layer1.0 g/cm3
Purity of graphite≥ 99.0
Oxidation rate≤4 %/h
Chloride content of graphite layer≤ 40 ppm
Fluoride content of graphite layer≤ 50 ppm
Sulphur content of graphite layer≤ 750 ppm
Compressibility40 - 50
Recovery8 - 15
Maximum gasket stress QSmax at RT80 MPa
Maximum gasket stress QSmax at 300°C60 MPa
Minimum required gasket stress in assembly Qmin(0.1)21 MPa
Cold compressibility40 - 50
Cold recovery3-5
Hot creep0.5 - 2
Hot recovery2-4
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

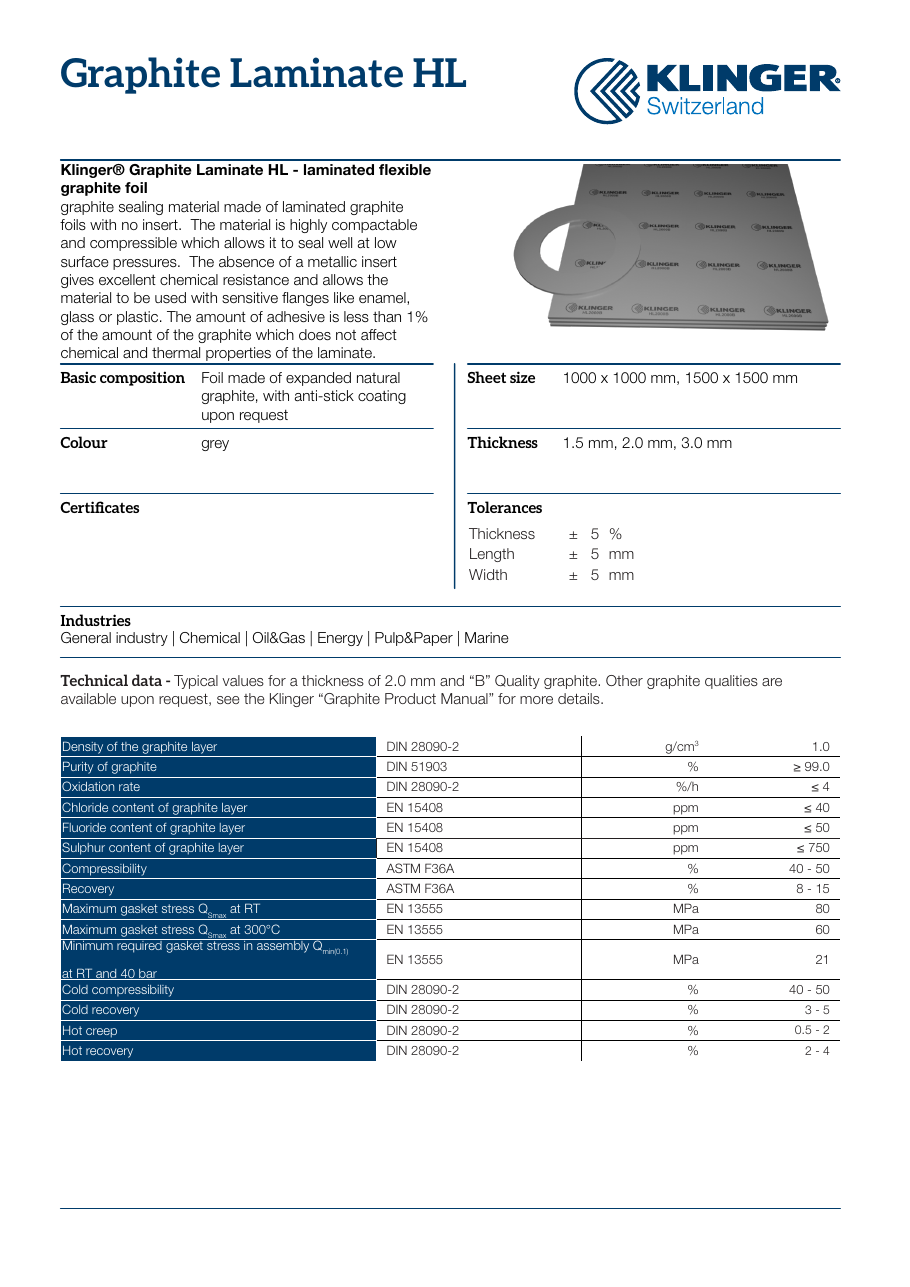

“Graphite Laminate HL Klinger® Graphite Laminate HL - laminated flexible graphite foil graphite sealing material made of laminated graphite foils with no insert. The material is highly compactable and…”

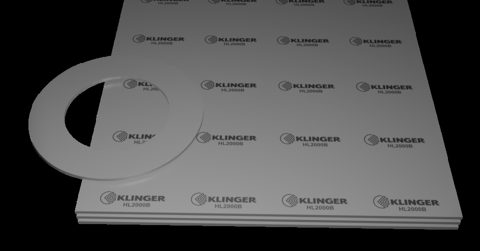

Klinger AG Egliswil Klinger® Graphite Laminate HL – Photo (ee573bc3a762_S1-1 S. 1)
Photo · ee573bc3a762_S1-1 · S. 1
Klinger AG Egliswil Klinger® Graphite Laminate HL – Drawing (ee573bc3a762_S1-1 S. 1)
Drawing · ee573bc3a762_S1-1 · S. 1
Source: Klinger AG Egliswil Klinger® Graphite Laminate HL datasheet, p. 1
