Library› Engine Room› Welding Consumables› General Welding Consumables› ITW Welding AB P 45S
ITW Welding AB

P 45S

General Welding Consumables · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified

P 45S by ITW Welding AB. DNV TA certificate TAW00004XM.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Yield strength Re (typical)470 MPa
Tensile strength Rm (typical)550 MPa
Welding currentDC+/-, AC OCV ≥ 50 V
Metal recovery90%
Redrying temperature90 °C, 2h
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

P 45S is a multi-purpose rutile-cellulosic coated electrode suitable for a wide application range in mild steel.

Applications

  • shop fabrication
  • site fabrication

Features

  • fully positional
  • crisp, steady arc
  • smooth bead surface
  • good slag detachability
  • insensitive to rust, dirt and surface coatings

Standards

  • EN ISO 2560-A
  • AWS A5.1
ITW Welding AB P 45S – Photo (95f459b70a3f_S1-1 S. 1)
Photo · 95f459b70a3f_S1-1 · S. 1
ITW Welding AB P 45S – Drawing (dedc41d3a827_S3-9 S. 7)
Drawing · dedc41d3a827_S3-9 · S. 7
ITW Welding AB P 45S – Drawing (dedc41d3a827_S3-9 S. 5)
Drawing · dedc41d3a827_S3-9 · S. 5
ITW Welding AB P 45S – Drawing (dedc41d3a827_S3-9 S. 7)
Drawing · dedc41d3a827_S3-9 · S. 7
ITW Welding AB P 45S – Page preview (dedc41d3a827_S3-9 S. 3)
Page preview · dedc41d3a827_S3-9 · S. 3
ITW Welding AB P 45S – Page preview (dedc41d3a827_S3-9 S. 4)
Page preview · dedc41d3a827_S3-9 · S. 4
ITW Welding AB P 45S – Page preview (dedc41d3a827_S3-9 S. 6)
Page preview · dedc41d3a827_S3-9 · S. 6

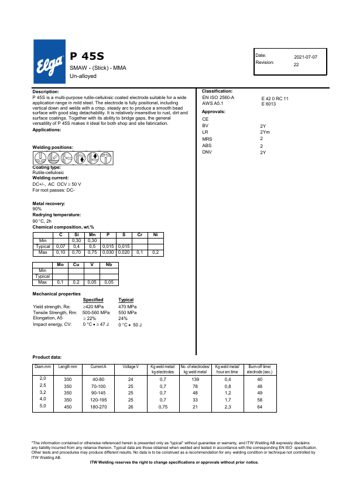

ITW Welding AB P 45S – Page preview (95f459b70a3f_S1-1 S. 1)
Page preview · 95f459b70a3f_S1-1 · S. 1
Source: ITW Welding AB P 45S datasheet, p. 1
