Library› Safety & LSA› Lifesaving Appliances (LSA)› Freefall Lifeboat› Shanghai Star Rubber Products Co., Ltd. SMLR-D-32
Shanghai Star Rubber Products Co., Ltd.

SMLR-D-32

Freefall Lifeboat · Lifesaving Appliances (LSA)

Class-certified type (DNV register) · technical data sheet not yet verified

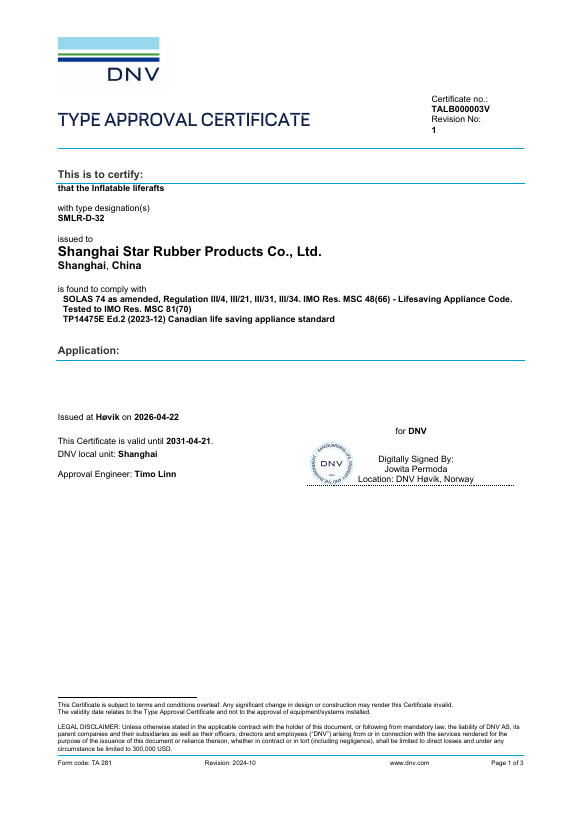

SMLR-D-32 by Shanghai Star Rubber Products Co., Ltd. DNV TA certificate TALB000003V.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

ZertifikateIMO Res. MSC 48(66)🔖
Buoyancy tube fabricXB-21🔖
Seam fabricXB-03🔖
Interior canopy fabric170 T🔖
Persons32🔖
SOLAS A Weight325 kg🔖
SOLAS B Weight250 kg🔖
Required bollard pull 2 kn1.58 kN🔖
Required bollard pull 3 kn1.97 kN🔖
Maximum stowage height30 m🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Inflatable liferaft designed for marine safety, compliant with SOLAS and IMO standards.

Features

  • SOLAS compliant
  • tested to TP14475E Ed.2

Standards

  • SOLAS 74
  • IMO Res. MSC 48(66)
  • IMO Res. MSC 81(70)
  • TP14475E Ed.2

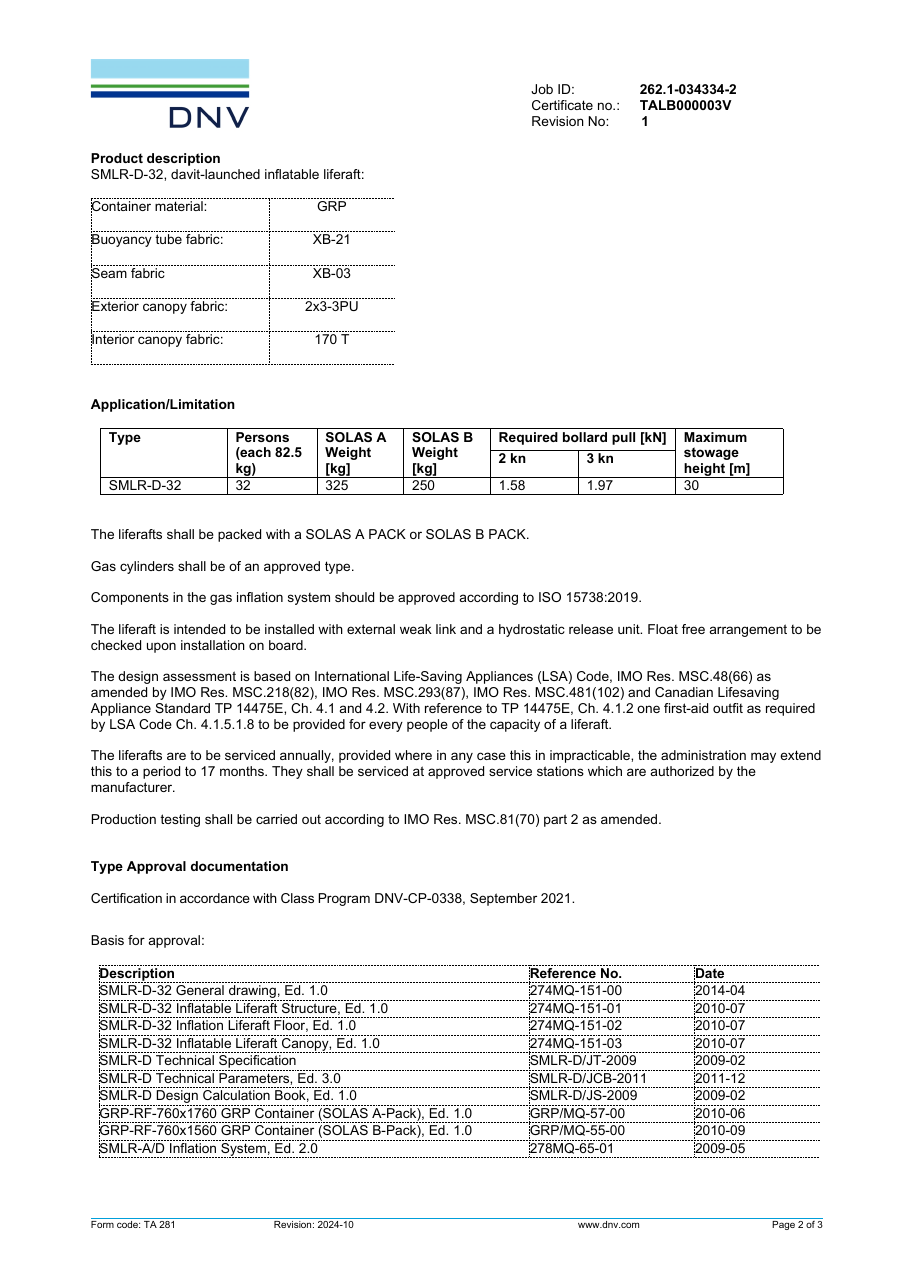

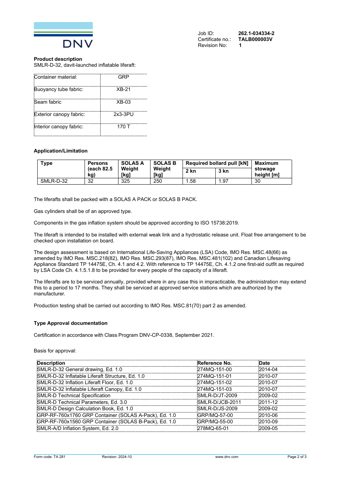

Shanghai Star Rubber Products Co., Ltd. SMLR-D-32 – Drawing (fd9e1255bc23_S1-2 S. 2)
Drawing · fd9e1255bc23_S1-2 · S. 2

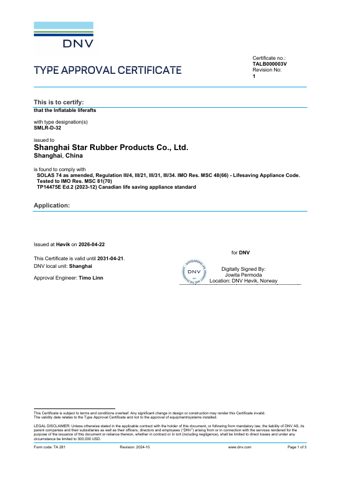

Shanghai Star Rubber Products Co., Ltd. SMLR-D-32 – Page preview (fd9e1255bc23_S1-2 S. 1)
Page preview · fd9e1255bc23_S1-2 · S. 1
Source: Shanghai Star Rubber Products Co., Ltd. SMLR-D-32 datasheet, p. 1
