Library› Safety & LSA› Lifesaving Appliances (LSA)› Freefall Lifeboat› Jiangsu Huayan Marine Equipment QD10L
Jiangsu Huayan Marine Equipment

QD10L

Freefall Lifeboat · Lifesaving Appliances (LSA)

Class-certified type (DNV register) · technical data sheet not yet verified

QD10L by Jiangsu Huayan Marine Equipment Co., Ltd. DNV MED certificate MEDB00002RK.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Light source0.5W/LED
Battery typeCR123A
DimensionФ75mm×158.5mm
Weight107g
CertificationsSOLAS 1974, as amended
Duration≥ 2 hours
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A self-igniting light for lifebuoys, designed to be activated manually and emit a flashing light for at least two hours.

Applications

  • Marine safety equipment

Features

  • Complies with SOLAS regulations
  • Low power consumption
  • Long-lasting battery

Standards

  • SOLAS 1974, as amended
  • LSA
  • MSC. 81(70)
  • MSC. 36(63)
  • MSC. 48(66)
  • MSC. 97(73)

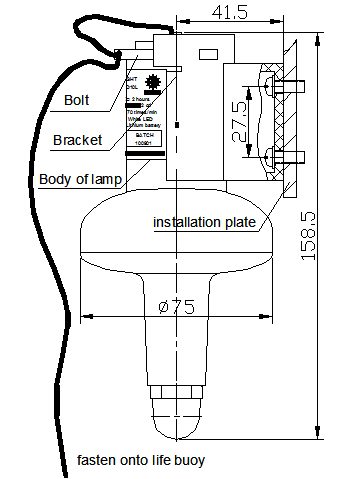

Jiangsu Huayan Marine Equipment QD10L – Photo (544f4a9301b8_S1-1 S. 1)
Photo · 544f4a9301b8_S1-1 · S. 1

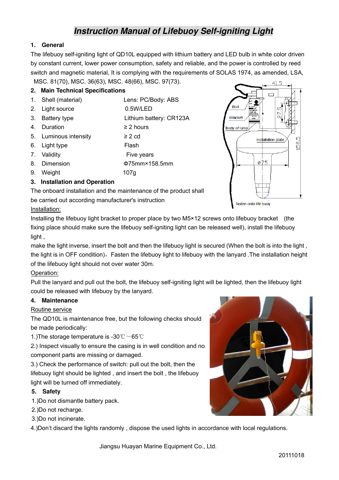

Jiangsu Huayan Marine Equipment QD10L – Drawing (544f4a9301b8_S1-1 S. 1)
Drawing · 544f4a9301b8_S1-1 · S. 1

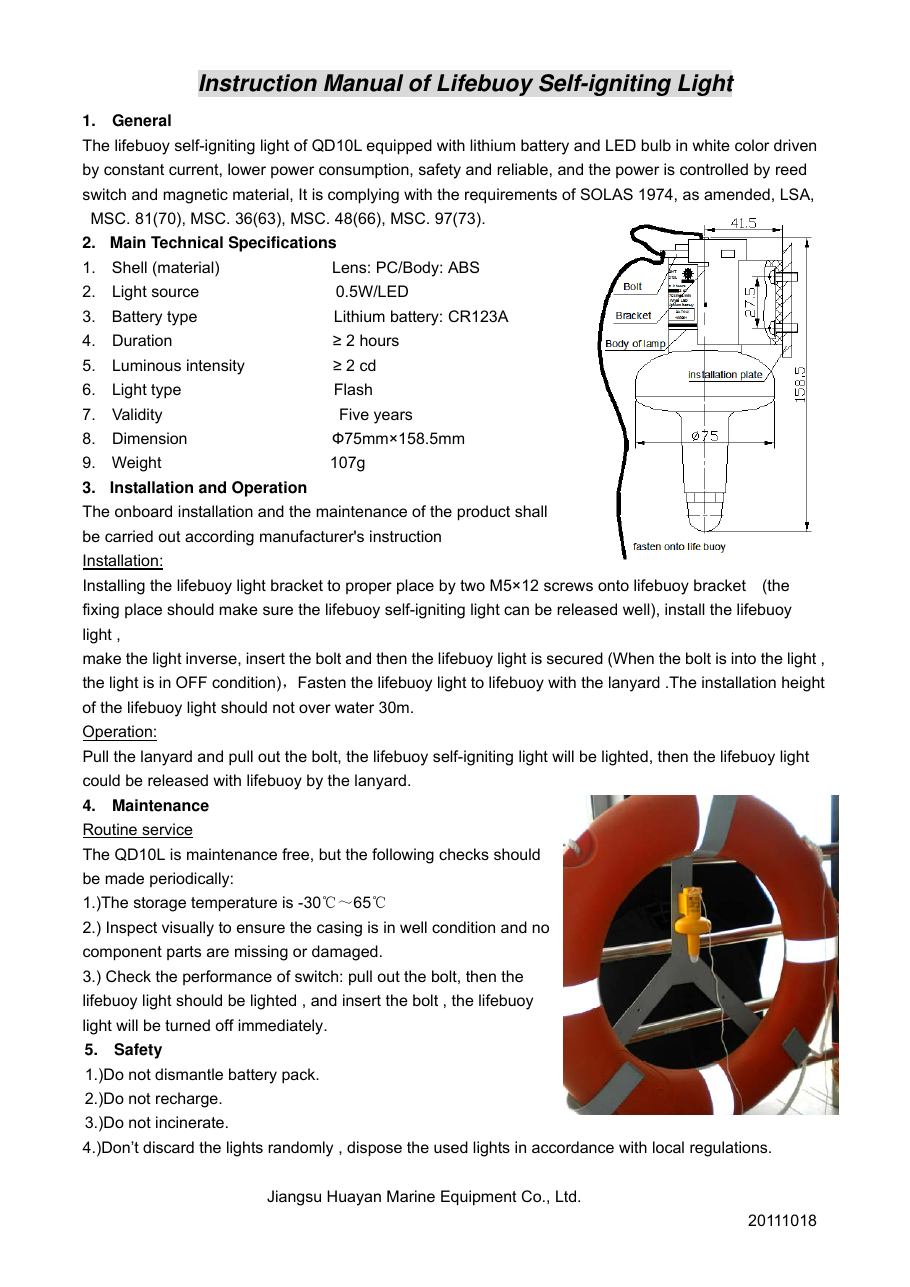

Source: Jiangsu Huayan Marine Equipment QD10L datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateMEDB00002RK
Open the certificate at DNV
