Library› Safety & LSA› Fixed Fire Suppression› Foam Fire System› SABO FOAM S.r.l. SKUM FP 3x3 MG
SABO FOAM S.r.l.

SKUM FP 3x3 MG

Foam Fire System · Fixed Fire Suppression

Class-certified type (DNV register) · technical data sheet not yet verified

Under DNV Marine Equipment Directive certificate MEDB00003M9, SABO FOAM S.r.l. of Italy has the SKUM FP 3x3 MG registered, with issue on 2023-04-26 and validity until 2028-04-25. Fixed foam fire extinguishing installations typically rely on dedicated foam components alongside the foam supply. The register places the product in the class of fixed low expansion foam fire extinguishing systems components for machinery spaces and tanker deck protection and notes IMO approval.

Application

Where it is used.

Fixed low expansion foam components of this kind are typically fitted in fire protection arrangements for engine and machinery rooms and for tanker decks.

Typical vessel types: Oil tanker, Chemical tanker

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Proportioning Rate3%
Density1.14 ± 0.02 g/ml
Refractive Index1.3950 minimum
Viscosity*10.0 ± 2.0 cSt
Sediment**≤ 0.25%
Pour Point≤ -15 °C
Freeze Point≤ -18 °C
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

SKUM FP 3X3 MG FPAR Foam Concentrate is a protein-based foam concentrate that effectively suppresses Class B, polar solvent, and hydrocarbon fuel fires.

Applications

  • hydrocarbon fuels
  • polar solvent fuels

Features

  • foam blanket blocks oxygen supply
  • water content of the foam solution produces a cooling effect

Standards

  • EN 1568:2008
  • ICAO

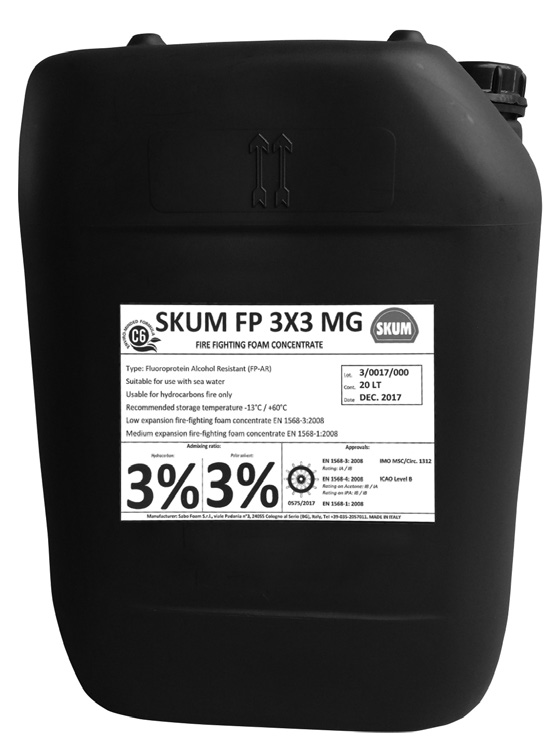

SABO FOAM S.r.l. SKUM FP 3x3 MG – Photo (83975b059e4c_S1-2 S. 1)
Photo · 83975b059e4c_S1-2 · S. 1

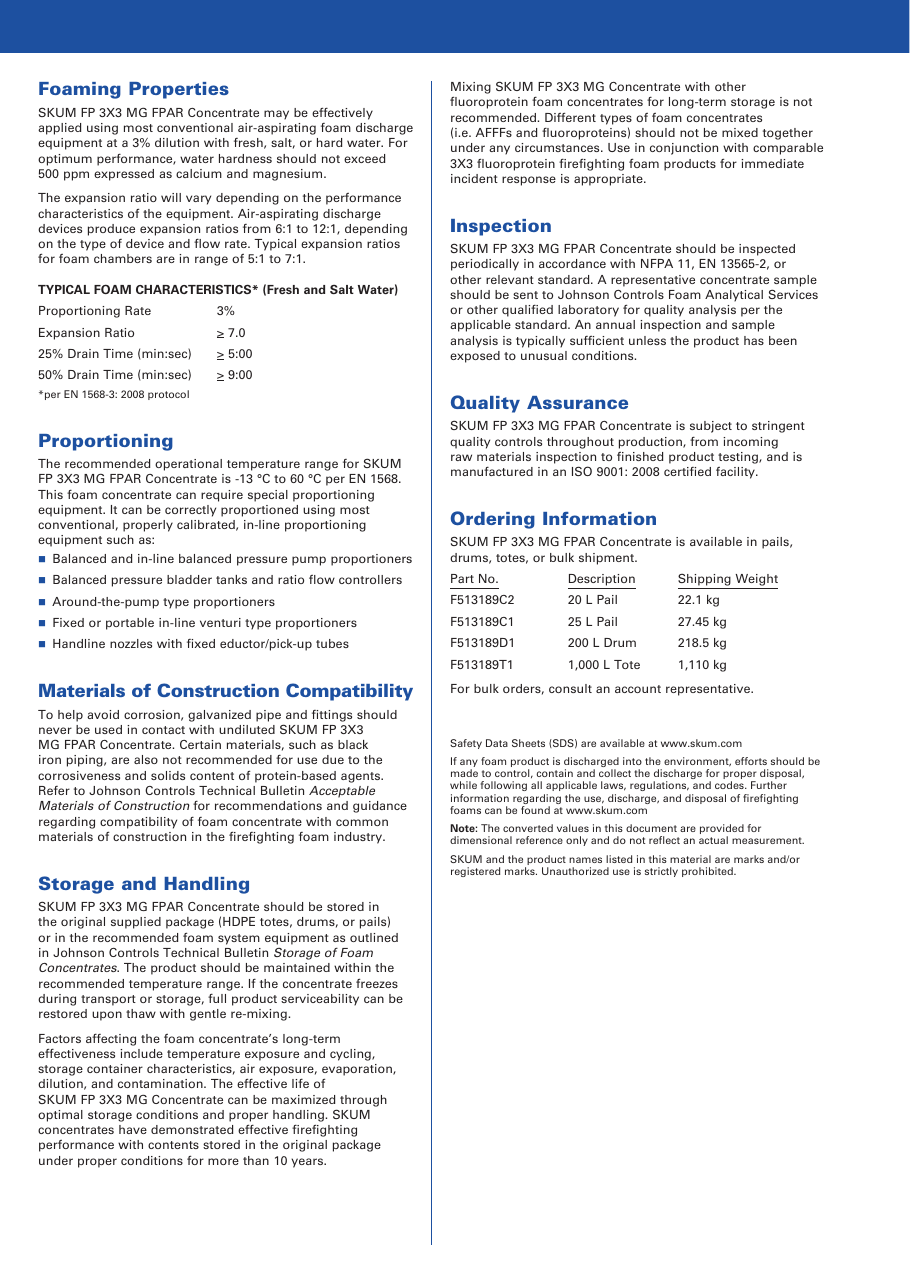

SABO FOAM S.r.l. SKUM FP 3x3 MG – Drawing (83975b059e4c_S1-2 S. 1)
Drawing · 83975b059e4c_S1-2 · S. 1
SABO FOAM S.r.l. SKUM FP 3x3 MG – Drawing (83975b059e4c_S1-2 S. 2)
Drawing · 83975b059e4c_S1-2 · S. 2

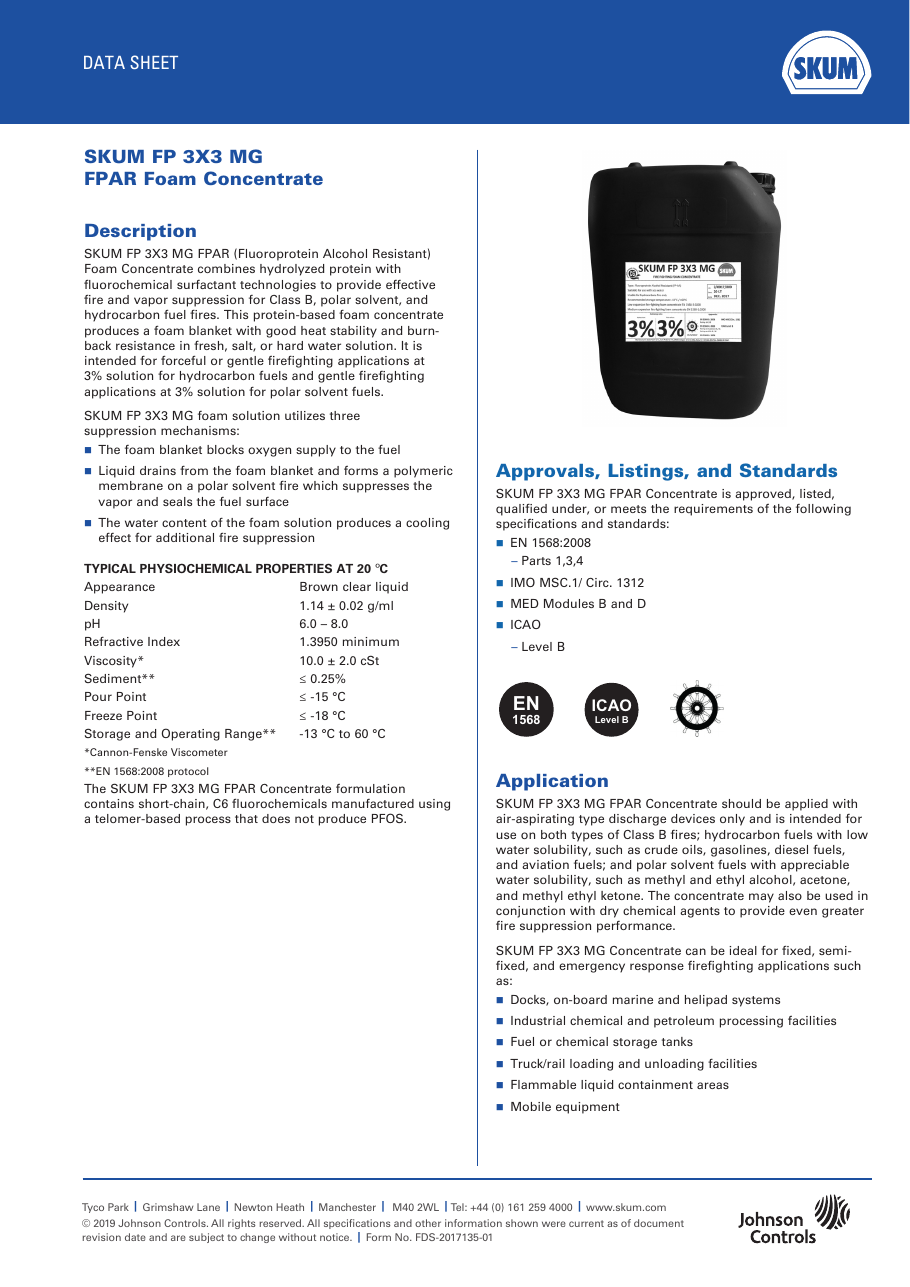

Source: SABO FOAM S.r.l. SKUM FP 3x3 MG datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateMEDB00003M9
Open the certificate at DNV
