Library› Deck› Ship Structure & Outfitting› Fire Division Panel› Thermal Ceramics UK Ltd A-60 Steel Bulkhead - FireMaster Marine Plus Blanket 60 mm x 80 kg/m3
Thermal Ceramics UK Ltd

A-60 Steel Bulkhead - FireMaster Marine Plus Blanket 60 mm x 80 kg/m3

Fire Division Panel · Ship Structure & Outfitting

Class-certified type (DNV register) · technical data sheet not yet verified

A-60 Steel Bulkhead - FireMaster Marine Plus Blanket 60 mm x 80 kg/m3 by Thermal Ceramics UK Ltd. DNV MED certificate MEDB00001NS.

Specifications

Technical data.reference — unverified

Thickness60 to 65 mm
Density80 kg/m3
CertificationsMEDB00001NS
Pin Length80-90 mm
Pin Spacing350 mm
Joint Spacing250 mm
Pin Diameter3 mm
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A-60 Steel Bulkhead - FireMaster Marine Plus Blanket is a fire protection material used in ship construction to maintain fire integrity.

Applications

  • marine equipment

Features

  • A-60 fire integrity
  • meets SOLAS and IMO regulations

Standards

  • Regulation (EU) 2017/306
  • SOLAS 74
  • IMO 2010 FTP Code
  • IMO MSC/Circ.1120
  • IMO MSC.1/Circ.1434

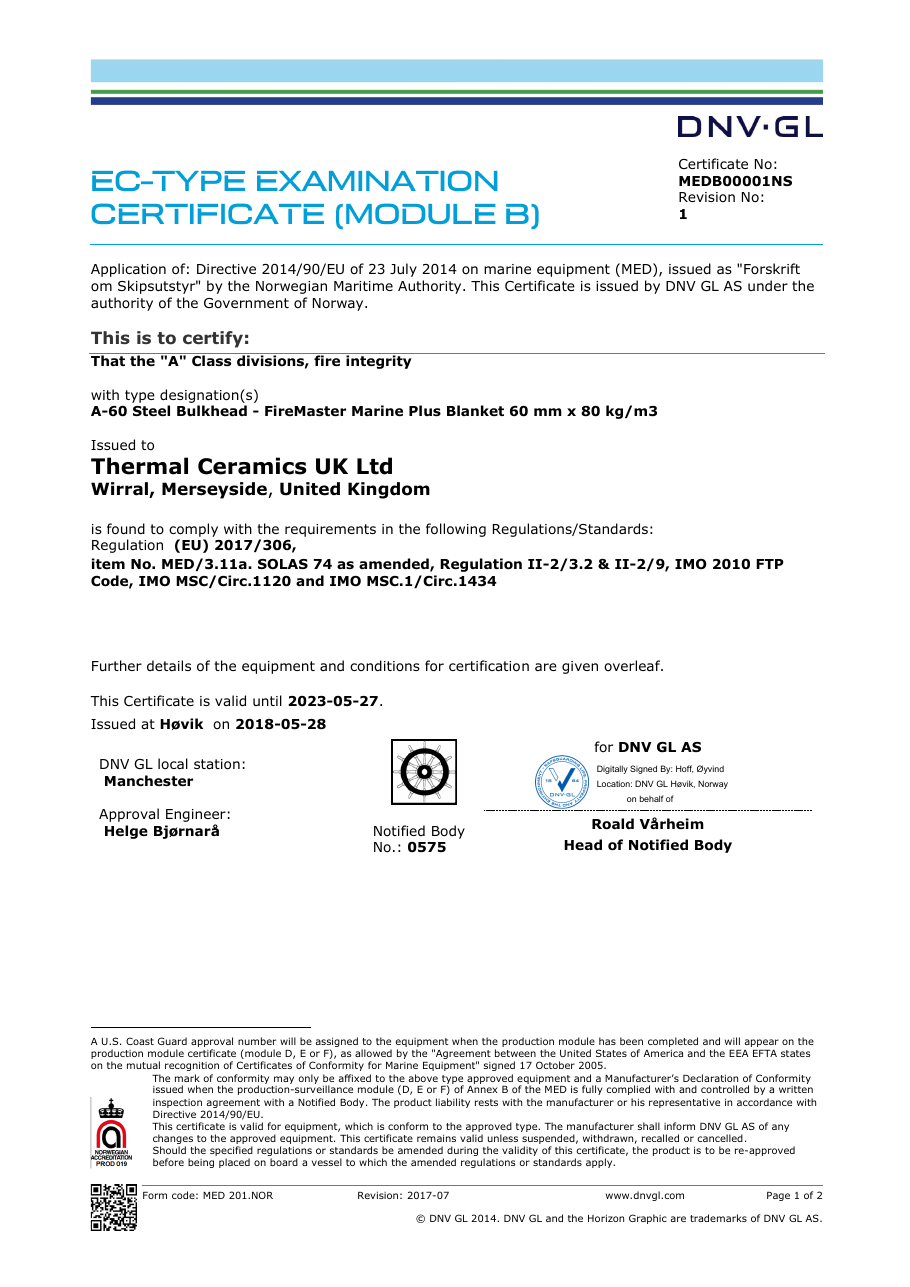

Thermal Ceramics UK Ltd A-60 Steel Bulkhead - FireMaster Marine Plus Blanket 60 mm x 80 kg/m3 – Drawing (e00a28a89000_S1-2 S. 1)
Drawing · e00a28a89000_S1-2 · S. 1

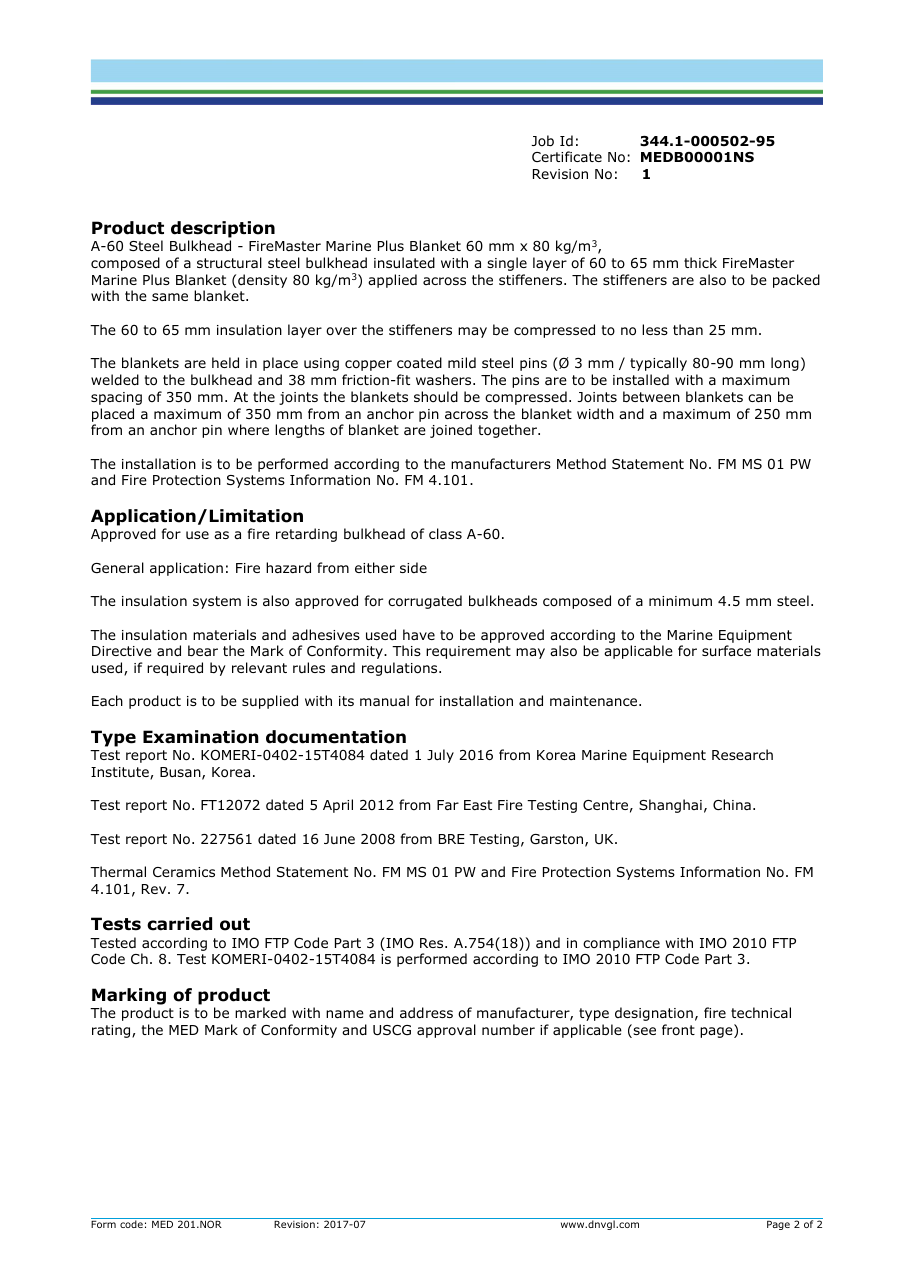

Thermal Ceramics UK Ltd A-60 Steel Bulkhead - FireMaster Marine Plus Blanket 60 mm x 80 kg/m3 – Drawing (e00a28a89000_S1-2 S. 2)
Drawing · e00a28a89000_S1-2 · S. 2
Source: Thermal Ceramics UK Ltd A-60 Steel Bulkhead - FireMaster Marine Plus B, p. 1
