SOLIMIDE Foams, Division of BOYD Corporation

HT-340 FOAM

Insulation Materials · Marine Interior & Construction Materials

Class-certified type (DNV register) · technical data sheet not yet verified

SOLIMIDE HT-340 FOAM by SOLIMIDE Foams, Division of BOYD Corporation. DNV MED certificate MEDB00003VN.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Typical density6.4 kg/m3
Max continuous use temperature300 °C
Thermal conductivity at 24°C≤ 0.046 W/mK
Limiting Oxygen Index> 40 %
Smoke Developed Index< 10
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

SOLIMIDE® HT-340 polyimide foam is a lightweight, non-flammable thermal and acoustic insulation used in commercial, industrial, and aerospace markets.

Applications

  • High temperature pipes and ducts
  • night storage heaters
  • ovens

Features

  • formaldehyde-free
  • excellent long term stability under humid conditions
  • temperature cycling resistance

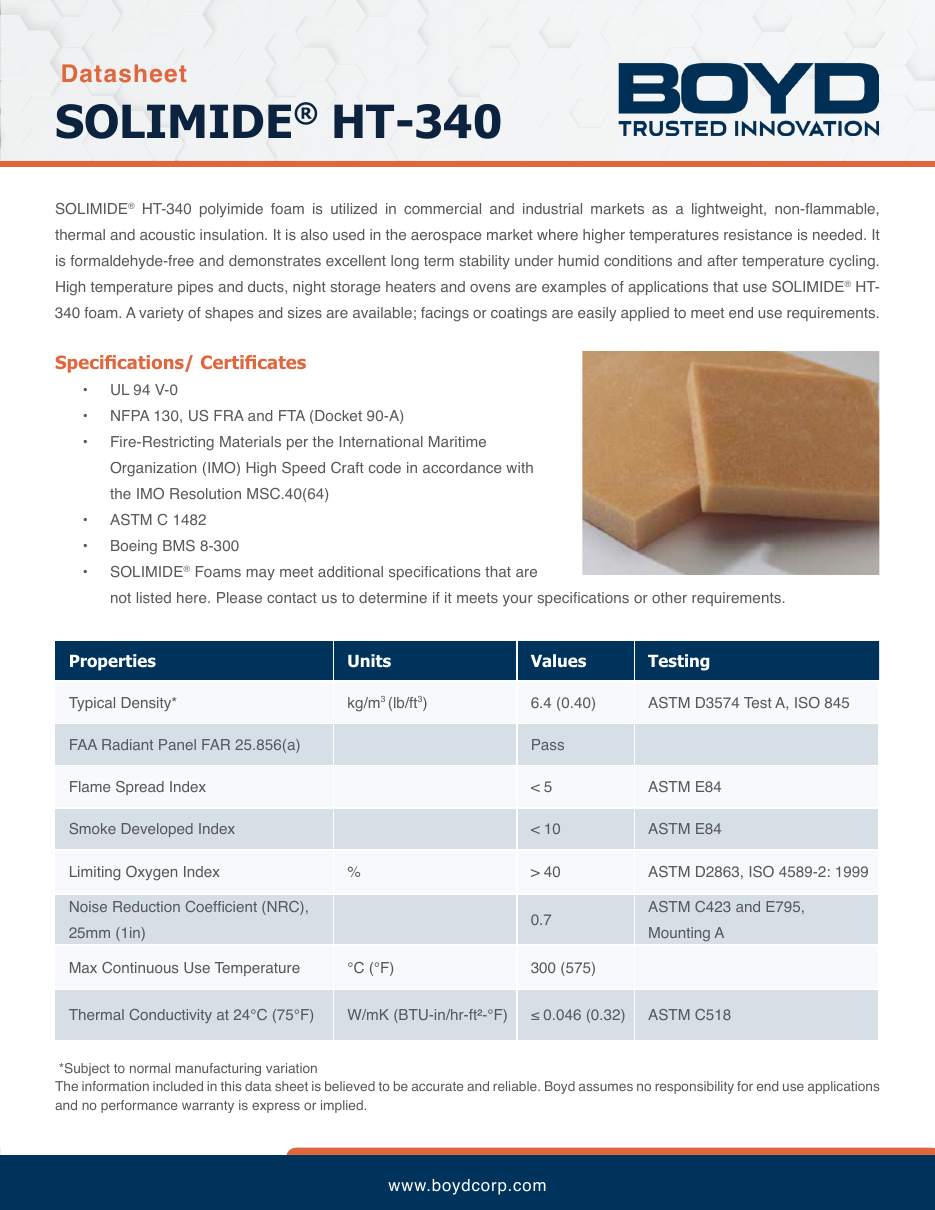

SOLIMIDE Foams, Division of BOYD Corporation SOLIMIDE HT-340 FOAM – Drawing (6843cabce40f_S1-1 S. 1)
Drawing · 6843cabce40f_S1-1 · S. 1
Source: SOLIMIDE Foams, Division of BOYD Corporation SOLIMIDE HT-340 FOAM data, p. 1
Classification

DNV type approval

Listed in the DNV Approval Finder at the time we recorded it. The certificate is issued by DNV, not by us; check its current status at DNV.

CertificateMEDB00003VN
