Library› Safety & LSA› Fire Hoses & Nozzles› Fire Hose› Hochiki Europe (UK) Ltd. DRD-EM
Hochiki Europe (UK) Ltd.

DRD-EM

Fire Hose · Fire Hoses & Nozzles

Class-certified type (DNV register) · technical data sheet not yet verified

DRD-EM by Hochiki Europe (UK) Ltd. DNV MED certificate MEDB00006EA.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Current consumption @ 24Vd.c.Quiescent 70 μA, Alarm 40 mA
Surge current320 μA
Voltage range15 – 30 V dc
IP RatingsIP42
Operating temperature range-10 °C to +50 °C
ClassificationClass 1 EN54-10:2002
Detection zone90° cone
Detection range (max)25 m
Weight (g) / Dimensions (mm)124 / 100 diameter x 37.3 height
Minimum alarm trip current6 mA
Compatible CDX baseYBN-R/6M
IMO ApprovedYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Marine-approved flame detector for internal use to detect large flames.

Applications

  • fire detection in marine environments

Features

  • Class 1 performance
  • Single IR technology
  • Robust and slim design
  • Low current consumption
  • Easy to install
  • Fits the CDX marine-approved standard base

Standards

  • EN54-10:2002
  • MED by GL

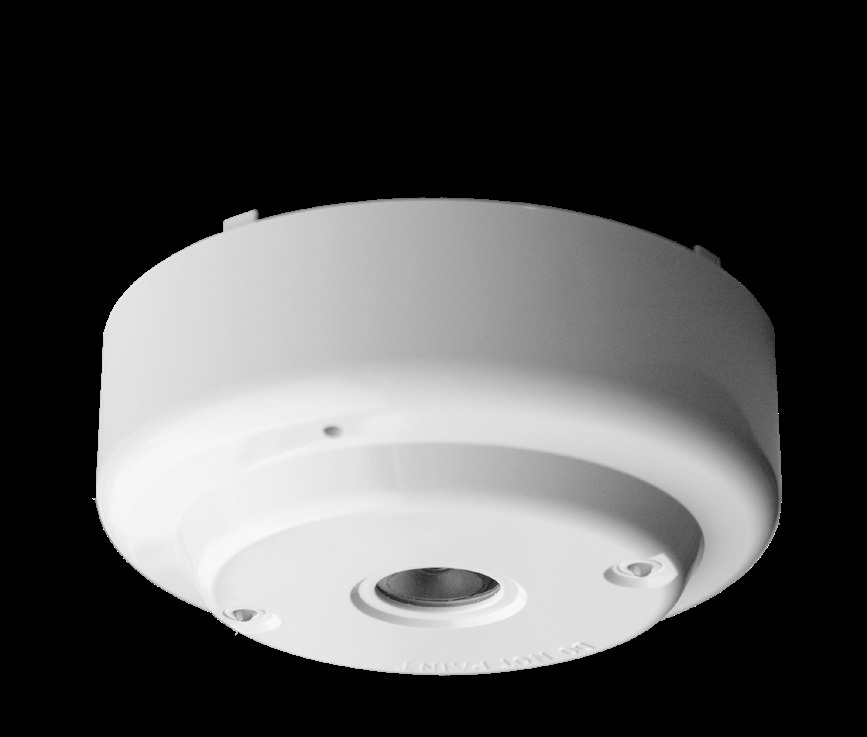

Hochiki Europe (UK) Ltd. DRD-EM – Photo (4b5aca63ba83_S1-1 S. 1)
Photo · 4b5aca63ba83_S1-1 · S. 1
Hochiki Europe (UK) Ltd. DRD-EM – Photo (4b5aca63ba83_S1-1 S. 1)
Photo · 4b5aca63ba83_S1-1 · S. 1

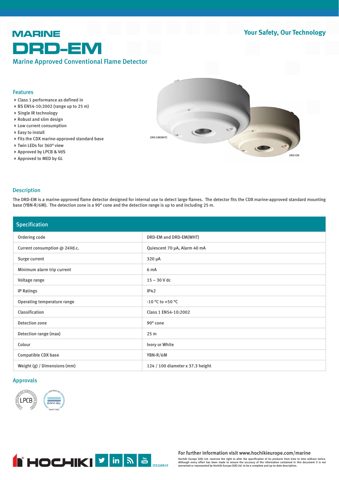

Hochiki Europe (UK) Ltd. DRD-EM – Drawing (4b5aca63ba83_S1-1 S. 1)
Drawing · 4b5aca63ba83_S1-1 · S. 1

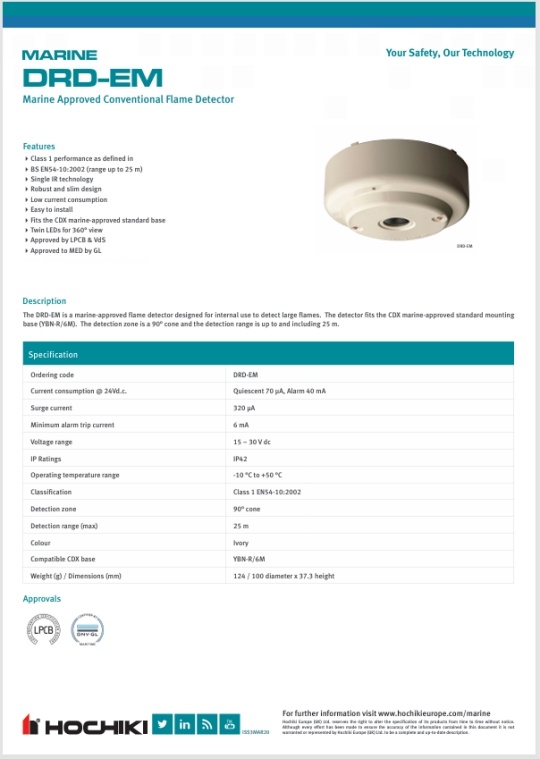

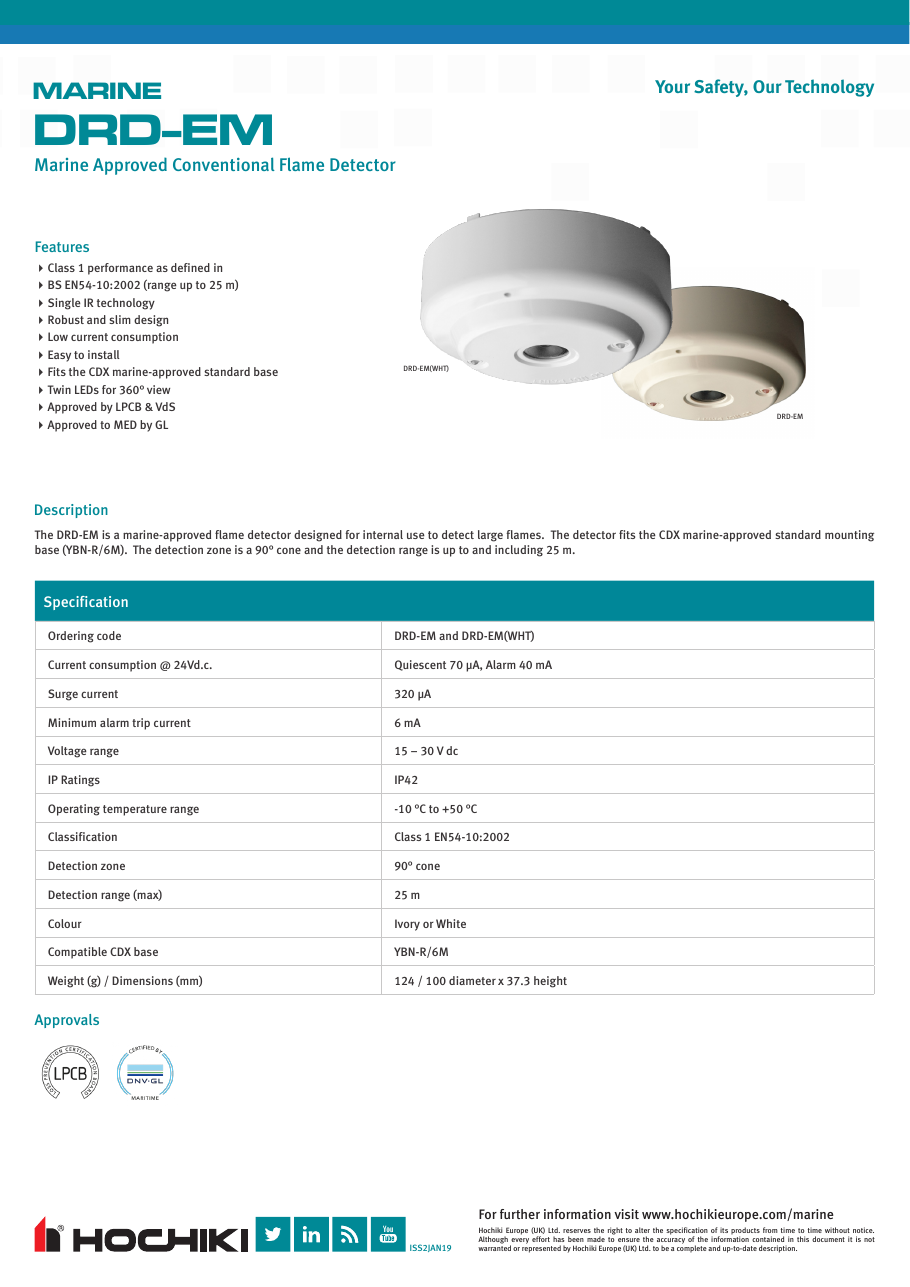

Source: Hochiki Europe (UK) Ltd. DRD-EM datasheet, p. 1
