Library› Engine Room› Main Engines (4-Stroke)› Main Engine 4-Stroke› Doosan Infracore Marine L136TL
Doosan Infracore Marine

L136TL

Main Engine 4-Stroke · Main Engines (4-Stroke)

Class-certified type (DNV register) · technical data sheet not yet verified

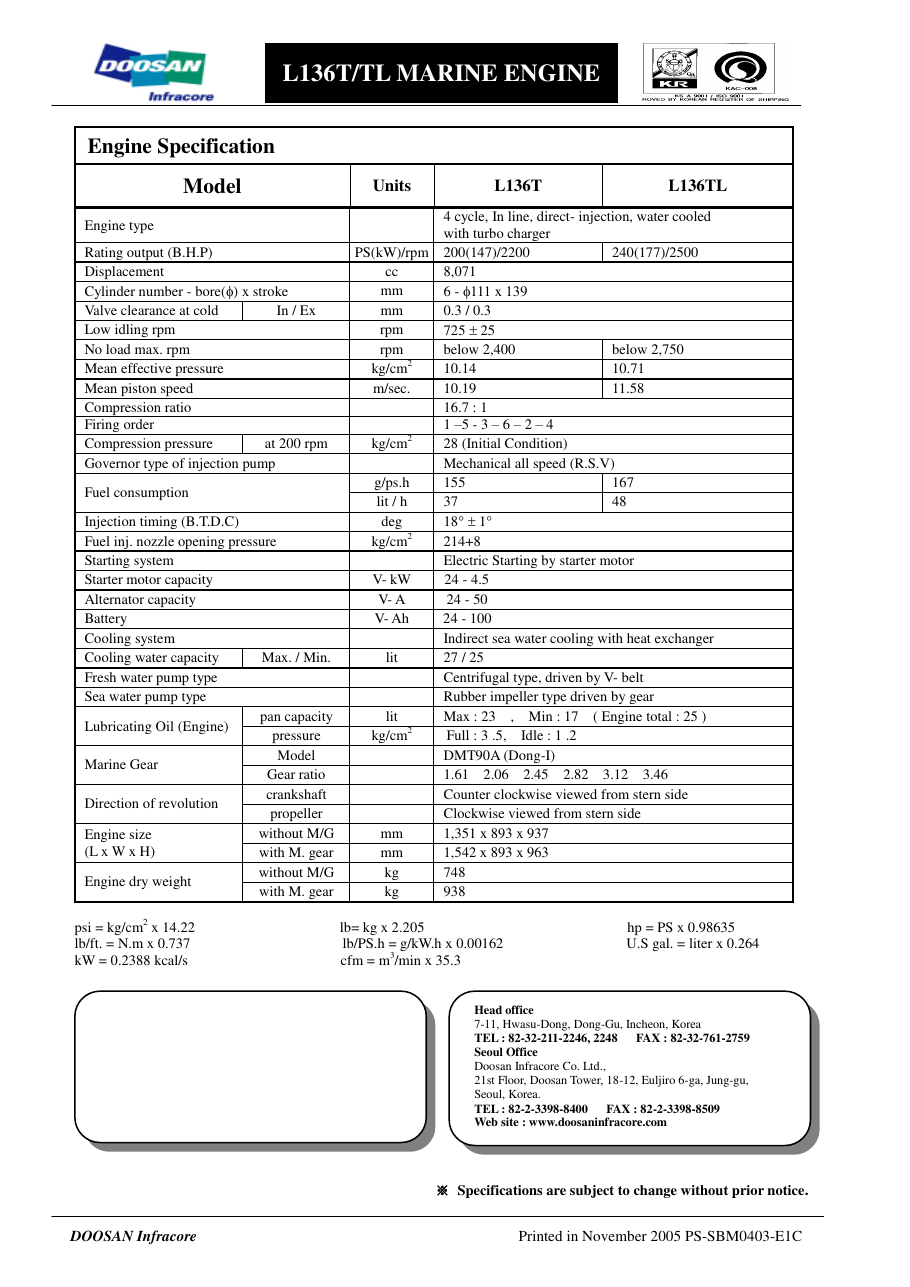

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rating output (B.H.P)240(177)/2500 PS(kW)/rpm
Low idling RPM725  25 rpm
No load max. RPMbelow 2,750 rpm
Mean effective pressure10.71 kg/cm
Mean piston speed11.58 m/sec.
Fuel consumption48 lit / h
Injection timing (B.T.D.C)18  1 deg
Fuel inj. nozzle opening pressure214+8 kg/cm2
Starter motor capacity24 - 4.5 V- kW
Alternator capacity24 - 50 V- A
Battery24 - 100 V- Ah
Cooling water capacity Max. / Min.27 / 25 lit
Lubricating Oil (Engine) pressureFull : 3 .5, Idle : 1 .2 kg/cm2
Lubricating Oil (Engine) ModelDMT90A (Dong-I)
Gear ratio1.61 2.06 2.45 2.82 3.12 3.46
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Note : 1) No reduction in rating for intake air temperature is up to 45 C (318K) and sea water temperature is up to 32 C (305K) , relative humidity is up to 60 % all data are based on operation to…”

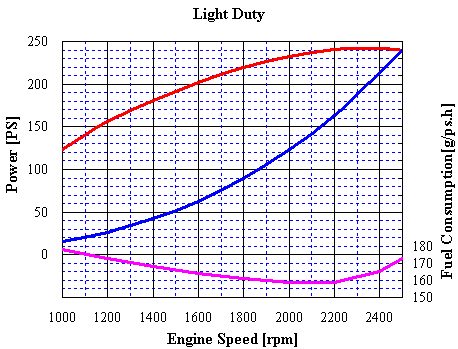

Doosan Infracore Marine L136TL – Photo (cbb065a0c059_S1-2 S. 1)
Photo · cbb065a0c059_S1-2 · S. 1
Doosan Infracore Marine L136TL – Photo (cbb065a0c059_S1-2 S. 1)
Photo · cbb065a0c059_S1-2 · S. 1
Doosan Infracore Marine L136TL – Photo (cbb065a0c059_S1-2 S. 1)
Photo · cbb065a0c059_S1-2 · S. 1

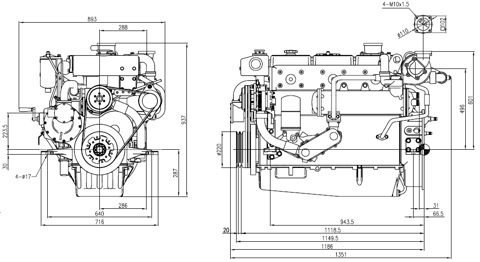

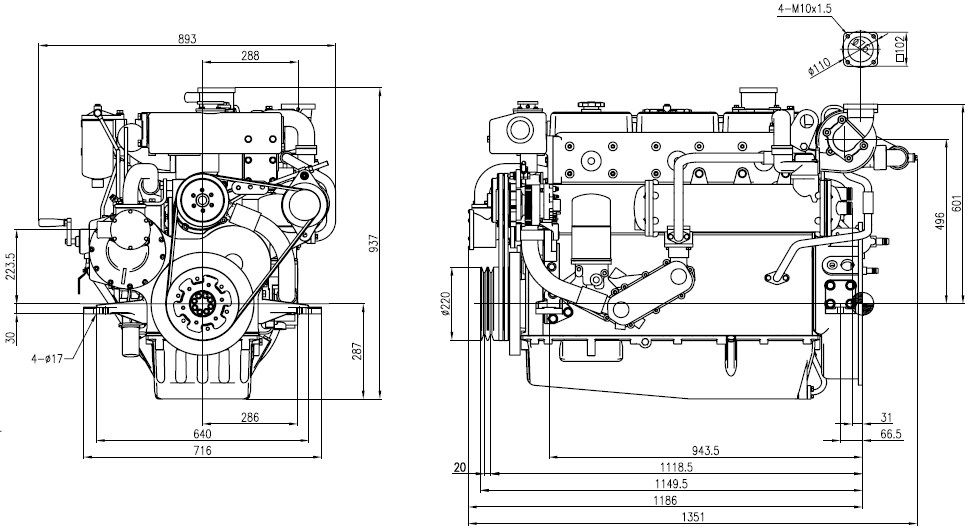

Doosan Infracore Marine L136TL – Drawing (cbb065a0c059_S1-2 S. 2)
Drawing · cbb065a0c059_S1-2 · S. 2

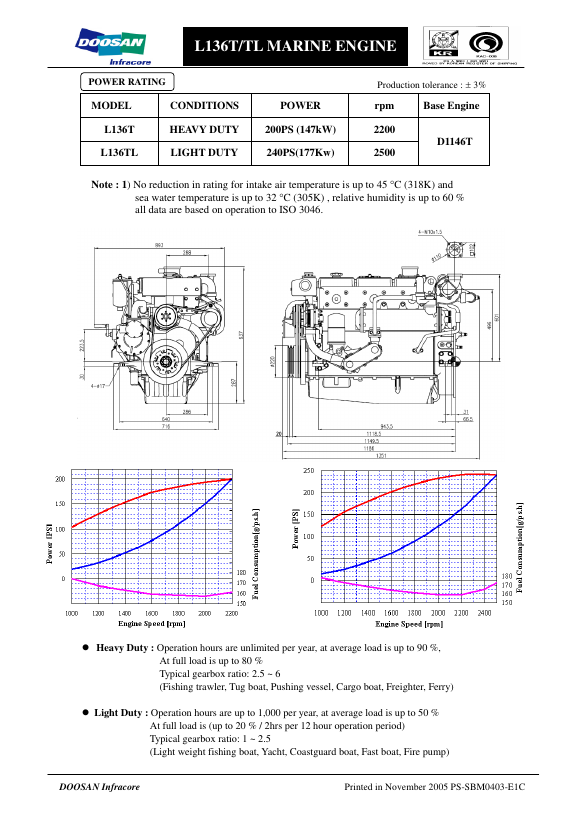

Doosan Infracore Marine L136TL – Page preview (cbb065a0c059_S1-2 S. 1)
Page preview · cbb065a0c059_S1-2 · S. 1
Source: Doosan Infracore Marine L136TL datasheet, p. 1
