Library› Navigation› Position & Heading› Gyrocompass› Kongsberg MGC COMPASS R3
Kongsberg

MGC COMPASS R3

Gyrocompass · Position & Heading

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Heading set-time to full accuracy17 minutes
Dynamic 1-sigma0.004°
Static RMS0.01°
Heave period5 cm or 5 %
Heading (speed aided)0.08°
Heading (GNSS aided)0.04°
Sec. lat. RMS0.08°
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

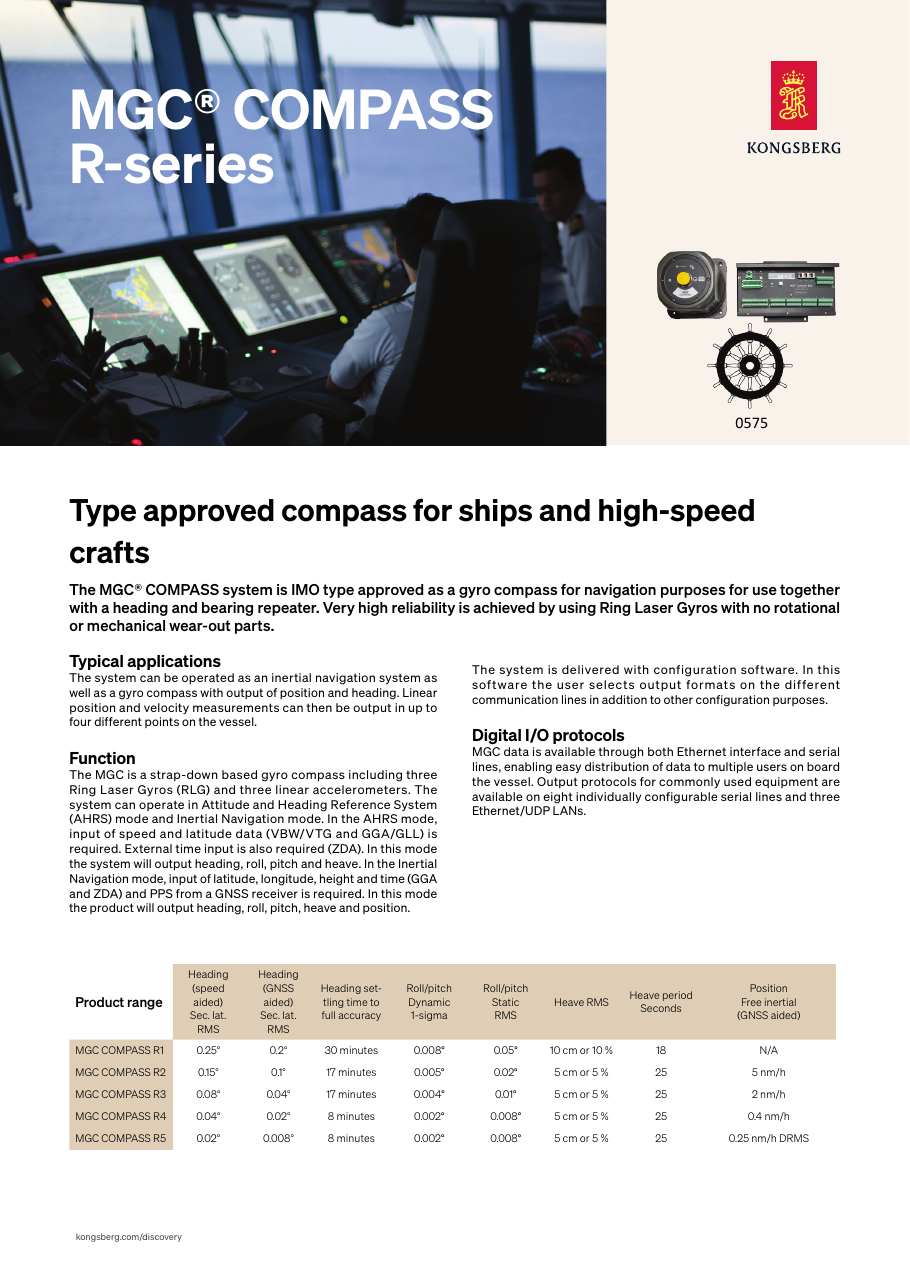

“Type approved compass for ships and high-speed crafts The MGC® COMPASS system is IMO type approved as a gyro compass for navigation purposes for use together with a heading and bearing repeater. Very…”

Kongsberg MGC COMPASS R3 – Photo (68e74d59464b_S1-1 S. 1)
Photo · 68e74d59464b_S1-1 · S. 1
Kongsberg MGC COMPASS R3 – Photo (68e74d59464b_S1-1 S. 1)
Photo · 68e74d59464b_S1-1 · S. 1
Kongsberg MGC COMPASS R3 – Photo (68e74d59464b_S1-1 S. 1)
Photo · 68e74d59464b_S1-1 · S. 1
Kongsberg MGC COMPASS R3 – Photo (68e74d59464b_S1-1 S. 1)
Photo · 68e74d59464b_S1-1 · S. 1
Kongsberg MGC COMPASS R3 – Photo (68e74d59464b_S1-1 S. 1)
Photo · 68e74d59464b_S1-1 · S. 1
Kongsberg MGC COMPASS R3 – Drawing (68e74d59464b_S1-1 S. 1)
Drawing · 68e74d59464b_S1-1 · S. 1
Source: Kongsberg MGC COMPASS R3 datasheet, p. 1
