Library› Navigation› Navigation & Bridge Equipment› Echo Sounder› Skipper Electronics GDS102
Skipper Electronics

GDS102

Echo Sounder · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating temperature-15 to +55 degrees C.
Storage temperature-20 to +70 degrees C.
Protection, transducer6 bar.
Protection, junction boxIP 56.
Supply voltage115 V AC (96 to 125 V), 230 V AC (195 to 253 V). 24V DC (20 to 32 V). (Automatic
Power consumptionApp. 60 W at 24 V, App. 80 W at 115 V or 230 V.
Alarm relayChange-over contact, max. 24 V 300 mA.
Humidity10 to 90 % relative, no condensation.
ProtectionIP 42.
Measuring accuracyBetter than 1 %.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The GDS102 is a device that provides voltage selection and fuse protection for AC and DC power.Source: Skipper Electronics GDS102 datasheet, p. 36

Applications

  • chart plotting
  • depth measurement

Features

  • Parameter entry via buttons and encoder
  • Adjustable depth range

Options

  • IR301 digital remote depth indicator
  • LCD repeater
  • Remote keyboard
  • Remote sounding control (GDS102S)
  • Reduced power output
  • Sound speed calibration (GDS102S)
Source: Skipper Electronics GDS102 datasheet, p. 70

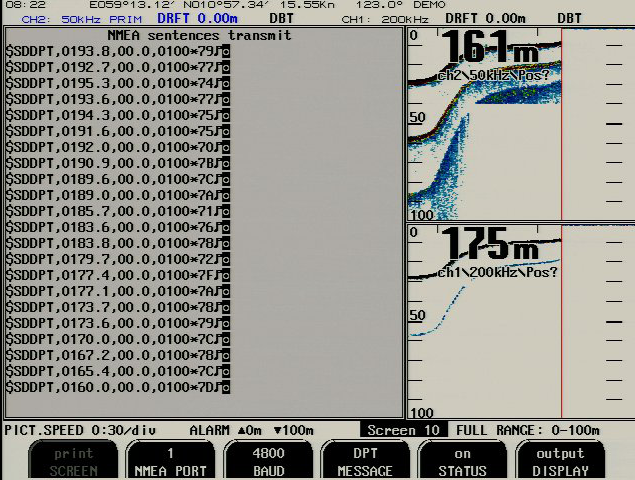

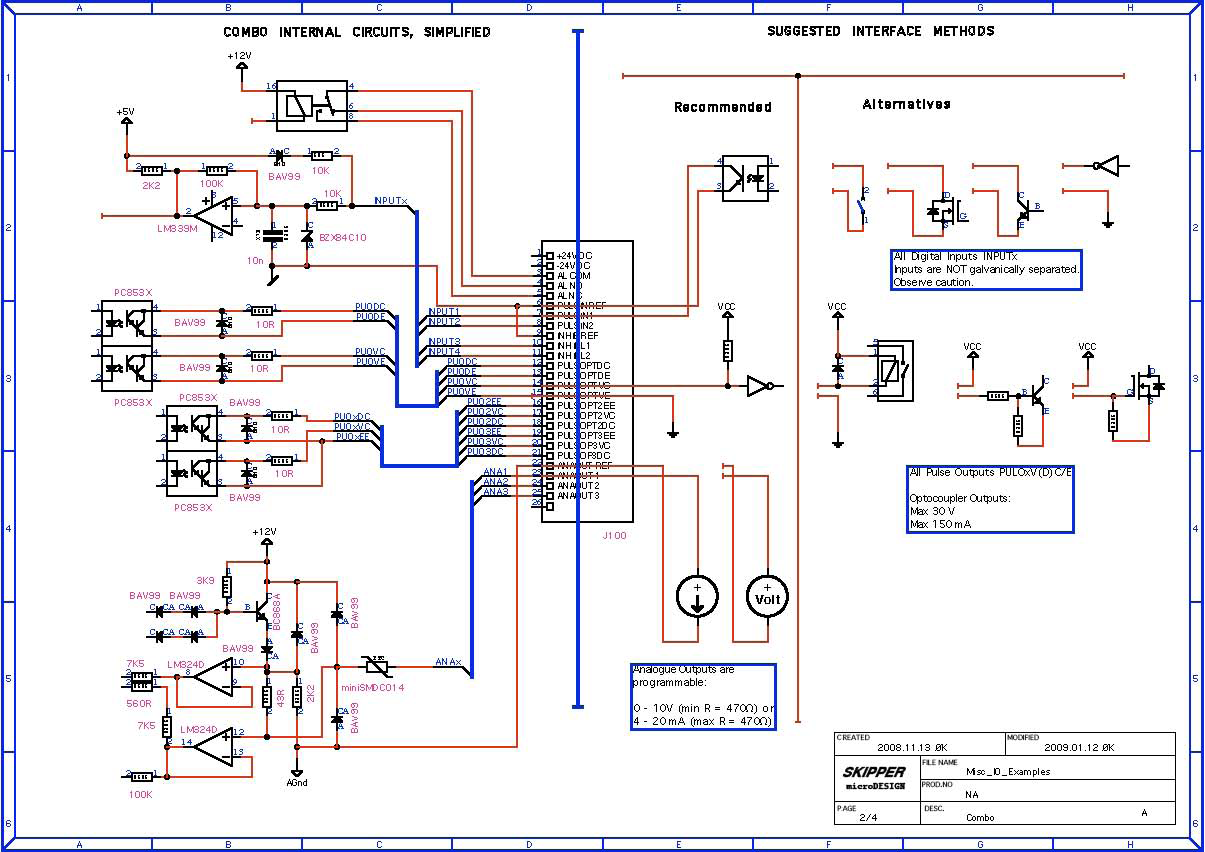

Skipper Electronics GDS102 – Photo (42756bc7ad31_S12-70 S. 12)
Photo · 42756bc7ad31_S12-70 · S. 12

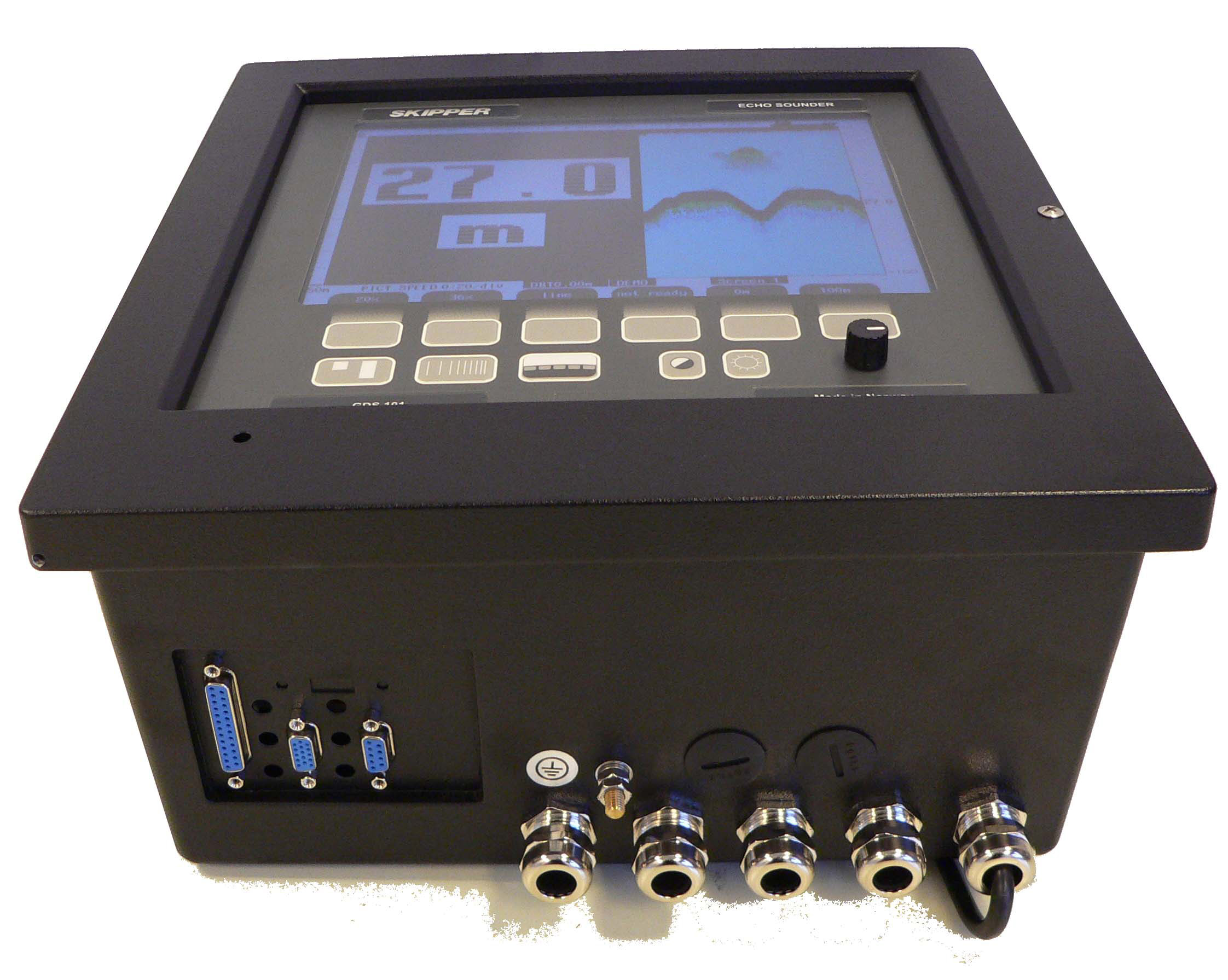

Skipper Electronics GDS102 – Photo (42756bc7ad31_S12-70 S. 13)
Photo · 42756bc7ad31_S12-70 · S. 13

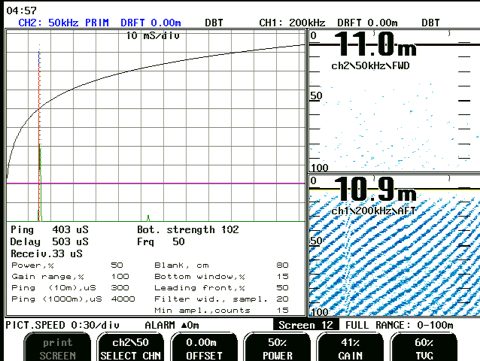

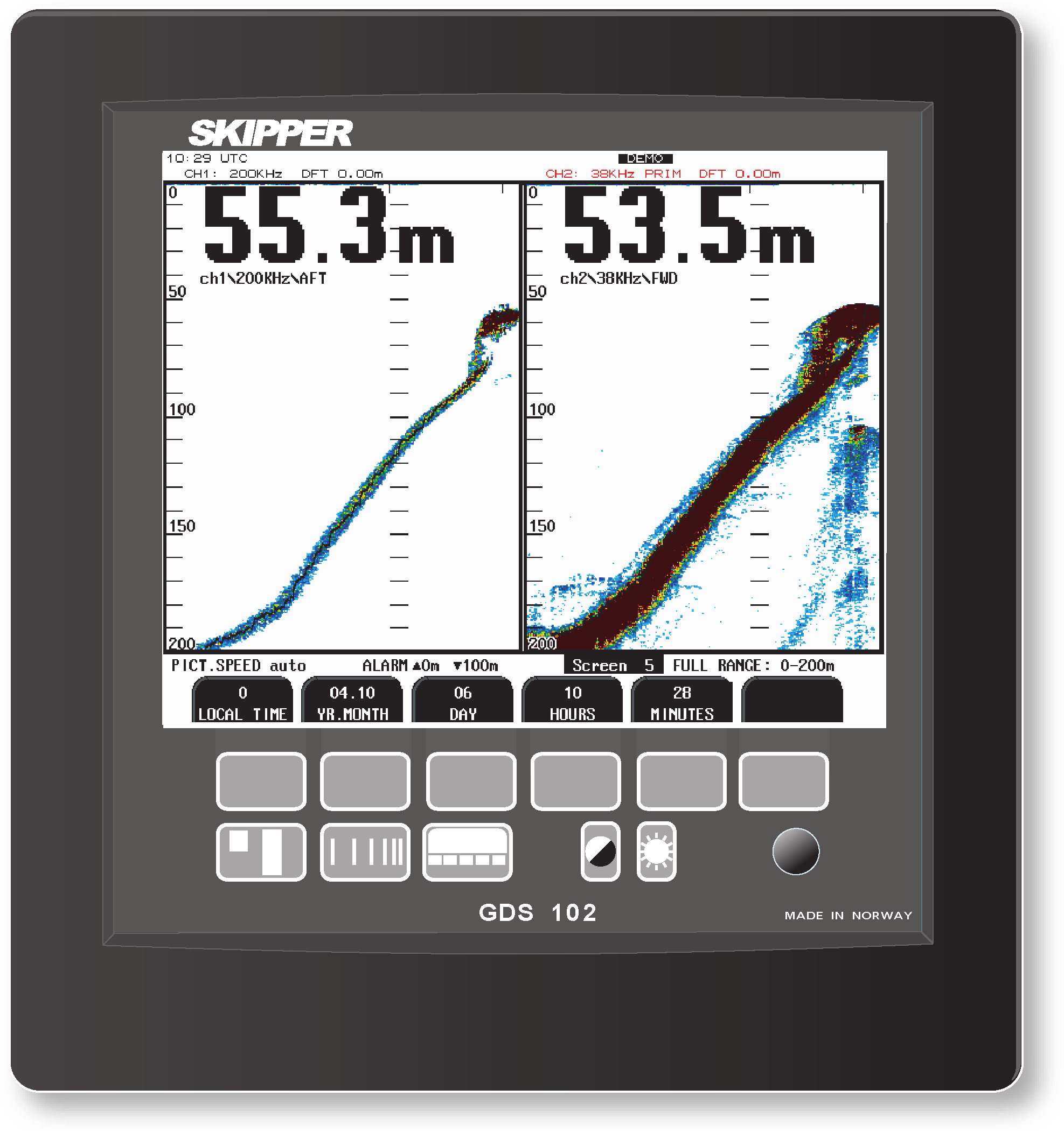

Skipper Electronics GDS102 – Photo (42756bc7ad31_S12-70 S. 14)
Photo · 42756bc7ad31_S12-70 · S. 14

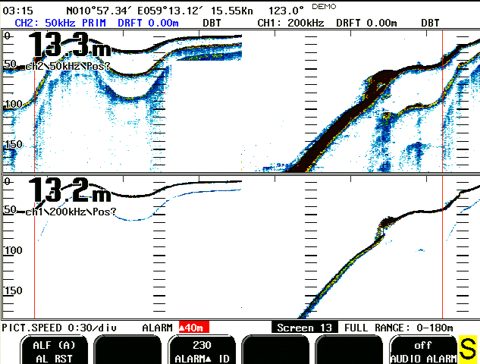

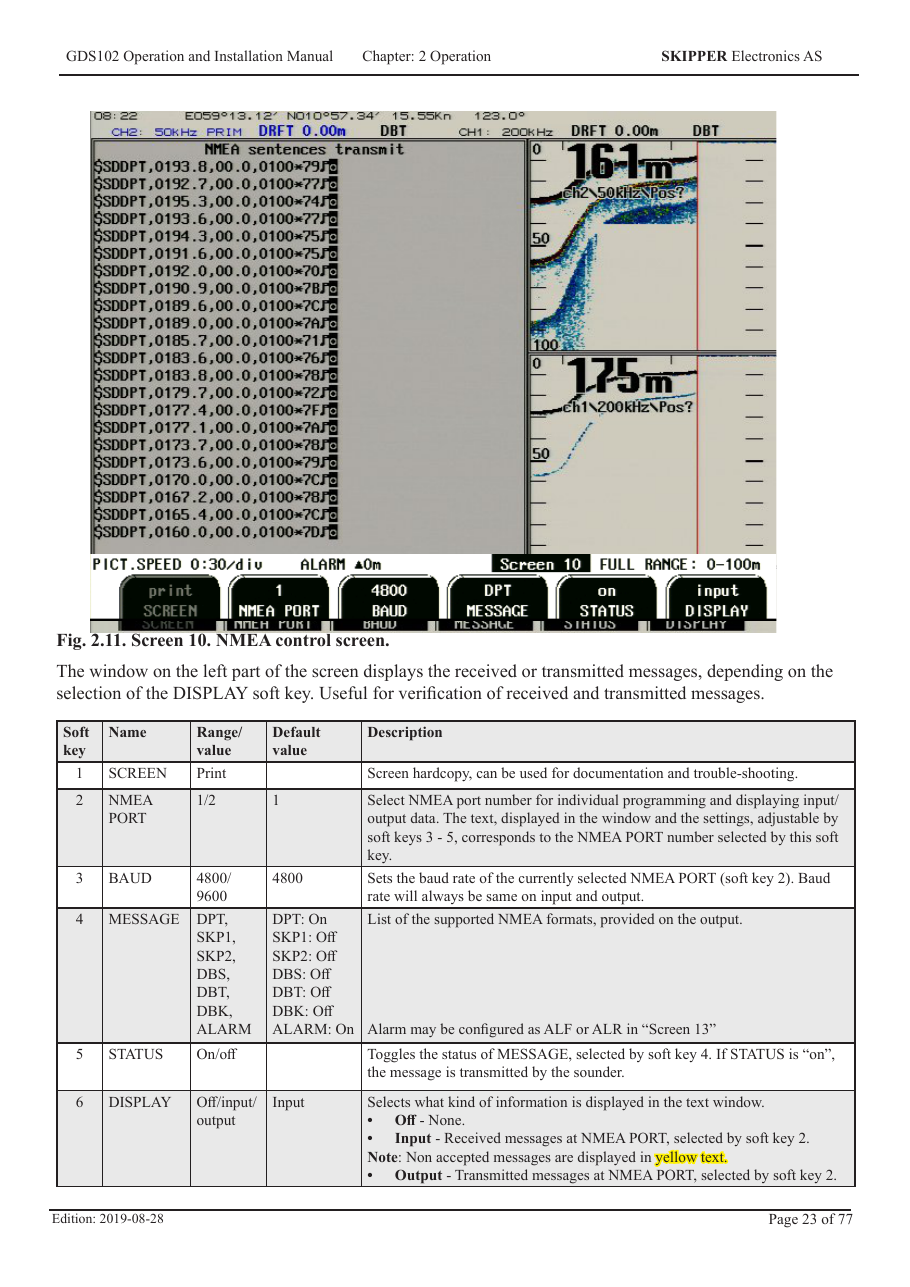

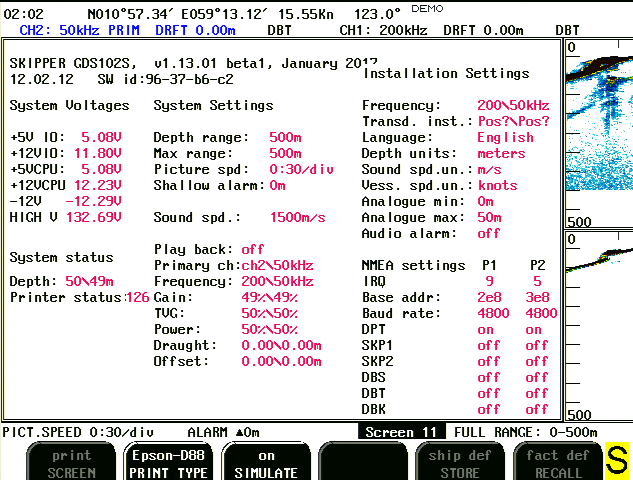

Skipper Electronics GDS102 – Photo (42756bc7ad31_S12-70 S. 16)
