sperreair

XA060

Air Compressor · Air Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Speed1475 RPM
Frequency50 Hz
Charging capacity65 m3/h
Power requirement10,0 kW
Heat dissipation7 738 kCal/h
Cooling air requirement3.100 m3/h
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

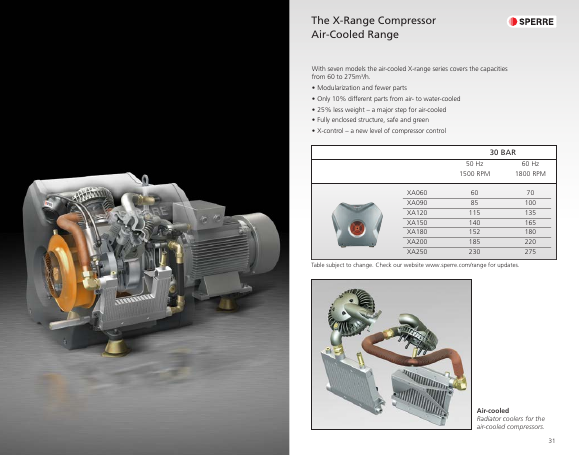

“With 21 compressors the Sperre range includes all the capacities needed by the marine market. The air-cooled capacity runs from 11 to 275m3/h. The water-cooled range runs from 60 to 470m3/h.”

sperreair XA060 – Drawing (eb7e657683de_S6-18 S. 6)
Drawing · eb7e657683de_S6-18 · S. 6

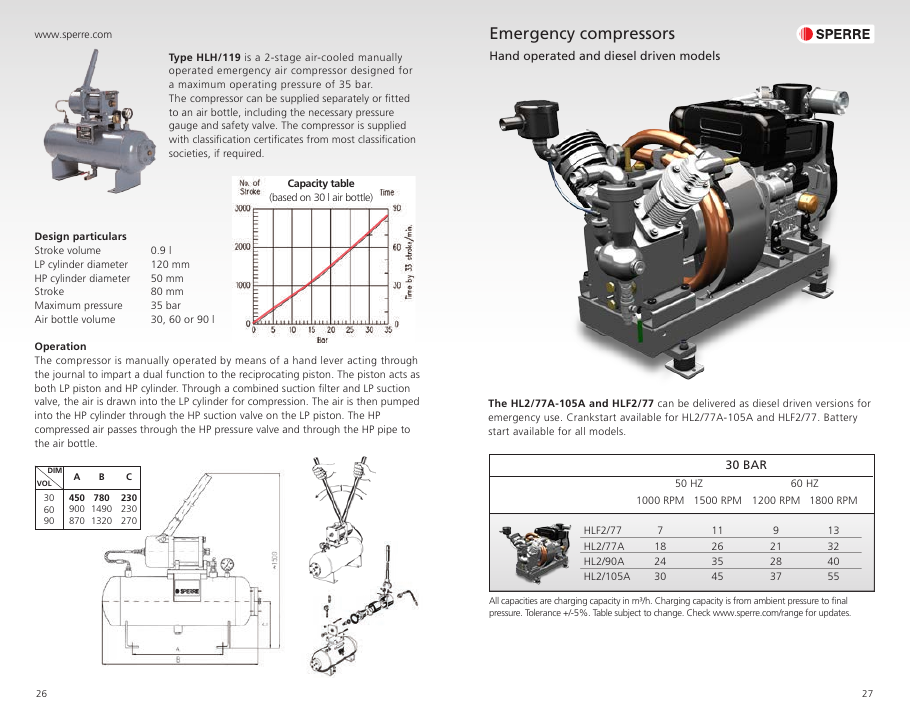

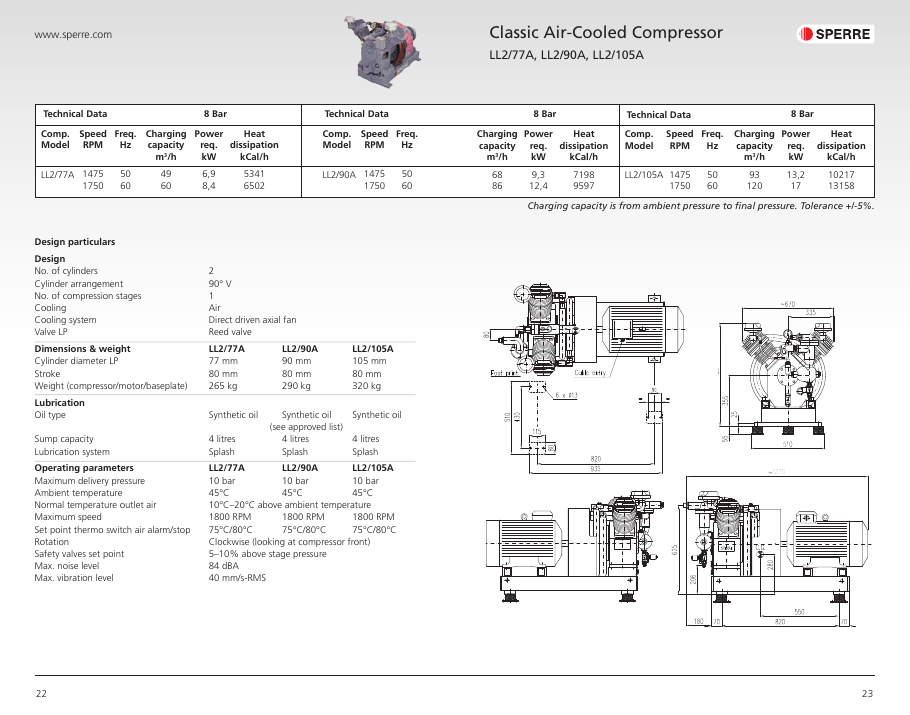

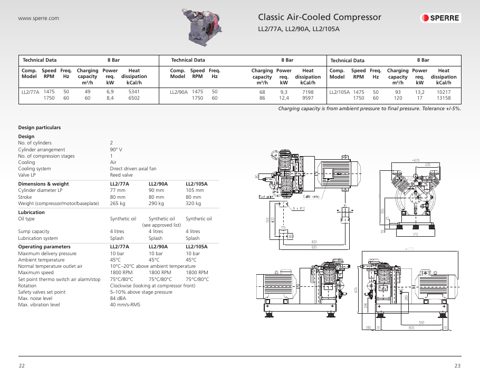

sperreair XA060 – Drawing (eb7e657683de_S6-18 S. 7)
Drawing · eb7e657683de_S6-18 · S. 7

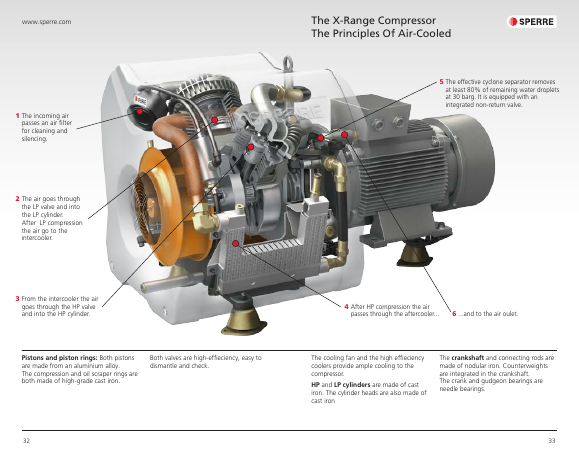

sperreair XA060 – Drawing (eb7e657683de_S6-18 S. 9)
Drawing · eb7e657683de_S6-18 · S. 9

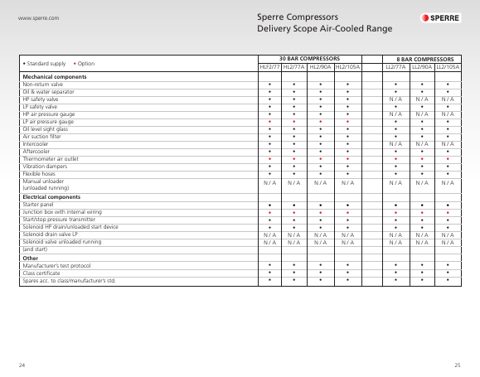

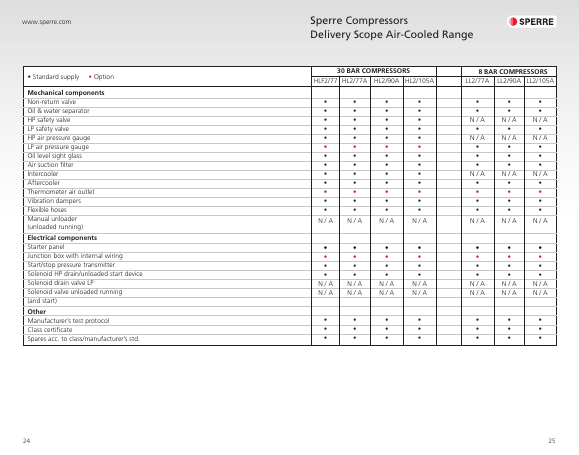

sperreair XA060 – Page preview (eb7e657683de_S6-18 S. 8)
Page preview · eb7e657683de_S6-18 · S. 8
sperreair XA060 – Page preview (eb7e657683de_S6-18 S. 10)
Page preview · eb7e657683de_S6-18 · S. 10
sperreair XA060 – Page preview (eb7e657683de_S6-18 S. 11)
Page preview · eb7e657683de_S6-18 · S. 11
sperreair XA060 – Page preview (eb7e657683de_S6-18 S. 12)
Page preview · eb7e657683de_S6-18 · S. 12
Source: sperreair XA060 datasheet, p. 1
