Library› Engine Room› Air Treatment› Air Dryer› Munters MG90
Munters

MG90

Air Dryer · Air Treatment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Fabr. No0919 190XXX XXXXX
Year of manufacture2009
Weight10 kg
Voltage0 · 230V 50 Hz
M0,09 kW
Max0,74 kW
IP ratingIP 44
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Figure 1.2 Identification plate Explanation of "Fabr. No" on the identification plate: 09: Year of manufacture 19: Week of manufacture 190XXX: Article number XXXXX: Serial number”

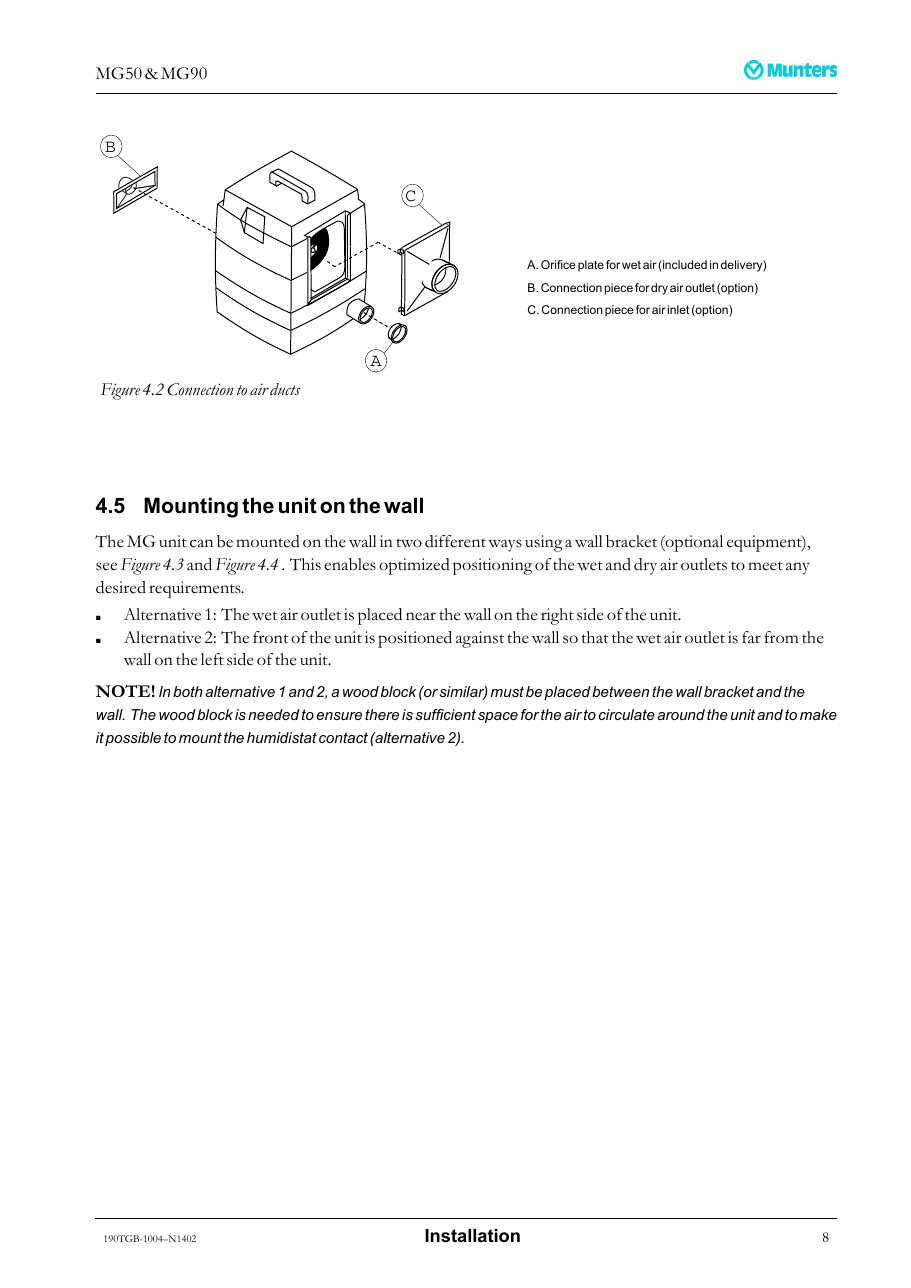

Munters MG90 – Drawing (5e33bfee40c6_S6-24 S. 6)
Drawing · 5e33bfee40c6_S6-24 · S. 6

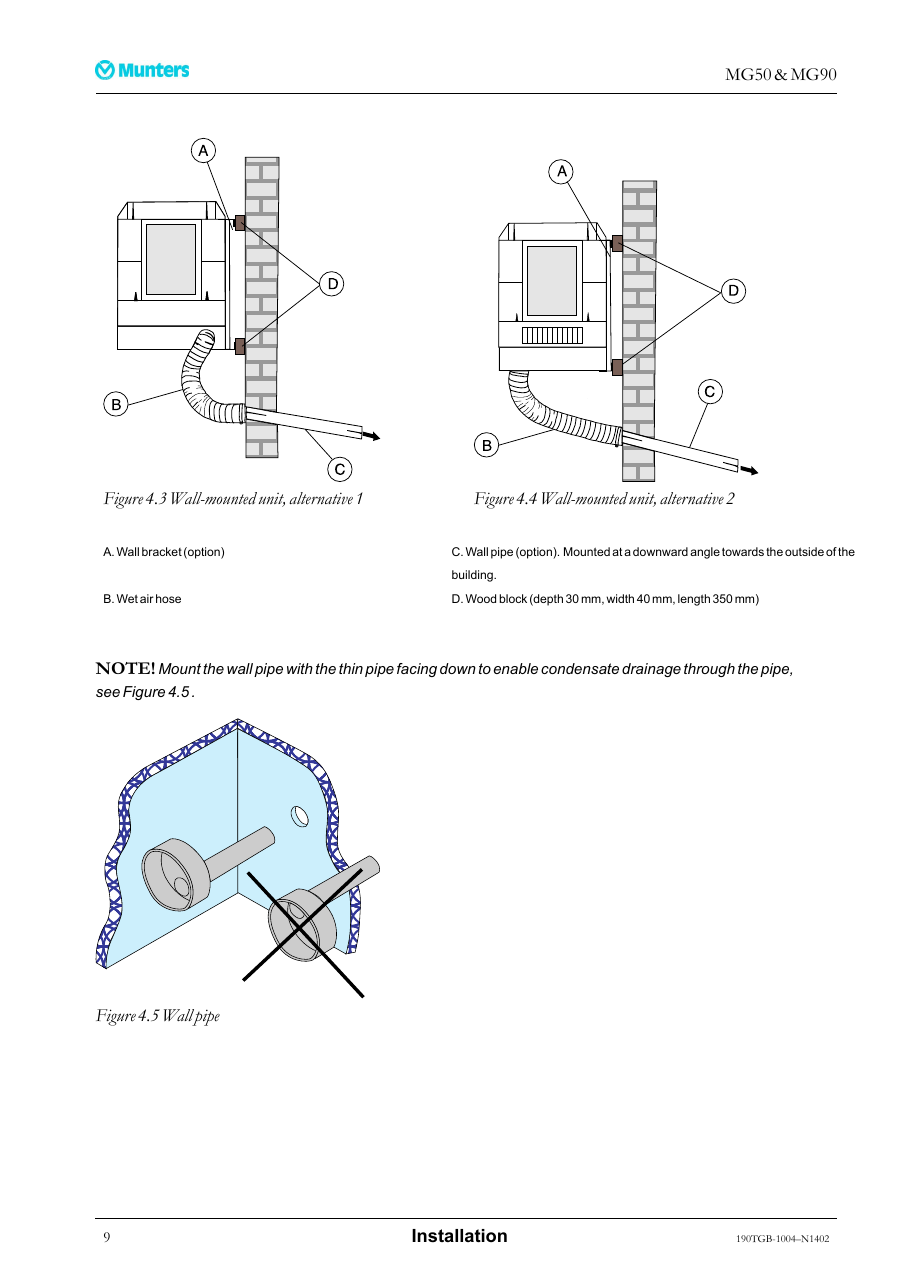

Munters MG90 – Drawing (5e33bfee40c6_S6-24 S. 7)
Drawing · 5e33bfee40c6_S6-24 · S. 7

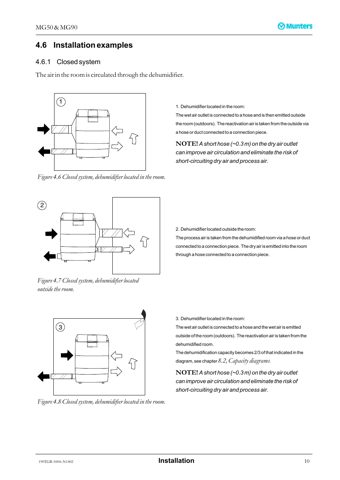

Munters MG90 – Drawing (5e33bfee40c6_S6-24 S. 8)
Drawing · 5e33bfee40c6_S6-24 · S. 8

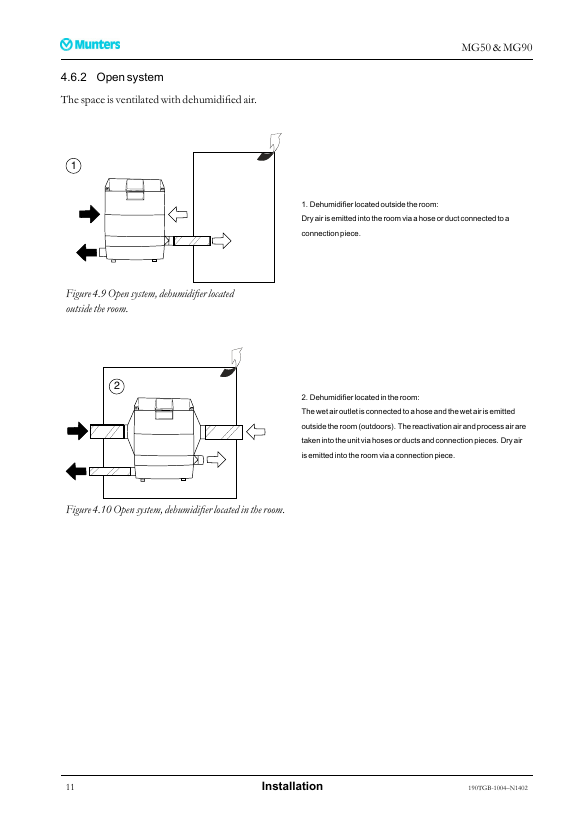

Munters MG90 – Page preview (5e33bfee40c6_S6-24 S. 9)
Page preview · 5e33bfee40c6_S6-24 · S. 9

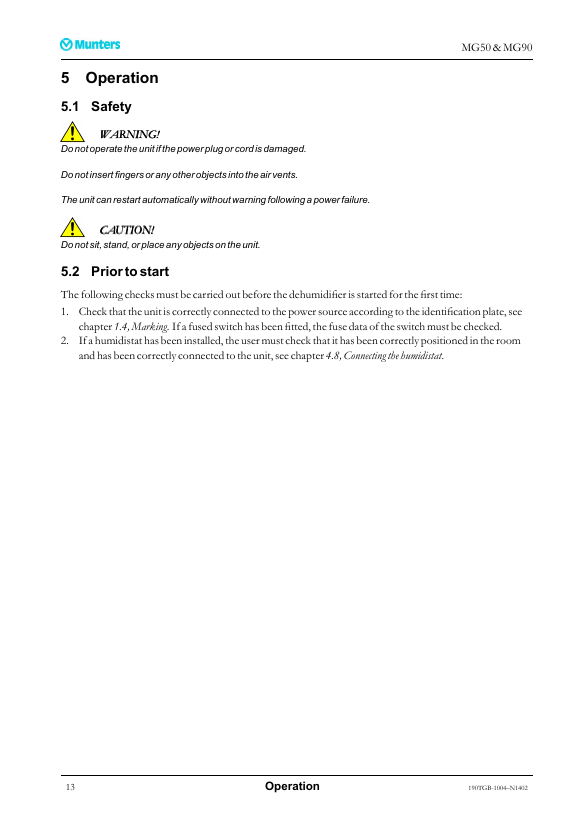

Munters MG90 – Page preview (5e33bfee40c6_S6-24 S. 10)
Page preview · 5e33bfee40c6_S6-24 · S. 10

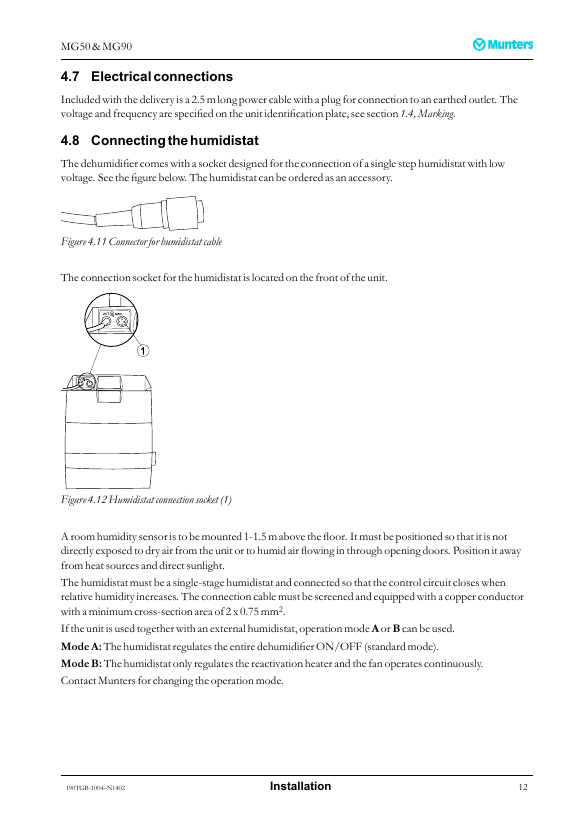

Munters MG90 – Page preview (5e33bfee40c6_S6-24 S. 11)
Page preview · 5e33bfee40c6_S6-24 · S. 11

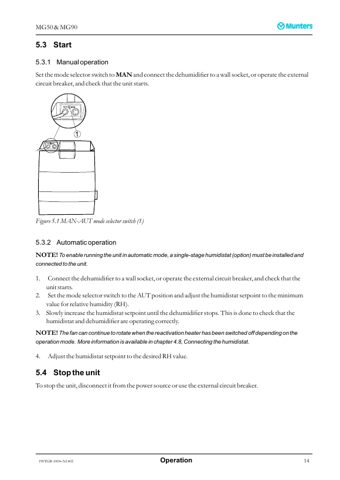

Munters MG90 – Page preview (5e33bfee40c6_S6-24 S. 12)
Page preview · 5e33bfee40c6_S6-24 · S. 12
Source: Munters MG90 datasheet, p. 1
