Atlas Copco Marine

FD 5-95

Air Dryer · Air Treatment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Available in sizes from6 to 95 l/s/13 to 201 cfm.🔖
Pressure dew point as low as+3°C/+37.4°F.🔖
Low pressure droptypically below 0.2 bar/2.9 psi🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The FD 5-95 is a low-noise compressor with a liquid separator designed for efficient air compression with minimal energy consumption.

Features

  • low pressure drop
  • compact heat exchanger
  • electronic no-loss condensate drain
  • remote control options
  • alarm history
Atlas Copco Marine FD 5-95 – Photo (0d21672a92fd_S2-4 S. 2)
Photo · 0d21672a92fd_S2-4 · S. 2

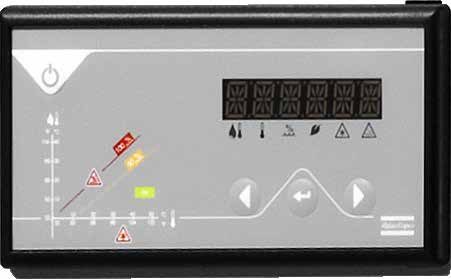

Atlas Copco Marine FD 5-95 – Photo (0d21672a92fd_S2-4 S. 3)
Photo · 0d21672a92fd_S2-4 · S. 3

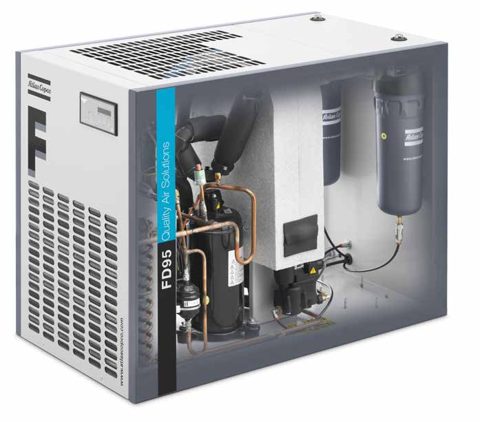

Atlas Copco Marine FD 5-95 – Photo (0d21672a92fd_S2-4 S. 3)
Photo · 0d21672a92fd_S2-4 · S. 3
Atlas Copco Marine FD 5-95 – Drawing (0d21672a92fd_S2-4 S. 2)
Drawing · 0d21672a92fd_S2-4 · S. 2

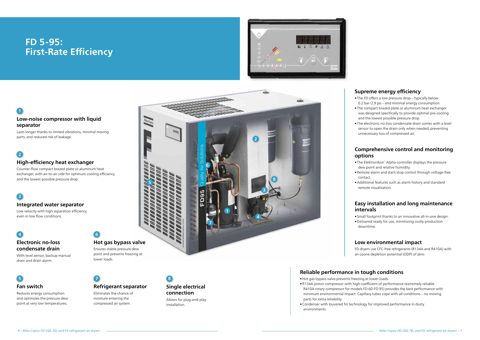

Atlas Copco Marine FD 5-95 – Drawing (0d21672a92fd_S2-4 S. 3)
Drawing · 0d21672a92fd_S2-4 · S. 3
Source: Atlas Copco Marine FD 5-95 datasheet, p. 4
