Library› Deck› Deck Cranes› Deck Crane› speccodexlinkbelt 5874–0426–V8
speccodexlinkbelt

5874–0426–V8

Deck Crane · Deck Cranes

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Deck Crane — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Engine RPM at full load speed2,000 rpm
Hi-idle RPM800 rpm
Gross engine hp282 hp (210kw)
Peak torque950 ft lb (1288Nm) @ 1,500 rpm
Number of cylinders6
Bore and stroke4.20 x 4.88 in (107 x 124mm)
Piston displacement408 in3 (6.7L)
Electrical system24 volt
Fuel tank capacity118 gal (450L)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Upper Structure Frame All welded and precision machined surfaces for mating parts. Turntable Bearing • Inner race with internal swing gear is bolted to lower frame. • Outer race is bolted to upper…”

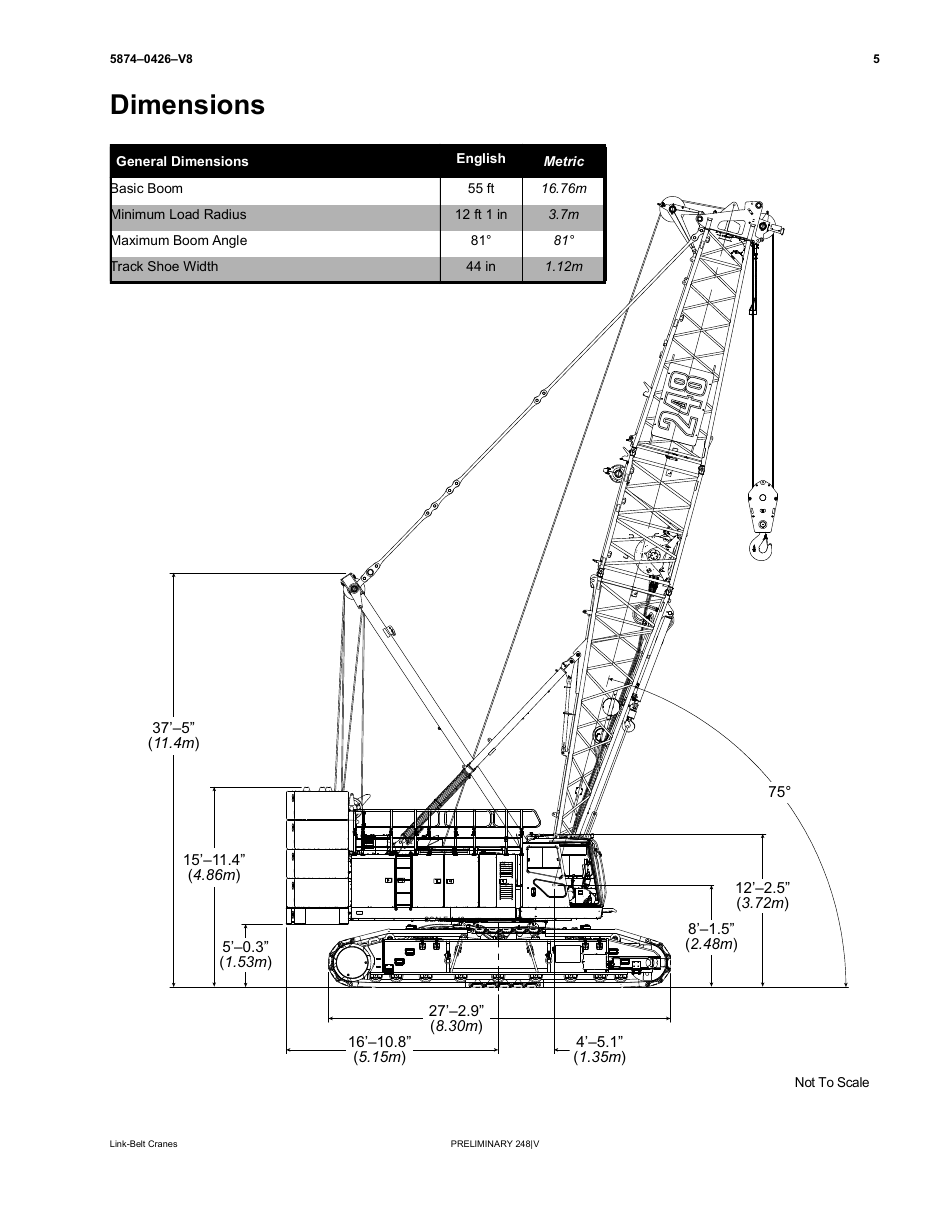

speccodexlinkbelt 5874–0426–V8 – Drawing (dd25cfc7dadb_S5-27 S. 5)
Drawing · dd25cfc7dadb_S5-27 · S. 5
speccodexlinkbelt 5874–0426–V8 – Drawing (dd25cfc7dadb_S5-27 S. 7)
Drawing · dd25cfc7dadb_S5-27 · S. 7

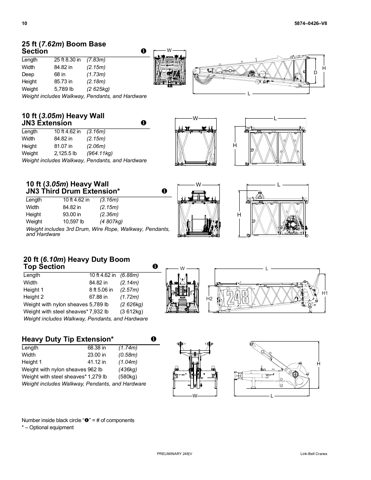

speccodexlinkbelt 5874–0426–V8 – Drawing (dd25cfc7dadb_S5-27 S. 10)
Drawing · dd25cfc7dadb_S5-27 · S. 10

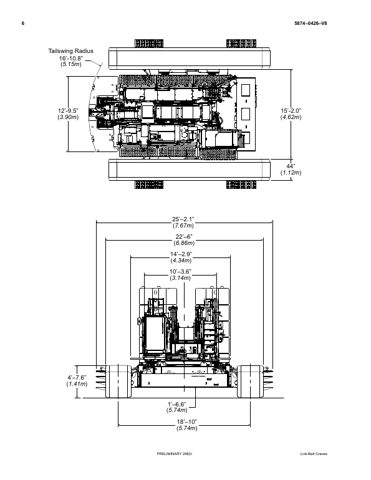

speccodexlinkbelt 5874–0426–V8 – Page preview (dd25cfc7dadb_S5-27 S. 6)
Page preview · dd25cfc7dadb_S5-27 · S. 6

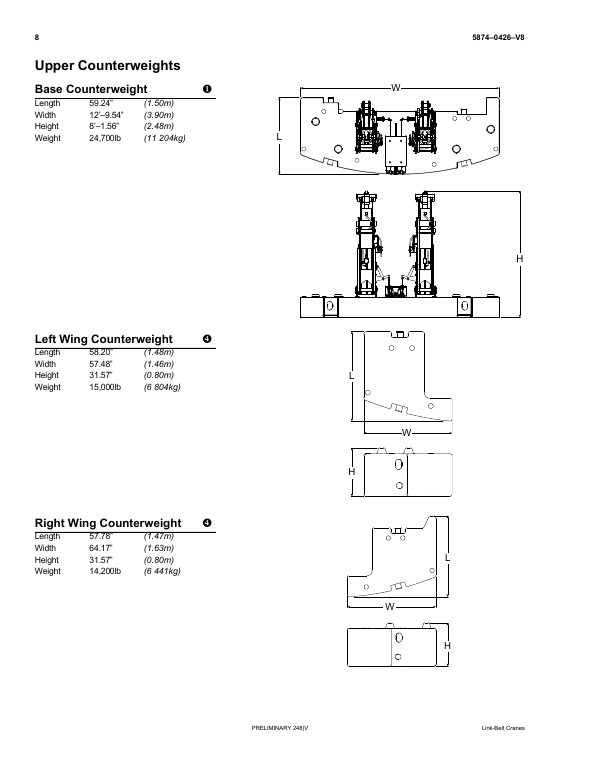

speccodexlinkbelt 5874–0426–V8 – Page preview (dd25cfc7dadb_S5-27 S. 8)
Page preview · dd25cfc7dadb_S5-27 · S. 8

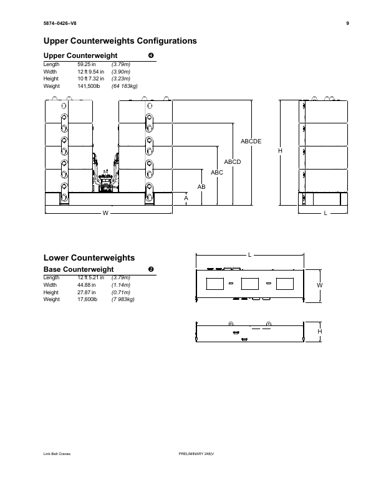

speccodexlinkbelt 5874–0426–V8 – Page preview (dd25cfc7dadb_S5-27 S. 9)
Page preview · dd25cfc7dadb_S5-27 · S. 9

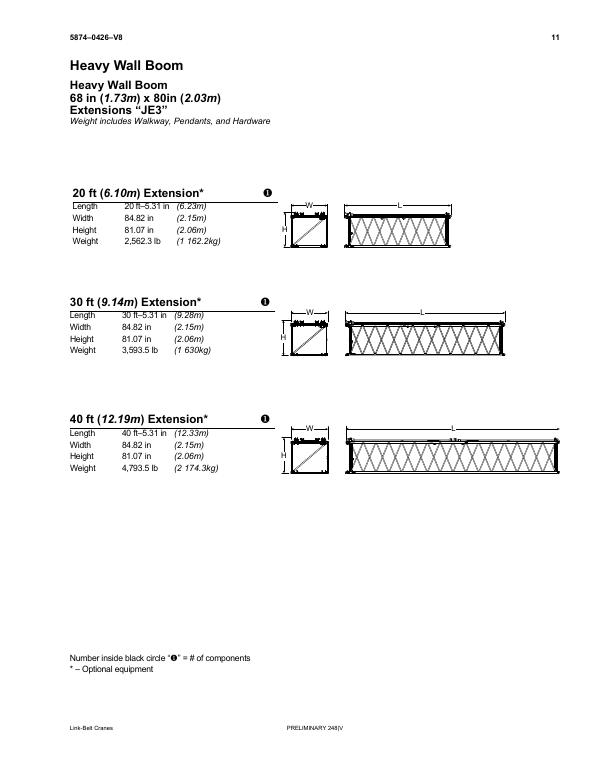

speccodexlinkbelt 5874–0426–V8 – Page preview (dd25cfc7dadb_S5-27 S. 11)
Page preview · dd25cfc7dadb_S5-27 · S. 11
Source: speccodexlinkbelt 5874–0426–V8 datasheet, p. 1
