Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› Chint NL210
Chint

NL210

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The NL210 is a residual current operated circuit breaker designed to control electric circuits and protect people and installations from indirect and direct contact hazards and fire risks.

Applications

  • housing
  • tertiary sector
  • industry

Features

  • protects against indirect and direct contact hazards
  • protects against fire hazards due to insulation faults
  • ensures instantaneous tripping
  • detects various types of residual currents

Options

  • AX-5 auxiliary contacts
  • TC-1 terminal cover

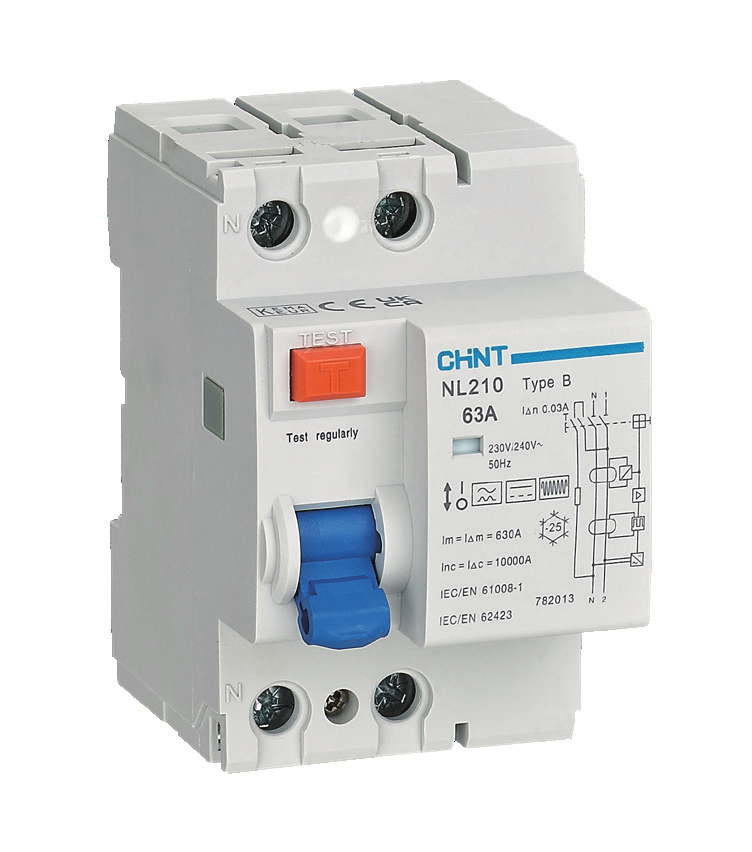

Chint NL210 – Photo (ea8338a7ce67_S1-1 S. 1)
Photo · ea8338a7ce67_S1-1 · S. 1
Chint NL210 – Photo (ea8338a7ce67_S1-1 S. 1)
Photo · ea8338a7ce67_S1-1 · S. 1

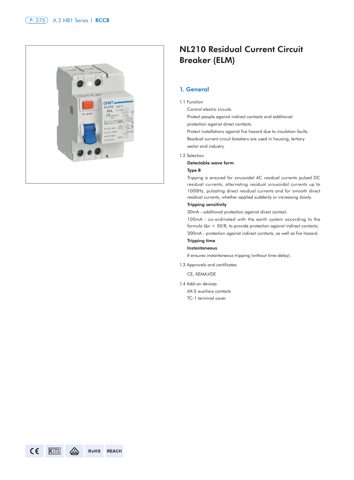

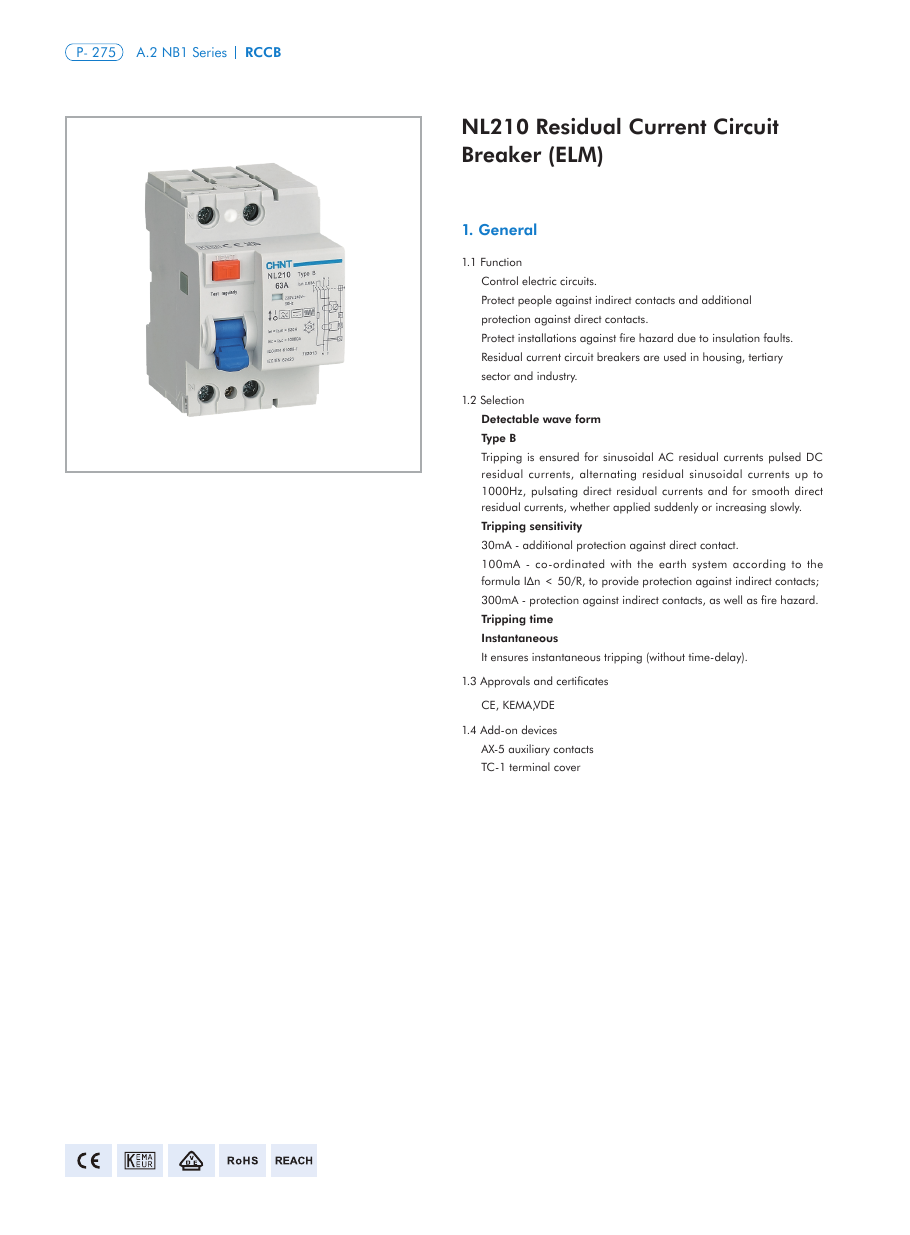

Chint NL210 – Drawing (ea8338a7ce67_S1-1 S. 1)
Drawing · ea8338a7ce67_S1-1 · S. 1

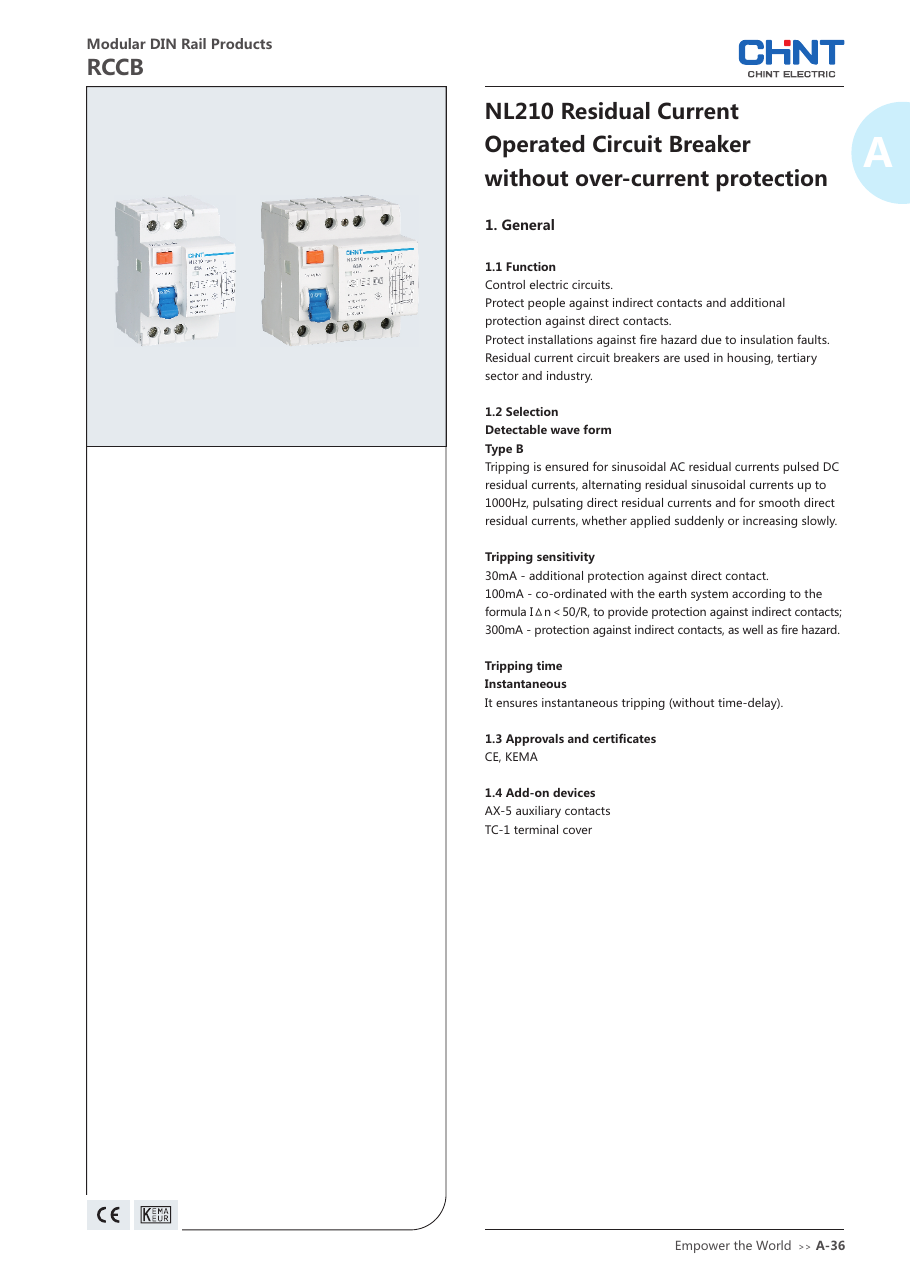

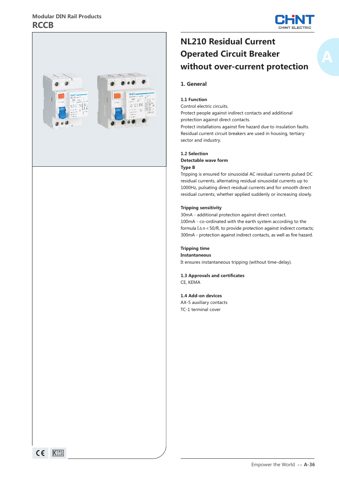

Chint NL210 – Drawing (6fcd1b9fd6b4_S1-1 S. 1)
Drawing · 6fcd1b9fd6b4_S1-1 · S. 1
Source: Chint NL210 datasheet, p. 1
