Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› Chint NB1L-20
Chint

NB1L-20

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Pole1P+N
Current6-20A
Rating6kA
1p+n6-20A
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“2.3 Derrateo de temperature (derating) La máxima corriente permisible en un interruptor depende de la temperatura ambiente del lugar donde el equipo ha sido montado. La temperatura ambiente es la…”Source: Chint NB1L-20 datasheet, p. 1

Features

  • IP20 protection rating

Standards

  • IEC/EN 61009-1

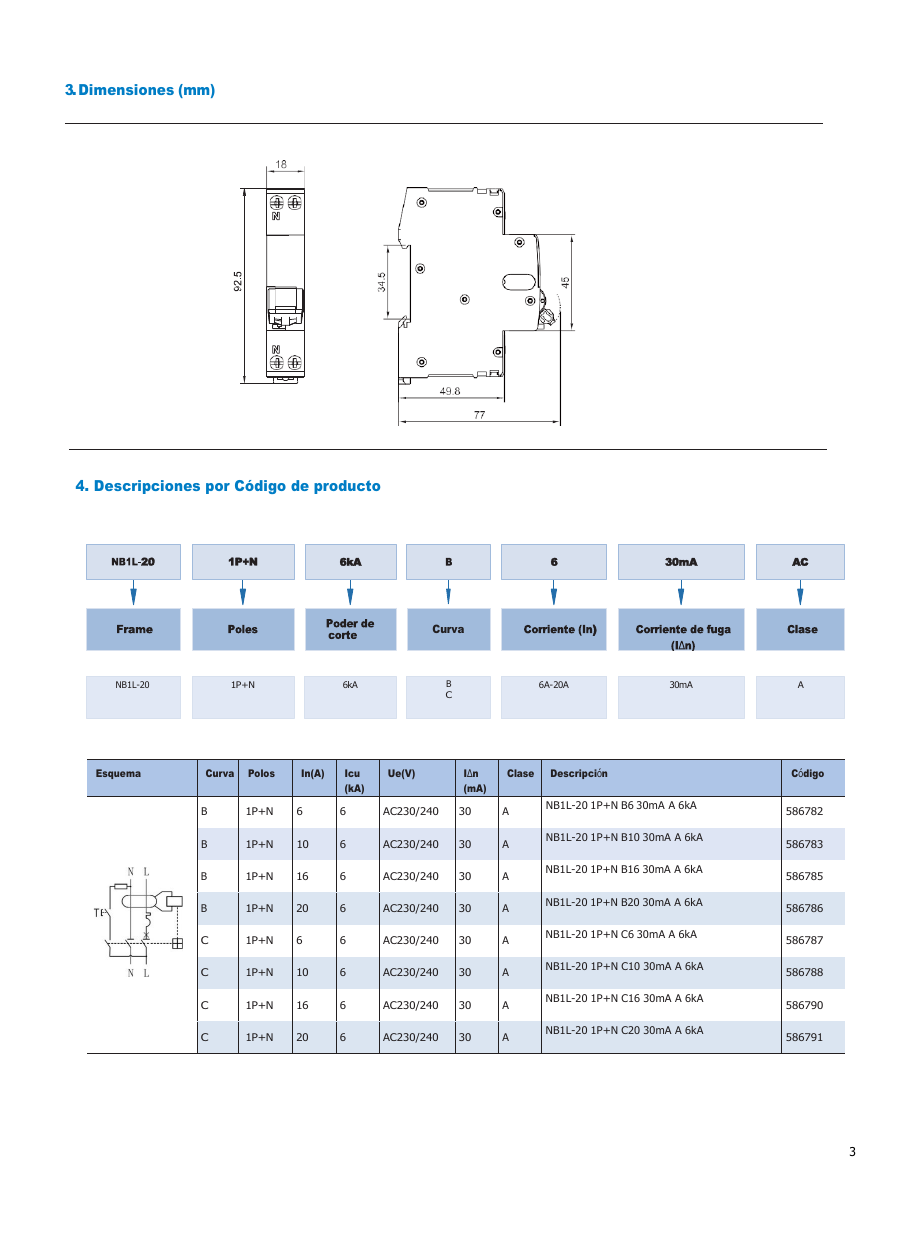

Chint NB1L-20 – Photo (99e183781e7c_S2-3 S. 2)
Photo · 99e183781e7c_S2-3 · S. 2
Chint NB1L-20 – Photo (99e183781e7c_S2-3 S. 2)
Photo · 99e183781e7c_S2-3 · S. 2

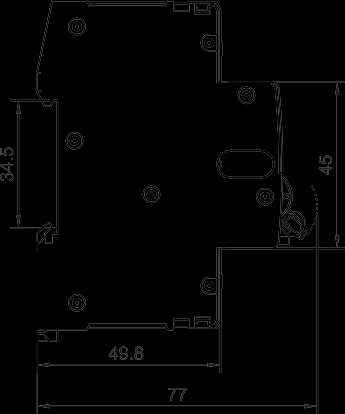

Chint NB1L-20 – Drawing (99e183781e7c_S2-3 S. 2)
Drawing · 99e183781e7c_S2-3 · S. 2

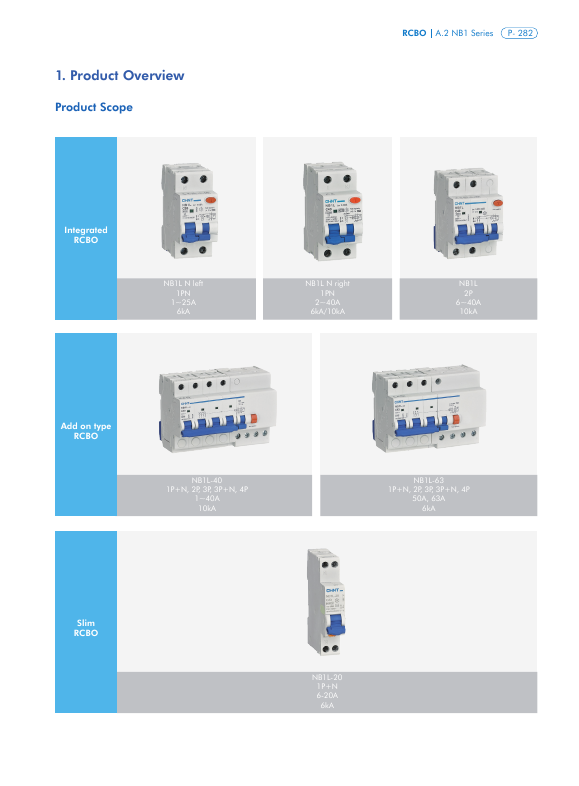

Chint NB1L-20 – Page preview (748570f305b6_S1-1 S. 1)
Page preview · 748570f305b6_S1-1 · S. 1
Source: Chint NB1L-20 datasheet, p. 2
