Library› Engine Room› Freshwater Generators› Freshwater Generator / Watermaker› Spectra Watermakers 200T
Spectra Watermakers

200T

Freshwater Generator / Watermaker · Freshwater Generators

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Production / Day200 gal (757 l)
Production / Hour8.3 gal (31 l)
Power Requirement12v DC 10A / 24v DC 5A
Weight60 lbs (27.7 kg)
Salt Rejection99.2%
Temperature RangeMax 110F/37C Min 36F/2C
Baseline Conditions33,000 PPM feed water at 77F/25C
pH Range3-11 (typical seawater pH is 8)
Chlorine Tolerance0 PPM
Shipping Weight80 lbs (36 kg)
Shipping Dimensions33”x25”x19”, 84cm x 64cm x 49cm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

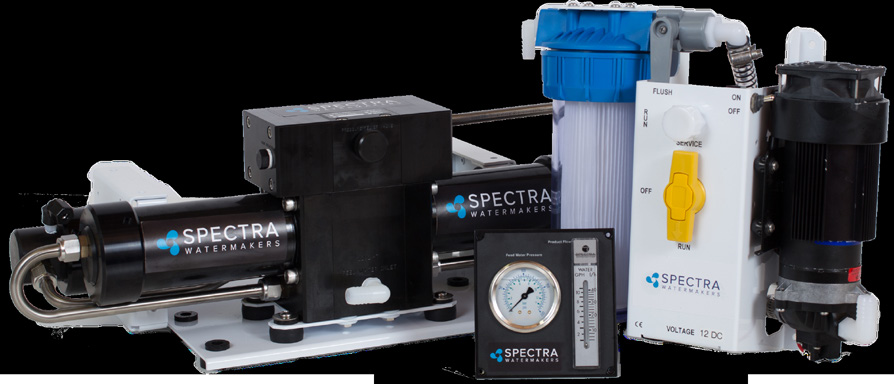

“FACTS The Ventura 200T is the same size and configuration as the Ventura 150, but uses a higher displacement Clark Pump to produce more water. This allows it to operate in warm waters above 50F…”

Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 1)
Photo · ff3b16c30f32_S1-2 · S. 1
Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 1)
Photo · ff3b16c30f32_S1-2 · S. 1
Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 1)
Photo · ff3b16c30f32_S1-2 · S. 1
Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 1)
Photo · ff3b16c30f32_S1-2 · S. 1
Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 1)
Photo · ff3b16c30f32_S1-2 · S. 1

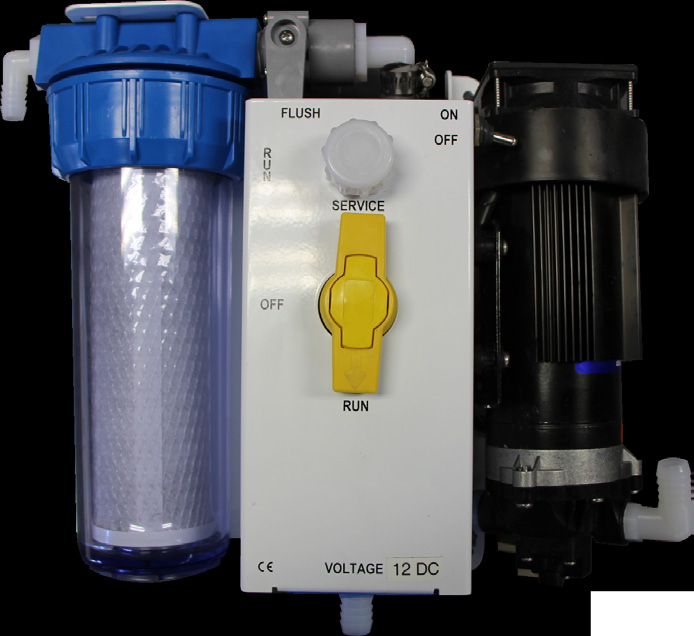

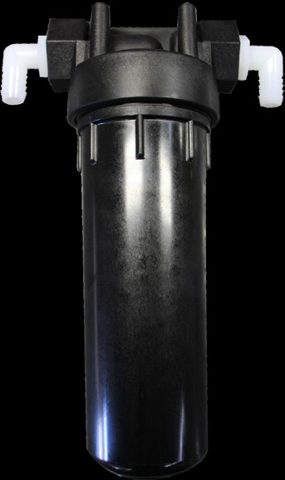

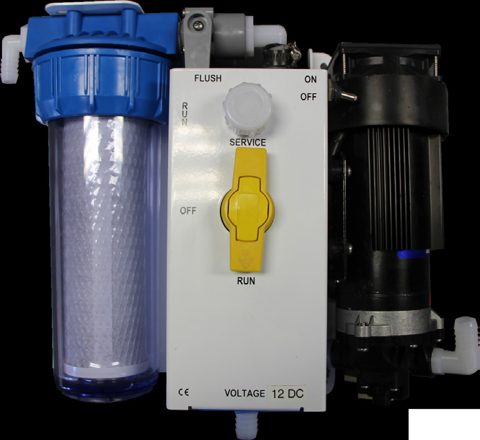

Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 2)
Photo · ff3b16c30f32_S1-2 · S. 2
Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 2)
Photo · ff3b16c30f32_S1-2 · S. 2
Spectra Watermakers 200T – Photo (ff3b16c30f32_S1-2 S. 2)
Photo · ff3b16c30f32_S1-2 · S. 2
Source: Spectra Watermakers 200T datasheet, p. 1
