Library› Safety & LSA› Life Rafts› Inflatable Life Raft (SOLAS-A)› VIKING Life-Saving Equipment Norway VNJY-55
VIKING Life-Saving Equipment Norway

VNJY-55

Inflatable Life Raft (SOLAS-A) · Life Rafts

Technical data from manufacturer or class sources · not yet verified by a person
Persons capacity per SOLAS certificationCapacity
Crew EvacuationMedium

The Viking VNJY-55 is a SOLAS‑A certified inflatable life raft designed to accommodate up to 55 persons, featuring an integrated CO₂ inflation system and hydrostatic release unit for automatic deployment.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Length overall (on fender)5,50 m
Length of hull5,50 m
Beam2,80 m
Height2.68 m
Hook distance5,10 m
Capacity, SOLAS maximum40 persons
Weight, fully equipped2350 kg (+/- 10%)
Davit load, with 40 pers@82,5 kg5650 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Totally Enclosed Life Boat (TELB) designed to carry 40 persons, with fire retardant materials and safety features.

Applications

  • davit launching
Source: VIKING Life-Saving Equipment Norway VNJY-55 datasheet, p. 1

Features

  • Davit launching lifeboat
Source: VIKING Life-Saving Equipment Norway VNJY-55 datasheet, p. 1

Options

  • sprinkler pipe system
  • sprinkler pump
  • compressed air system
  • under/overpressure valves

Standards

  • IMO/ SOLAS requirements
  • LSA Code

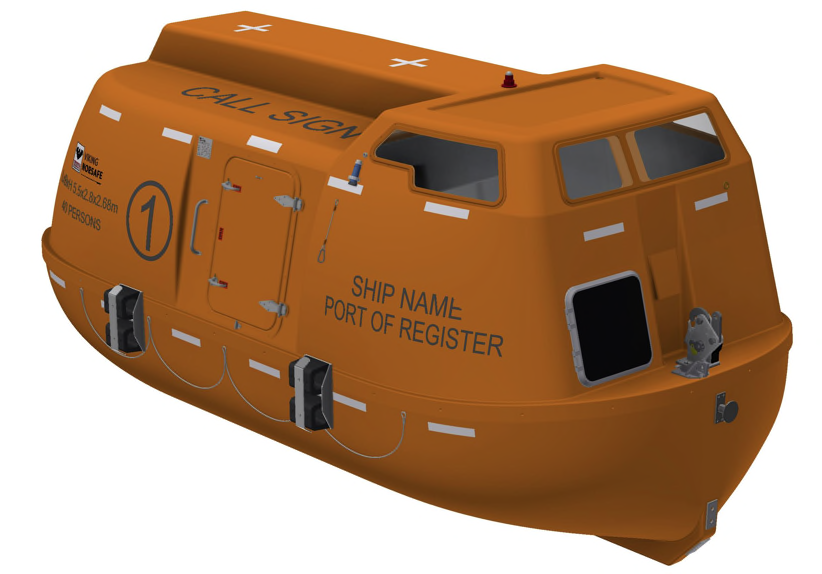

VIKING Life-Saving Equipment Norway VNJY-55 – Photo (d09f1a9f4740_S1-2 S. 1)
Photo · d09f1a9f4740_S1-2 · S. 1

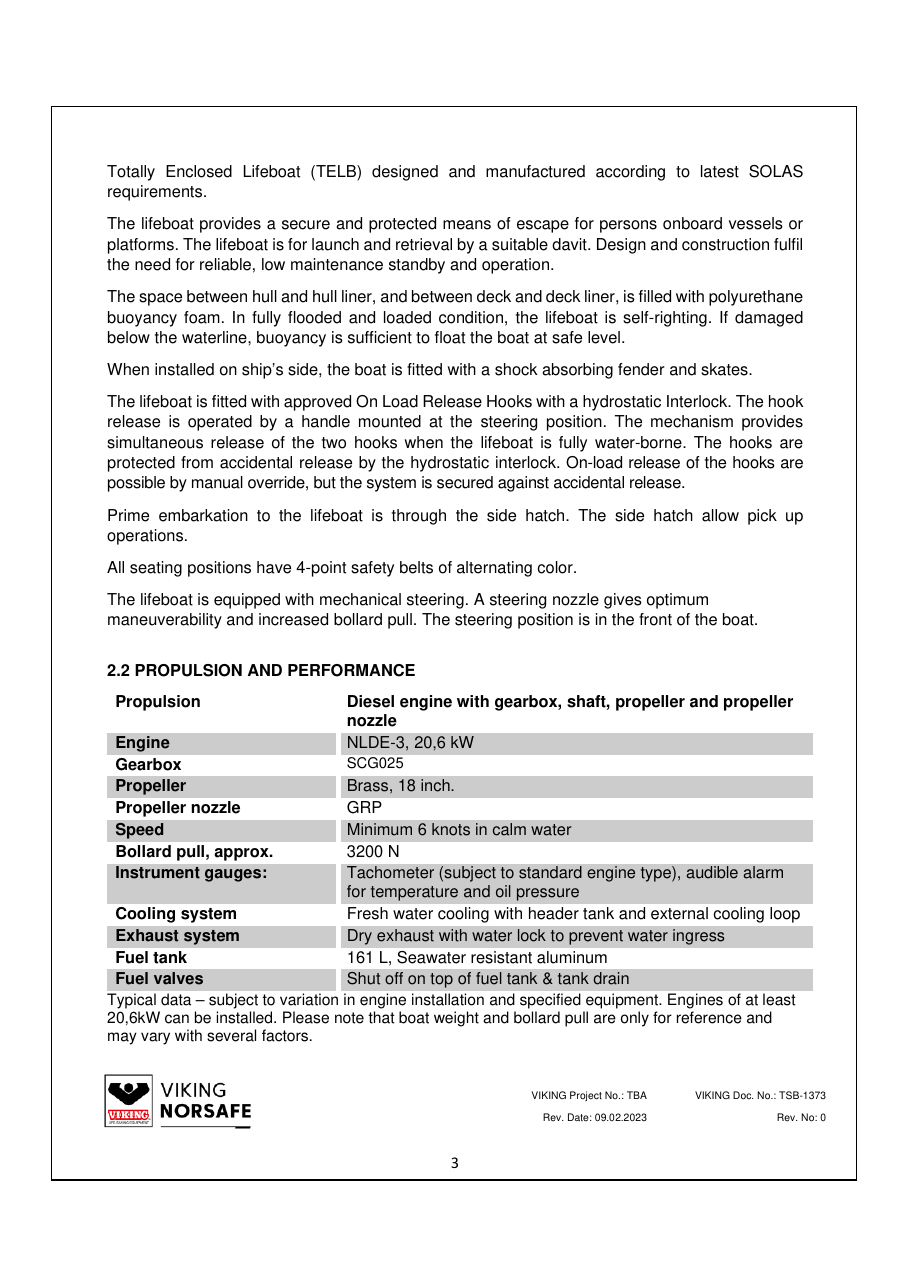

VIKING Life-Saving Equipment Norway VNJY-55 – Drawing (4a4fb13e3258_S1-7 S. 3)
Drawing · 4a4fb13e3258_S1-7 · S. 3

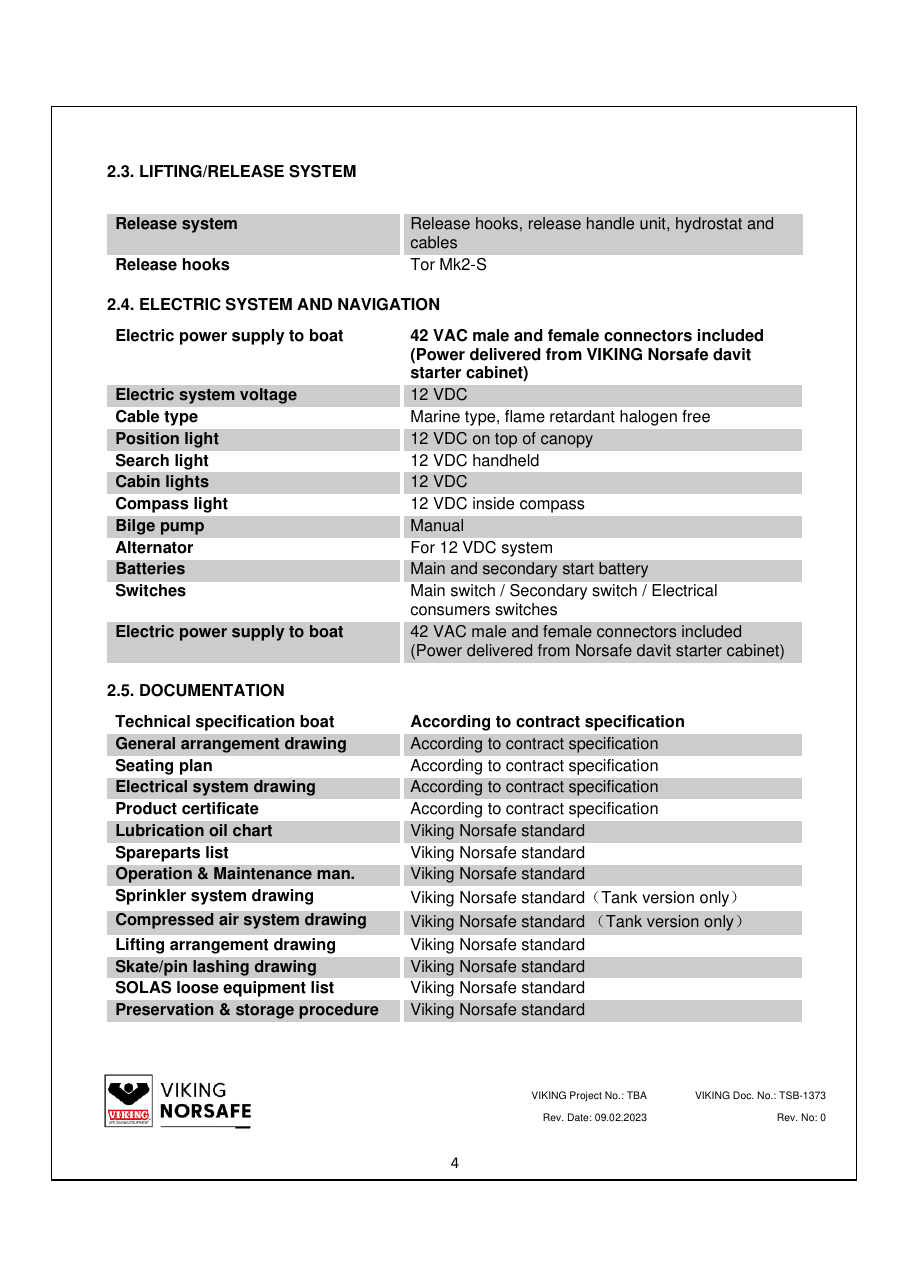

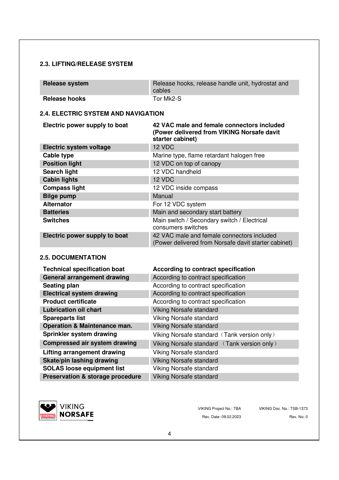

VIKING Life-Saving Equipment Norway VNJY-55 – Drawing (4a4fb13e3258_S1-7 S. 4)
Drawing · 4a4fb13e3258_S1-7 · S. 4

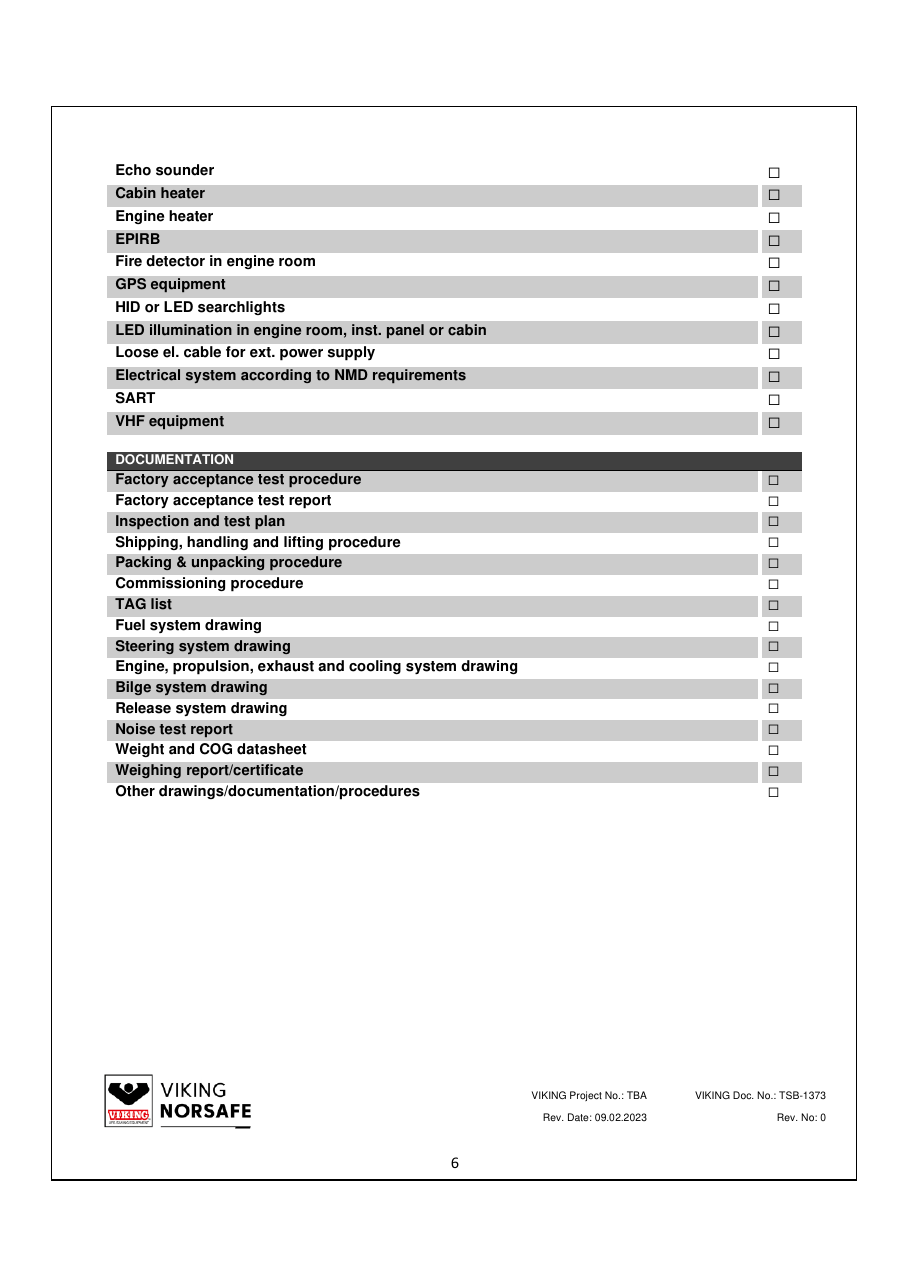

VIKING Life-Saving Equipment Norway VNJY-55 – Drawing (4a4fb13e3258_S1-7 S. 6)
Drawing · 4a4fb13e3258_S1-7 · S. 6

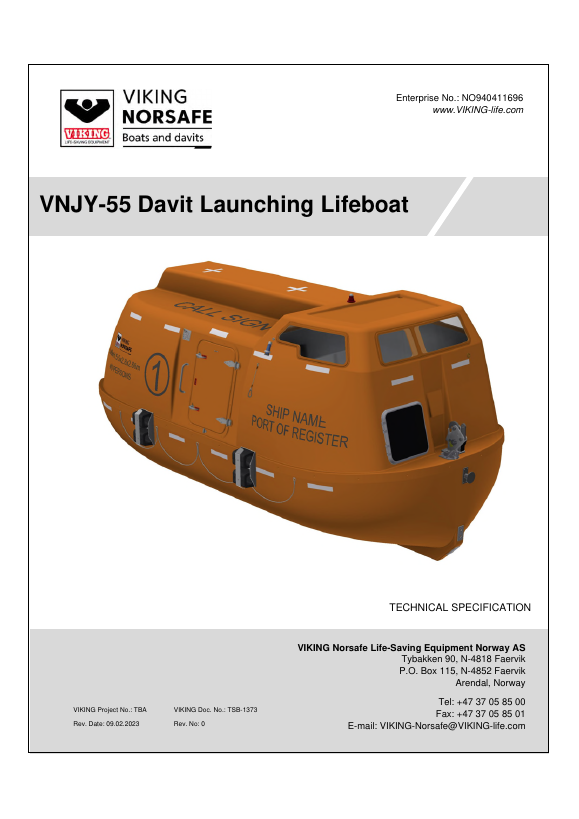

VIKING Life-Saving Equipment Norway VNJY-55 – Page preview (d09f1a9f4740_S1-2 S. 1)
Page preview · d09f1a9f4740_S1-2 · S. 1

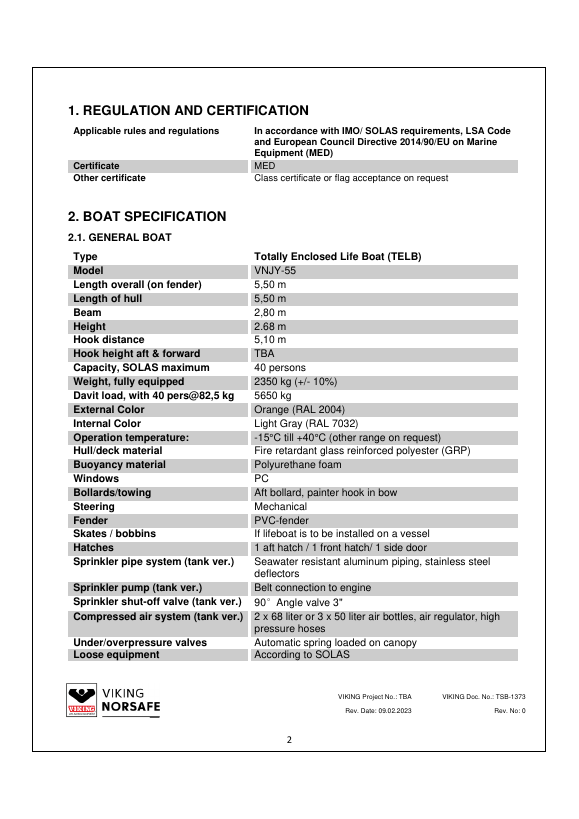

VIKING Life-Saving Equipment Norway VNJY-55 – Page preview (d09f1a9f4740_S1-2 S. 2)
Page preview · d09f1a9f4740_S1-2 · S. 2

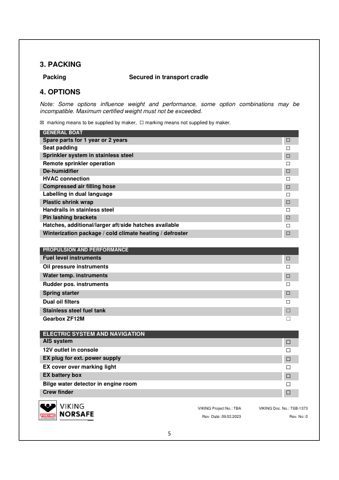

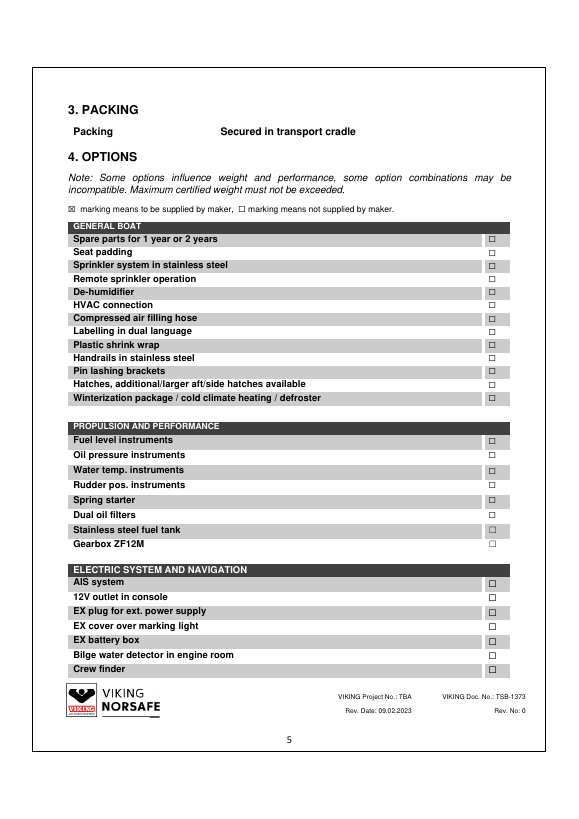

VIKING Life-Saving Equipment Norway VNJY-55 – Page preview (4a4fb13e3258_S1-7 S. 5)
Page preview · 4a4fb13e3258_S1-7 · S. 5

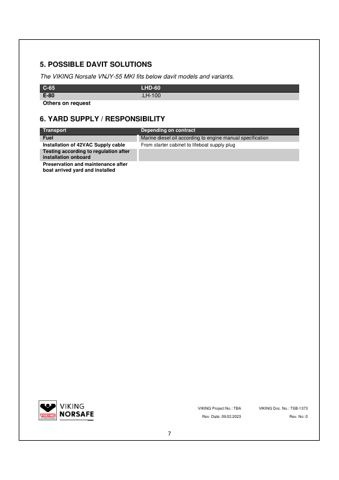

VIKING Life-Saving Equipment Norway VNJY-55 – Page preview (4a4fb13e3258_S1-7 S. 7)
Page preview · 4a4fb13e3258_S1-7 · S. 7
Source: VIKING Life-Saving Equipment Norway VNJY-55 datasheet, p. 2
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Annual servicing at an approved service station is MANDATORY (SOLAS/MSC.1/Circ.1328). HRU replacement at the manufacturer's interval (typically 2 years). Liferaft replacement/recertification every 5 years.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

VIKING Life-Saving Equipment Norway AS: Servicing ONLY at an approved service station. Keep an HRU on board. Annual service mandatory.
