Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Consilium Marine & Safety EVC-PY-IS
Consilium Marine & Safety

EVC-PY-IS

Smoke Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal voltage24 VDC
Working voltage10–32 VDC
Working current< 50 µA
Alarm current50 mA
Max input voltage (Ui)28 V
Max input current (Ii)93.3 mA
Max input power (Pi)0.66 W
Max internal capacitance (Ci)1 nF
Ex classII 1 G
Ex ia IIC T4 Ga-20°C ≤ Ta ≤ +50°C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

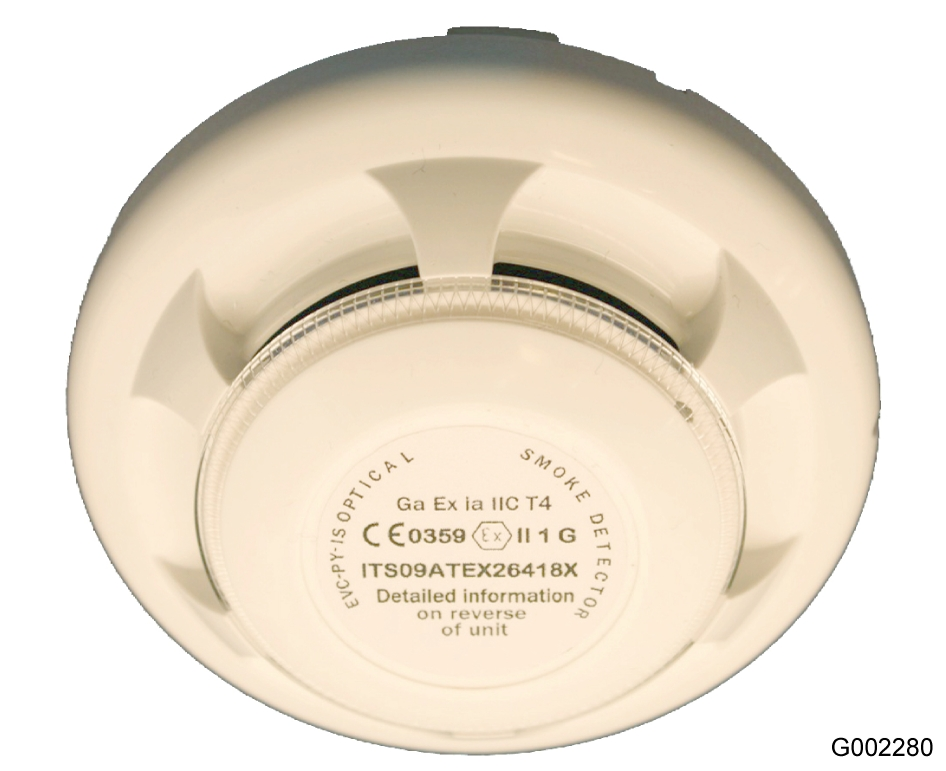

“General description Salwico EVC-PY-IS is an intrinsically safe Evolution conventional optical smoke detector. The detector is equipped with an optical sensor with improved sensitivity to black smoke.”

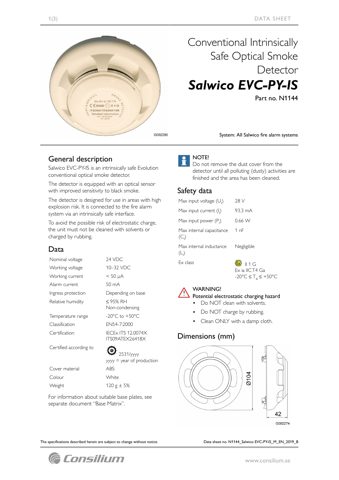

Consilium Marine & Safety EVC-PY-IS – Photo (9342ae3991ac_S1-1 S. 1)
Photo · 9342ae3991ac_S1-1 · S. 1

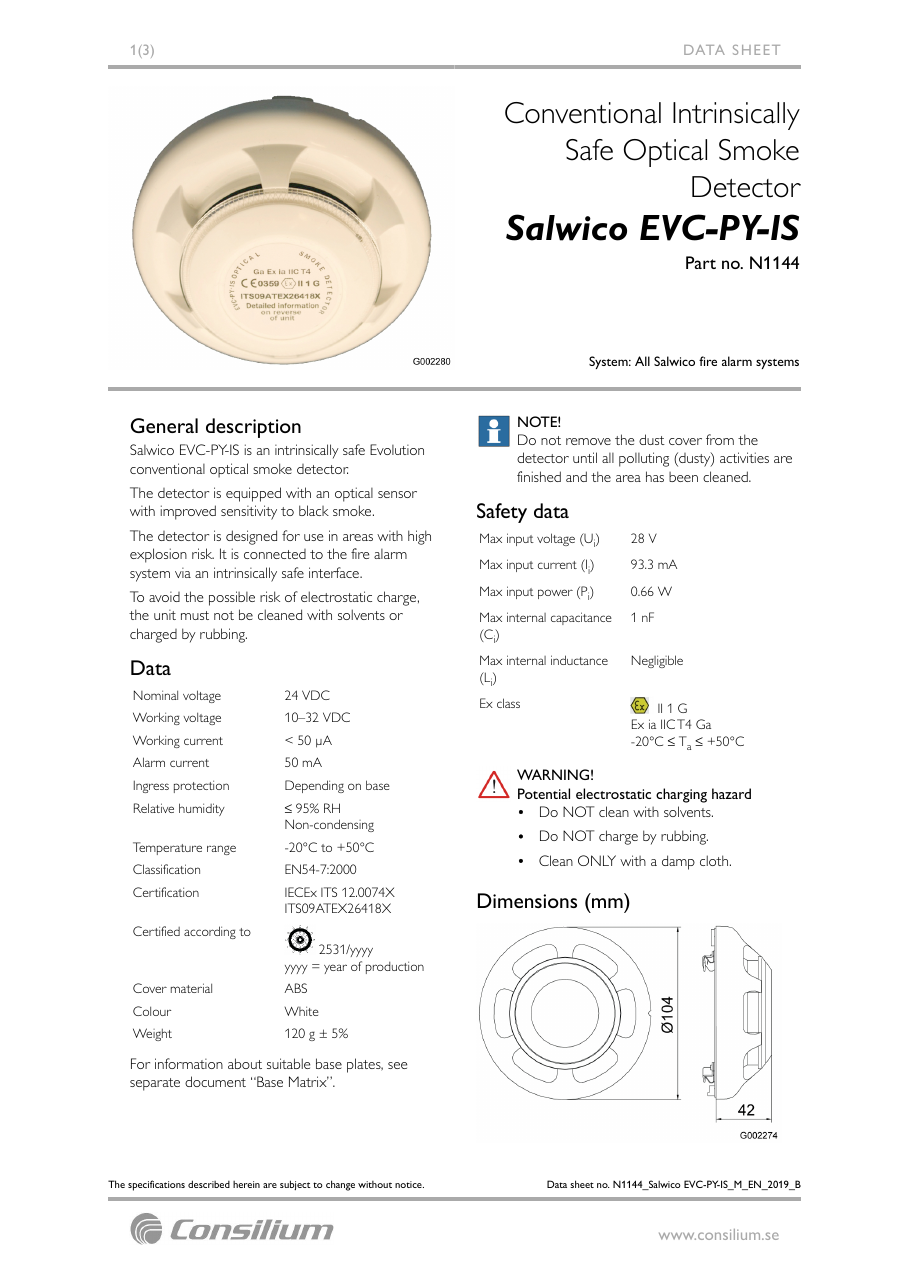

Consilium Marine & Safety EVC-PY-IS – Photo (9342ae3991ac_S1-1 S. 1)
Photo · 9342ae3991ac_S1-1 · S. 1

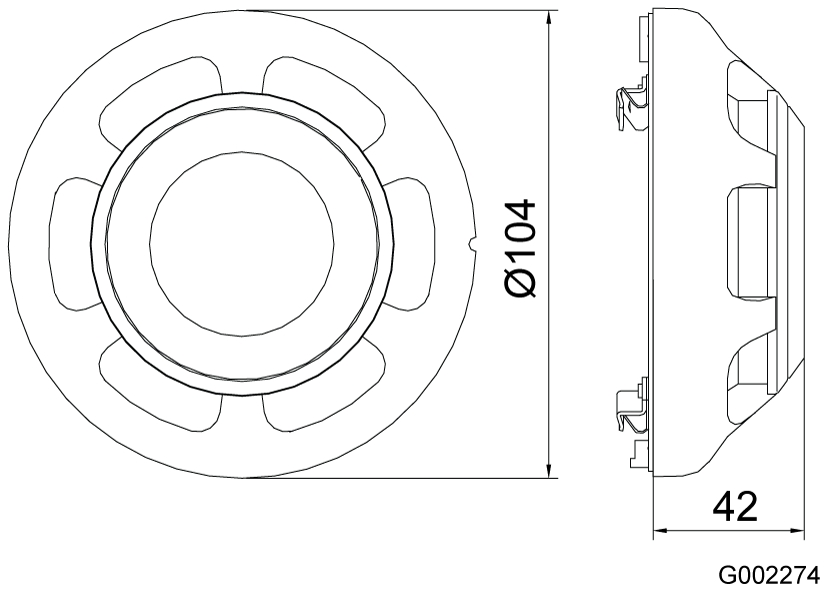

Consilium Marine & Safety EVC-PY-IS – Drawing (9342ae3991ac_S1-1 S. 1)
Drawing · 9342ae3991ac_S1-1 · S. 1
Source: Consilium Marine & Safety EVC-PY-IS datasheet, p. 1
