Library› Engine Room› Automation & Control› HMI Panel & Industrial Computer› moxa MPC-2197X
moxa

MPC-2197X

HMI Panel & Industrial Computer · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Active Display Area376.32 (H) x 301.06 (V) mm
Contrast Ratio2000:1
Light Intensity (Brightness)300 cd/m2
Max. No. of Colors16.7M (8-bit/color)
Pixel Pitch (RGB)0.294 (H) x 0.294 (V) mm
Pixels1280 x 1024
Panel19" (5:4)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The MPC-2197X is a rugged computer designed for marine applications. It features an Intel Core i7 processor, integrated graphics, and various connectivity options.

Applications

  • Control

Features

  • Integrated graphics

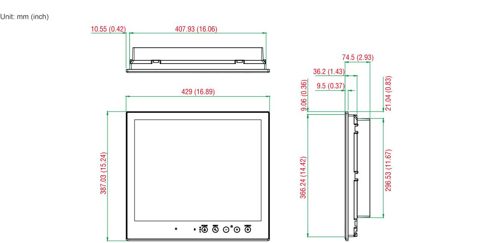

moxa MPC-2197X – Photo (3d10c71a433b_S2-5 S. 4)
Photo · 3d10c71a433b_S2-5 · S. 4
moxa MPC-2197X – Drawing (3d10c71a433b_S2-5 S. 4)
Drawing · 3d10c71a433b_S2-5 · S. 4
moxa MPC-2197X – Drawing (3d10c71a433b_S2-5 S. 2)
Drawing · 3d10c71a433b_S2-5 · S. 2

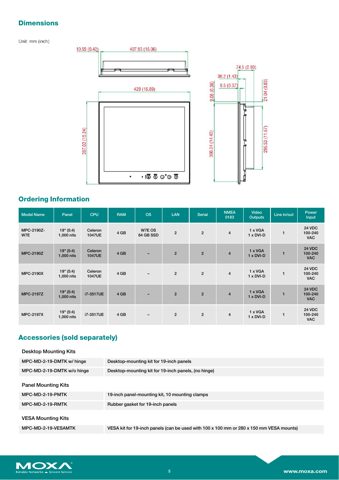

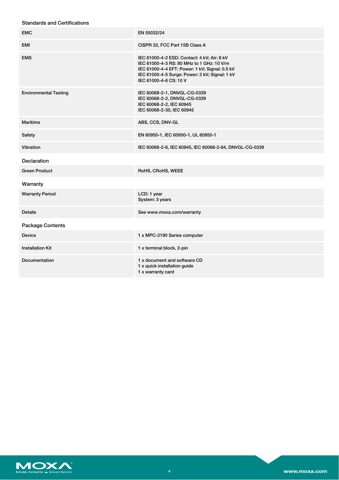

moxa MPC-2197X – Drawing (3d10c71a433b_S2-5 S. 3)
Drawing · 3d10c71a433b_S2-5 · S. 3
moxa MPC-2197X – Drawing (3d10c71a433b_S2-5 S. 4)
Drawing · 3d10c71a433b_S2-5 · S. 4
Source: moxa MPC-2197X datasheet, p. 2
