Moxa

MC-1100

HMI Panel & Industrial Computer · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight1,022 g (2.25 lb)
Operating Temperature-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)-45 to 75°C (-49 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The MC-1100 Series DIN-rail mountable, fanless, x86 embedded computers use the Intel Atom® E3800 Series processor, feature the most reliable I/O design to maximize connectivity, and support wireless modules (Wi-Fi/3G/LTE), making them suitable for a diverse range of communication applications.

Applications

  • marine communication
  • oil and gas field site monitoring
  • transportation

Features

  • Intel Atom Quad-core E3845 processor
  • Dual storage (SD and CFast slots)
  • Dual independent displays (VGA + display port)
  • Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS
  • 12 to 36 VDC, wide-range isolated power input
  • -40 to 70°C system operating temperature range

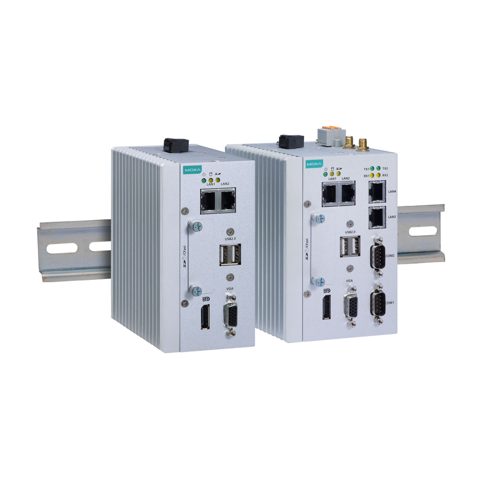

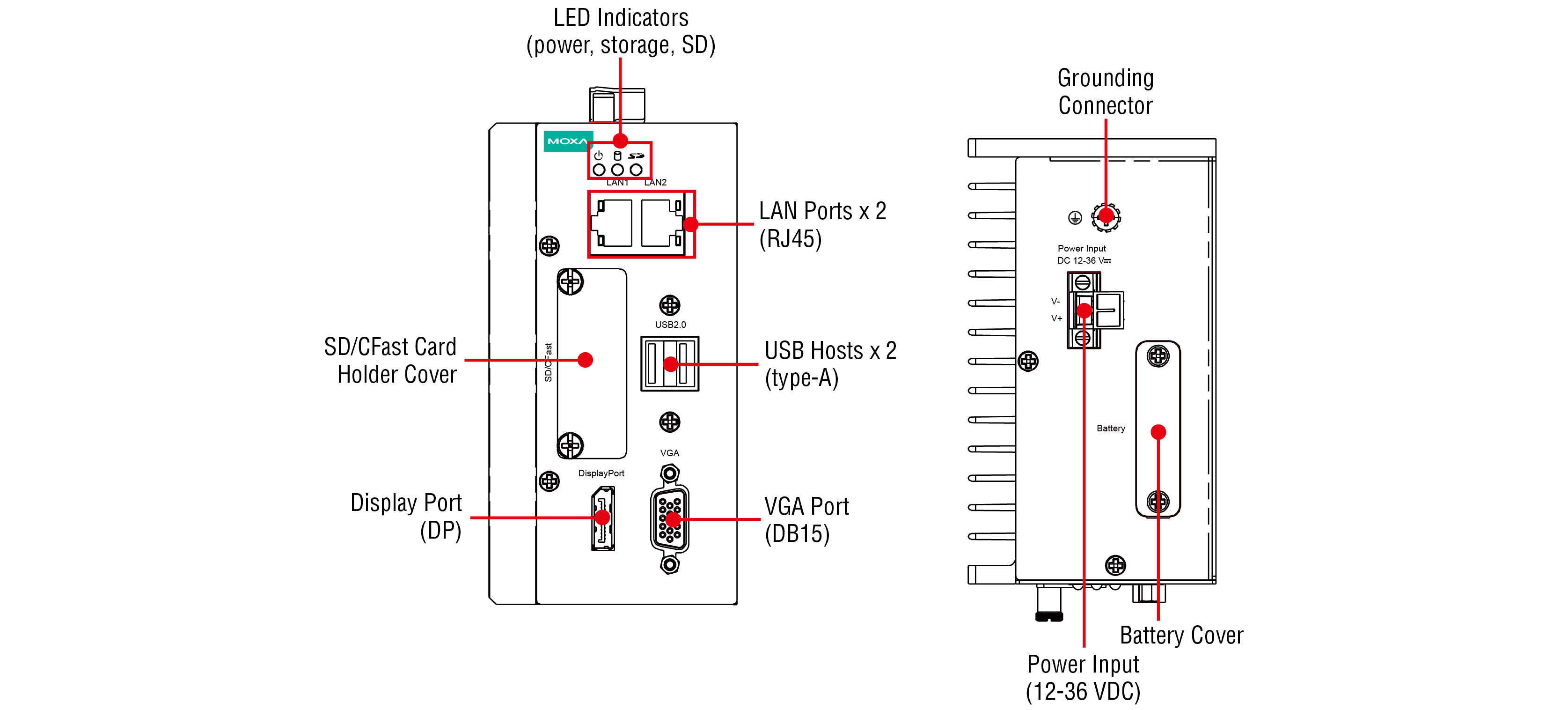

Moxa MC-1100 – Photo (2b443bf69a0f_S1-5 S. 1)
Photo · 2b443bf69a0f_S1-5 · S. 1

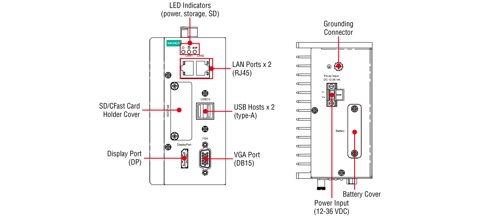

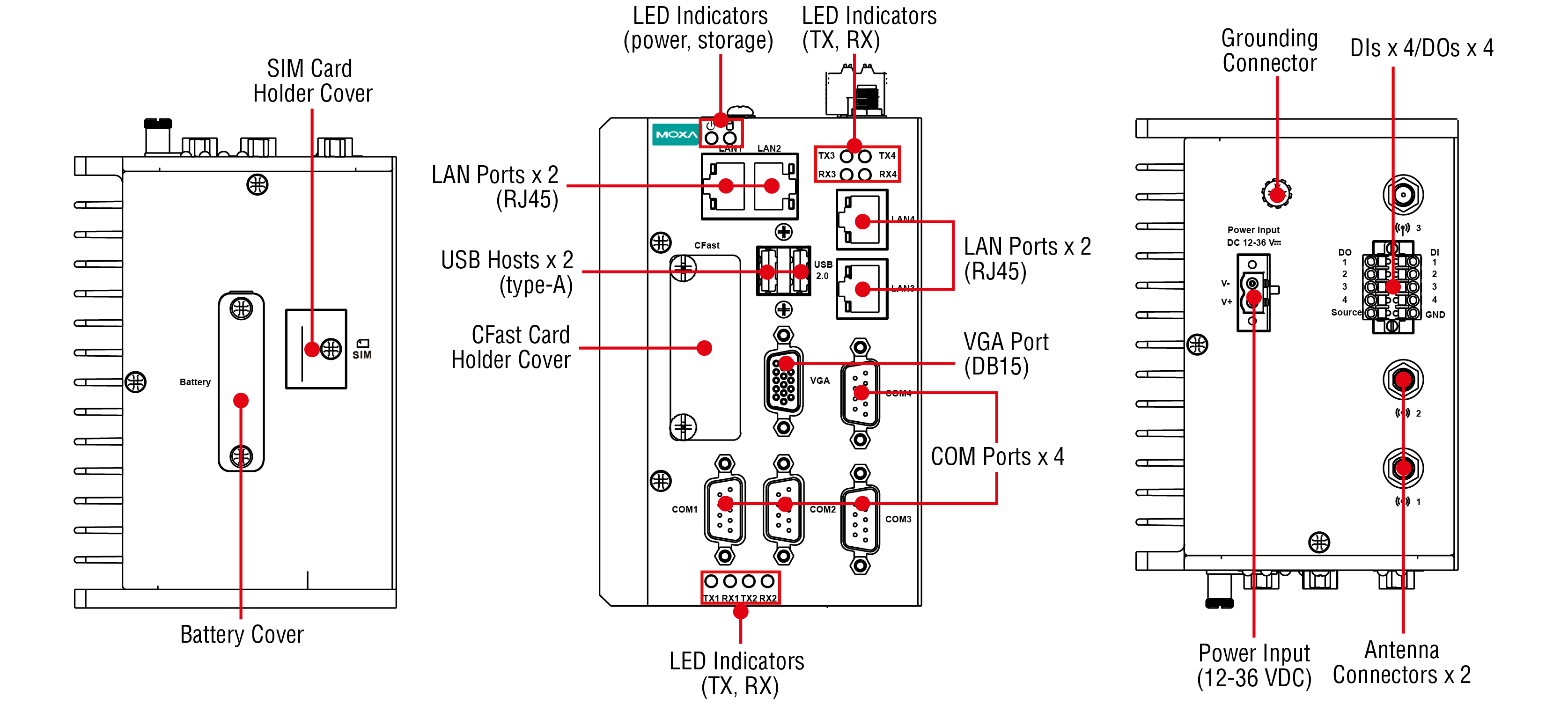

Moxa MC-1100 – Photo (2b443bf69a0f_S1-5 S. 2)
Photo · 2b443bf69a0f_S1-5 · S. 2
Moxa MC-1100 – Photo (2b443bf69a0f_S1-5 S. 2)
Photo · 2b443bf69a0f_S1-5 · S. 2
Moxa MC-1100 – Photo (2b443bf69a0f_S1-5 S. 3)
Photo · 2b443bf69a0f_S1-5 · S. 3

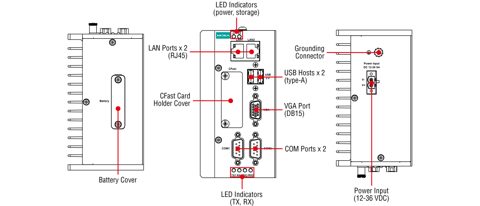

Moxa MC-1100 – Photo (2b443bf69a0f_S1-5 S. 3)
Photo · 2b443bf69a0f_S1-5 · S. 3

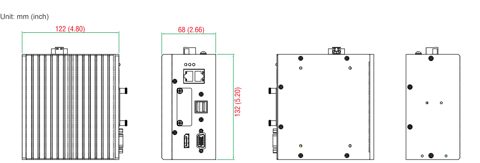

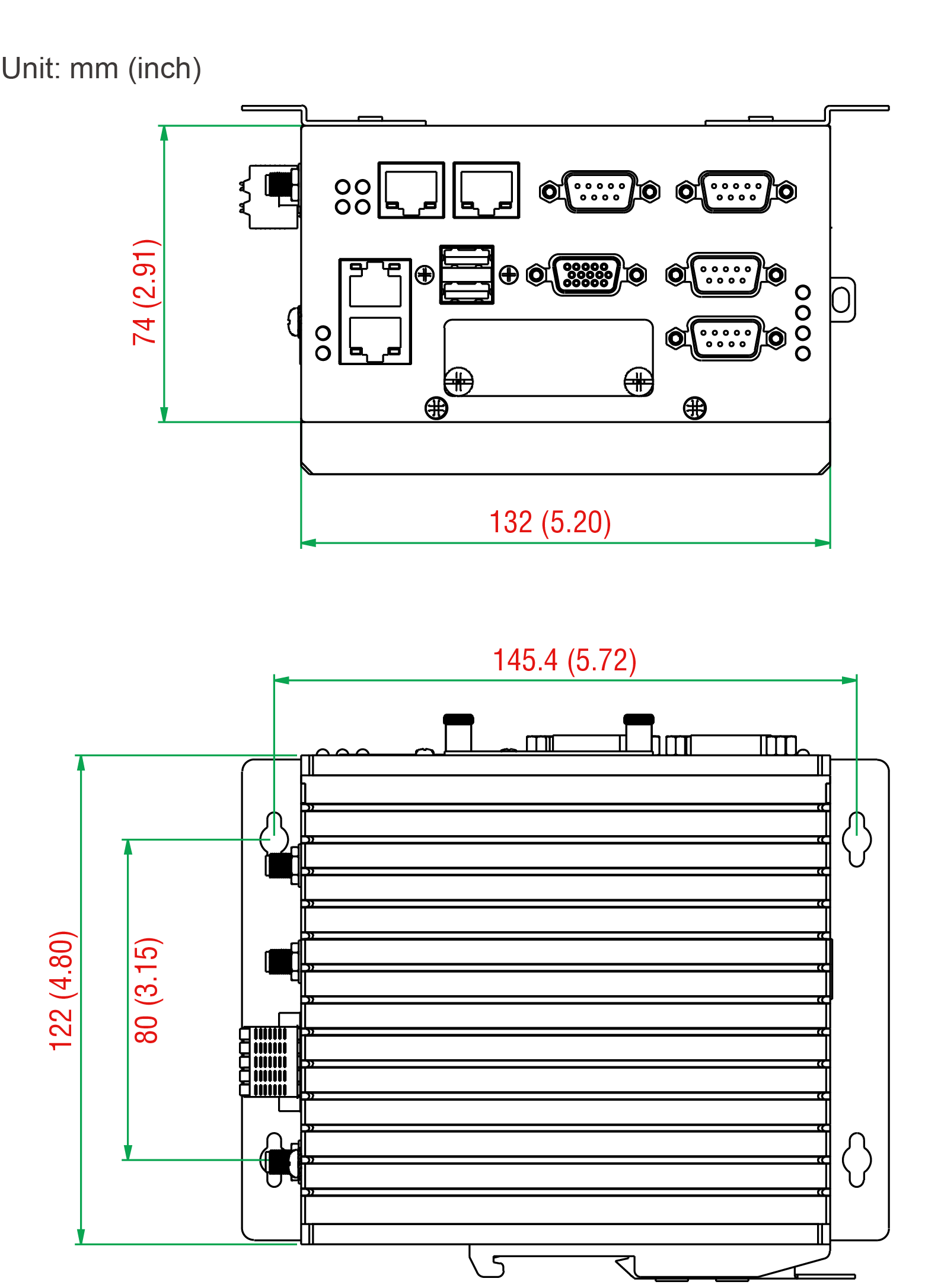

Moxa MC-1100 – Photo (12de7a408e77_S1-8 S. 6)
Photo · 12de7a408e77_S1-8 · S. 6

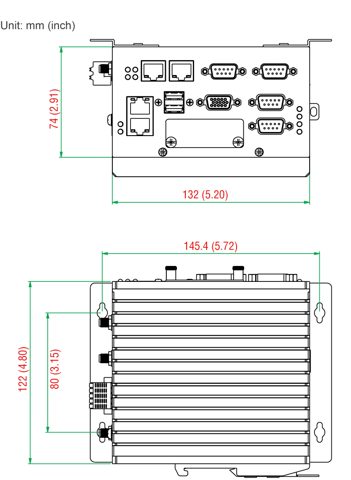

Moxa MC-1100 – Photo (12de7a408e77_S1-8 S. 6)
Photo · 12de7a408e77_S1-8 · S. 6

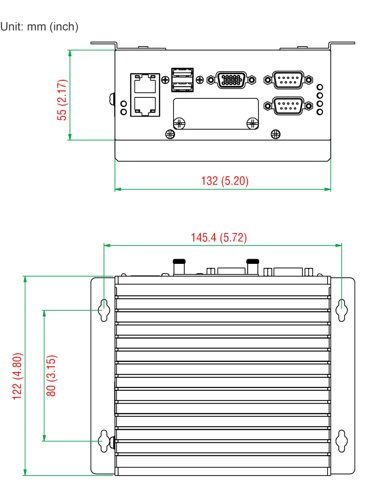

Moxa MC-1100 – Photo (12de7a408e77_S1-8 S. 6)
Photo · 12de7a408e77_S1-8 · S. 6
Source: Moxa MC-1100 datasheet, p. 1
