moxa

MPC-2240X

HMI Panel & Industrial Computer · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Graphics ControllerIntel® HD Graphics 520
Active Display Area531.36 (H) x 98.89 (V) mm
Aspect Ratio16:9
Contrast Ratio5000:1
Light Intensity (Brightness)300 cd/m2
Max. No. of Colors16.7M (8-bit/color)
Pixel Pitch (RGB)0.276 (H) x 0.276 (V) mm
Pixels1920 x 1080
Response Time25 ms (gray to gray)
Viewing Angles178°/178°
Serial Interface Baudrate50 bps to 115.2 kbps
Stop Bits1, 1.5, 2
NMEA Interface Baudrate4800 bps
NMEA Interface Stop Bits1, 1.5, 2
Input Voltage100 to 240 VAC
IP Rating FrontIP54
IP Rating RearIP20
Dimensions595 x 393 x 75 mm (23.44 x 15.48 x 2.95 in)
Weight12,400 g (27.34 lb)
Operating Temperature-15 to 55°C (5 to 131°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Ambient Relative Humidity5 to 95% (non-condensing)
NMEA Interface Optical Isolation Protection3 kV
NMEA Interface Voltage Differential-6 V to +6 V (maximal differential level)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Overview The MPC-2000 series panel computer features advanced Intel processors—3rd generation Ivy Bridge Core or Celeron—matched to 4 GB of system memory, delivering a reliable, high-performance…”Source: moxa MPC-2240X datasheet, p. 1

Applications

  • System Control

Features

  • Touchscreen interface
  • Wide viewing angles

Options

  • Remote control capabilities

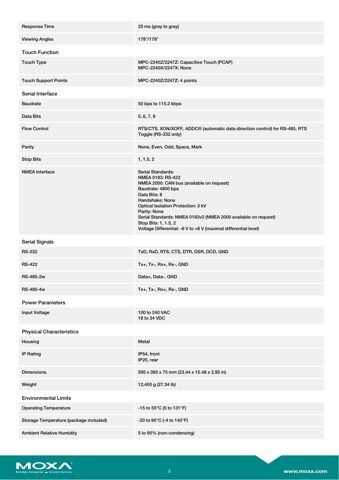

moxa MPC-2240X – Drawing (a010651df630_S2-3 S. 2)
Drawing · a010651df630_S2-3 · S. 2

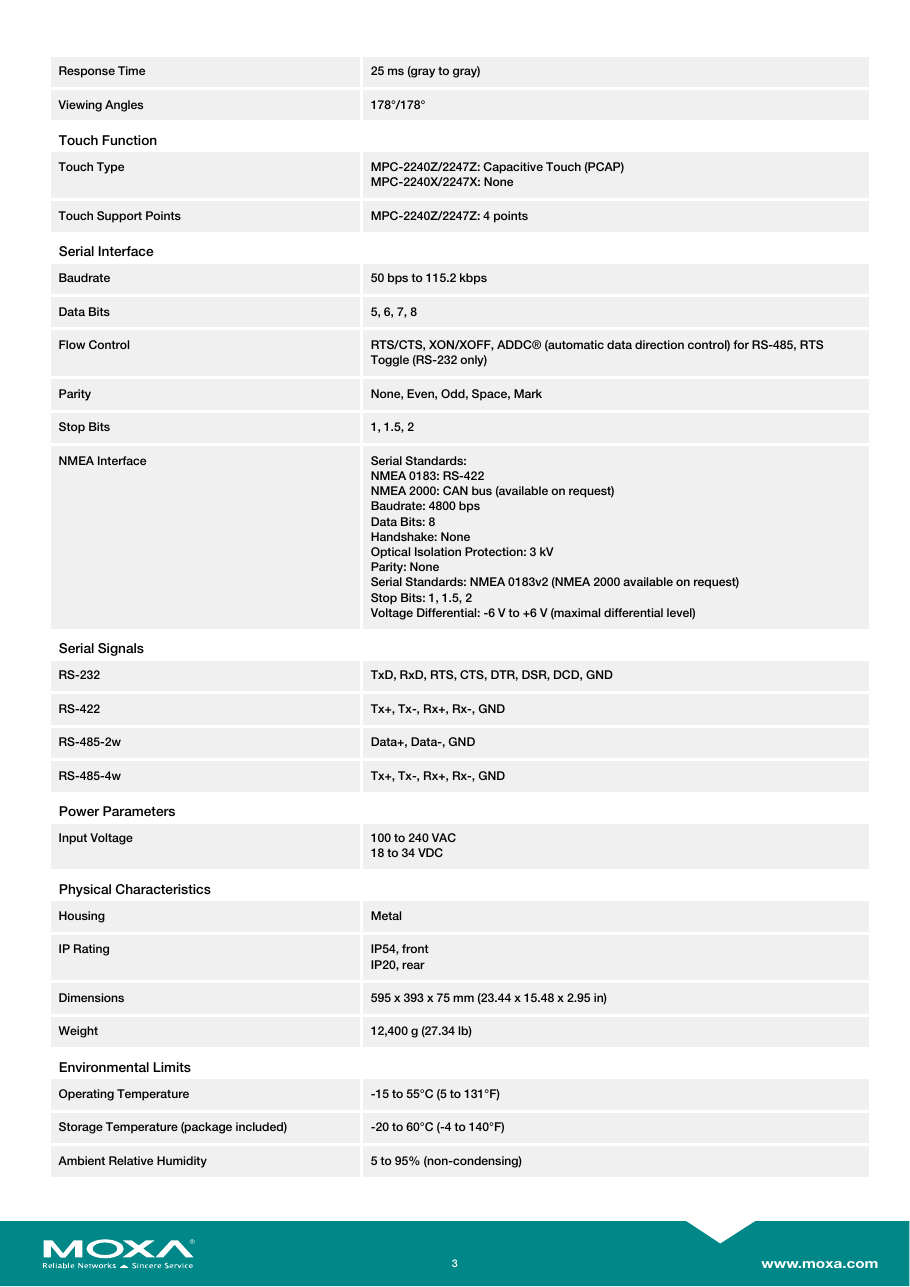

Source: moxa MPC-2240X datasheet, p. 3
