Library› Engine Room› Compressors› Refrigeration Compressor› Frascold NRH2-70-210Y
Frascold

NRH2-70-210Y

Refrigeration Compressor · Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Displacement @ 50 Hzm3/h [50Hz]
Displacement @ 60 Hzm3/h [60Hz]
Motor power (kW)52 kW
Motor voltage at 50 Hz[2]400 (+/-10%) V/3/50Hz PWS
Motor voltage at 60 Hz[2]460 (+/-10%) V/3/60Hz PWS
MRA, maximum operating current at 400V/50Hz and 460V/60Hz140 A
LRA, maximum starting current at 400V/50Hz and 460V/60Hz, PWS motor373 A
LRA, maximum starting current at 400V/50Hz and 460V/60Hz, PWS motor with DOL connection600 A
Max power consumption @ 50Hz87.3 kW
Frequency min30 Hz
Frequency max[3]70 Hz
Enclosure classIP65
Maximum pressure HP30 bar
Maximum pressure LP20.5 bar
Oil type[4]POE 170 cSt
Motor power (HP)70
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“NRH2-70-210Y Data sheets Semi-hermetic compressors for remote oil separator > RTS and NR series for external oil separator / for HFC - HCFC - HFO”

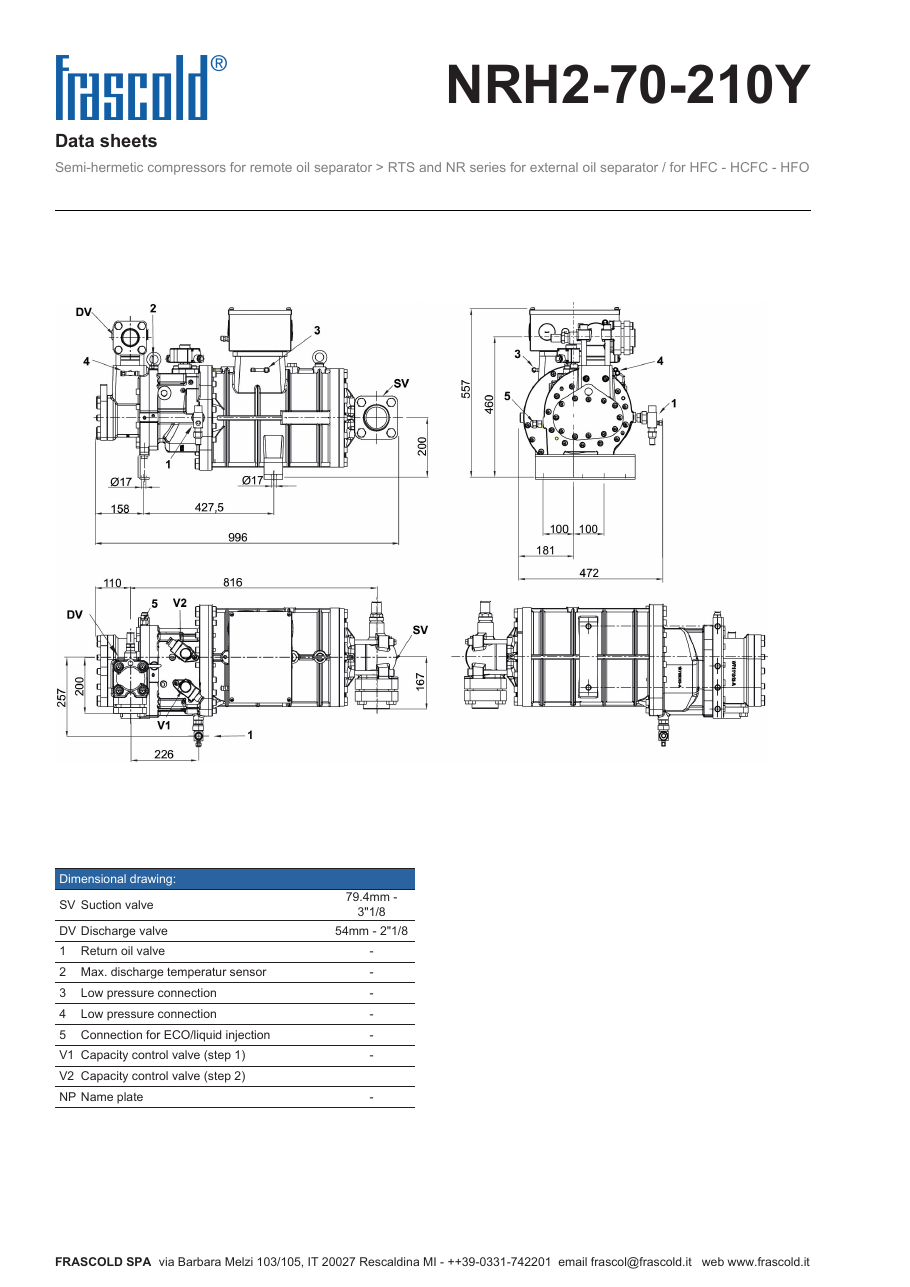

Frascold NRH2-70-210Y – Photo (114e583f76be_S1-3 S. 1)
Photo · 114e583f76be_S1-3 · S. 1

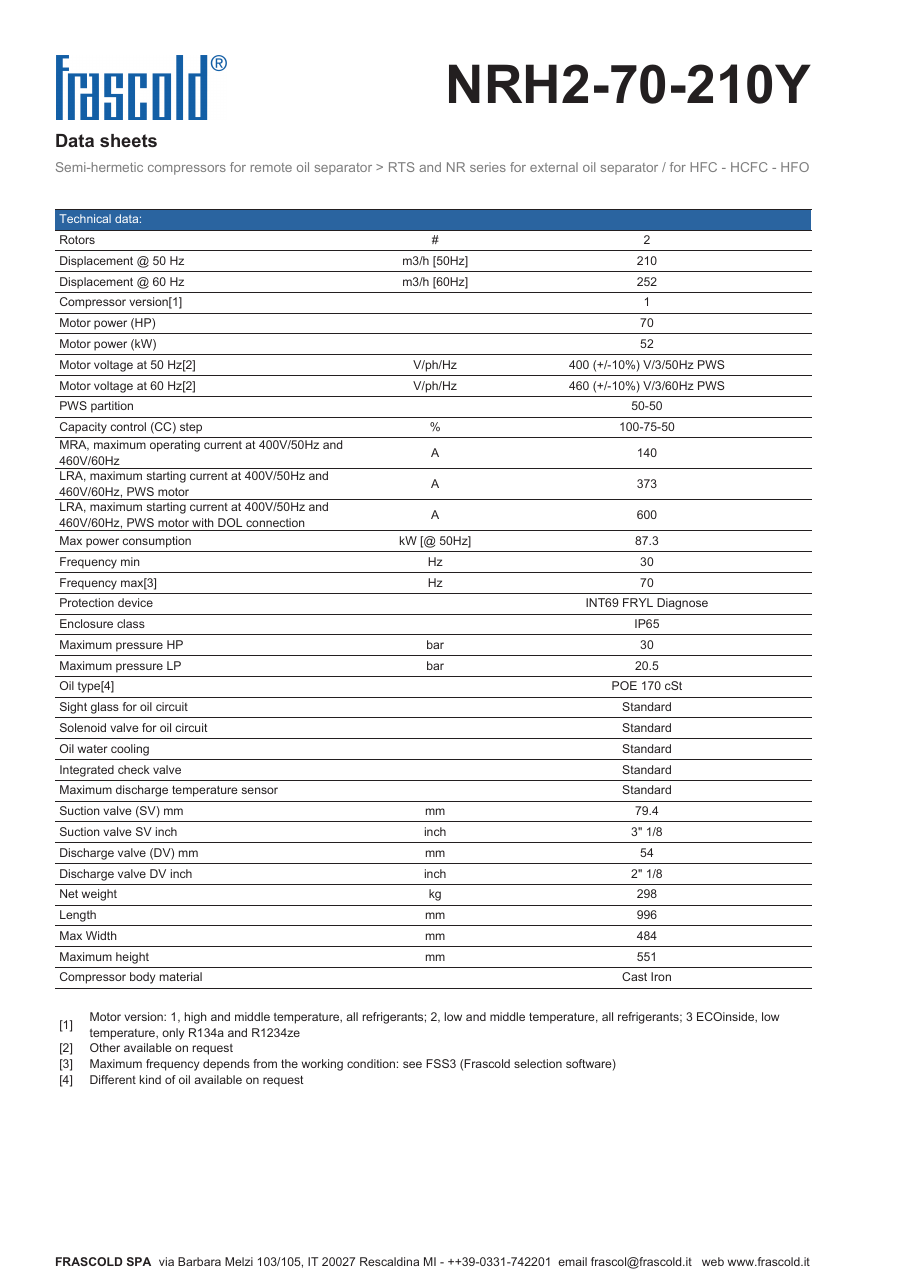

Frascold NRH2-70-210Y – Photo (114e583f76be_S1-3 S. 3)
Photo · 114e583f76be_S1-3 · S. 3

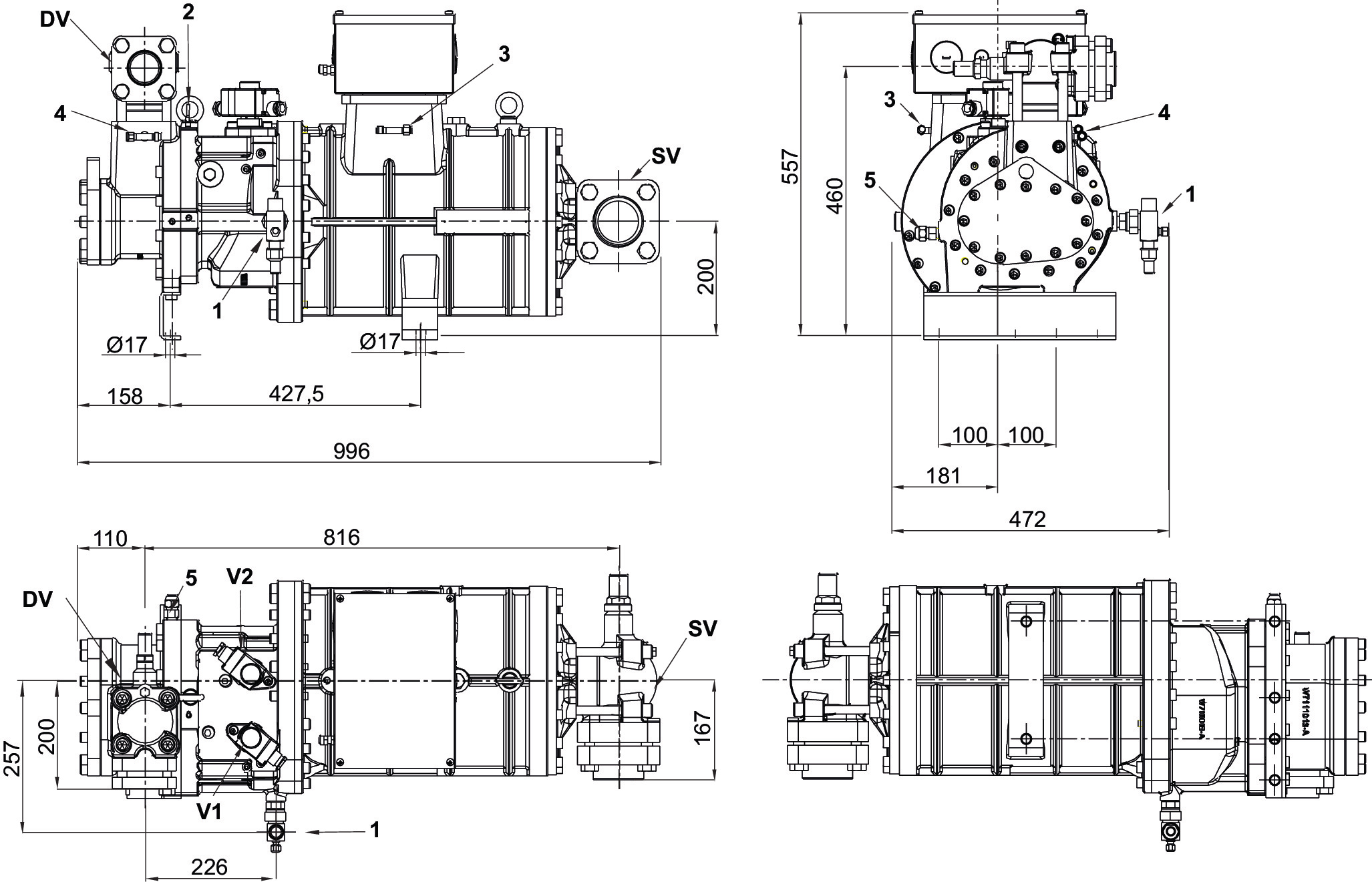

Frascold NRH2-70-210Y – Drawing (114e583f76be_S1-3 S. 1)
Drawing · 114e583f76be_S1-3 · S. 1
Frascold NRH2-70-210Y – Drawing (114e583f76be_S1-3 S. 3)
Drawing · 114e583f76be_S1-3 · S. 3

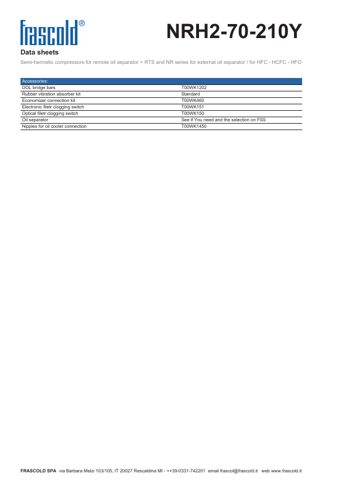

Frascold NRH2-70-210Y – Page preview (114e583f76be_S1-3 S. 2)
Page preview · 114e583f76be_S1-3 · S. 2
Source: Frascold NRH2-70-210Y datasheet, p. 1
