Library› Deck› Paint & Coating Systems› Ballast Tank Coating› International Paint Intershield 300V
International Paint

Intershield 300V

Ballast Tank Coating · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Part B (Curing Agent)ENA313
Volume Solids63% ±2% (ISO 3233:1998)
Flash Point (Typical)Part A 41°C; Part B 26°C; Mixed 31°C
Drying Information-5°C 5°C 25°C
Touch Dry [ISO 9117/3:2010]6 hrs 4 hrs 3 hrs 6
Hard Dry [ISO 9117-1:2009]28 hrs 17 hrs 5 hrs
Walk-on Time30 hrs 18 hrs 6 hrs
Pot Life6 hrs 6 hrs 150 mins 6
Substrate Temperature-5°C 5°C 25°C
Voc326 g/lt as supplied (EPA Method 24)
Temperature of the surface to be coated3°C above the dew point
Relative humidity85%
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“A <340g/l VOC light coloured, abrasion resistant, aluminium pure epoxy coating giving excellent long term anticorrosive protection and low temperature application capability.”

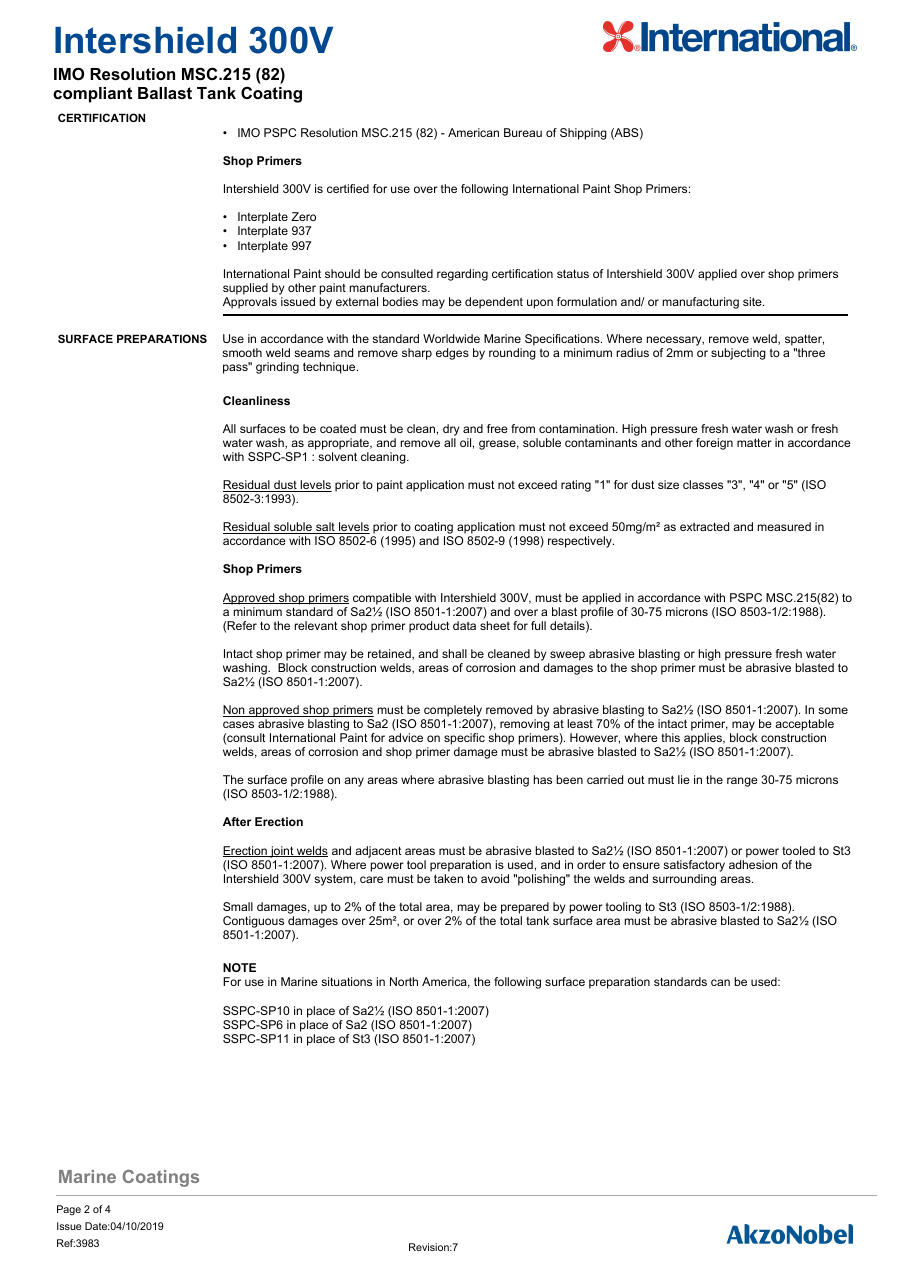

International Paint Intershield 300V – Drawing (e7175fecbf7f_S1-4 S. 2)
Drawing · e7175fecbf7f_S1-4 · S. 2

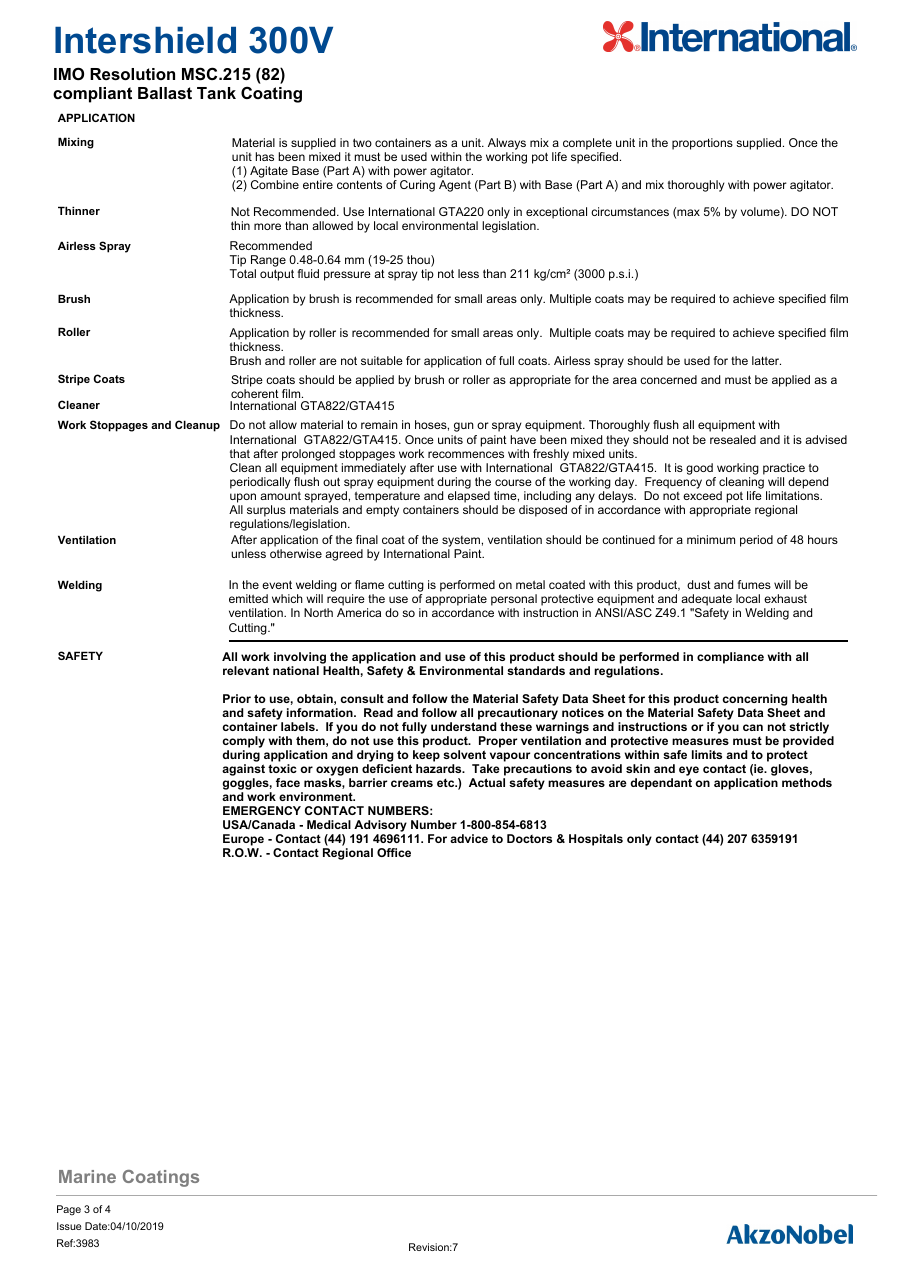

International Paint Intershield 300V – Drawing (e7175fecbf7f_S1-4 S. 3)
Drawing · e7175fecbf7f_S1-4 · S. 3

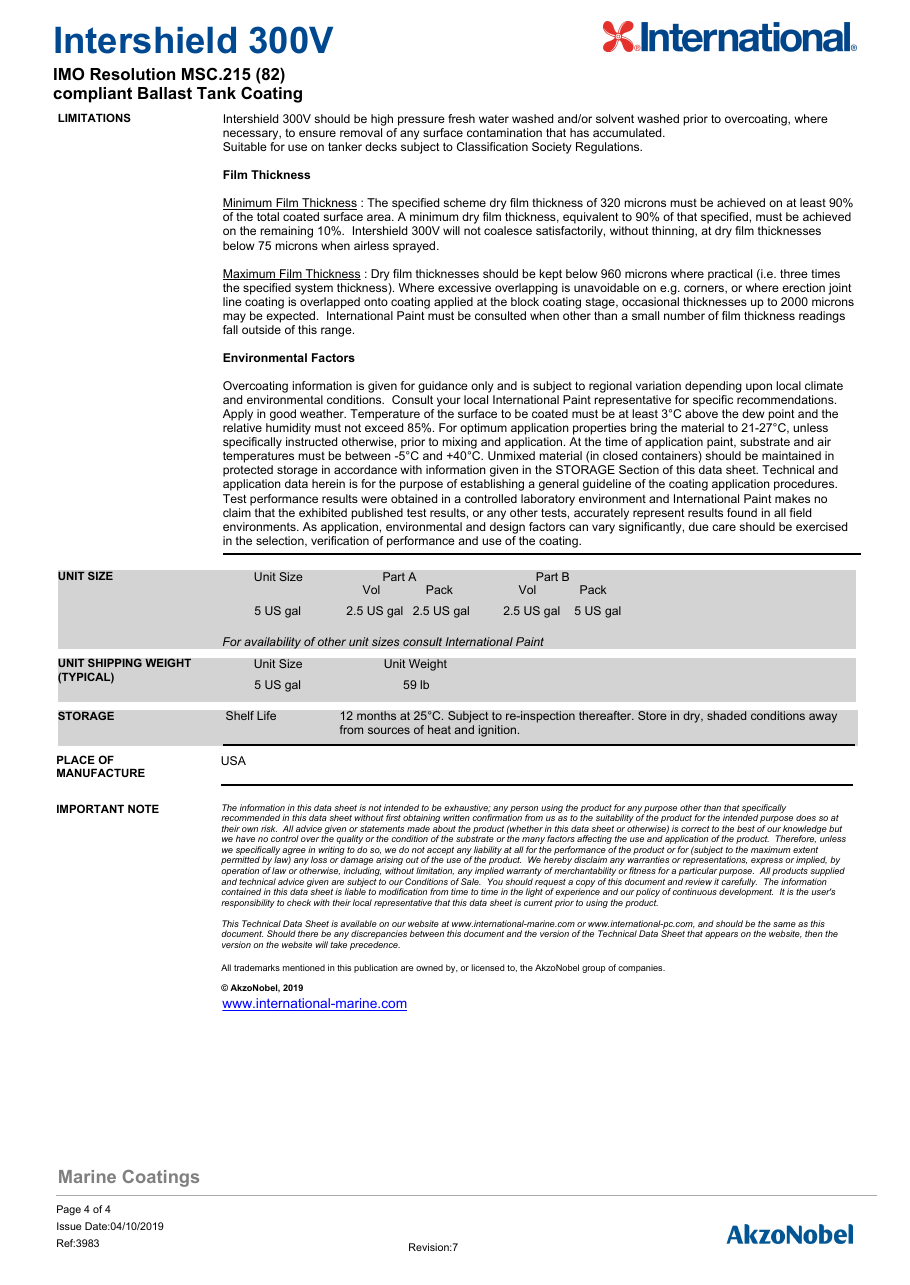

International Paint Intershield 300V – Drawing (e7175fecbf7f_S1-4 S. 4)
Drawing · e7175fecbf7f_S1-4 · S. 4

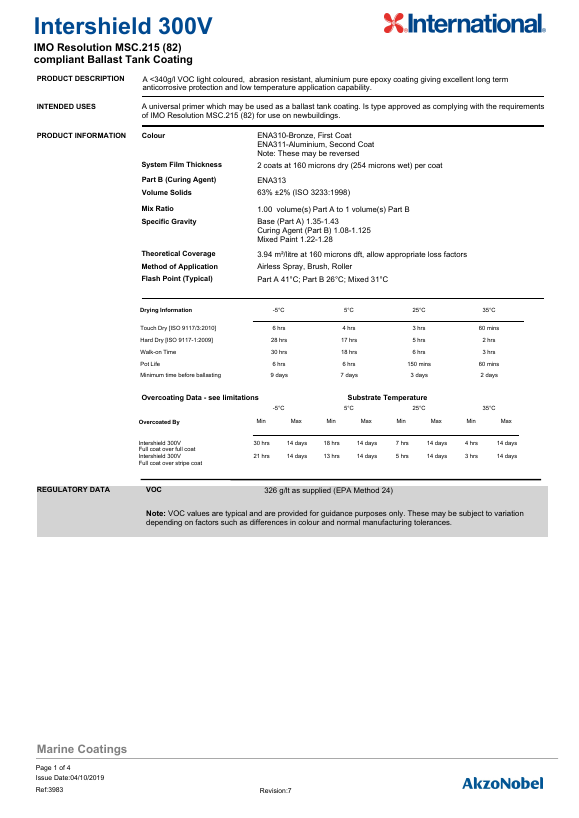

International Paint Intershield 300V – Page preview (e7175fecbf7f_S1-4 S. 1)
Page preview · e7175fecbf7f_S1-4 · S. 1
Source: International Paint Intershield 300V datasheet, p. 1
