Library› Engine Room› Compressors› Refrigeration Compressor› Frascold W70-206Y
Frascold

W70-206Y

Refrigeration Compressor · Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Cylinders8
Displacement @ 50 Hz205.8 m3/h [50Hz]
Displacement @ 60 Hz247 m3/h [60Hz]
Motor version[1]1
Nominal Motor power70 HP
Motor voltage at 50 Hz[2]380-420V/3/50Hz PWS
Motor voltage at 60 Hz[2]440-480V/3/60Hz PWS
CC Head capacity control steps100-75-50
MRA, max operating current at 400V/50Hz and 460V/60Hz116.8 A
LRA, max starting current at 400V/50Hz and 460V/60Hz, PWS motor390 A
LRA, max starting current at 400V/50Hz and 460V/60Hz, PWS motor-DOL connection548 A
Frequency min30 Hz
Frequency max[3]70 Hz
Electric terminal box class protectionIP65
Maximum pressure HP30 bar
Maximum pressure LP20.5 bar
Oil type[4]POE68
Oil charge (3/4 of sight glass)7.7 l
Suction valve (SV)3⅛ inch
Discharge valve (DV)2⅛ inch
Net weight328 kg
Max Length864 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Motor version: 1 = high and mid temp. all refrigerants; 2 = low and mid temp. all refrigerants; 3 = ECOinside, low temp. R134a, R1234ze, R1234yf only Other motor voltage available on request Maximum…”

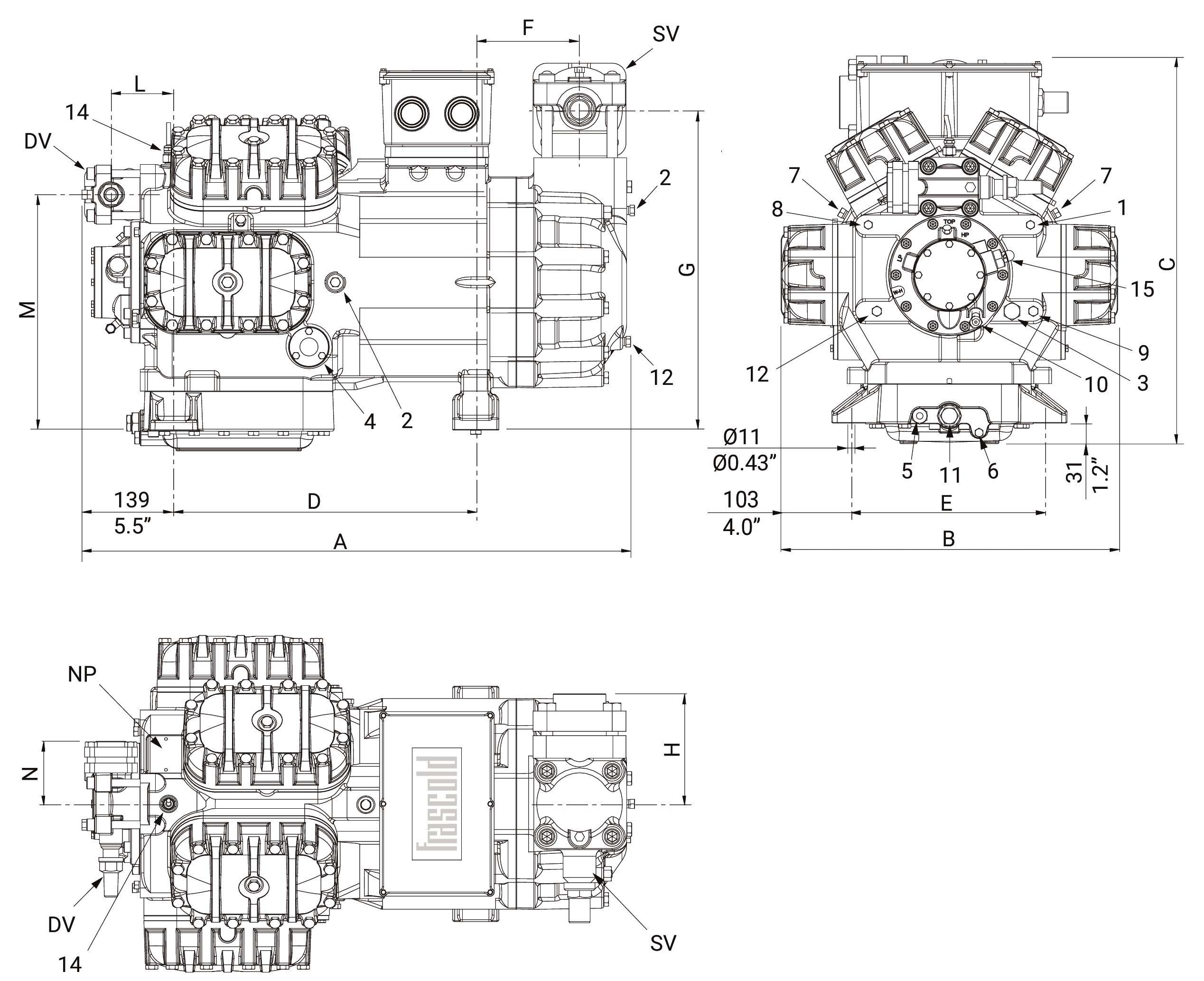

Frascold W70-206Y – Photo (bc899415c38e_S1-3 S. 3)
Photo · bc899415c38e_S1-3 · S. 3

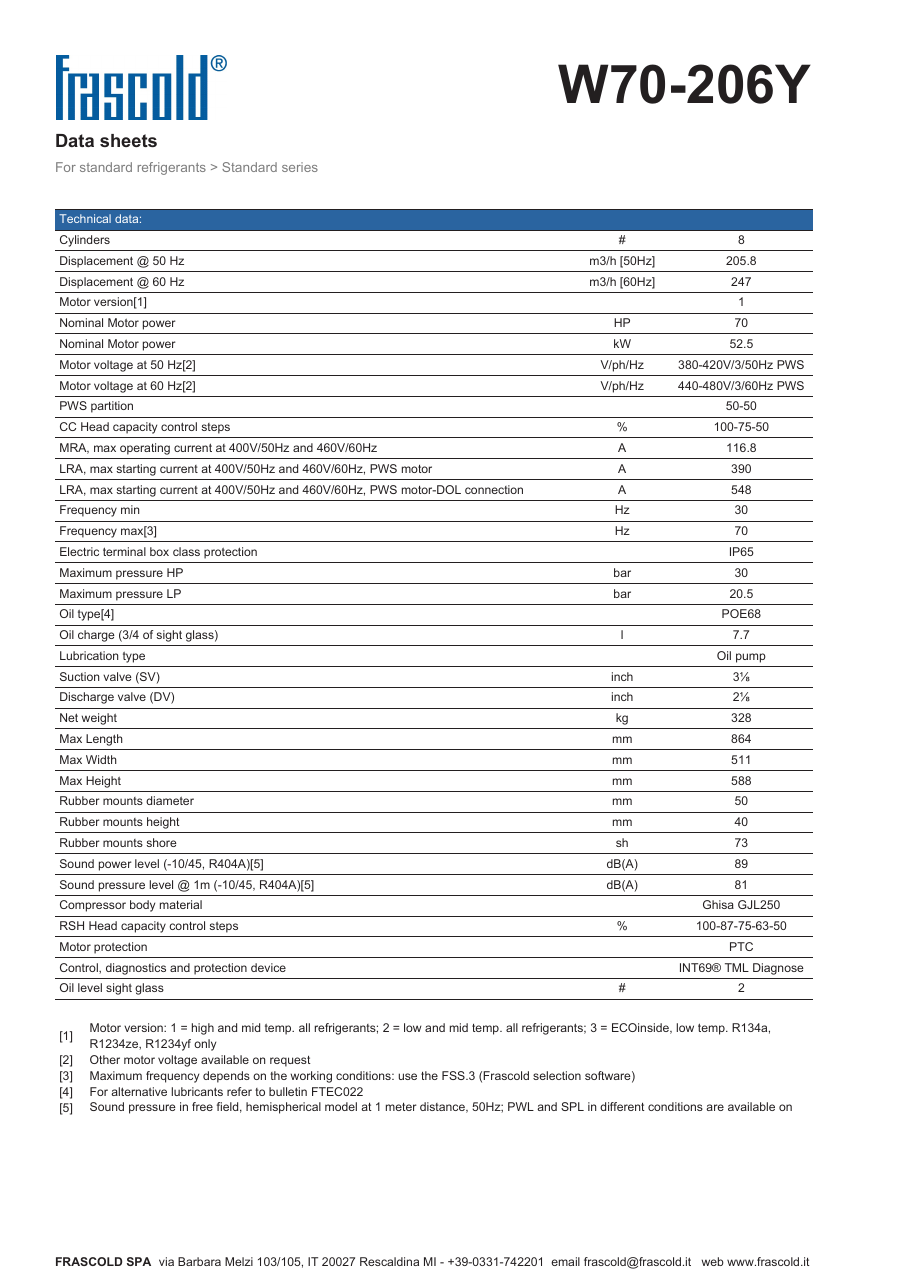

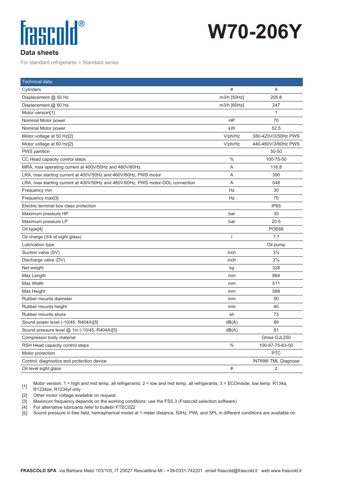

Frascold W70-206Y – Drawing (bc899415c38e_S1-3 S. 1)
Drawing · bc899415c38e_S1-3 · S. 1

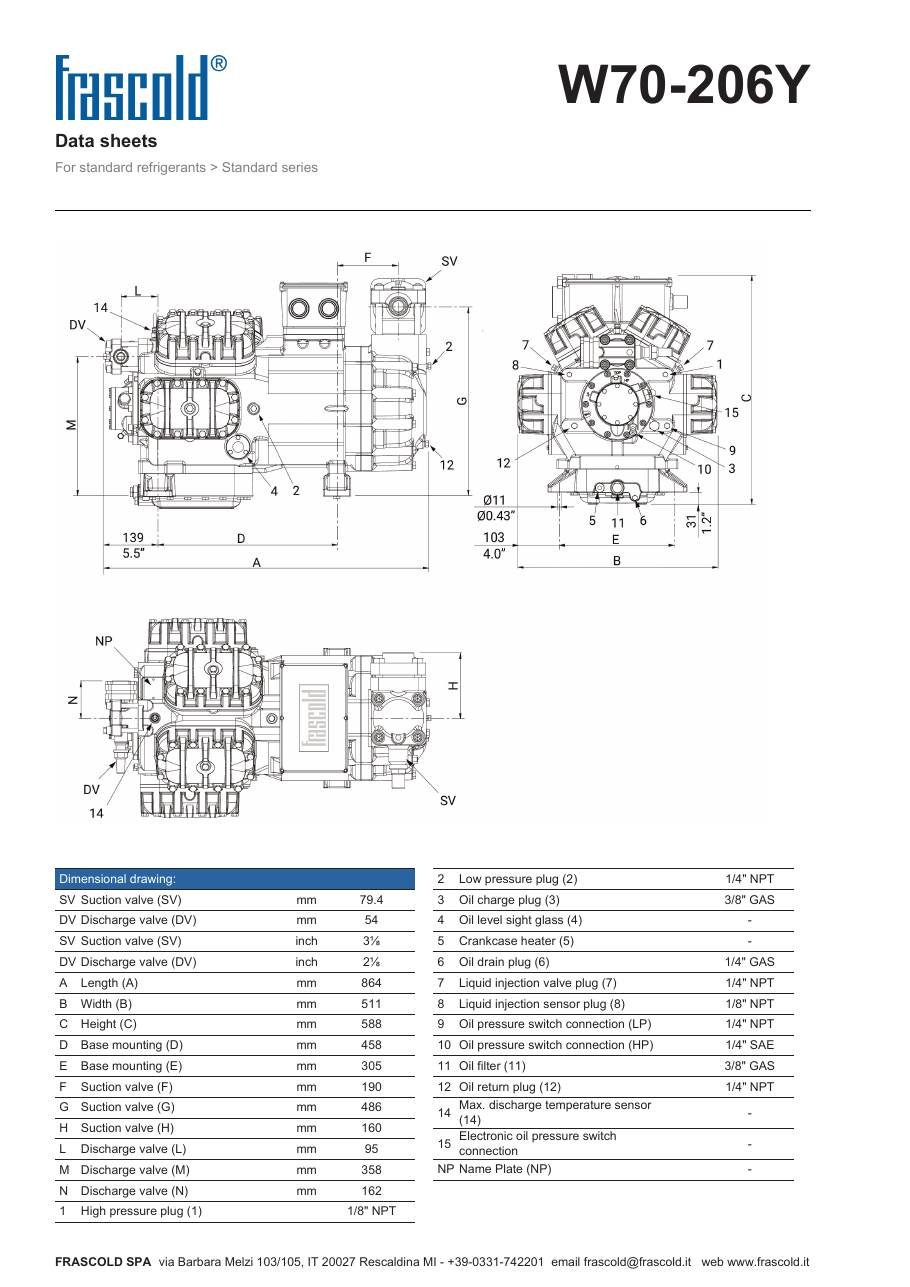

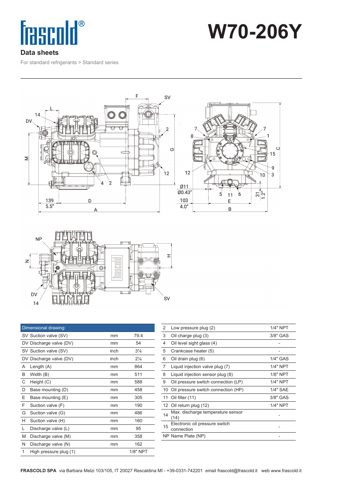

Frascold W70-206Y – Drawing (bc899415c38e_S1-3 S. 3)
Drawing · bc899415c38e_S1-3 · S. 3

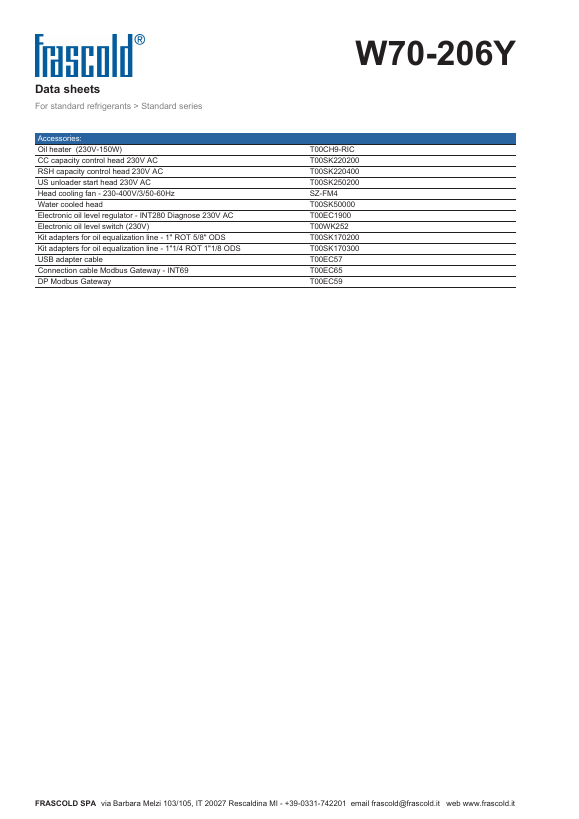

Frascold W70-206Y – Page preview (bc899415c38e_S1-3 S. 2)
Page preview · bc899415c38e_S1-3 · S. 2
Source: Frascold W70-206Y datasheet, p. 1
