Library› Engine Room› Compressors› Refrigeration Compressor› Bitzer Marine 6HE-28Y
Bitzer Marine

6HE-28Y

Refrigeration Compressor · Compressors

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

RefrigerantR404A
Power supply400V-3-50Hz
Displacement (1450 RPM 50Hz)110,5 m³/h
Displacement (1750 RPM 60Hz)133,4 m³/h
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Refrigeration and air conditioning compressor for marine applications.

Applications

  • Marine refrigeration
  • Air conditioning

Features

  • Semi-hermetic design
  • Auto operating mode

Options

  • Discharge gas temperature sensor
  • Start unloading
  • Capacity control
  • Additional fan
  • Refrigerant Injection (RI)
  • Oil service valve
  • Crankcase heater
Source: Bitzer Marine 6HE-28Y datasheet, p. 3
Bitzer Marine 6HE-28Y – Photo (375397688b11_S1-3 S. 1)
Photo · 375397688b11_S1-3 · S. 1
Bitzer Marine 6HE-28Y – Photo (375397688b11_S1-3 S. 2)
Photo · 375397688b11_S1-3 · S. 2
Bitzer Marine 6HE-28Y – Photo (375397688b11_S1-3 S. 3)
Photo · 375397688b11_S1-3 · S. 3

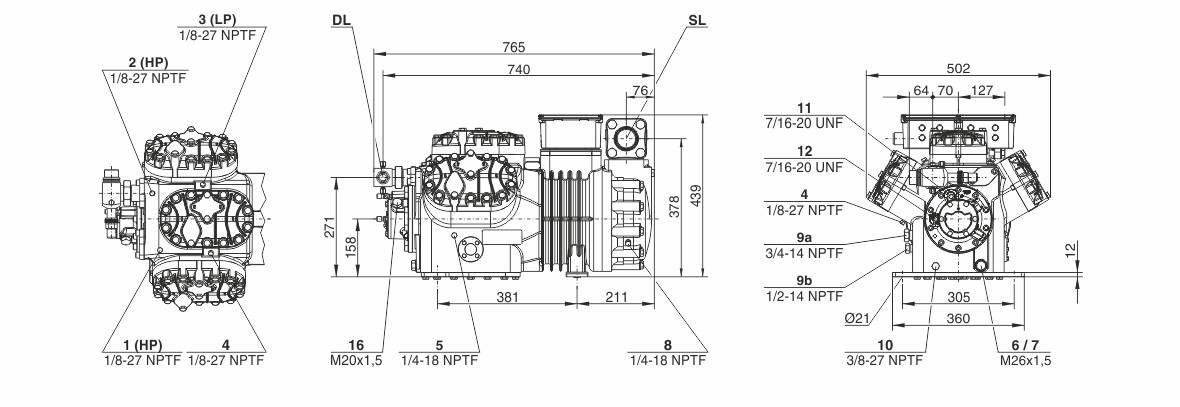

Bitzer Marine 6HE-28Y – Drawing (375397688b11_S1-3 S. 2)
Drawing · 375397688b11_S1-3 · S. 2

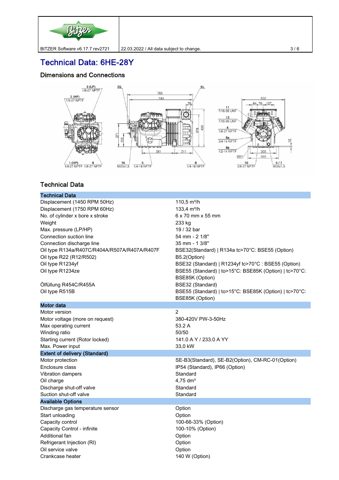

Bitzer Marine 6HE-28Y – Drawing (375397688b11_S1-3 S. 3)
Drawing · 375397688b11_S1-3 · S. 3

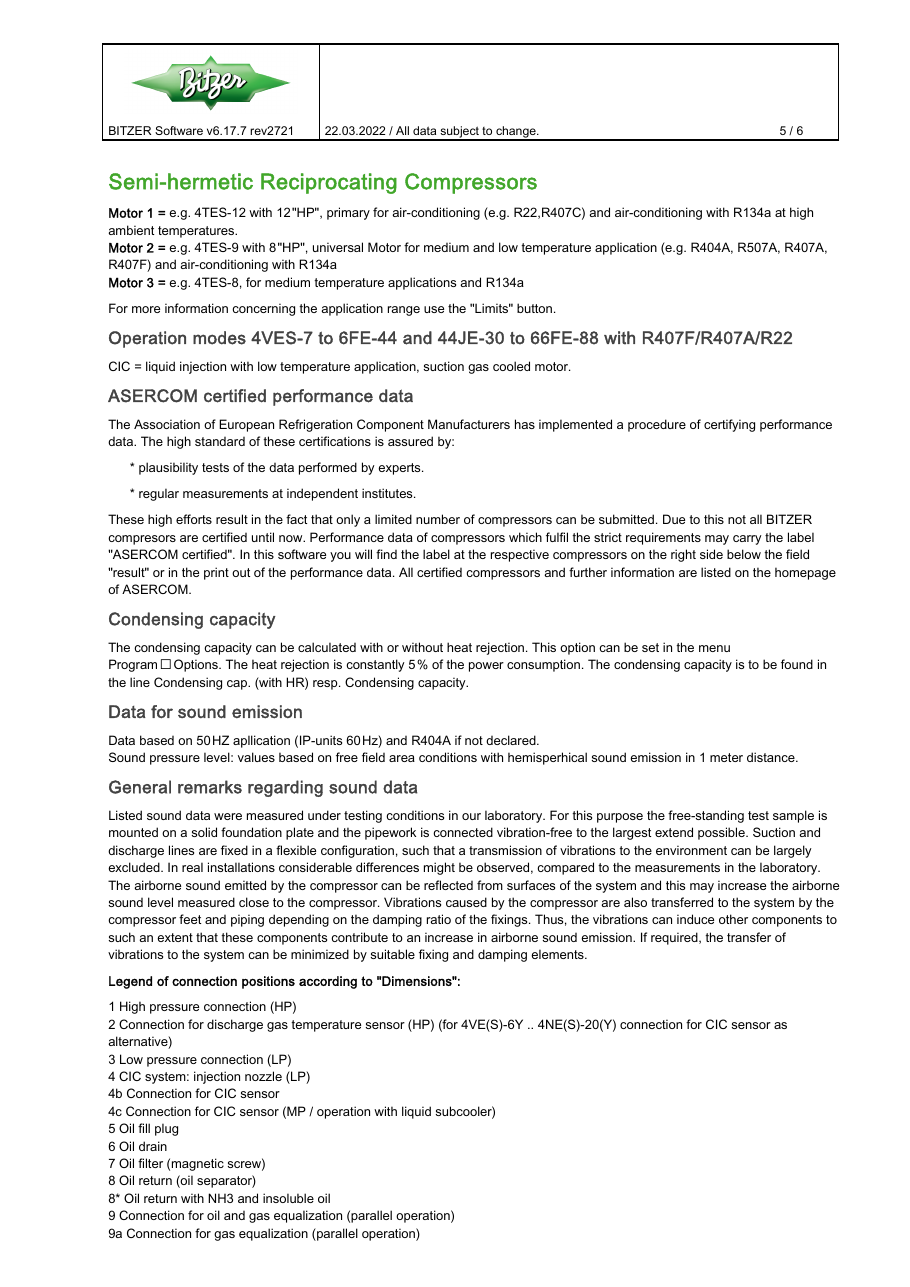

Bitzer Marine 6HE-28Y – Drawing (21206c31c733_S1-6 S. 5)
Drawing · 21206c31c733_S1-6 · S. 5

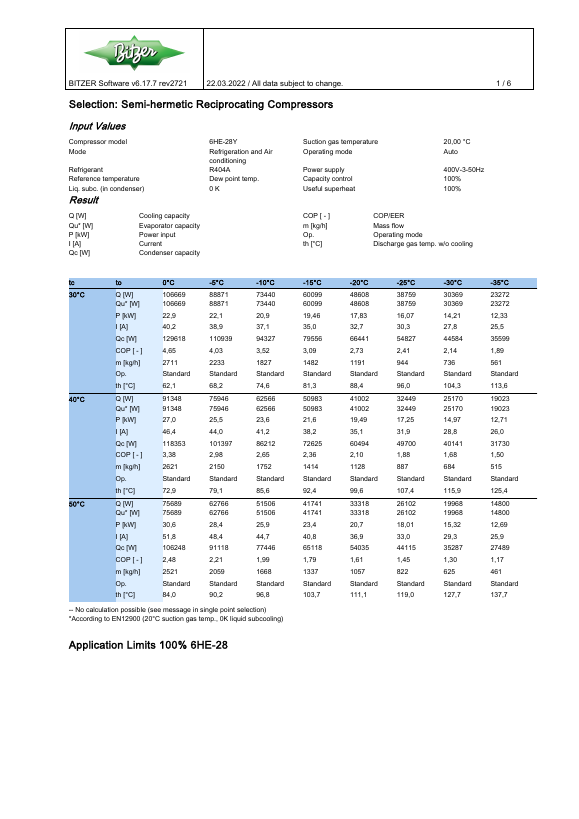

Bitzer Marine 6HE-28Y – Page preview (375397688b11_S1-3 S. 1)
Page preview · 375397688b11_S1-3 · S. 1

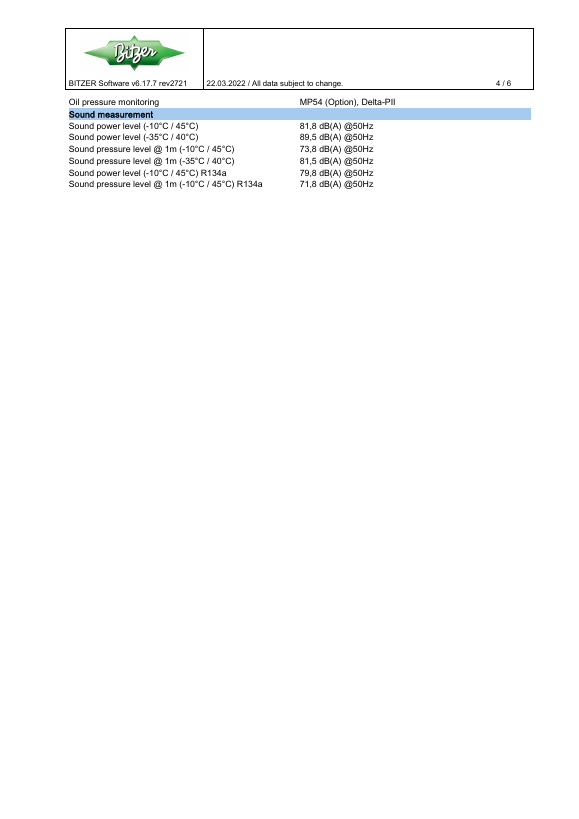

Bitzer Marine 6HE-28Y – Page preview (21206c31c733_S1-6 S. 4)
Page preview · 21206c31c733_S1-6 · S. 4
Source: Bitzer Marine 6HE-28Y datasheet, p. 1
