Library› HVAC› Refrigeration› Refrigeration Compressor (Screw)› Bitzer Marine K073H
Bitzer Marine

K073H

Refrigeration Compressor (Screw) · Refrigeration

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Condenser capacity①7.3 kW
Nominal coolant flow rate1.08 m3/h
Maximum coolant flow②2.75 m3/h
Minimum coolant flow0.85 m3/h
Refrigerant side capacity R448A3.4 dm3
Refrigerant side capacity R404A3.3 dm3
Refrigerant side capacity R2901.5 kg
Coolant side capacity R448A11 kg
Coolant side capacity R404A10 kg
Pass606 mm
A517 mm
A1152 mm
B130 mm
B1184 mm
C1108 mm
Ød50 mm
E154 mm
E150 mm
F110 mm
G400 mm
H58 mm
Leistung Δte 15 K15300 W
Leistung Δte 10 K10200 W
Max. Durchsatz0,76 l/s
Druckabfall2,74 m3/h
C184 mm
I58 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“① The performance data are based on: Refrigerant: R134a 2-pass cooling Refrigerant inlet temperature: 90°C Fouling factor on the refrigerant side: 0.00004 m2K/W Standard design Condensing…”

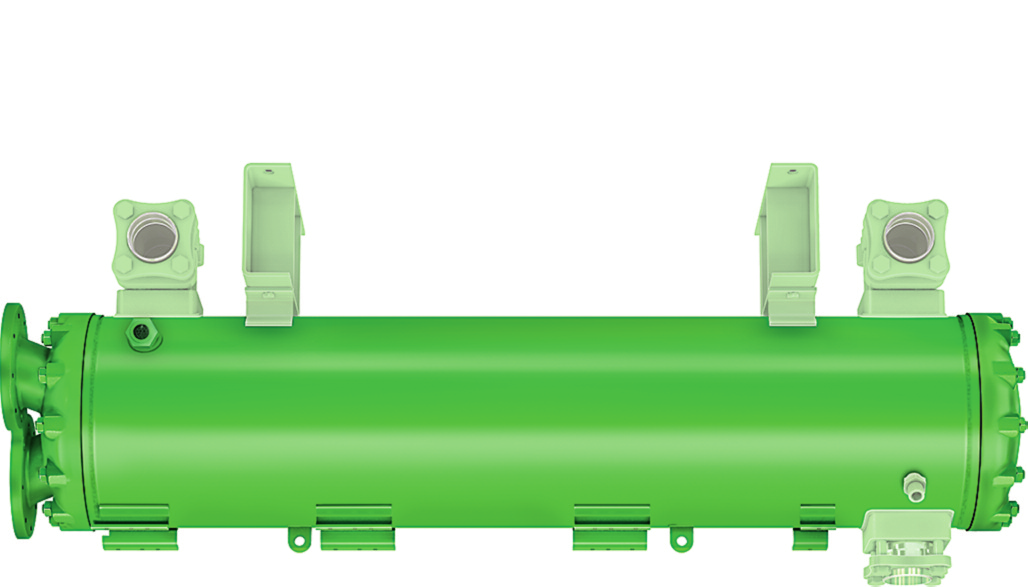

Bitzer Marine K073H – Photo (733095a80d14_S4-9 S. 4)
Photo · 733095a80d14_S4-9 · S. 4

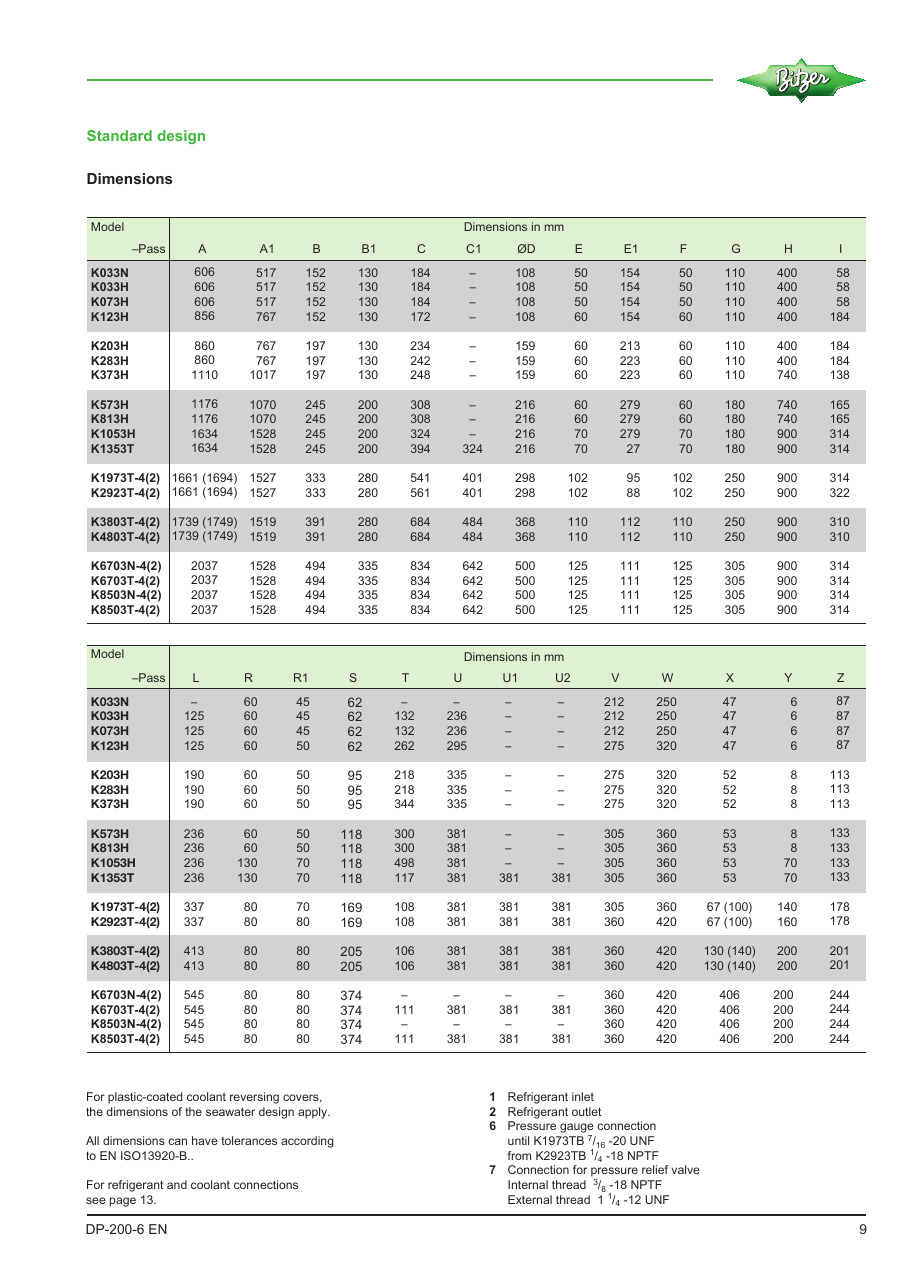

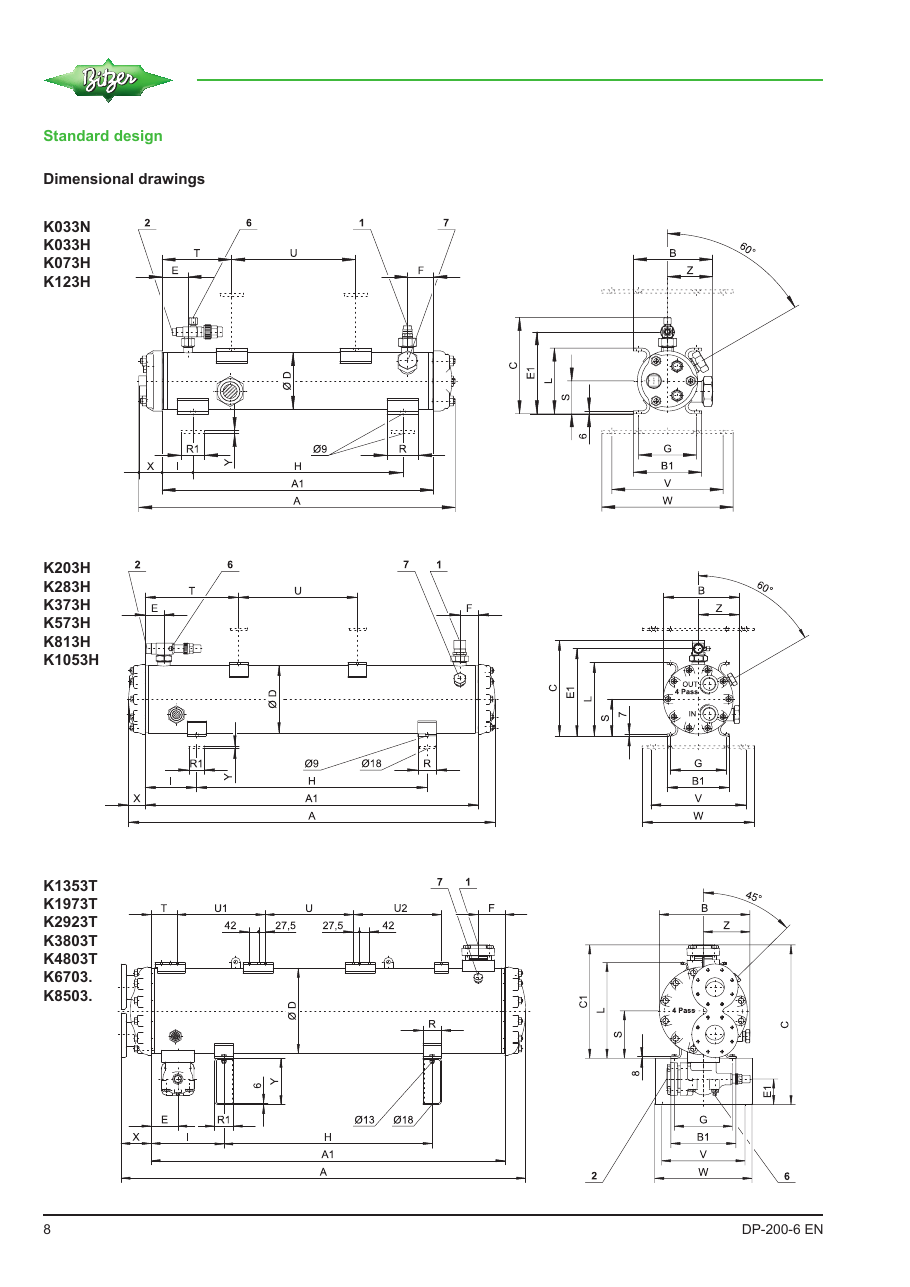

Bitzer Marine K073H – Drawing (733095a80d14_S4-9 S. 5)
Drawing · 733095a80d14_S4-9 · S. 5

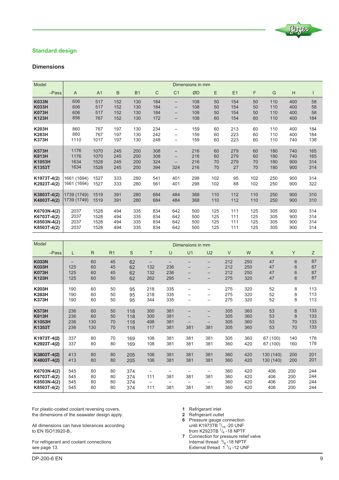

Bitzer Marine K073H – Drawing (733095a80d14_S4-9 S. 6)
Drawing · 733095a80d14_S4-9 · S. 6

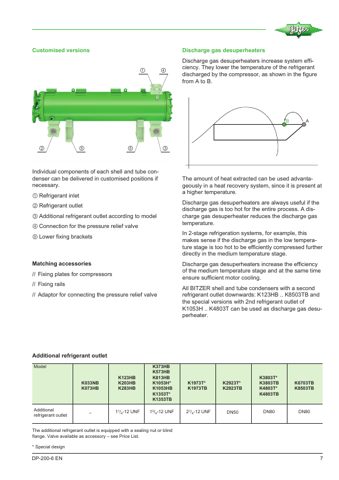

Bitzer Marine K073H – Page preview (733095a80d14_S4-9 S. 4)
Page preview · 733095a80d14_S4-9 · S. 4
Source: Bitzer Marine K073H datasheet, p. 1
