Volvo Penta

TAD420VE

Turbocharger · Turbochargers

Class-certified type (DNV register) · technical data sheet not yet verified
Volvo Penta in the SpecCodex register — view brand page →
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

crankshaft power acc. to ISO 3046103 kW (140 hp)

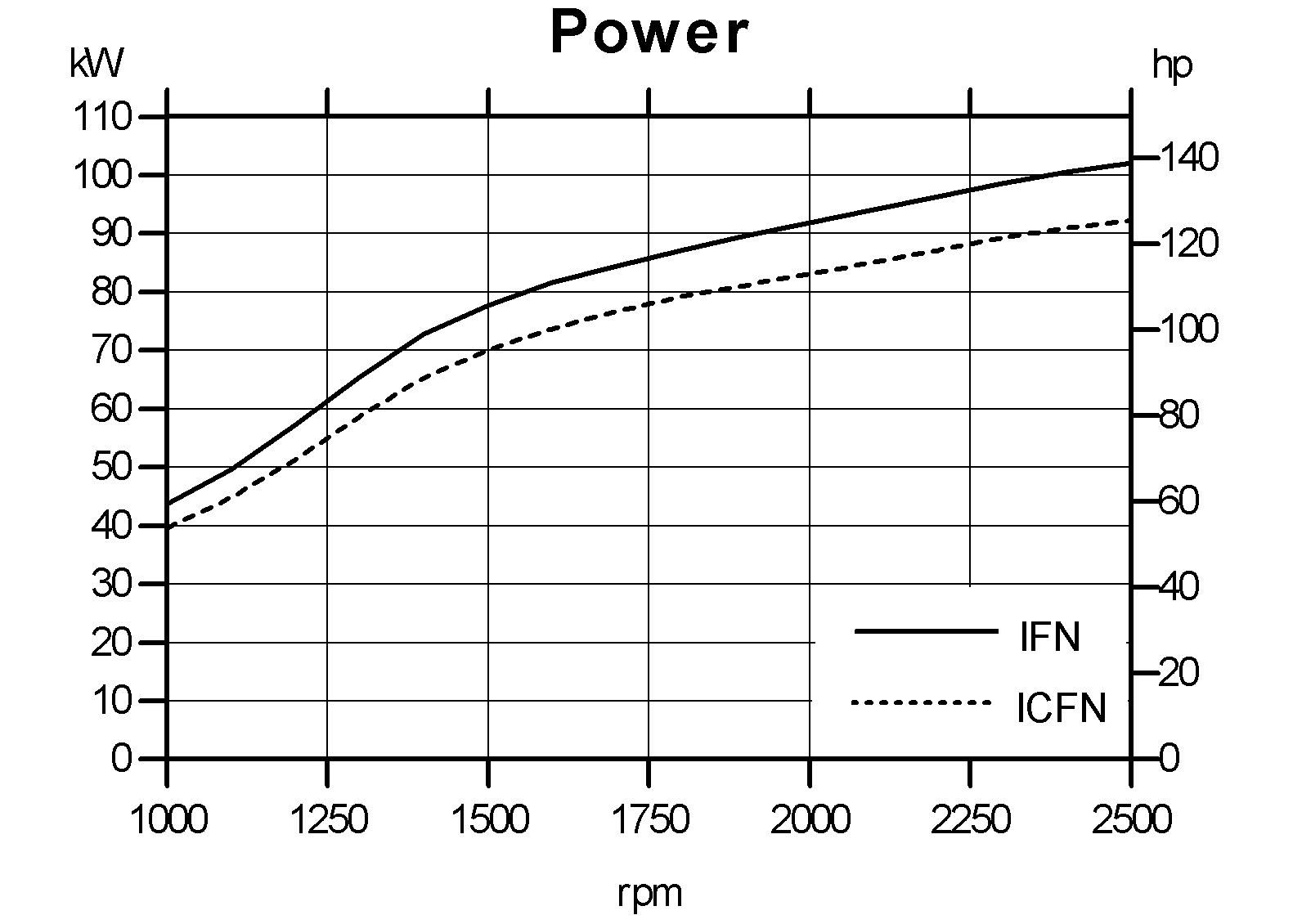

IFN Power at 2500RPM, kW (hp)103 (140)
ICFN Power at 2500 RPM, kW (hp)93 (126)

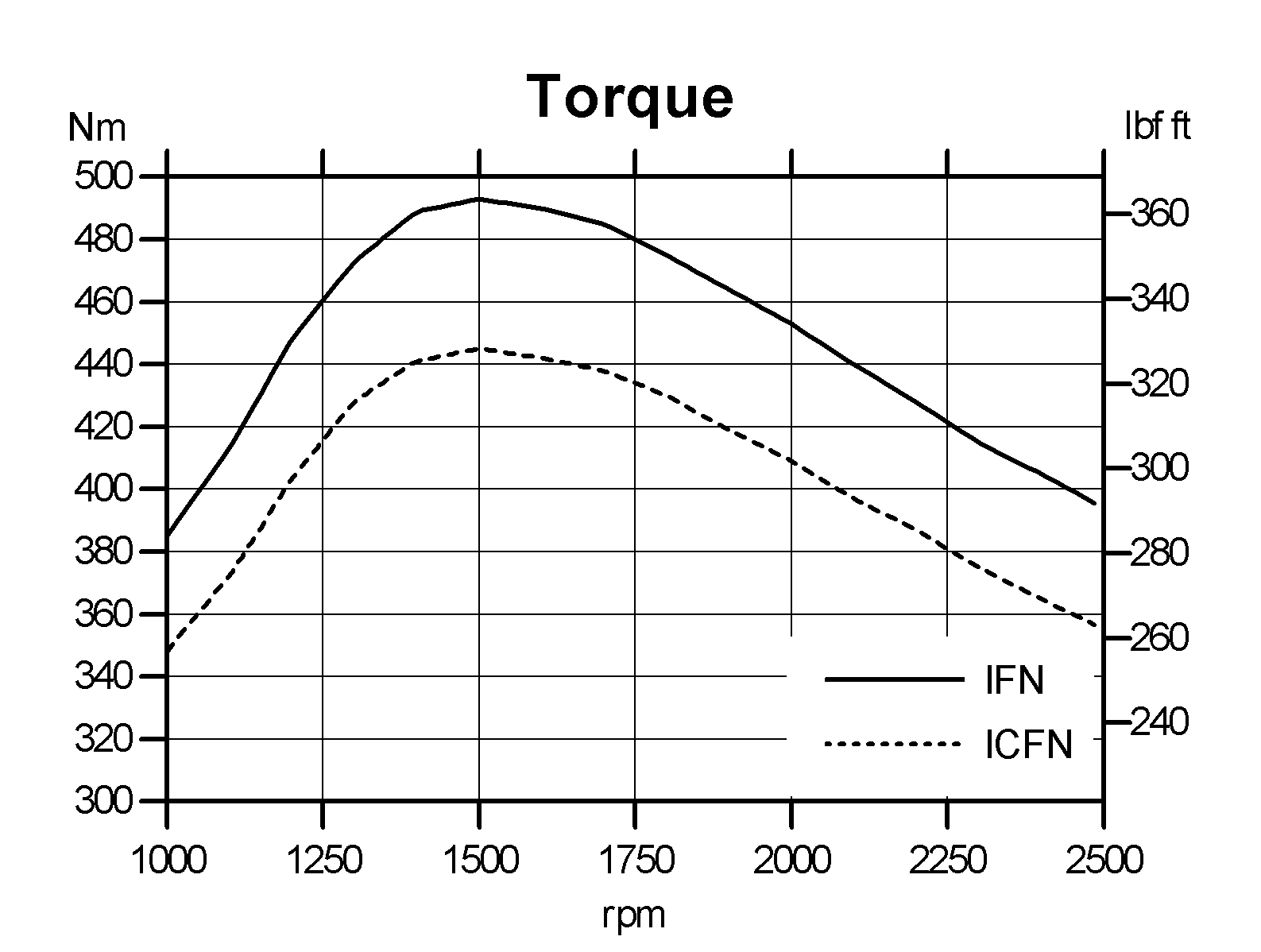

Torque at 1500RPM, Nm (Ibf ft)490 (361)
Displacement, l (in3)4.04 (328)
Bore/stroke, mm (in.)101/126 (3.98/4.96)
Compression ratio19.0:1
Dry weight, kg (lb)380 (728)
CertificationsISO 3046
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

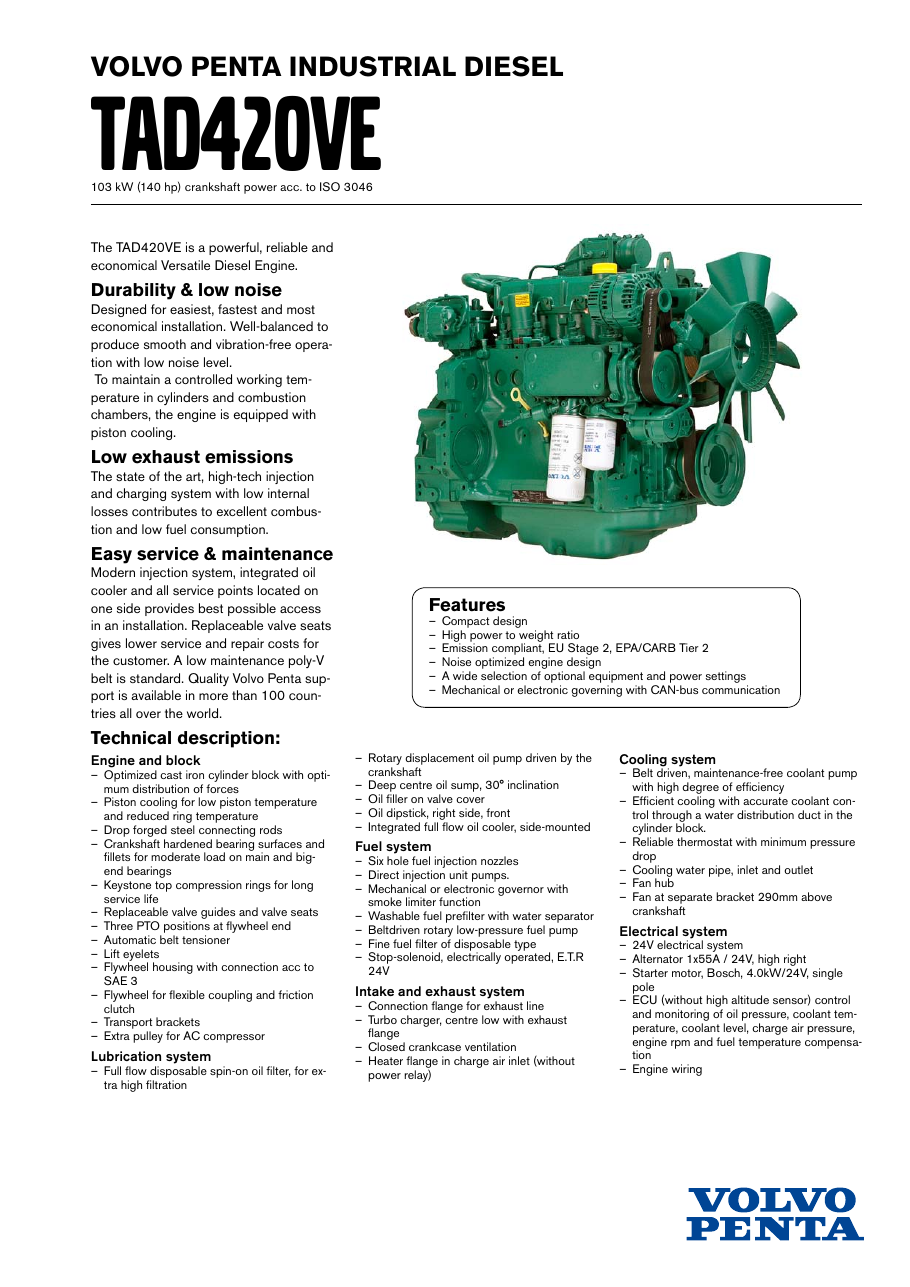

The TAD420VE is a powerful, reliable and economical Versatile Diesel Engine.

Features

  • Compact design
  • High power to weight ratio
  • Emission compliant, EU Stage 2, EPA/CARB Tier 2
  • Noise optimized engine design
  • A wide selection of optional equipment and power settings

Options

  • Electric or mechanical air restriction
  • Intermittent and Continuous power settings
  • Alternator, 28V / 55-80A high right or low left
  • Starter motor, 24V / 4,0kW
  • Speed sender, hourmeter, oilpressure sender and switch
  • Extansion cable 2.5m or 5m, engine to ECU
  • Fan at separate bracket 220 to 390mm above crankshaft
  • Fan on coolant pump
Source: Volvo Penta TAD420VE datasheet, p. 2

Standards

  • ISO 3046
  • BS 5514
  • DIN 6271
Source: Volvo Penta TAD420VE datasheet, p. 2

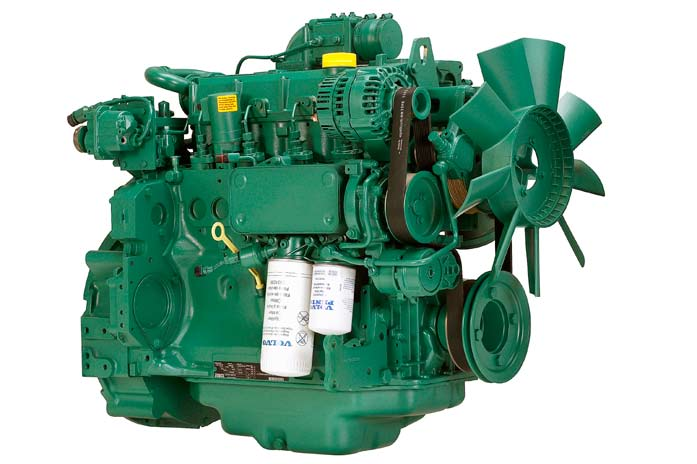

Volvo Penta TAD420VE – Photo (7e2c8603ad71_S1-2 S. 1)
Photo · 7e2c8603ad71_S1-2 · S. 1

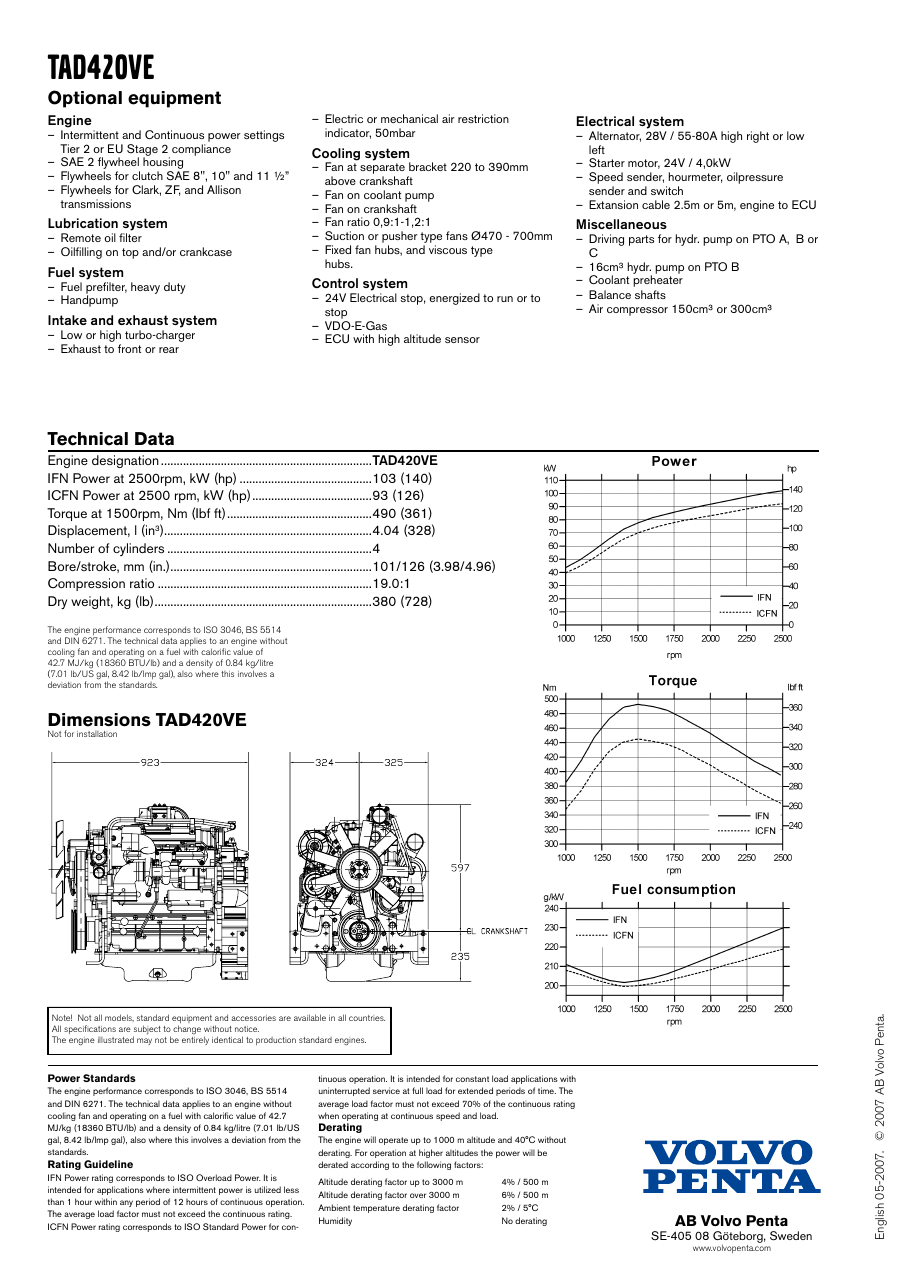

Volvo Penta TAD420VE – Drawing (7e2c8603ad71_S1-2 S. 2)
Drawing · 7e2c8603ad71_S1-2 · S. 2
Volvo Penta TAD420VE – Drawing (7e2c8603ad71_S1-2 S. 2)
Drawing · 7e2c8603ad71_S1-2 · S. 2
Volvo Penta TAD420VE – Drawing (7e2c8603ad71_S1-2 S. 2)
Drawing · 7e2c8603ad71_S1-2 · S. 2

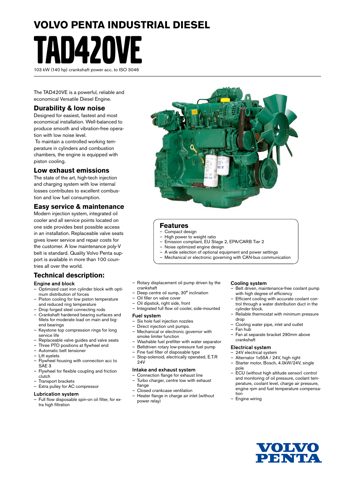

Volvo Penta TAD420VE – Drawing (7e2c8603ad71_S1-2 S. 1)
Drawing · 7e2c8603ad71_S1-2 · S. 1
Volvo Penta TAD420VE – Drawing (7e2c8603ad71_S1-2 S. 2)
Drawing · 7e2c8603ad71_S1-2 · S. 2
Source: Volvo Penta TAD420VE datasheet, p. 1
