Phoenix Contact

MPTD 2,5-M BU

Terminal Block · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nom. voltage800 V
Nominal current24 A
Number of connections4
Number of positions1
Connection methodPush-in connection
Rated cross section2.5 mm2
Cross section0.14 mm2 - 4 mm2
Colorblue
Rated surge voltage8 kV
Maximum power dissipation for nominal condition0.77 W
Nominal current24 A
Nominal voltage800 V
Nominal cross section2.5 mm²
Width10.3 mm
Height36 mm
Depth27.3 mm
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
Connection in acc. with standardIEC 60947-7-1
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are…”

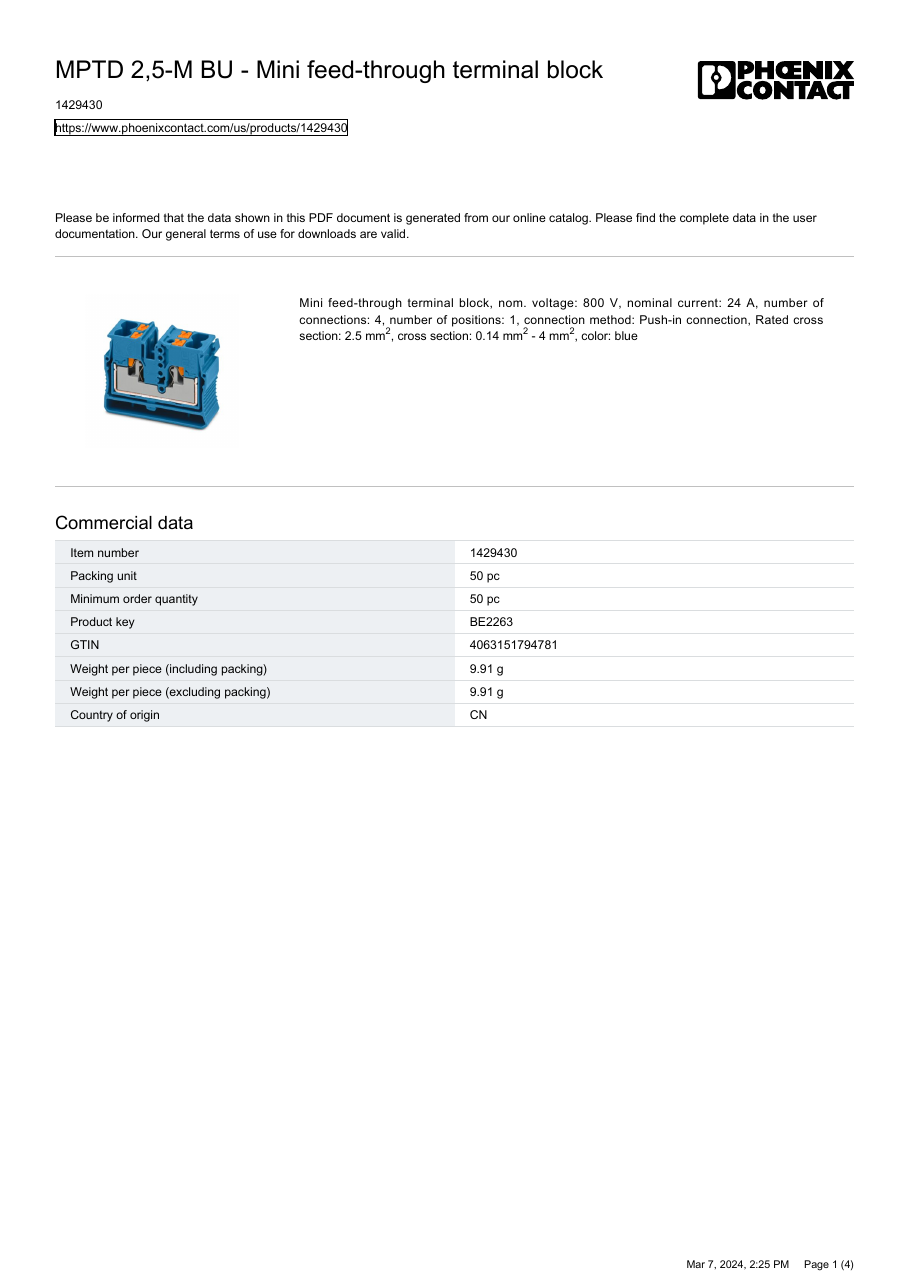

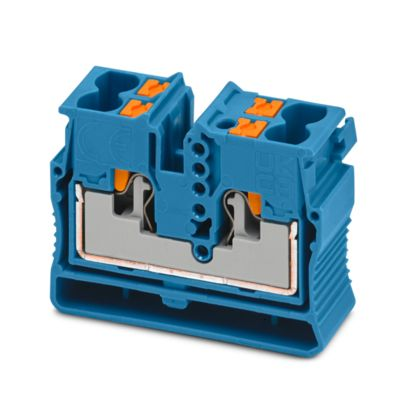

Phoenix Contact MPTD 2,5-M BU – Photo (b055422270b1_S1-4 S. 1)
Photo · b055422270b1_S1-4 · S. 1

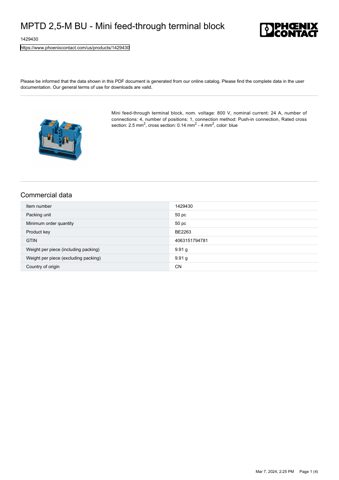

Phoenix Contact MPTD 2,5-M BU – Drawing (b055422270b1_S1-4 S. 1)
Drawing · b055422270b1_S1-4 · S. 1

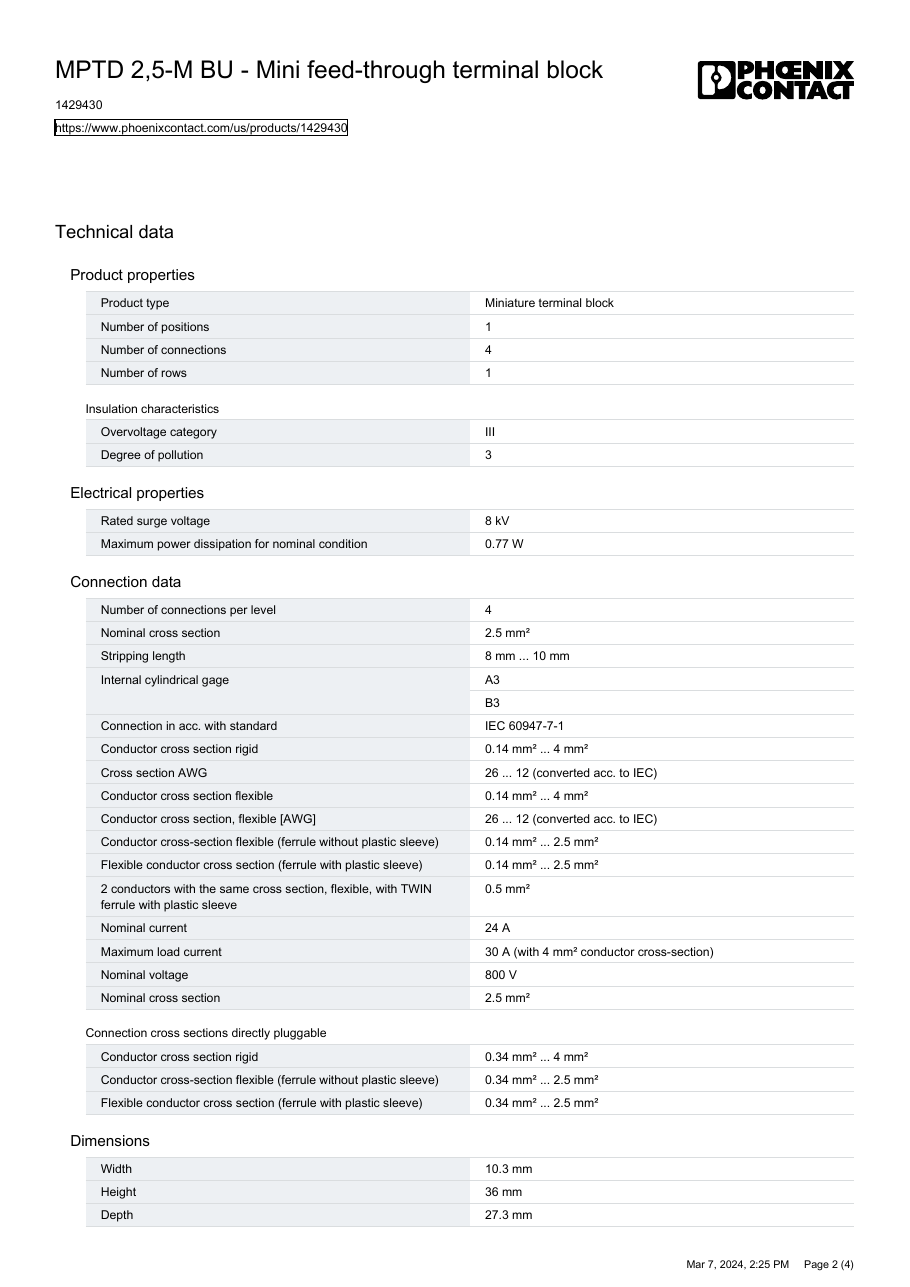

Phoenix Contact MPTD 2,5-M BU – Drawing (b055422270b1_S1-4 S. 2)
Drawing · b055422270b1_S1-4 · S. 2

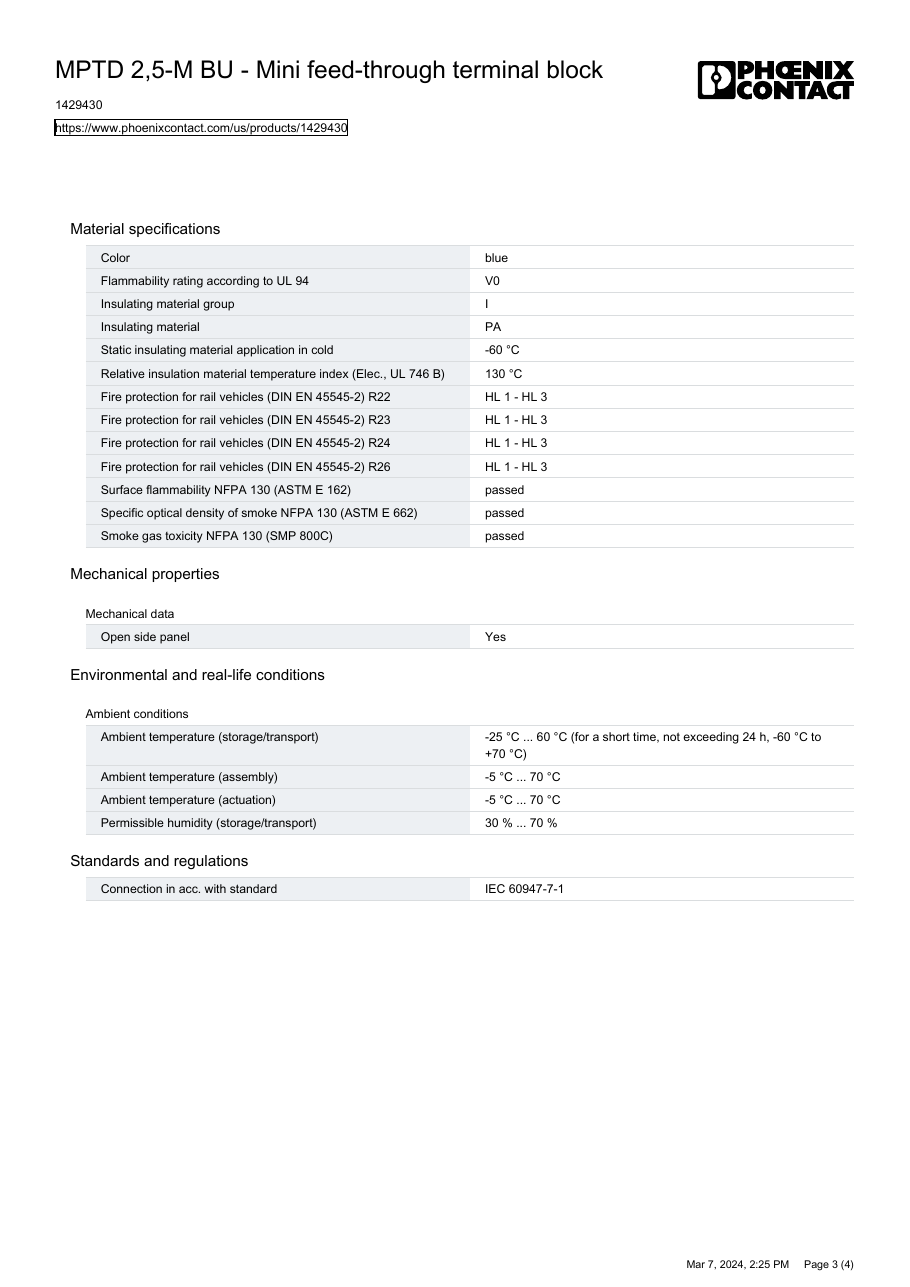

Phoenix Contact MPTD 2,5-M BU – Drawing (b055422270b1_S1-4 S. 3)
Drawing · b055422270b1_S1-4 · S. 3

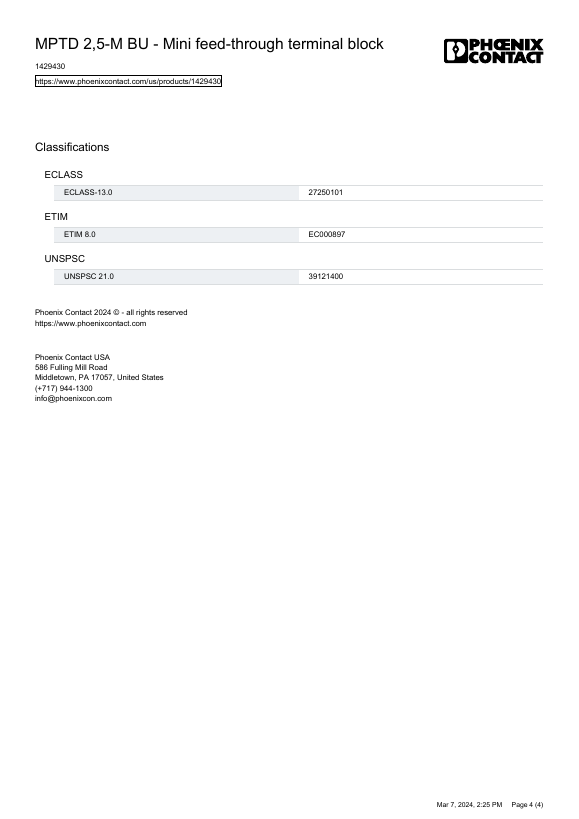

Phoenix Contact MPTD 2,5-M BU – Page preview (b055422270b1_S1-4 S. 4)
Page preview · b055422270b1_S1-4 · S. 4
Source: Phoenix Contact MPTD 2,5-M BU datasheet, p. 1
