Phoenix Contact

AGK PT 8X6/M10 BU

Terminal Block · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Terminal Block — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nom. voltage1000 V
Nominal current41 A
Number of connections9
Rated cross section6 mm2
Cross section0.5 mm2 - 10 mm2
Rated surge voltage8 kV
Maximum power dissipation for nominal condition1.31 W
Nominal cross section6 mm²
Rated cross section AWG10
Nominal current41 A
Maximum load current57 A
Maximum total current106 A
Nominal voltage1000 V
Hole diameter10.4 mm
Bolt diameter10 mm
Screw threadM10
Height72.6 mm
Depth32.3 mm
Ambient temperature (operation)-60 °C ... 110 °C
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Connection in acc. with standardIEC 60947-7-1
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are…”

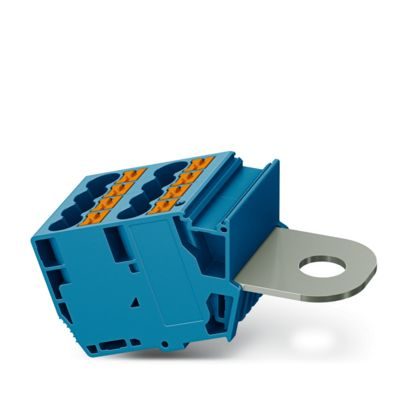

Phoenix Contact AGK PT 8X6/M10 BU – Photo (c4f31270162c_S1-5 S. 1)
Photo · c4f31270162c_S1-5 · S. 1

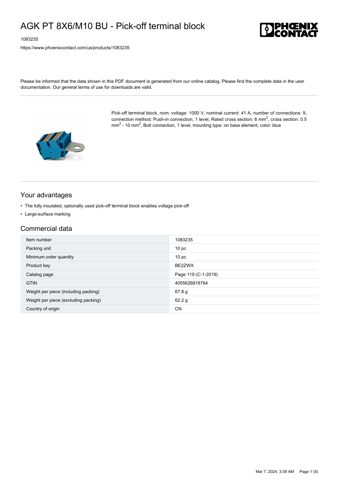

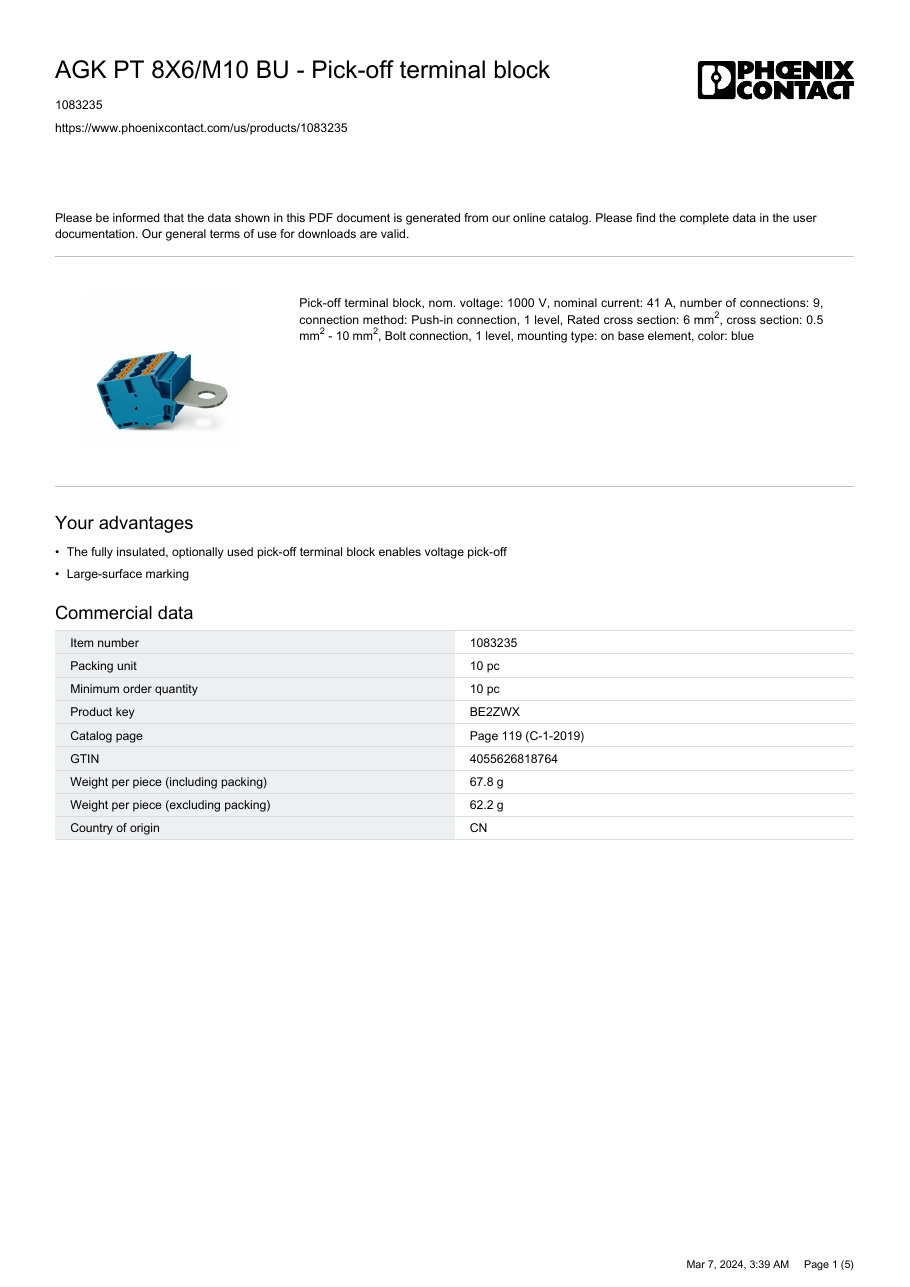

Phoenix Contact AGK PT 8X6/M10 BU – Drawing (c4f31270162c_S1-5 S. 1)
Drawing · c4f31270162c_S1-5 · S. 1

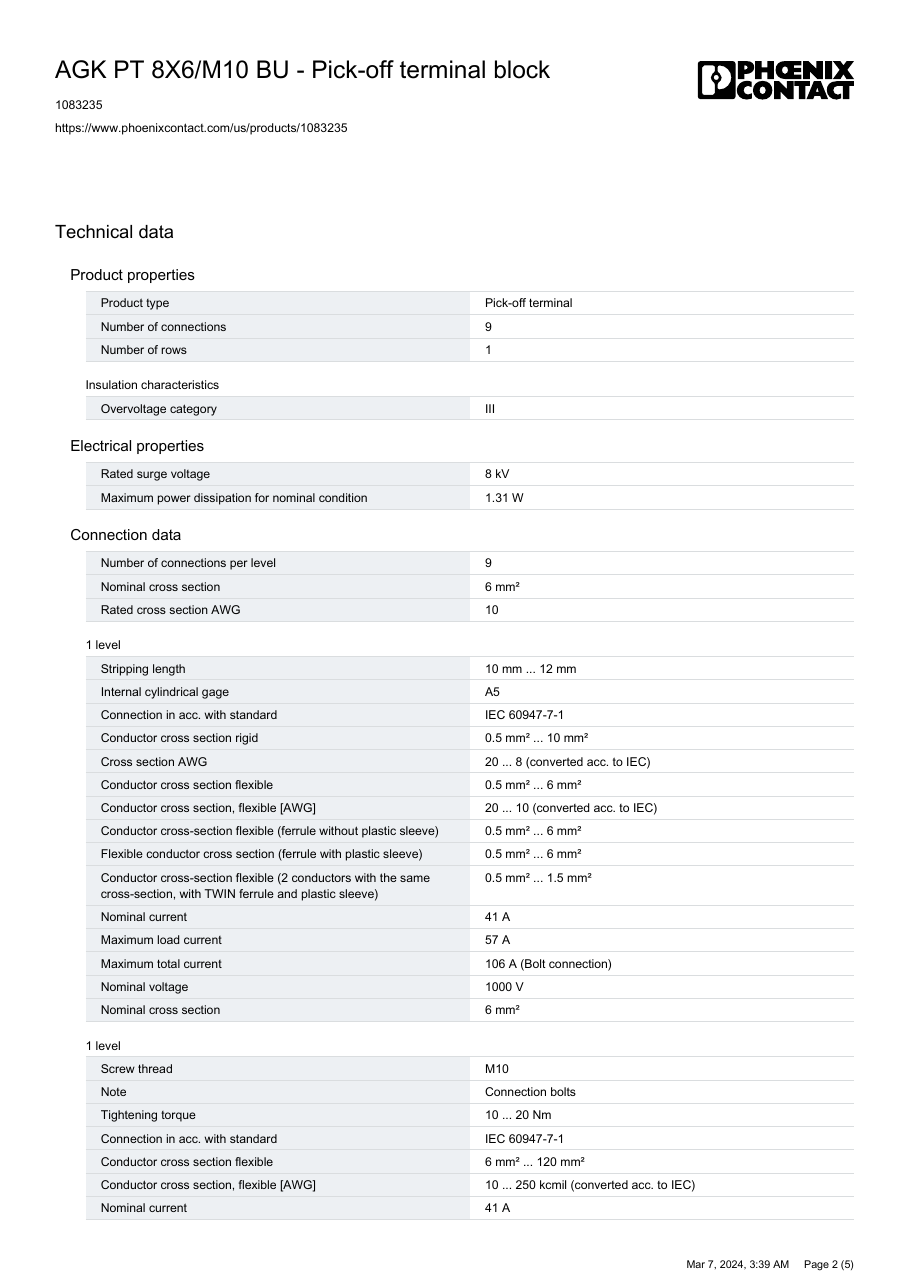

Phoenix Contact AGK PT 8X6/M10 BU – Drawing (c4f31270162c_S1-5 S. 2)
Drawing · c4f31270162c_S1-5 · S. 2
Phoenix Contact AGK PT 8X6/M10 BU – Drawing (c4f31270162c_S1-5 S. 3)
Drawing · c4f31270162c_S1-5 · S. 3

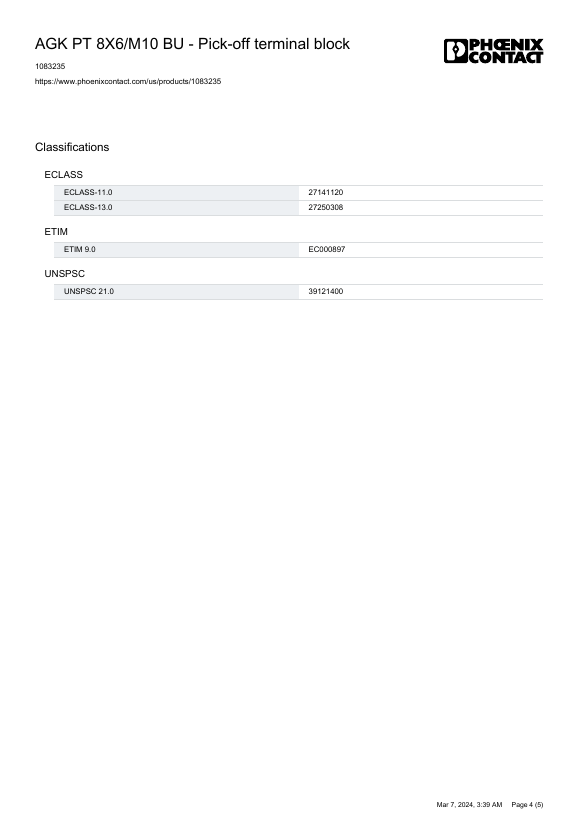

Phoenix Contact AGK PT 8X6/M10 BU – Page preview (c4f31270162c_S1-5 S. 4)
Page preview · c4f31270162c_S1-5 · S. 4

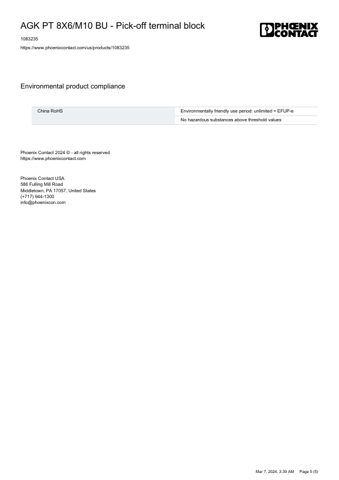

Phoenix Contact AGK PT 8X6/M10 BU – Page preview (c4f31270162c_S1-5 S. 5)
Page preview · c4f31270162c_S1-5 · S. 5
Source: M10 BU datasheet, p. 1
