Library› Safety & LSA› Fire Fighting› Fire Detection System› Siemens Fire Safety FDCIO422
Siemens Fire Safety

FDCIO422

Fire Detection System · Fire Fighting

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating voltageDC 12 – 32 V
Absolute maximum peak current1.92 mA
Operating temperature32 – 120 °F / 0 – 49 °C
CertificationsUL 864
P.F. / Amb. Temp.0 - 77°F / 0 - 25°C, ≤ 100°F / ≤ 38°C, ≤ 120°F / ≤ 49°C
Operating current (quiescent)1 mA
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Terminal block for separating power limited and non-power limited wiring.

Applications

  • Power limited wiring
  • Non-power limited wiring

Features

  • Complies with NEC Article 760
  • Separates power limited from non-power limited conductors
  • Recommended fuse protection for outputs

Standards

  • NEC Article 760
Siemens Fire Safety FDCIO422 – Drawing (27abb9240929_S3-6 S. 3)
Drawing · 27abb9240929_S3-6 · S. 3

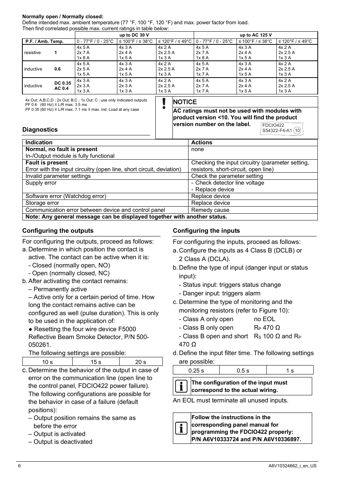

Siemens Fire Safety FDCIO422 – Drawing (27abb9240929_S3-6 S. 4)
Drawing · 27abb9240929_S3-6 · S. 4

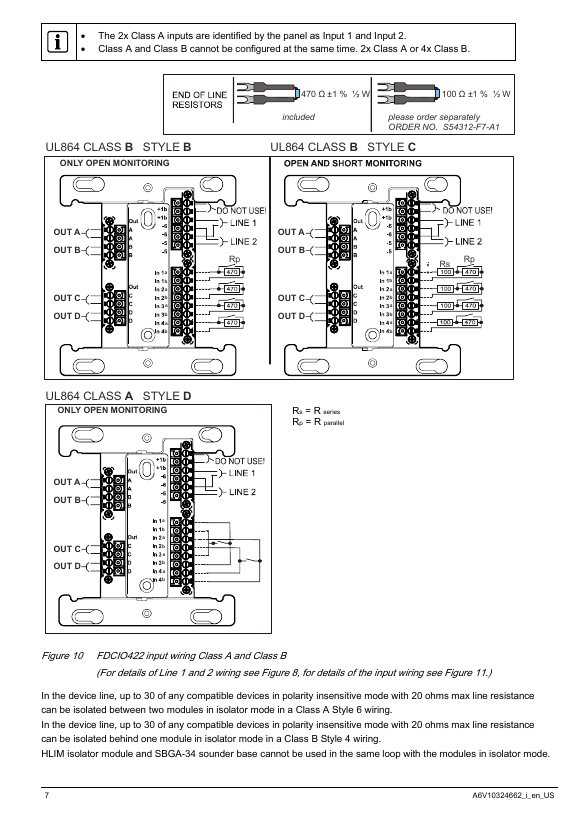

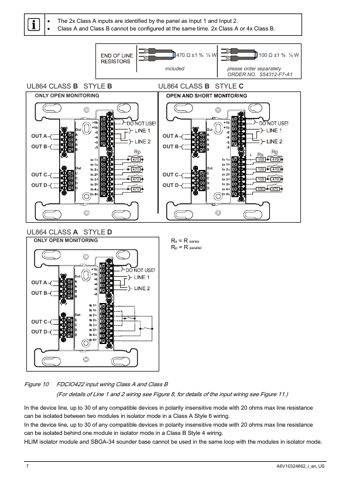

Siemens Fire Safety FDCIO422 – Page preview (64fe4eb06d7e_S3-8 S. 5)
Page preview · 64fe4eb06d7e_S3-8 · S. 5
Siemens Fire Safety FDCIO422 – Page preview (64fe4eb06d7e_S3-8 S. 6)
Page preview · 64fe4eb06d7e_S3-8 · S. 6
Source: Siemens Fire Safety FDCIO422 datasheet, p. 3
