Library› Safety & LSA› Safety Systems› Gas Detection (Portable)› Riken Keiki GX-3R
Riken Keiki

GX-3R

Gas Detection (Portable) · Safety Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Detection methodDiffusion type (Changeable to sampling type by attaching RP-3R)
Gas alarm indicationLamp flashing, continuous modulating buzzer sounding, gas concentration display
Fault alarmSystem abnormality, sensor abnormality, battery voltage drop, calibration failur
Fault alarm indicationLamp flashing, intermittent buzzer sounding, detail display
DisplaysLCD digital, backlight, operation status, clock, battery level, temperature, pea
Buzzer volumeApprox. 95dB (30cm)
Data logger functionMaximum number of items: 3,600 Interval: 5 minutes (adjustable) Communic
Intrinsically safe explosion-proof constructionTIIS Ex ia IIC T4 Ga
Protection levelEquivalent to IP66/68 (2 m, 1 h)
Power sourceLithium ion rechargeable battery unit Charging time: Approx. 3 hours
Continuous operating time*1Long-life battery mode on: Approx. 40 hours (25°C, fully charged, no alarm, no l
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Lamp flashing, continuous modulating buzzer sounding, gas concentration display blinking, vibration Reset operation: Self-latching”

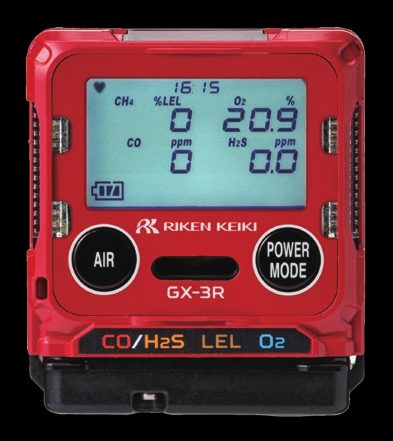

Riken Keiki GX-3R – Photo (cfd7d80b381d_S1-4 S. 1)
Photo · cfd7d80b381d_S1-4 · S. 1

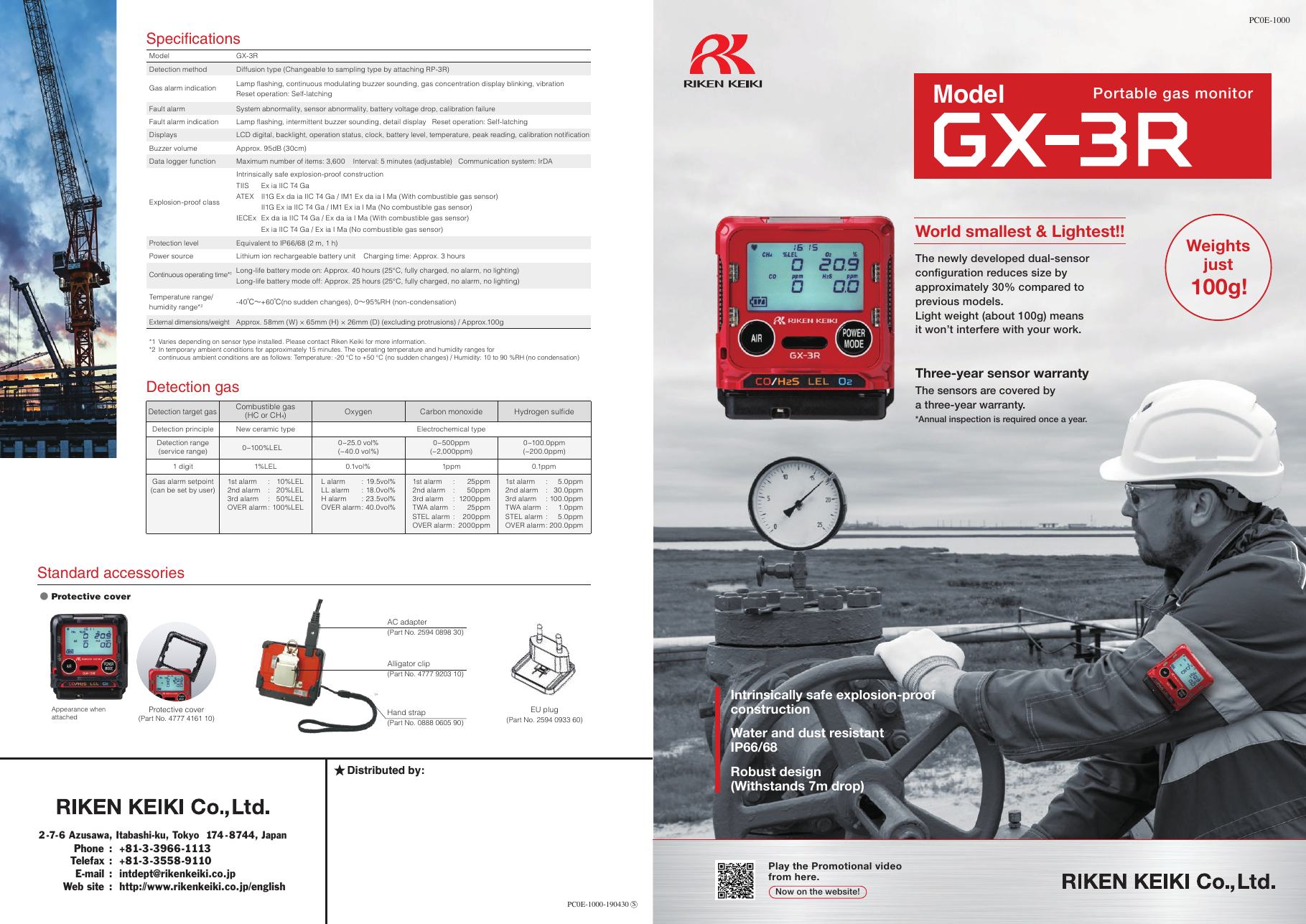

Riken Keiki GX-3R – Drawing (cfd7d80b381d_S1-4 S. 1)
Drawing · cfd7d80b381d_S1-4 · S. 1
Riken Keiki GX-3R – Drawing (cfd7d80b381d_S1-4 S. 2)
Drawing · cfd7d80b381d_S1-4 · S. 2
Riken Keiki GX-3R – Drawing (cfd7d80b381d_S1-4 S. 4)
Drawing · cfd7d80b381d_S1-4 · S. 4

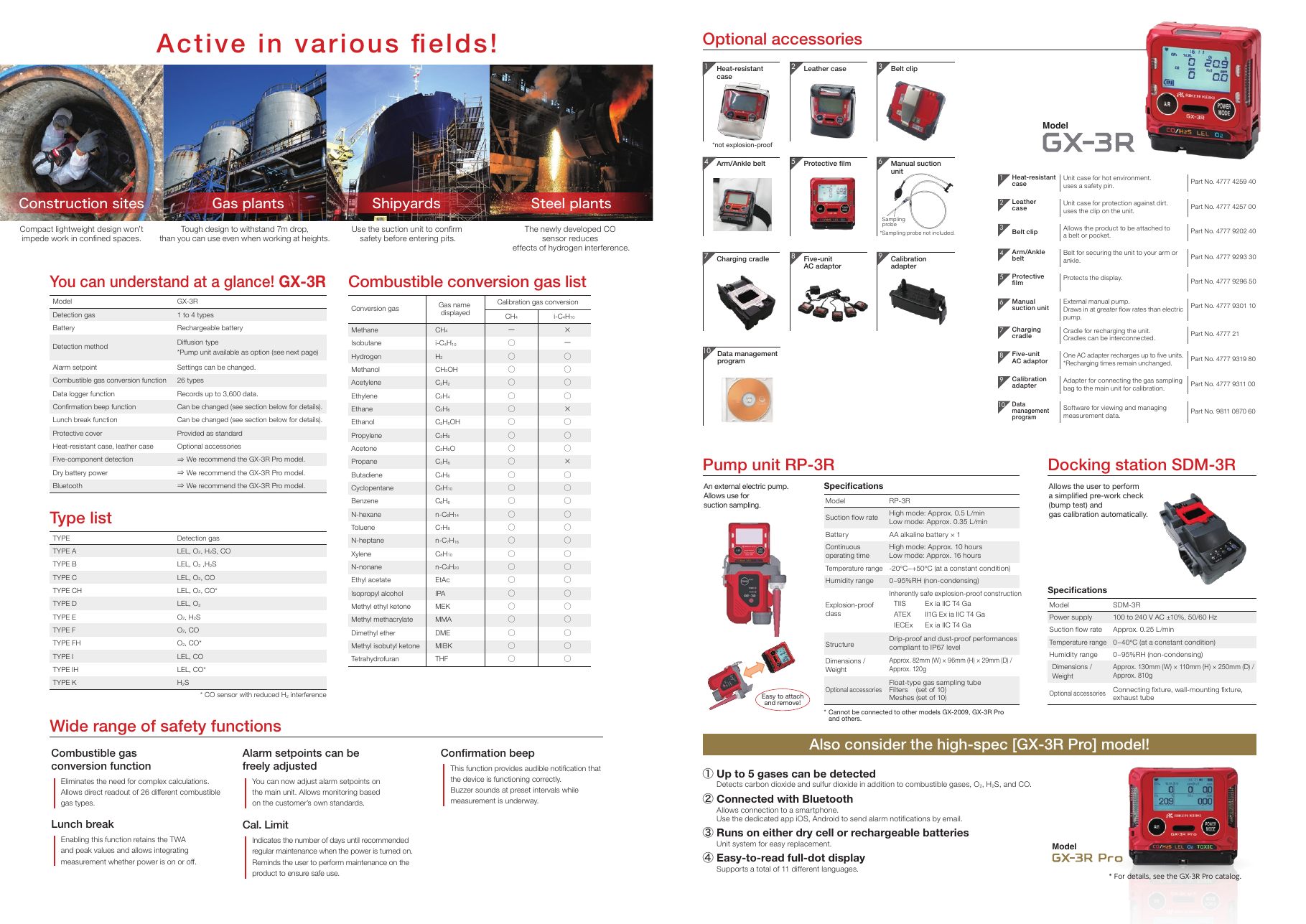

Riken Keiki GX-3R – Page preview (cfd7d80b381d_S1-4 S. 3)
Page preview · cfd7d80b381d_S1-4 · S. 3
Source: Riken Keiki GX-3R datasheet, p. 1
