Library› Navigation› Signaling & Visual› Navigation Light› Sealite 3NM
Sealite

3NM

Navigation Light · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Visible Range (NM)>3NM
Horizontal Output (degrees)Red - 112.5° Green - 112.5° White - 135° Yellow - 225°
Current Draw (mA)Minimal
Temperature Range-40 to 80°C
Battery Capacity (Ah)12 Ah
Autonomy (days)>24 days
Height (mm/inches)390 / 152/5 mm/inches
Width (mm/inches)233 / 91/5 mm/inches
Mass (kg/lbs)9.2 / 201/4 kg/lbs
Product Life ExpectancyUp to 12 years
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“BargeSafe™ Solar 3NM Model The Sealite BargeSafe™ Solar 3NM LED barge lights are certified to UL 1104 and COLREG-72 with >3NM visible range. The LED barge light is one of the most advanced in its…”

Sealite 3NM – Photo (1386a4063d49_S5-11 S. 6)
Photo · 1386a4063d49_S5-11 · S. 6
Sealite 3NM – Photo (1386a4063d49_S5-11 S. 6)
Photo · 1386a4063d49_S5-11 · S. 6

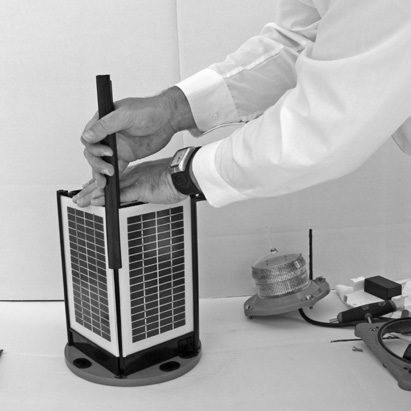

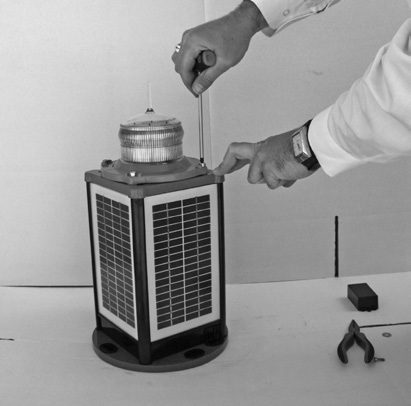

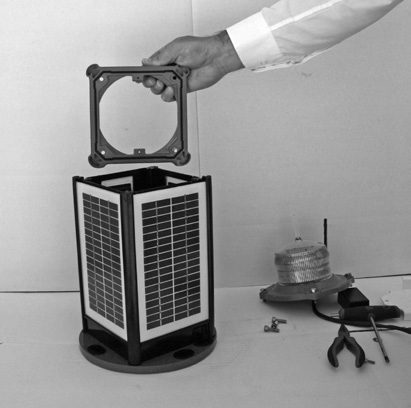

Sealite 3NM – Photo (1386a4063d49_S5-11 S. 7)
Photo · 1386a4063d49_S5-11 · S. 7
Sealite 3NM – Photo (1386a4063d49_S5-11 S. 7)
Photo · 1386a4063d49_S5-11 · S. 7
Sealite 3NM – Photo (1386a4063d49_S5-11 S. 7)
Photo · 1386a4063d49_S5-11 · S. 7
Sealite 3NM – Photo (1386a4063d49_S5-11 S. 7)
Photo · 1386a4063d49_S5-11 · S. 7

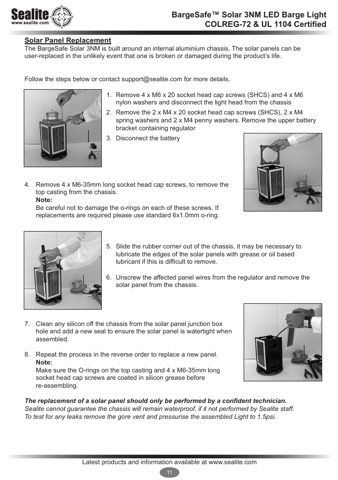

Sealite 3NM – Drawing (1386a4063d49_S5-11 S. 7)
Drawing · 1386a4063d49_S5-11 · S. 7

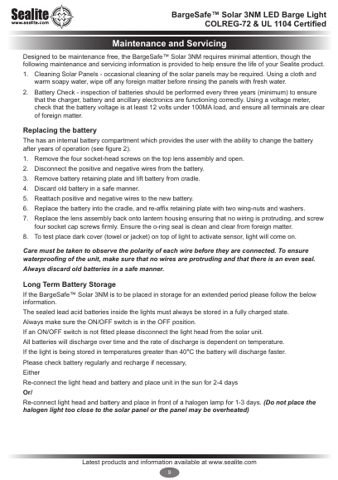

Sealite 3NM – Page preview (1386a4063d49_S5-11 S. 5)
Page preview · 1386a4063d49_S5-11 · S. 5
Source: Sealite 3NM datasheet, p. 1
