Library› Safety & LSA› Gas Detection› Fixed Gas Detection System› Gastron GTD-2000Tx
Gastron

GTD-2000Tx

Fixed Gas Detection System · Gas Detection

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring TypeDiffusion
Measuring Value DisplayLCD or OLED Display
Detectable GasToxic Gas (Note 1)
Measuring Range000.0 ~ 9999 (Note 1)
Accuracy≤ ±3% / Full Range
Zero Drift≤2% / Full Range
Max. wattage3.6W @+24 VDC
Max. current150mA @+24 VDC
Measured-value signal4mA(Zero) to 20mA(Full Scale)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“GTD-2000Tx toxic gas detector has been developed to detect gas leaked from industrial sites and various toxic gases generated from factories, gas storages, and manufacturing processes that produce or…”

Gastron GTD-2000Tx – Photo (e5c31455d093_S4-16 S. 11)
Photo · e5c31455d093_S4-16 · S. 11
Gastron GTD-2000Tx – Photo (e5c31455d093_S4-16 S. 11)
Photo · e5c31455d093_S4-16 · S. 11
Gastron GTD-2000Tx – Photo (e5c31455d093_S4-16 S. 12)
Photo · e5c31455d093_S4-16 · S. 12

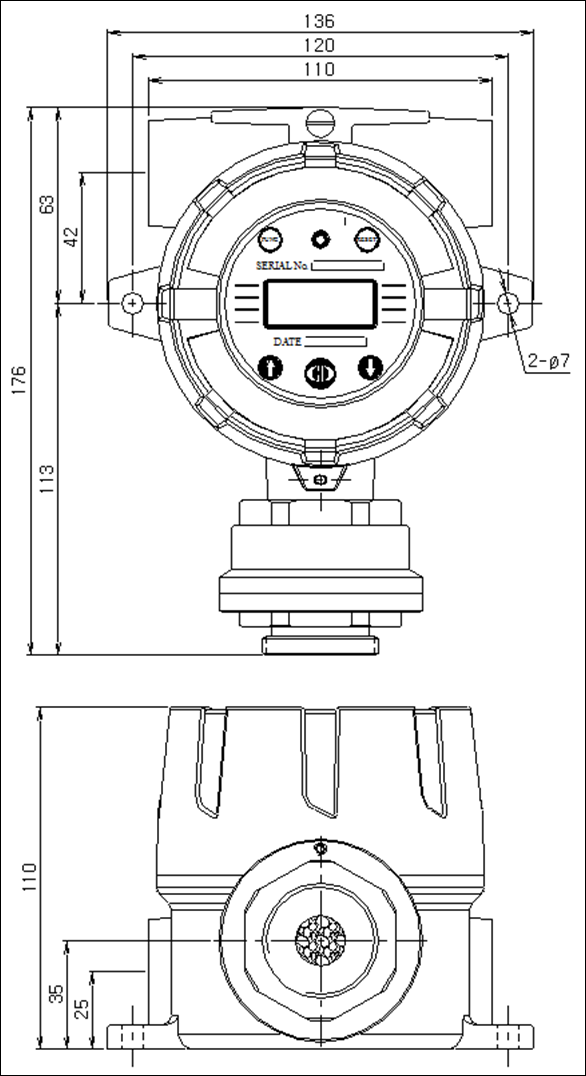

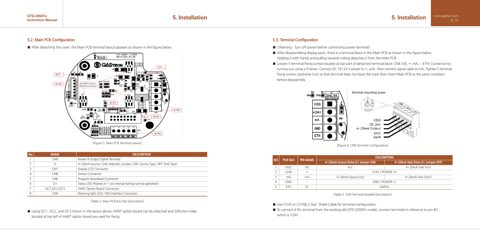

Gastron GTD-2000Tx – Drawing (e5c31455d093_S4-16 S. 4)
Drawing · e5c31455d093_S4-16 · S. 4

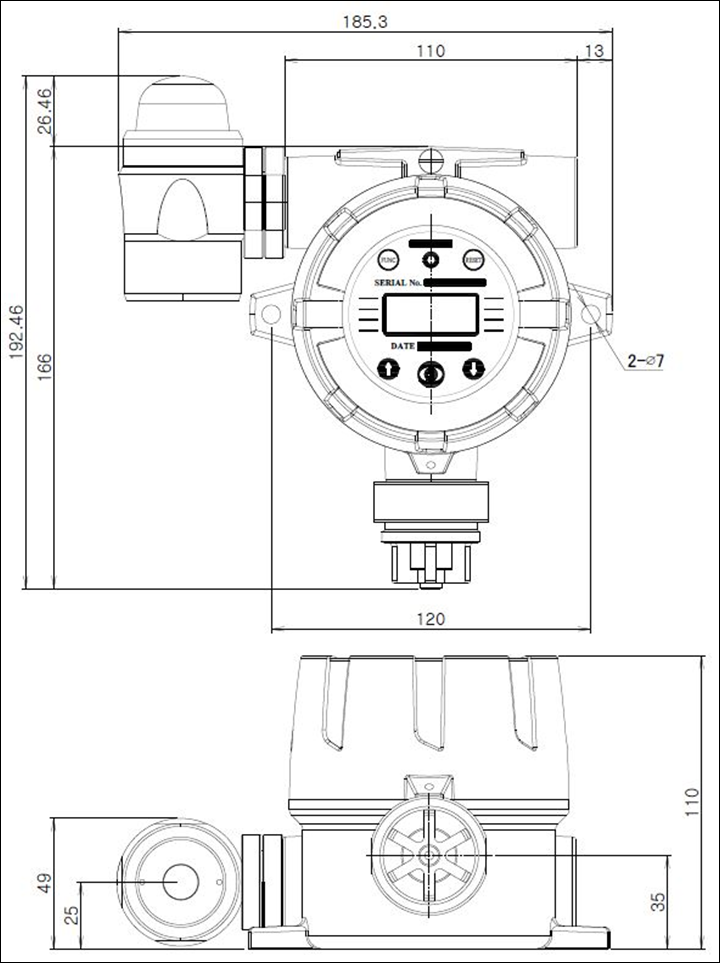

Gastron GTD-2000Tx – Drawing (e5c31455d093_S4-16 S. 5)
Drawing · e5c31455d093_S4-16 · S. 5

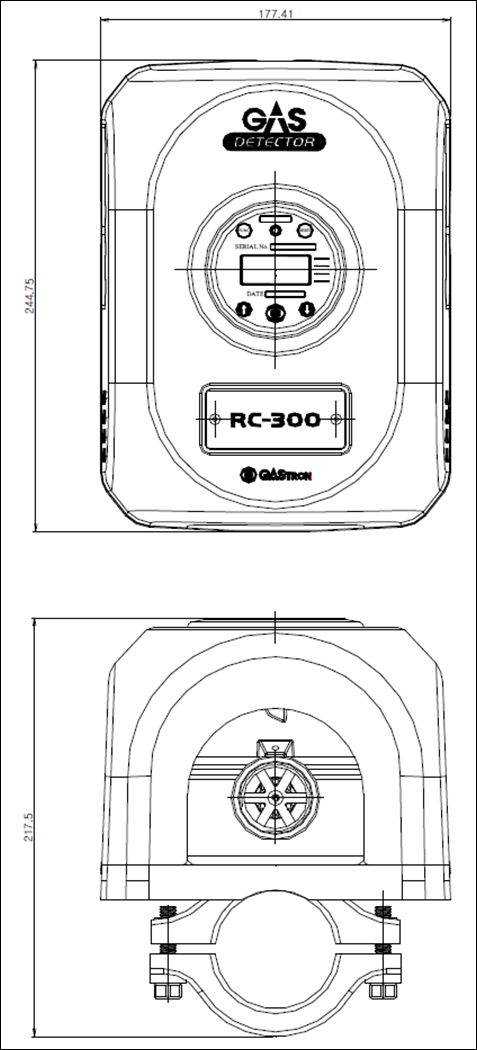

Gastron GTD-2000Tx – Drawing (e5c31455d093_S4-16 S. 6)
Drawing · e5c31455d093_S4-16 · S. 6

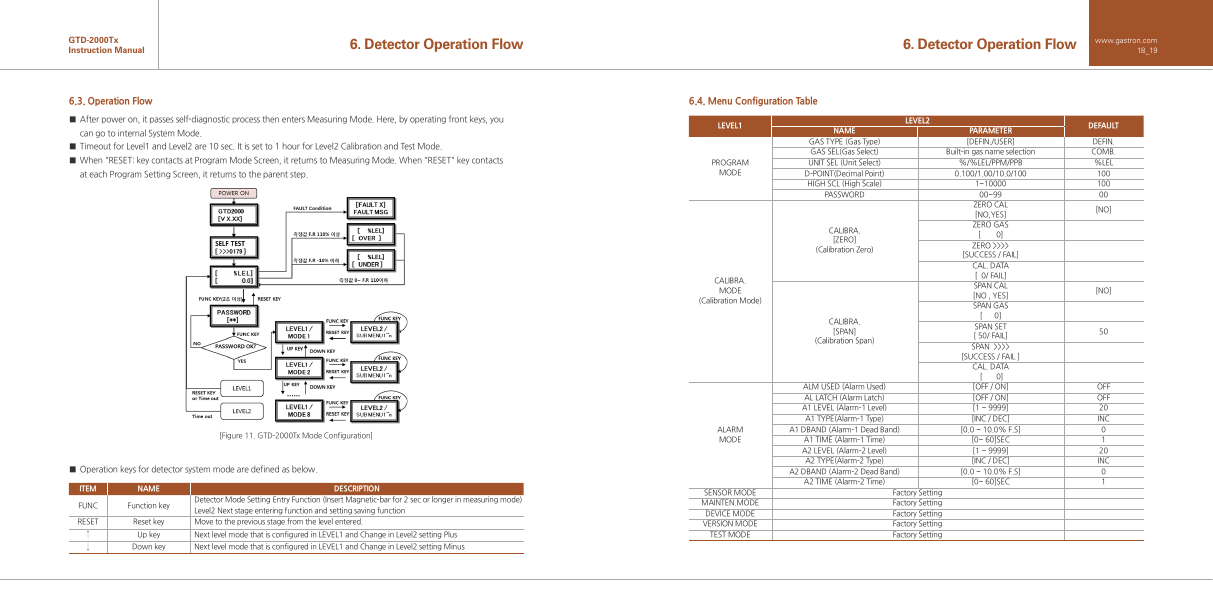

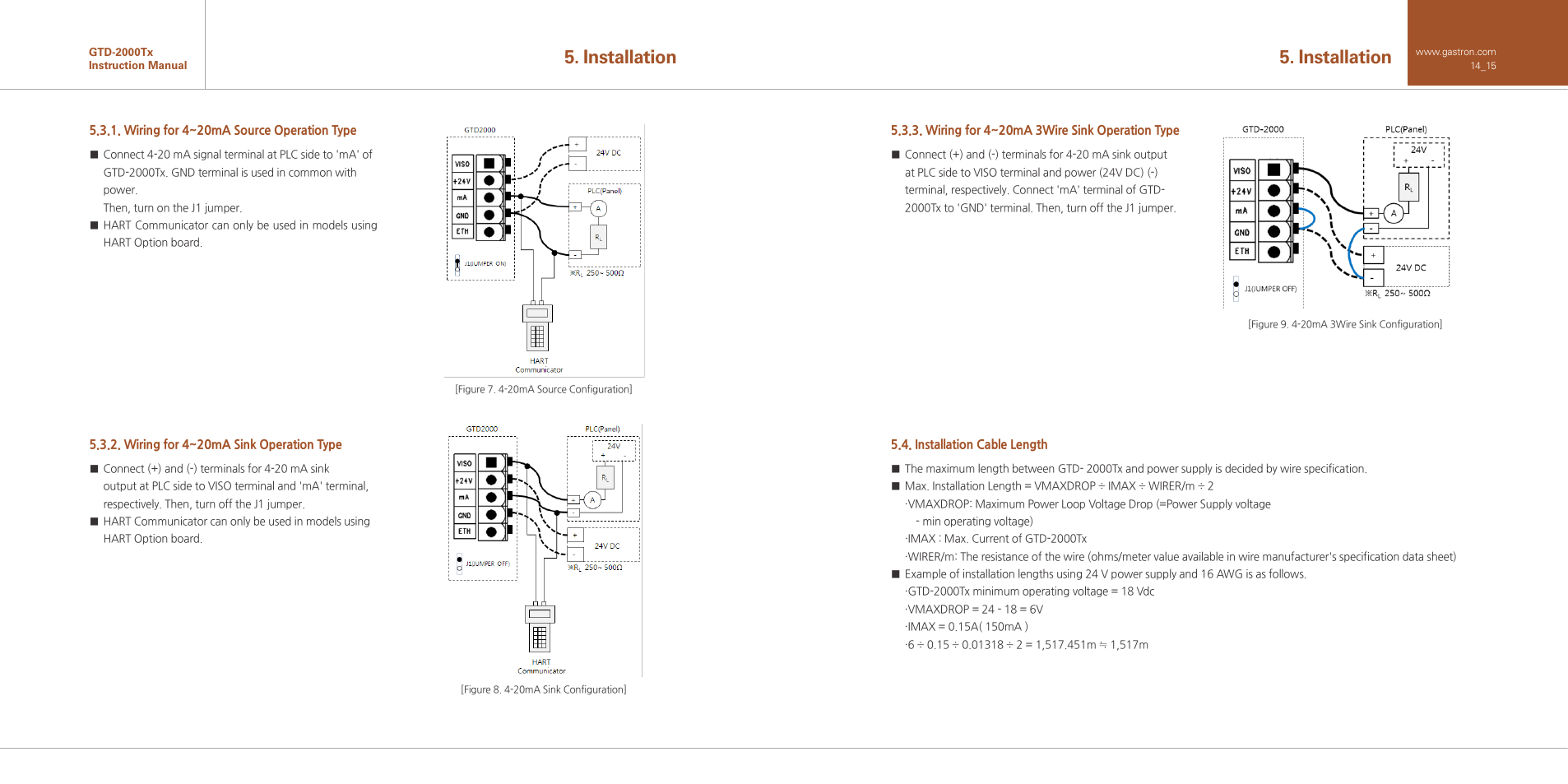

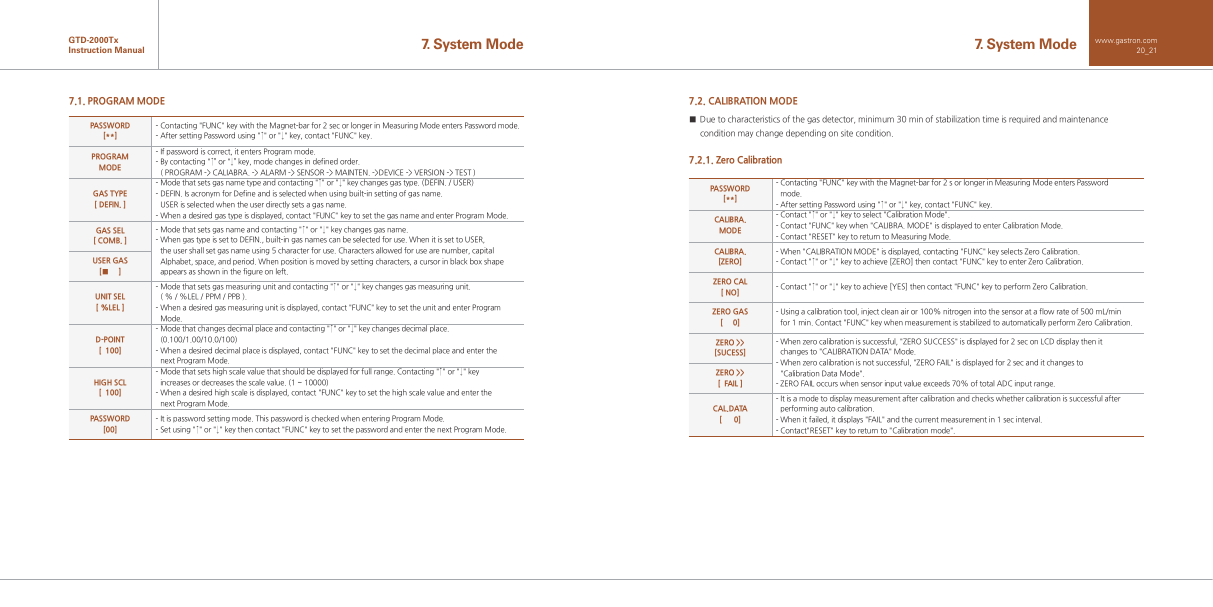

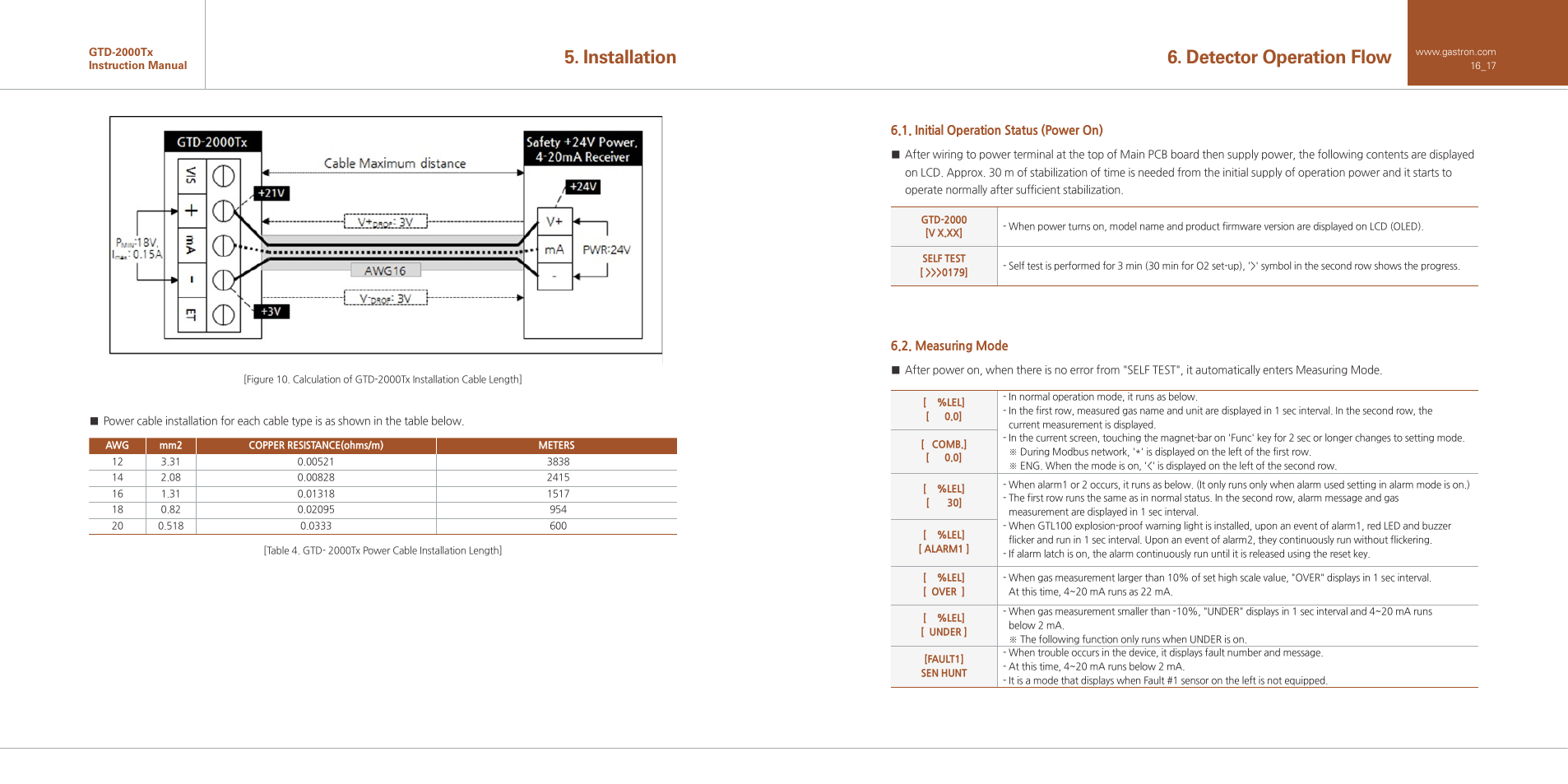

Gastron GTD-2000Tx – Page preview (e5c31455d093_S4-16 S. 7)
Page preview · e5c31455d093_S4-16 · S. 7
Gastron GTD-2000Tx – Page preview (e5c31455d093_S4-16 S. 8)
Page preview · e5c31455d093_S4-16 · S. 8
Source: Gastron GTD-2000Tx datasheet, p. 1
