Library› Electrical› Motor Control› Motor Starter / Contactor› Siemens Marine 3RT20162BB42
Siemens Marine

3RT20162BB42

Motor Starter / Contactor · Motor Control

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
operating voltage at AC-3 rated value maximum690 V
operating voltage at AC-3e rated value maximum690 V
operational current at AC-3 at 400 V rated value9 A
operational current at AC-3 at 500 V rated value7.7 A
operational current at AC-3 at 690 V rated value6.7 A
operational current at AC-3e at 400 V rated value9 A
operational current at AC-3e at 500 V rated value7.7 A
operational current at AC-3e at 690 V rated value6.7 A
operational current at AC-4 at 400 V rated value8.5 A
operational current at AC-5a up to 690 V rated value19.4 A
operational current at AC-5b up to 400 V rated value7.4 A
operational current at AC-6a up to 230 V for current peak value n=20 rated value5.3 A
operational current at AC-6a up to 400 V for current peak value n=20 rated value5.3 A
operational current at AC-6a up to 500 V for current peak value n=20 rated value5.3 A
operational current at AC-6a up to 690 V for current peak value n=20 rated value5 A
operational current at AC-6a up to 230 V for current peak value n=30 rated value3.5 A
operational current at AC-6a up to 400 V for current peak value n=30 rated value3.5 A
operational current at AC-6a up to 500 V for current peak value n=30 rated value3.6 A
operational current at AC-6a up to 690 V for current peak value n=30 rated value3.3 A
protection class IP on the front according to IEC 60529IP20
AWG number as coded connectable conductor cross section for main contacts20 ... 12
AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 12
Service life maximum20 a
proportion of dangerous failures with low demand rate according to SN 3192040 %
proportion of dangerous failures with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 319201 000 000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
global warming potential [CO2 eq] / during manufacturing1.42 kg
global warming potential [CO2 eq] / during operation152 kg
global warming potential [CO2 eq] / after end of life-0.305 kg
global warming potential [CO2 eq] / total153 kg
— at 230 V rated value2.2 kW
— at 400 V rated value4 kW
— at 500 V rated value4 kW
— at 690 V rated value5.5 kW
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

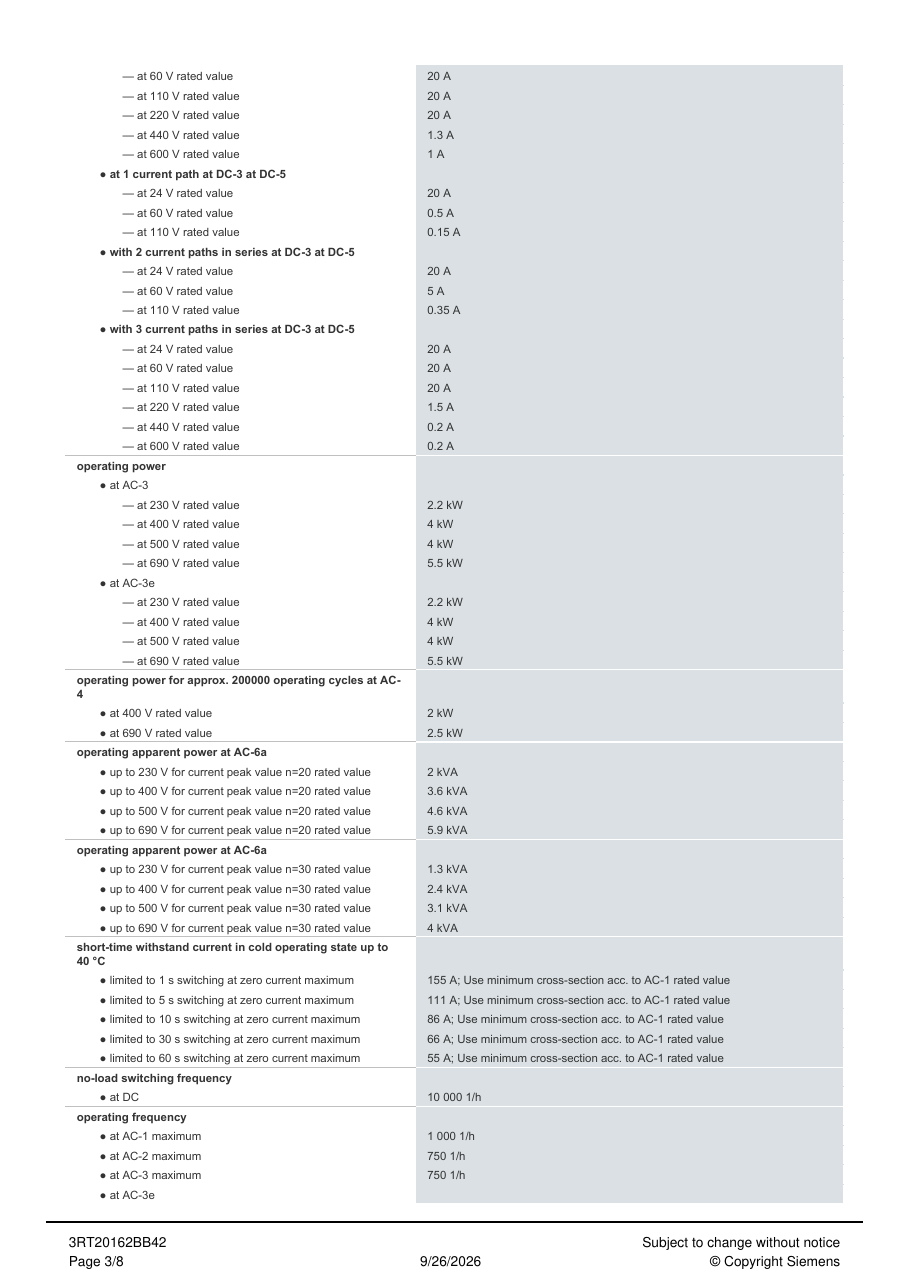

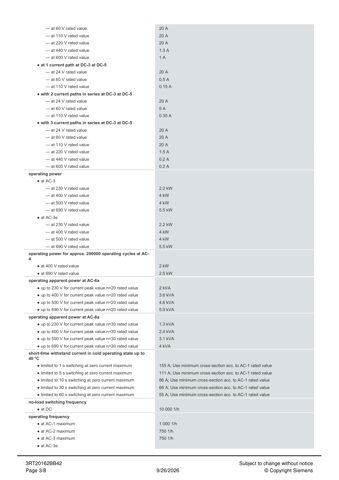

Siemens Marine 3RT20162BB42 – Drawing (764c2fab2ea8_S2-6 S. 2)
Drawing · 764c2fab2ea8_S2-6 · S. 2

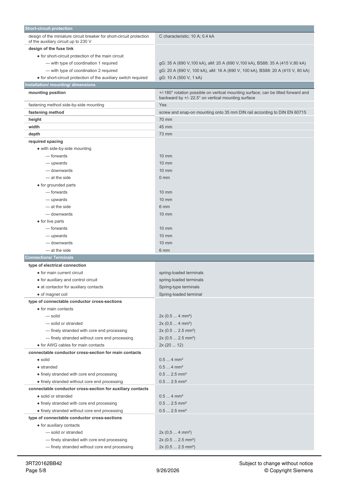

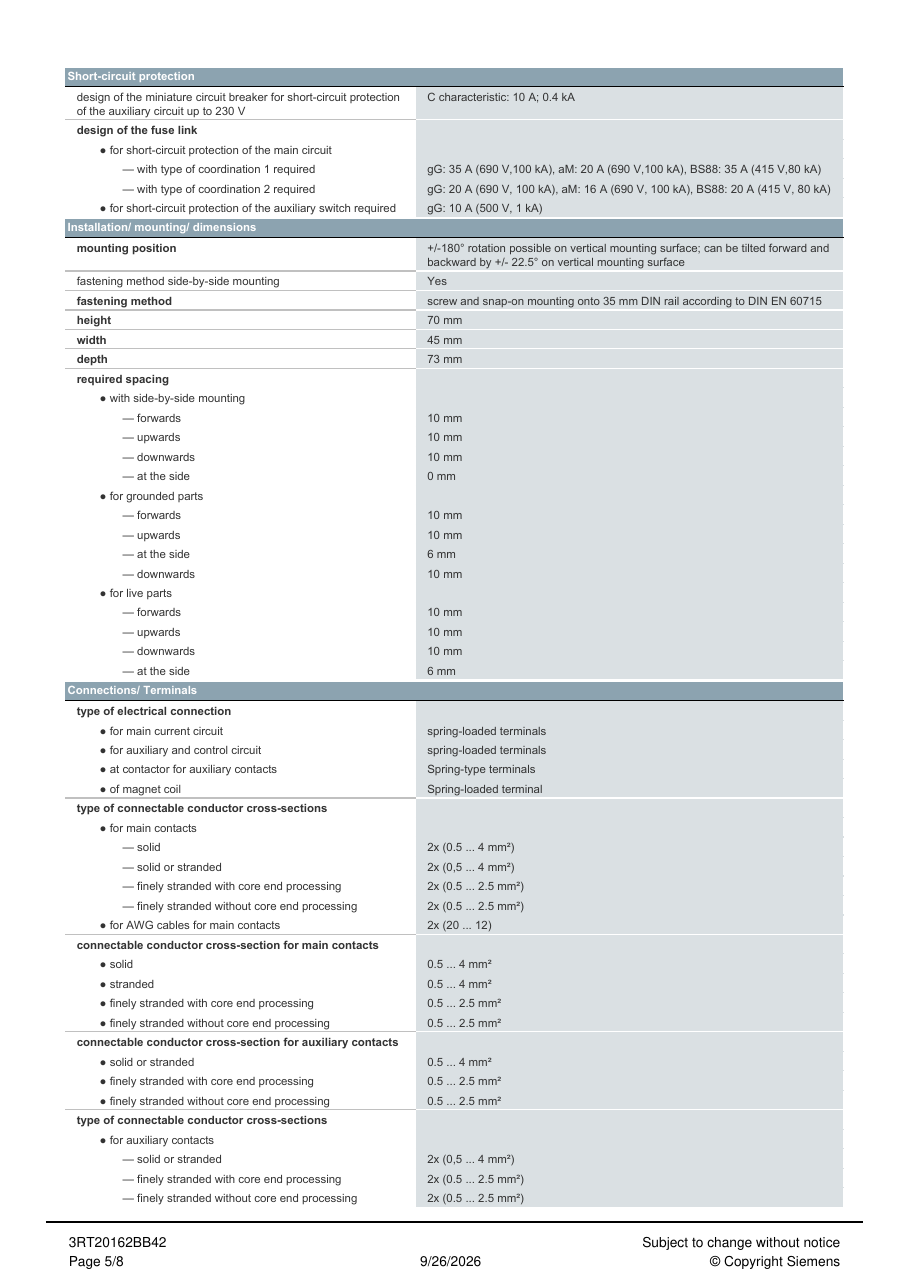

Siemens Marine 3RT20162BB42 – Drawing (764c2fab2ea8_S2-6 S. 4)
Drawing · 764c2fab2ea8_S2-6 · S. 4

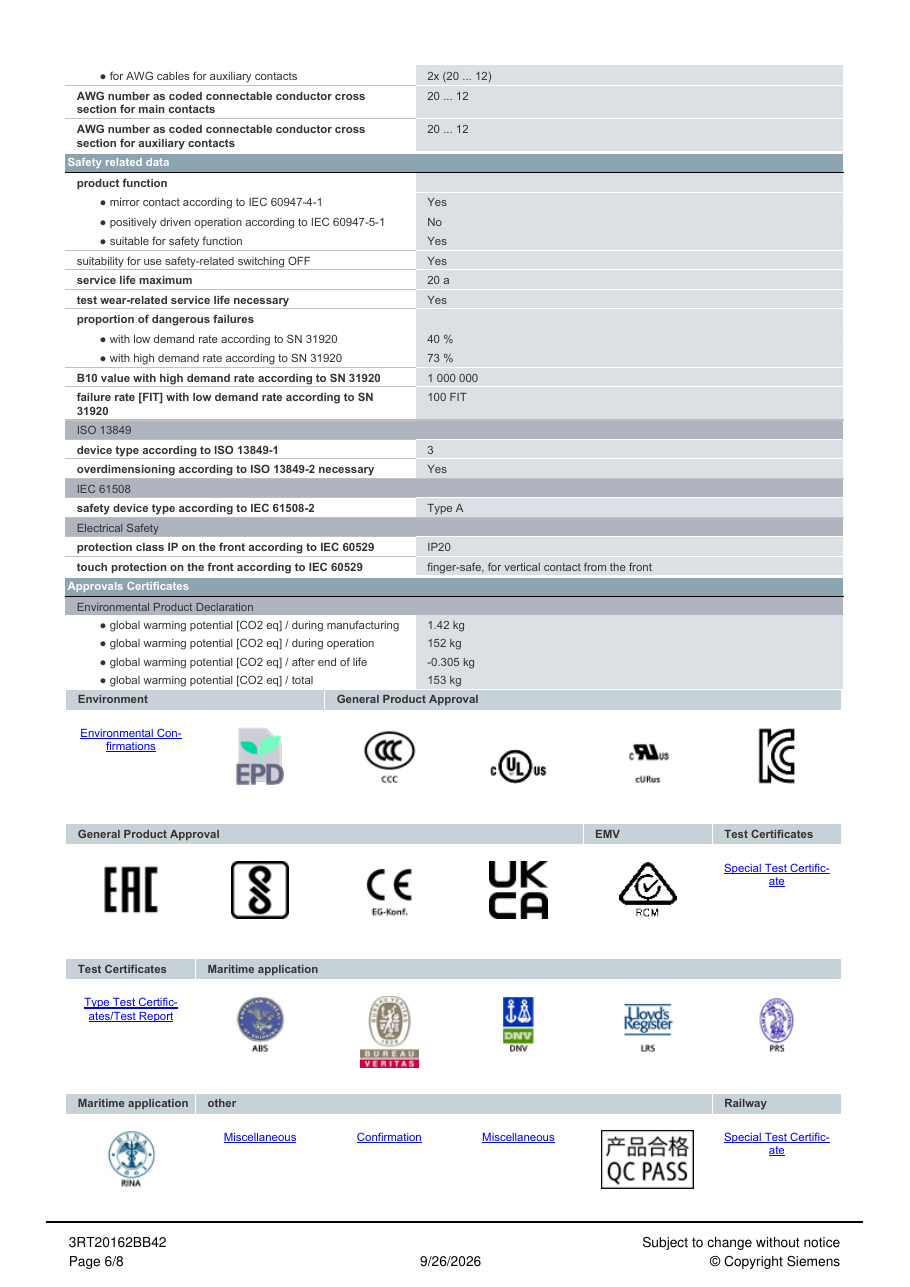

Siemens Marine 3RT20162BB42 – Drawing (764c2fab2ea8_S2-6 S. 5)
Drawing · 764c2fab2ea8_S2-6 · S. 5

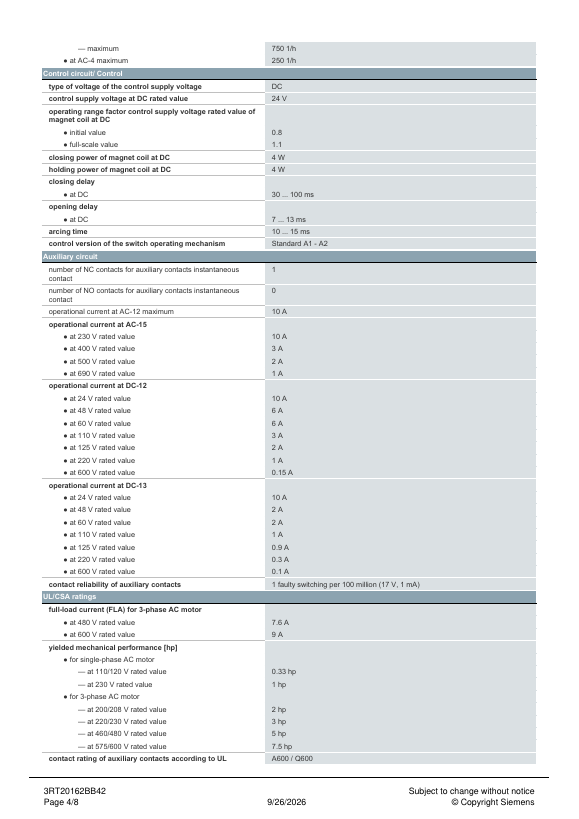

Siemens Marine 3RT20162BB42 – Page preview (764c2fab2ea8_S2-6 S. 3)
Page preview · 764c2fab2ea8_S2-6 · S. 3
