Library› Electrical› Motor Control› Motor Starter / Contactor› Ghisalba GH15CN
Ghisalba

GH15CN

Motor Starter / Contactor · Motor Control

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Motor Starter / Contactor — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max. UL Continuous Current14 A
Max. UL General Use Current note 220 A
Maximum Power (hp) of 200V3 hp
Maximum Power (hp) of 230/240V3 hp
Maximum Power (hp) of 460/480V7.5 hp
Maximum Power (hp) of 575V10 hp
Maximum Power (hp) of 115V0.5 hp
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Maximum Power (kW) of Three-Phase Motors AC3 Category note 1 Max Short Circuit Protection Fuses Class RK5 UL Rated Fuses SCCR Rating (kA)”

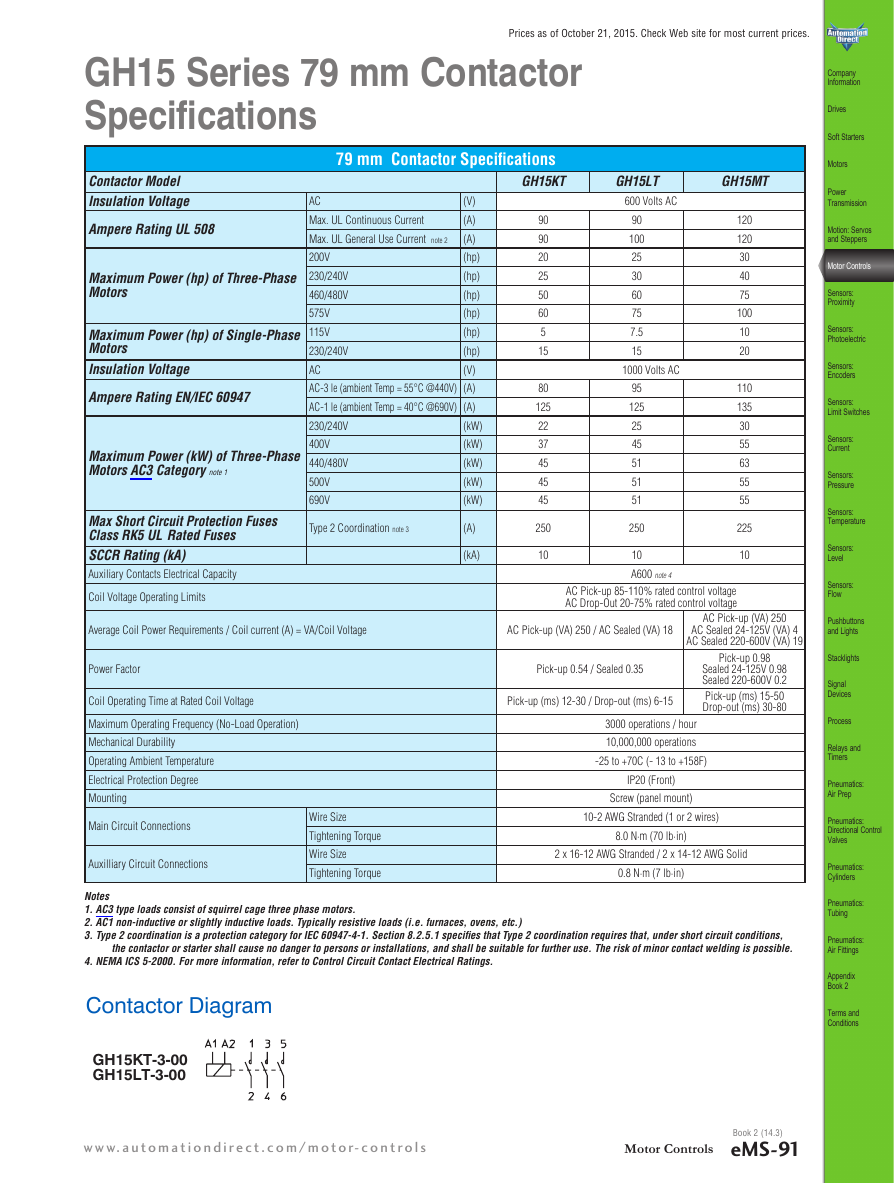

Ghisalba GH15CN – Drawing (ec3e44f4a6f5_S3-9 S. 3)
Drawing · ec3e44f4a6f5_S3-9 · S. 3

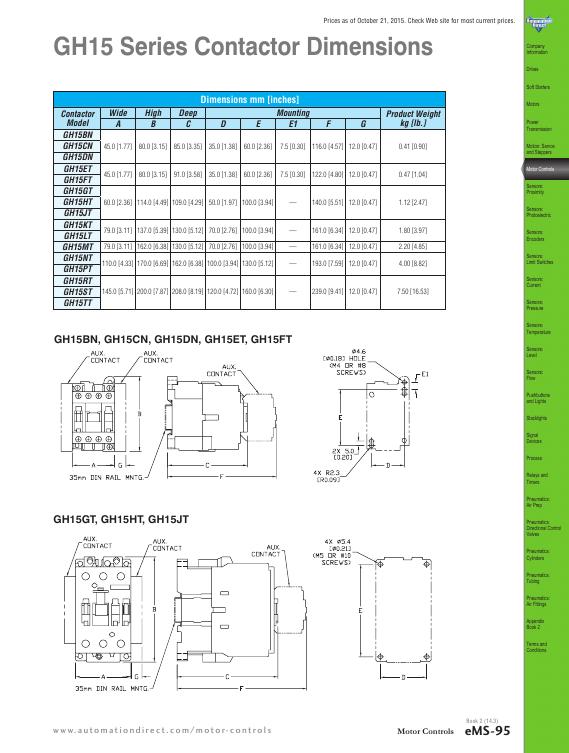

Ghisalba GH15CN – Drawing (ec3e44f4a6f5_S3-9 S. 4)
Drawing · ec3e44f4a6f5_S3-9 · S. 4

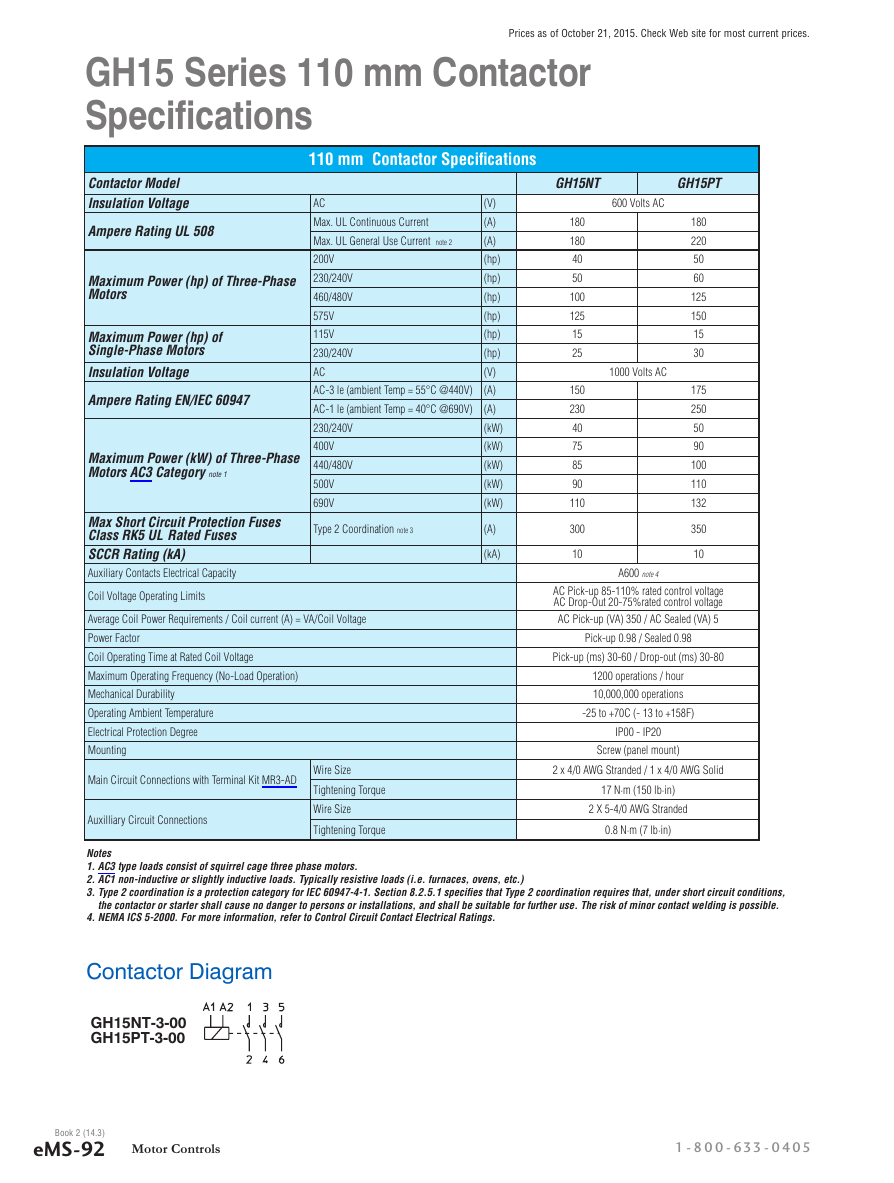

Ghisalba GH15CN – Drawing (ec3e44f4a6f5_S3-9 S. 5)
Drawing · ec3e44f4a6f5_S3-9 · S. 5

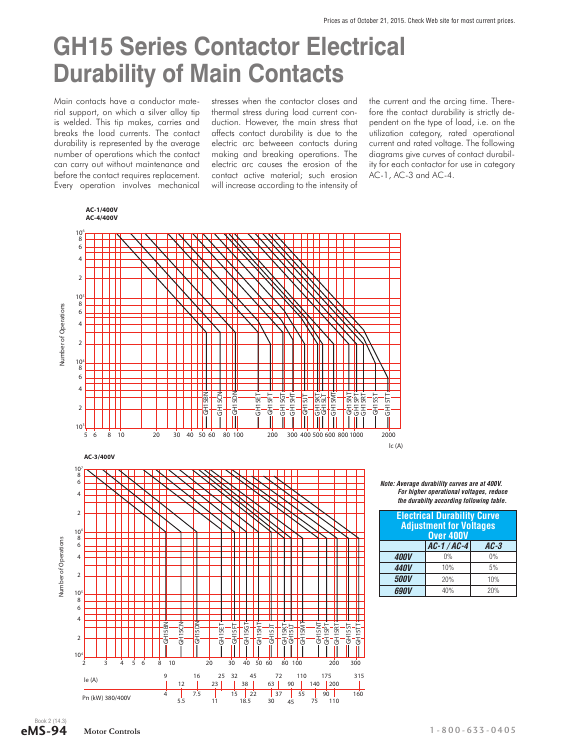

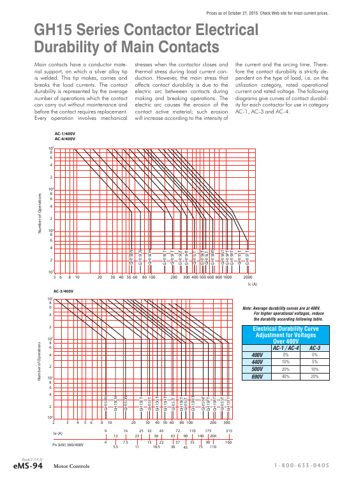

Ghisalba GH15CN – Page preview (ec3e44f4a6f5_S3-9 S. 6)
Page preview · ec3e44f4a6f5_S3-9 · S. 6

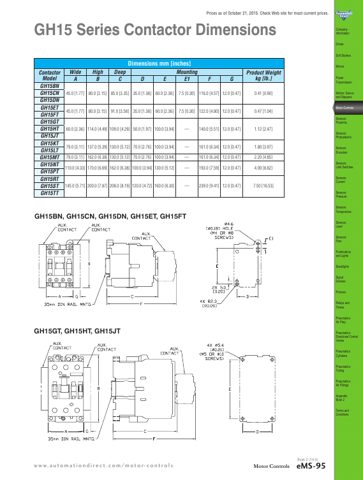

Ghisalba GH15CN – Page preview (ec3e44f4a6f5_S3-9 S. 7)
Page preview · ec3e44f4a6f5_S3-9 · S. 7
Source: Ghisalba GH15CN datasheet, p. 1
