Library› Navigation› GMDSS› Inmarsat-C› JUE-95VM

JUE-95VM

Inmarsat-C · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight - Antenna1,5 kg
Weight - Polar mounting bracket0,8 kg
Weight - Terminal1,3 kg
Antenna diameter224 mm
Polar mounting bracket width80 mm
Polar mounting bracket height92 mm
Polar mounting bracket depth101 mm
Terminal width50 mm
Terminal height150 mm
Terminal depth210 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

JRC introduces a highly user-friendly vessel monitoring system solution with a compact antenna design, easy installation, built-in GPS receiver, and low cost of ownership.

Applications

  • vessel tracking

Features

  • compact antenna design
  • easy installation
  • built-in GPS receiver
  • low cost of ownership
  • capable for email use

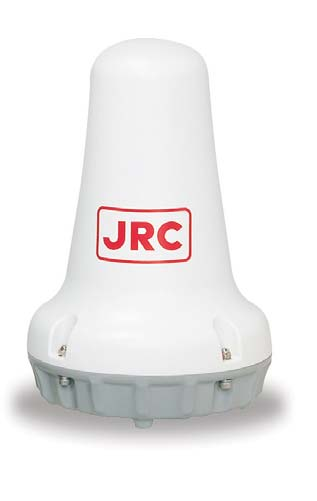

JUE-95VM – Photo (04d5335f14e3_S1-3 S. 1)
Photo · 04d5335f14e3_S1-3 · S. 1

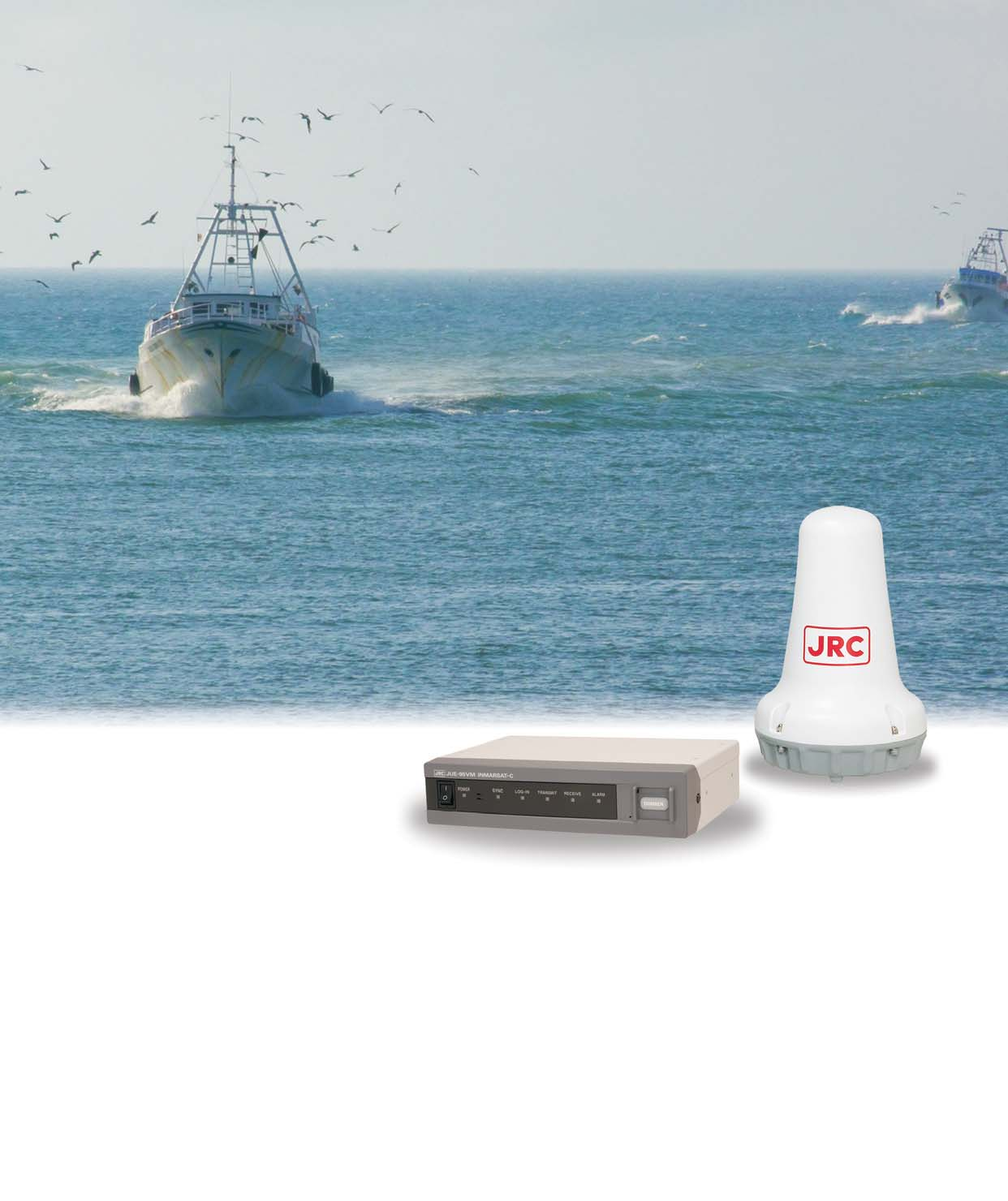

JUE-95VM – Photo (04d5335f14e3_S1-3 S. 2)
Photo · 04d5335f14e3_S1-3 · S. 2

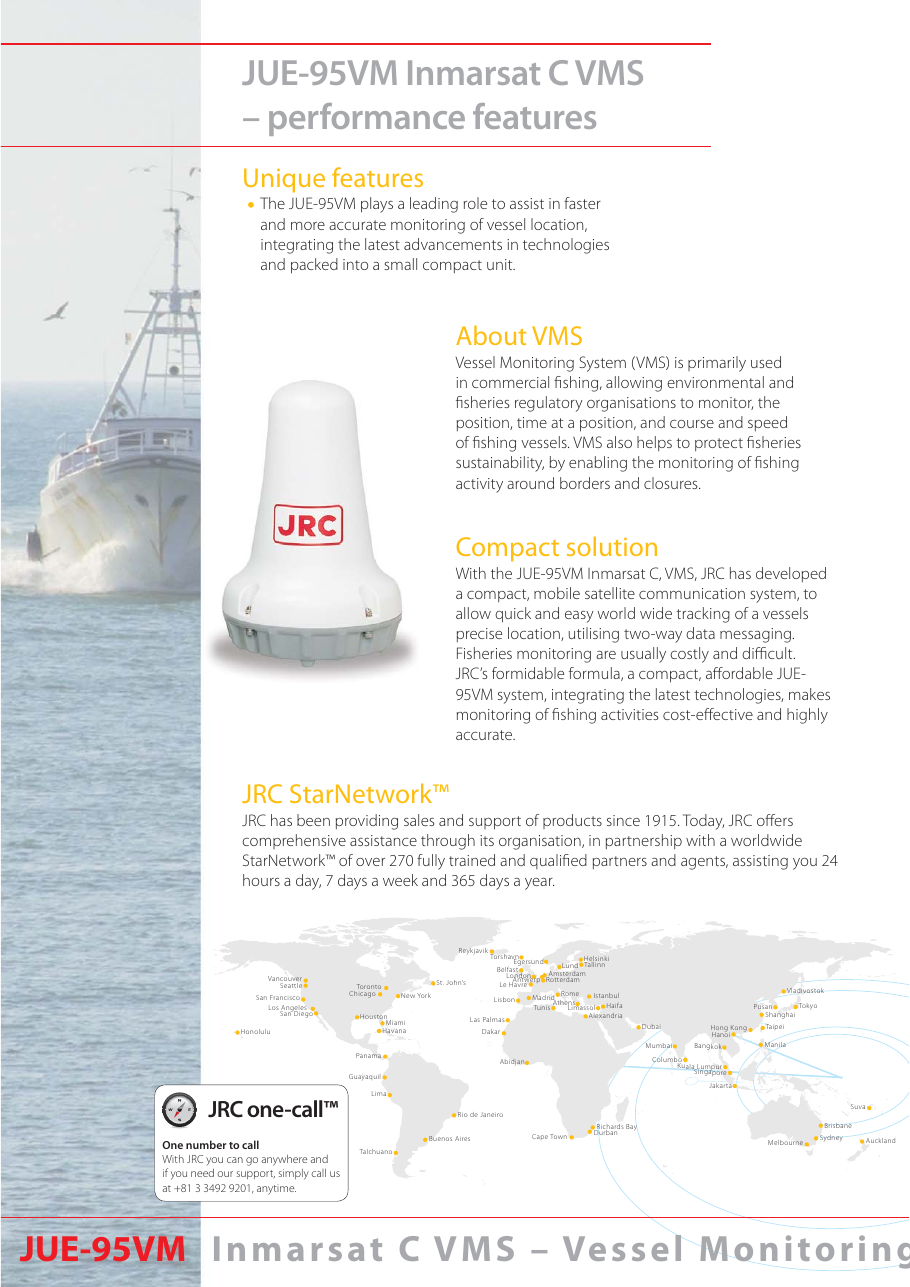

JUE-95VM – Drawing (04d5335f14e3_S1-3 S. 1)
Drawing · 04d5335f14e3_S1-3 · S. 1

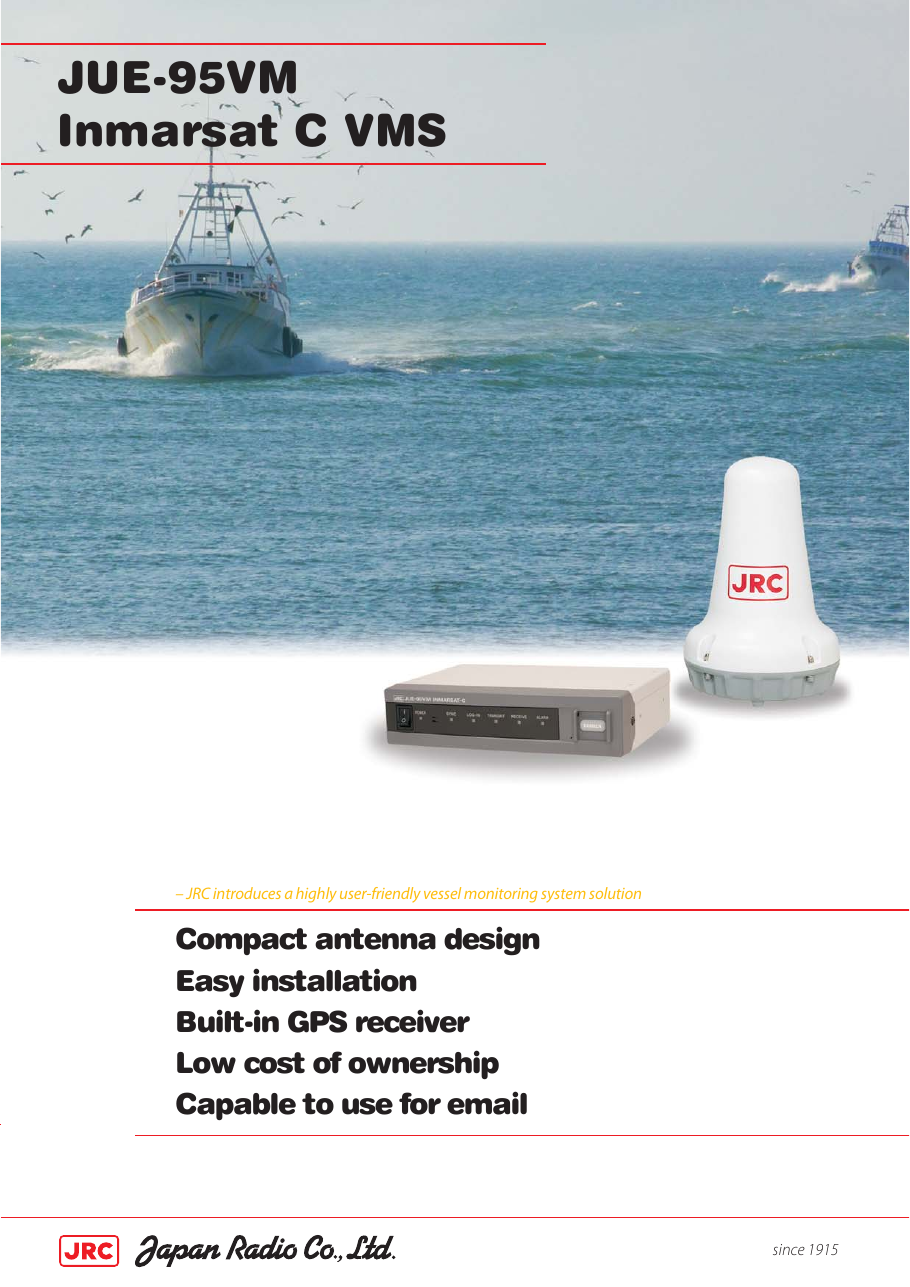

JUE-95VM – Drawing (04d5335f14e3_S1-3 S. 2)
Drawing · 04d5335f14e3_S1-3 · S. 2

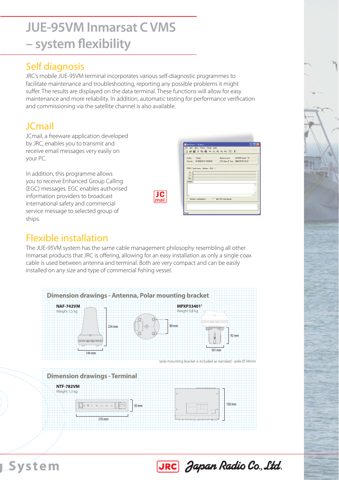

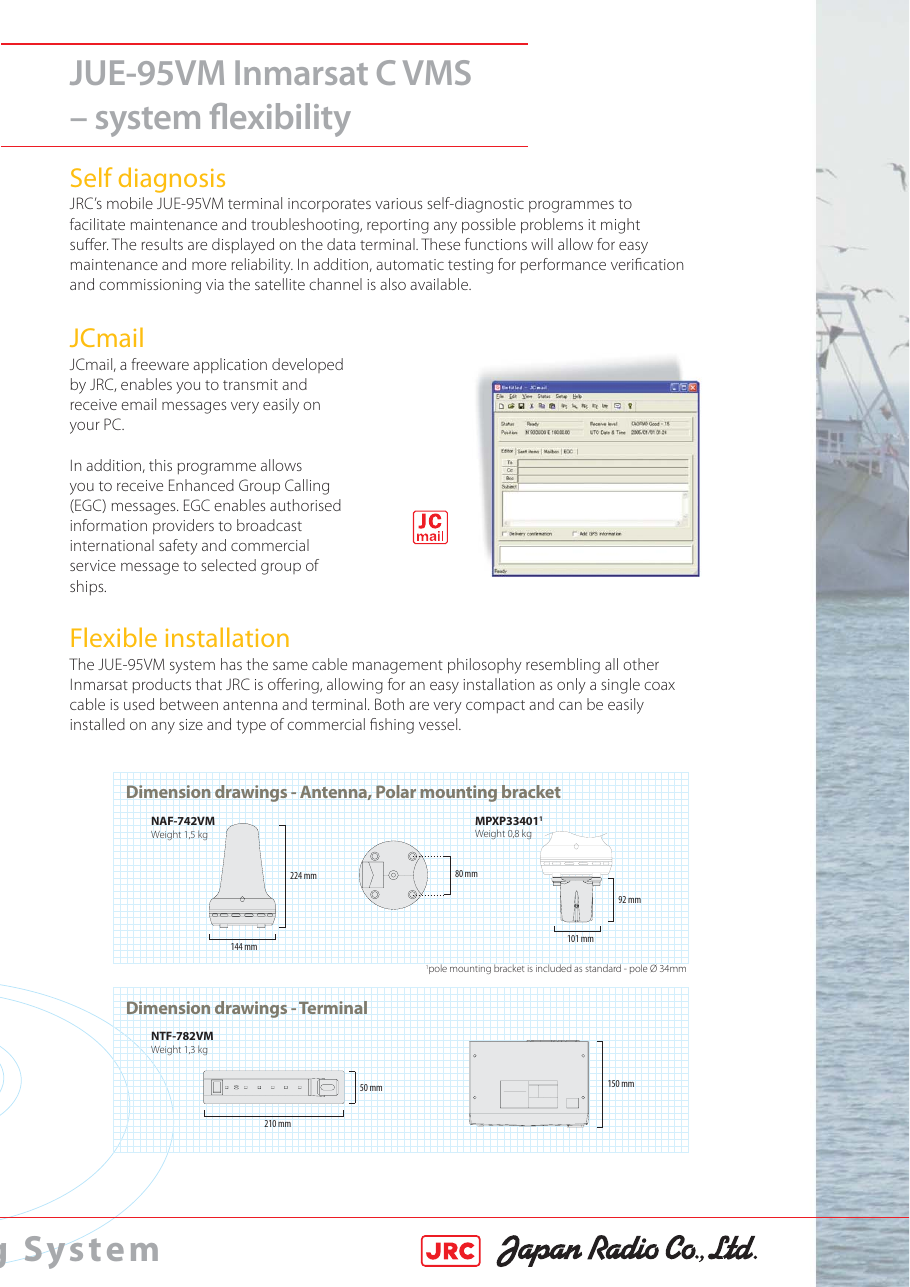

JUE-95VM – Drawing (04d5335f14e3_S1-3 S. 3)
Drawing · 04d5335f14e3_S1-3 · S. 3
Source: R0434 JUE-95VM datasheet, p. 1
