Library› Electrical› Frequency Converters & Drives› Frequency Converter› Eaton Marine 9130M
Eaton Marine

9130M

Frequency Converter · Frequency Converters & Drives

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Va1000/2000/3000🔖
Nominal voltage220–240V🔖
Voltage rangeup to 120-276 VAC (depending on load level)🔖
Frequency range40-70 Hz (50/60 Hz)🔖
Audible noise<50 dB🔖
Ambient operating0˚C to +40˚C🔖
Storage temperature-25˚C to +55˚C without batteries🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Eaton 9130M UPS is a rugged, marine-grade uninterruptible power supply designed for critical systems on vessels and offshore platforms.

Applications

  • bridge systems
  • navigation systems
  • communication systems
  • small computer and automation systems

Features

  • qualified design for marine and offshore environment
  • hardened mechanical design
  • vibration absorbers under the cabinet
  • double conversion on-line UPS with automatic by-pass
  • multilingual LCD with enhanced configuration capability
  • compatible with high power factor loads

Options

  • additional runtime with external battery modules
  • configuration for frequency converter operation

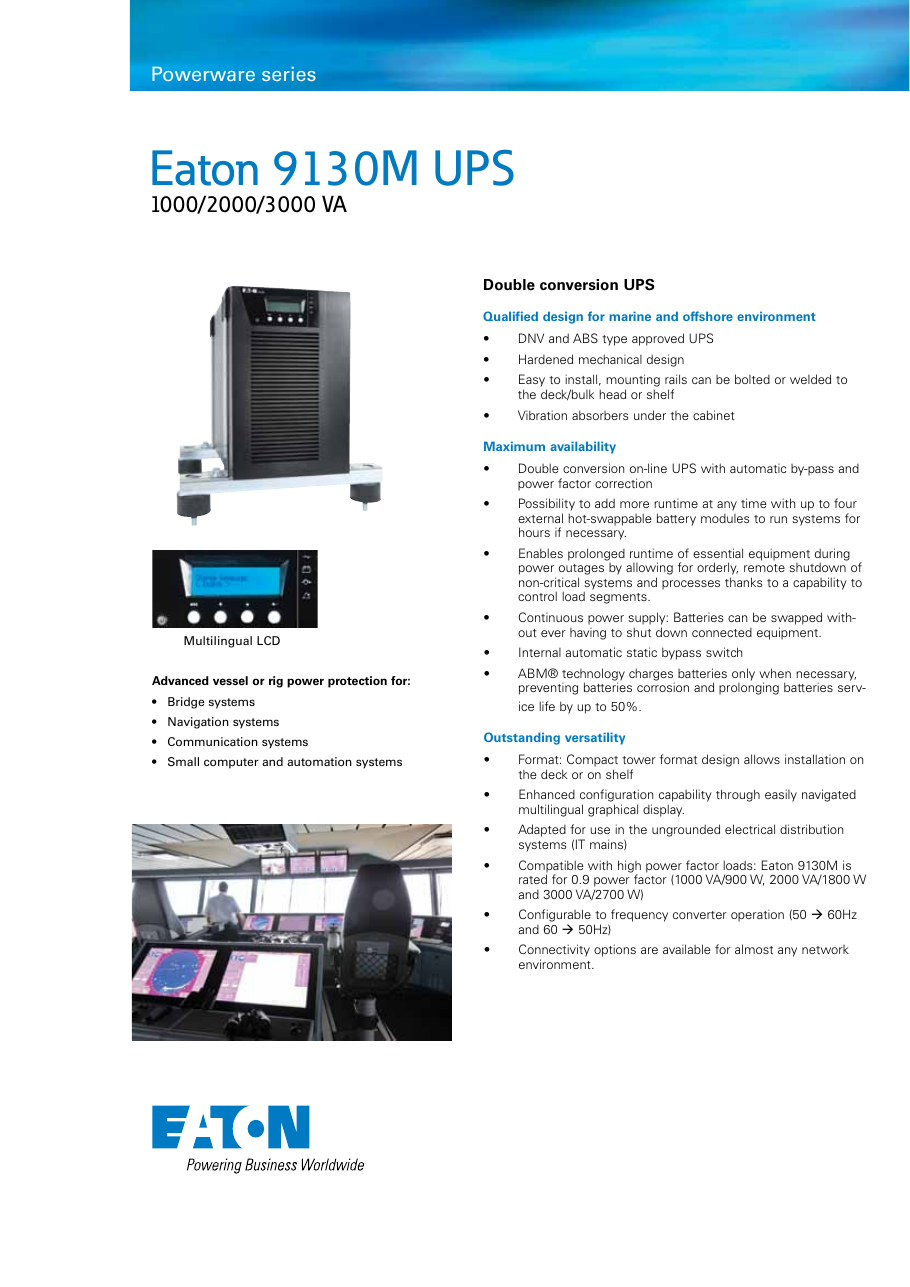

Eaton Marine 9130M – Photo (03bf0ec4f168_S2-3 S. 2)
Photo · 03bf0ec4f168_S2-3 · S. 2
Eaton Marine 9130M – Photo (03bf0ec4f168_S2-3 S. 2)
Photo · 03bf0ec4f168_S2-3 · S. 2

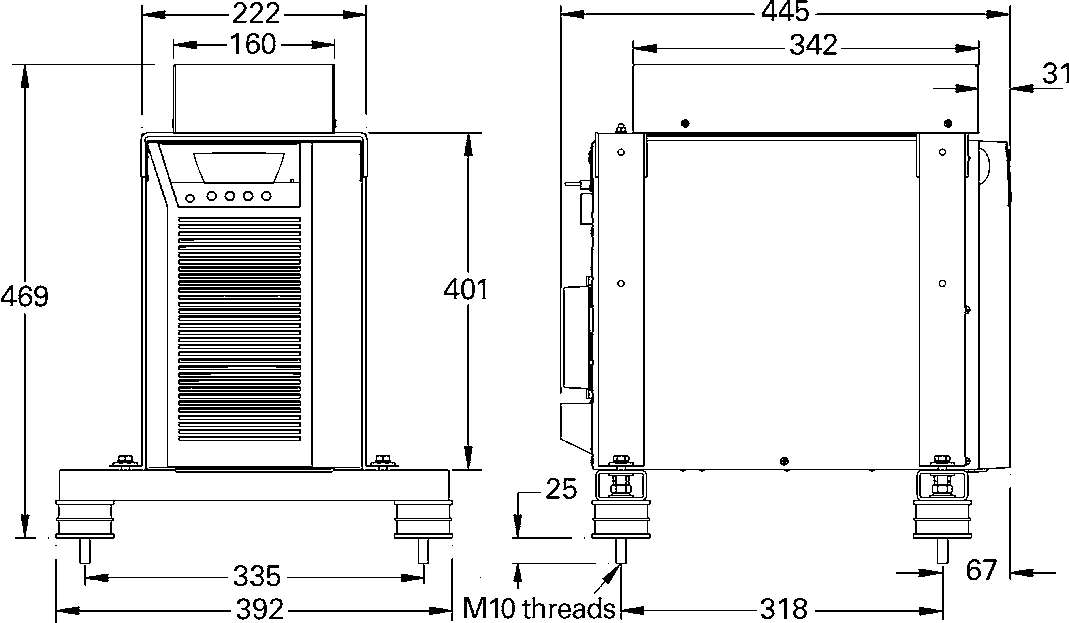

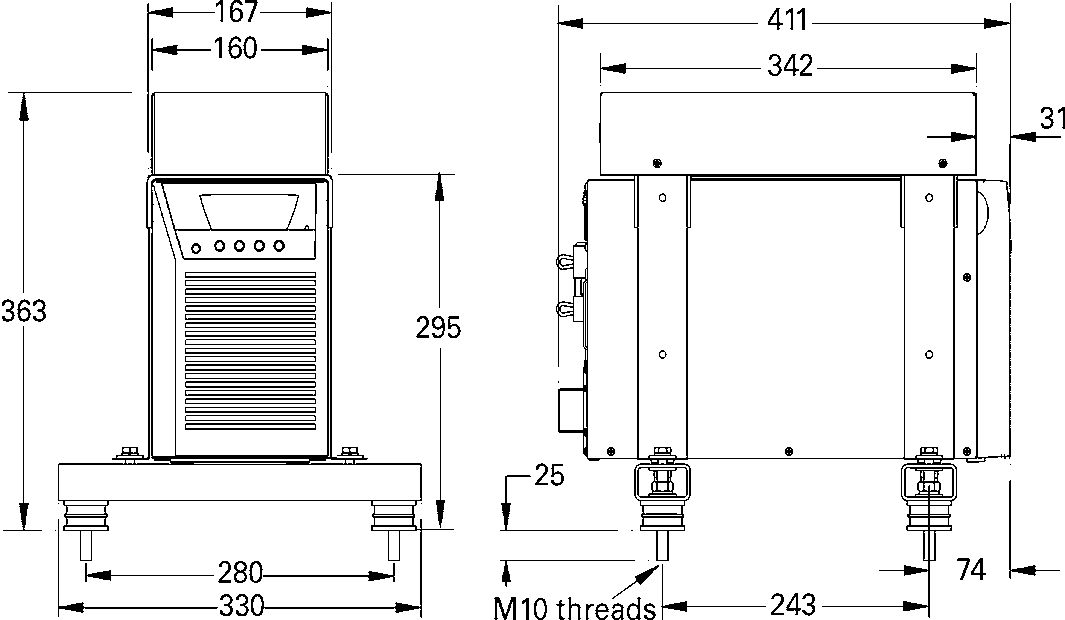

Eaton Marine 9130M – Drawing (5d5af1ffce95_S1-1 S. 1)
Drawing · 5d5af1ffce95_S1-1 · S. 1

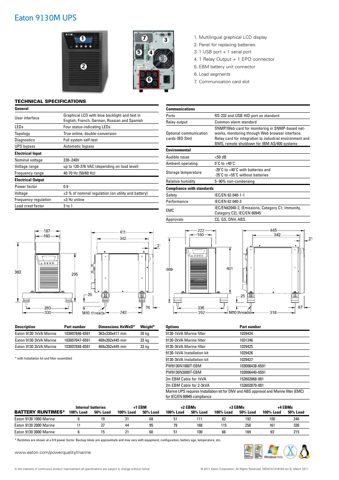

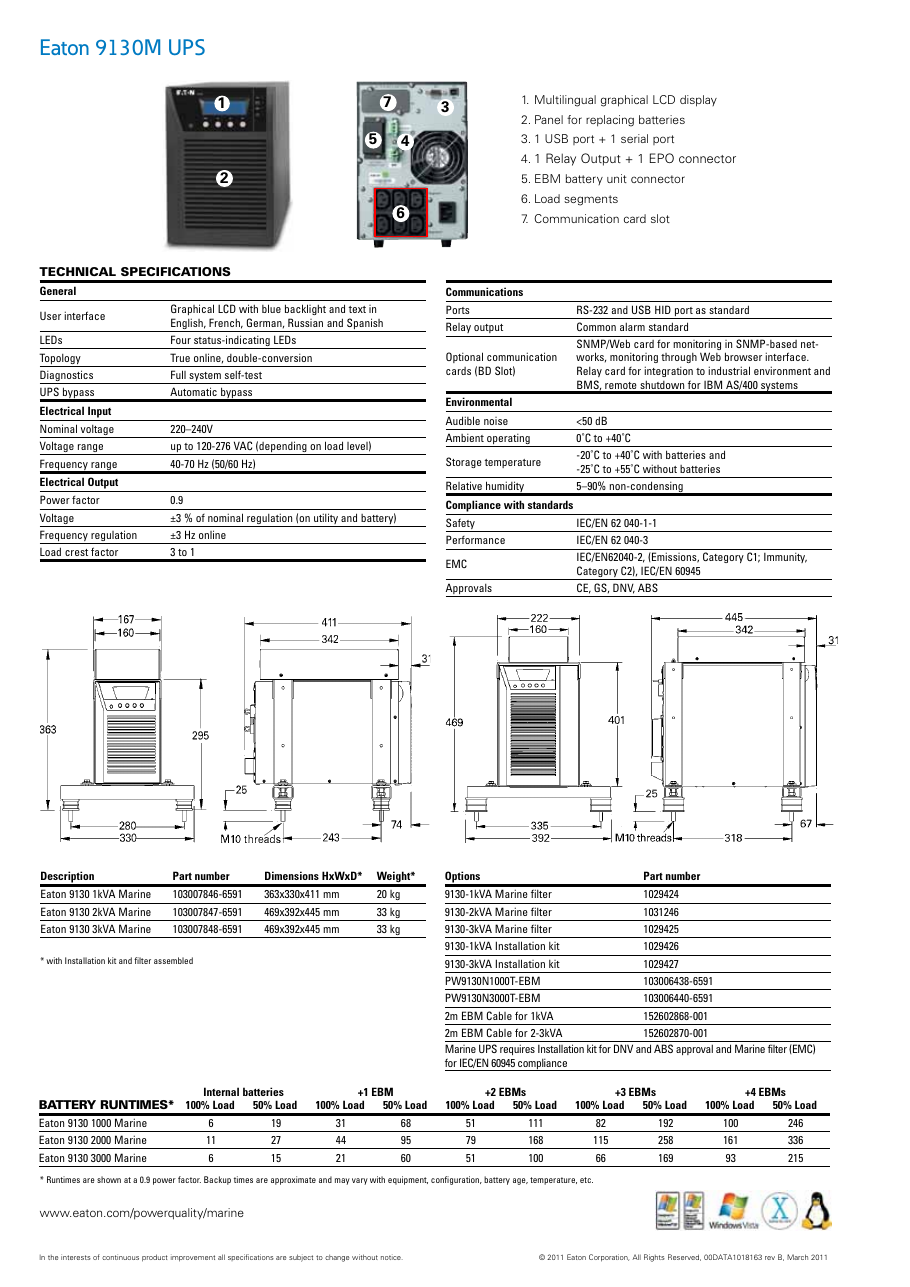

Eaton Marine 9130M – Drawing (03bf0ec4f168_S2-3 S. 2)
Drawing · 03bf0ec4f168_S2-3 · S. 2
Source: Eaton Marine 9130M datasheet, p. 2
