OceanSphereENGINES
Library› Navigation› Navigation & Bridge Equipment› Weather Station / Anemometer› Lufft / OTT WS600-UMB
Lufft / OTT

WS600-UMB

Weather Station / Anemometer · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temperature PrincipleNTC
Temperature Measuring range-50 …60 °C
Temperature Accuracy±0,2 °C (-20 °C ... +50 °C), otherwise ± 0,5 °C (>-30 °C)
Relative humidity Principlecapacitive
Relative humidity Measuring range0 …100 % R H
Relative humidity Accuracy±2 % R H
Precipitation intensityRain, hail and snow
Precipitation intensity Resolution0,01 mm
Precipitation intensity Measuring range drop size0,3 …5 mm
Air pressure PrincipleMEMS capacitive
Air pressure Measuring range300 …1200 hPa
Air pressure Accuracy± 1,5 hPa
Wind direction Principleultrasonic
Wind direction Measuring range0 …359,9 °
Wind direction Accuracy± 3°
Wind speed Principleultrasonic
Wind speed Measuring range0 …60 m/s
Wind speed Accuracy± 0,3 m/s or ±3% (0...35m/s)
Heating30 VA at 24 V DC
Operating power consumption24 V DC +/- 10 % <4 VA (without heating) (175 milliamps)
Operating humidity range0 …100 %
Operating temperature range-30 …70 °C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“WS600-UMB - TEMPERATURE, RELATIVE HUMIDITY, PRECIPITATION, AIR PRESSURE, WIND From the WS product family of professional intelligent measurement transducers with digital interface for environmental…”

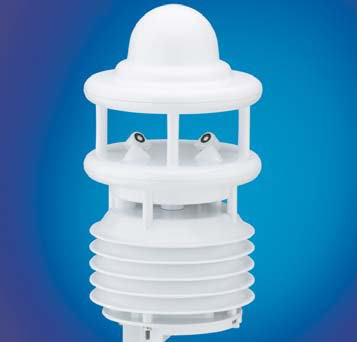

Lufft / OTT WS600-UMB – Photo (04c6aa4251d5_S1-1 S. 1)
Photo · 04c6aa4251d5_S1-1 · S. 1
Lufft / OTT WS600-UMB – Drawing (04c6aa4251d5_S1-1 S. 1)
Drawing · 04c6aa4251d5_S1-1 · S. 1

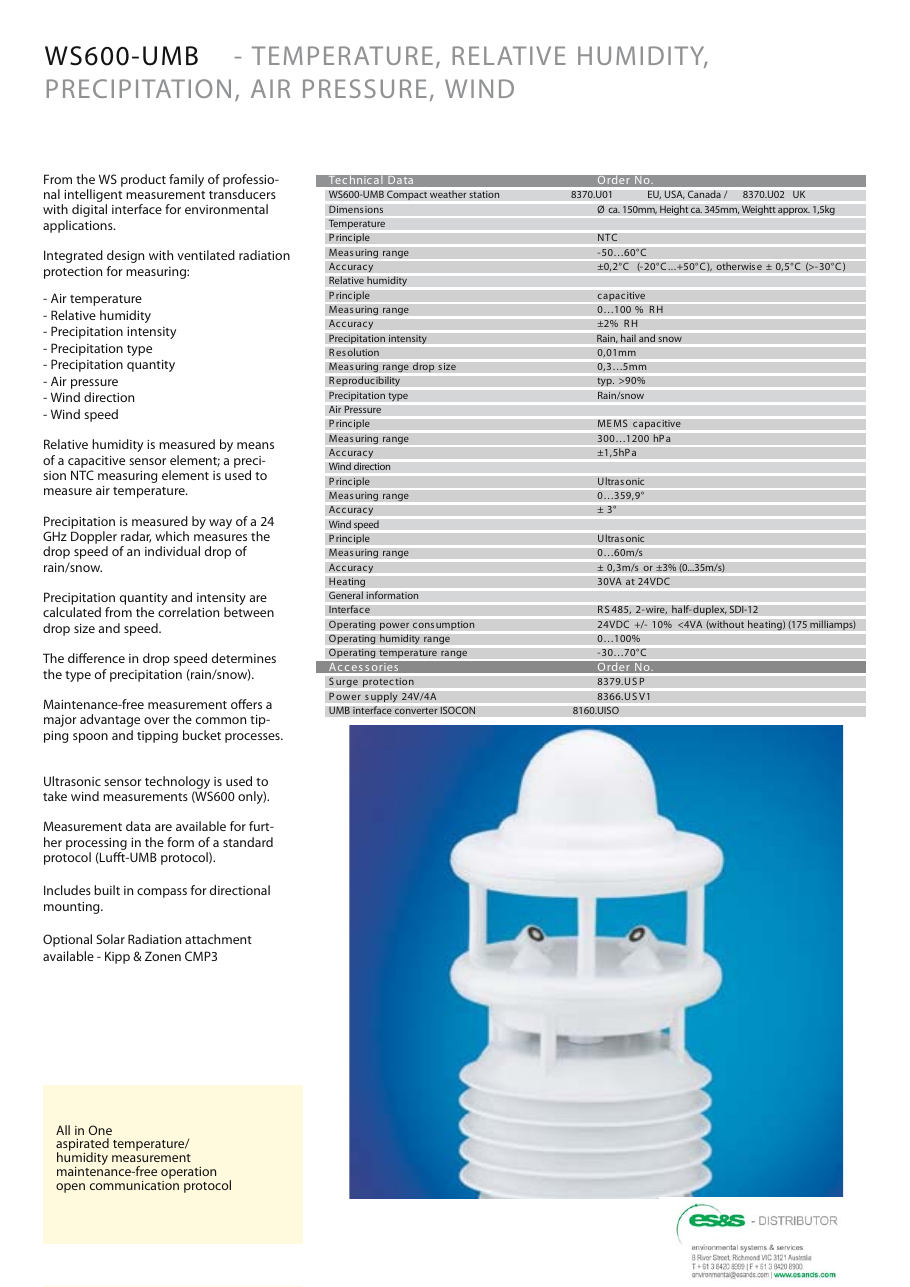

Source: OTT WS600-UMB datasheet, p. 1
