Library› Engine Room› Boilers› Steam Boiler› Miura LXH-250
Miura

LXH-250

Steam Boiler · Boilers

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Width (A)63" IN.
Height (B)127" IN.
Steam Outlet (C)4" IN.
Door Open (D)216 3/4" IN.
Chimney Outlet (E)157 7/8" IN.
Shipping Weight11,800 LBS
Turn-down3.3:1
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The LXH-250SGN-16 is a high-pressure, low NOx steam boiler designed for efficient and environmentally friendly operation.

Applications

  • power generation
Source: Miura LXH-250 datasheet, p. 2

Features

  • Multiple water tube design
  • Once through forced flow
  • High efficiency
  • Low NOx emissions

Options

  • analog phone line maintenance
  • 3G cellular maintenance
Source: Miura LXH-250 datasheet, p. 2

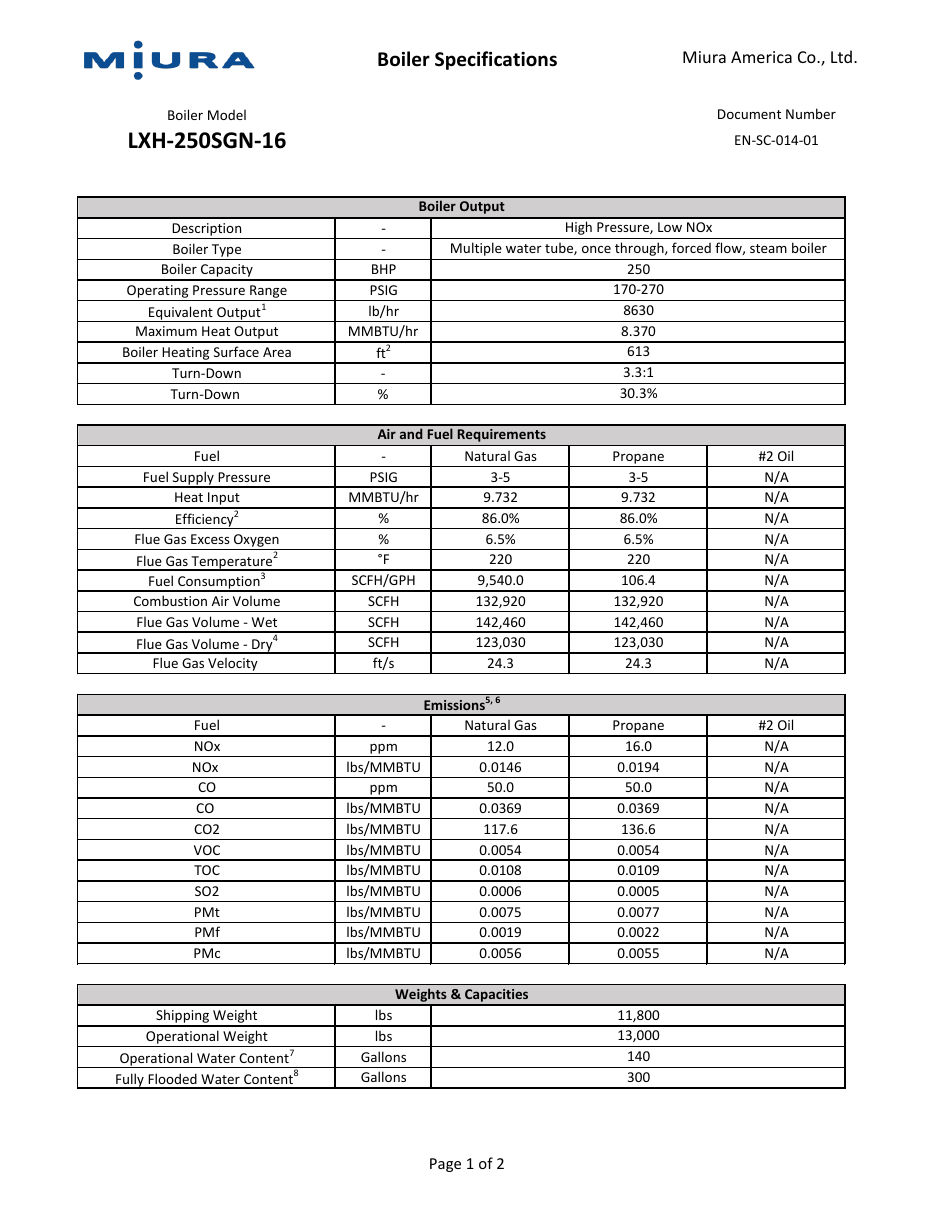

Miura LXH-250 – Drawing (b1ab0143a24c_S1-2 S. 1)
Drawing · b1ab0143a24c_S1-2 · S. 1

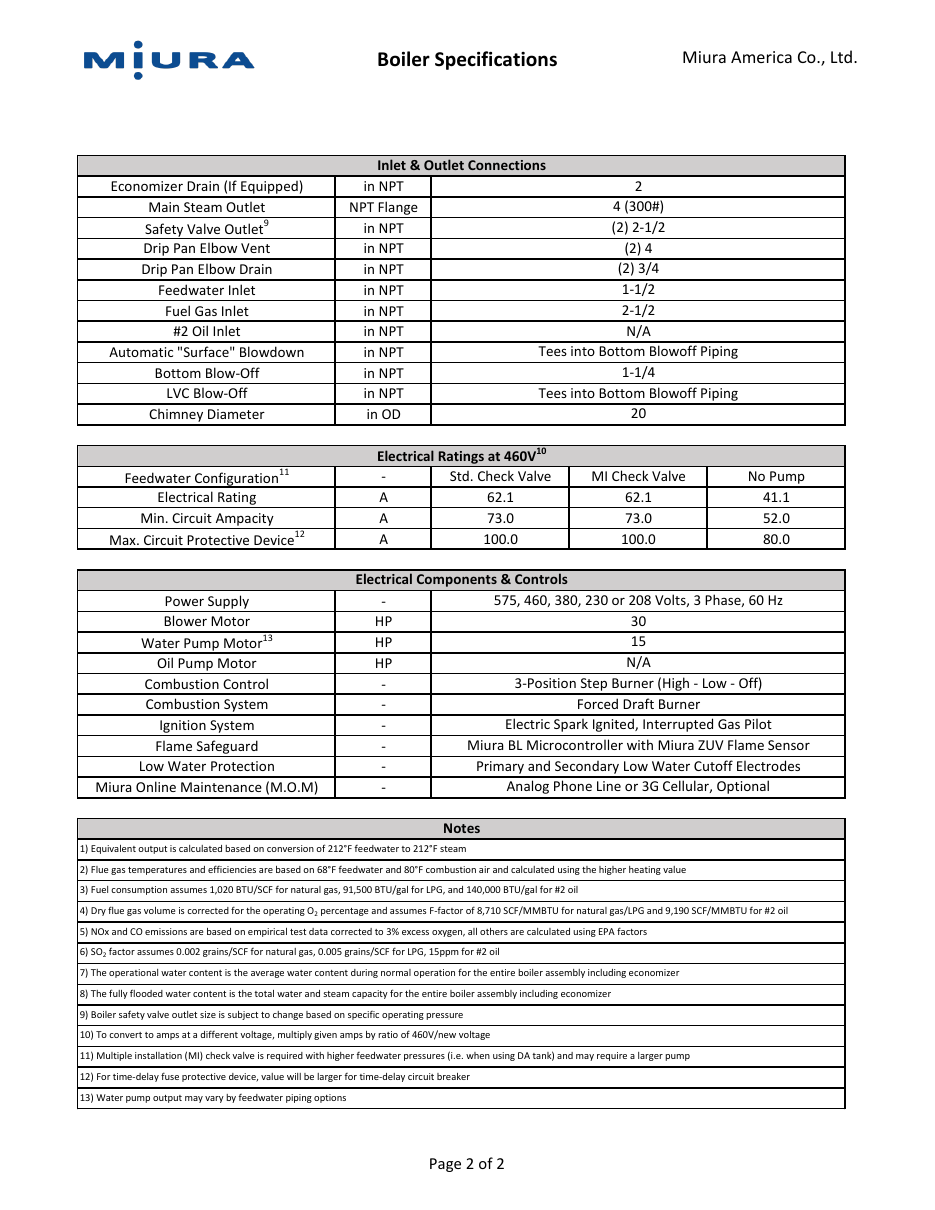

Miura LXH-250 – Drawing (b1ab0143a24c_S1-2 S. 2)
Drawing · b1ab0143a24c_S1-2 · S. 2
Source: Miura LXH-250 datasheet, p. 1
