Library› Electrical› Power Generation› Generator Set› Mecc Alte HS315
Mecc Alte

HS315

Generator Set · Power Generation

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Size244(L) x 178(H) x 50(P) mm
Hole size218x159mm
Weight600g
Maximum AC voltages applicableMAX 150Vac in CAT.III MAX 100Vac in CAT.IV
Sampling frequency10Khz
Input impedance> 28Kohm
Maximum DC voltagesMax ±200mVdc
Surge immunity1KV (class 2) transient 1,2/50μs (EN61000-4-5)
Maximum DC currentsNominal range from 50 to 600A DC.
Temperature measurement rangeFrom -70°C to +650°C
Sampling time<300ms
Injected current0,6mA nominal
Typical current with closed contact6,3mA @ +Vbatt= 13.5Vdc 12 mA @ +Vbatt= 27Vdc
Total maximum continuous current400mADC @ 20°c
Maximum distance6m (20 feet)
Pixel Size0,48 x 0,48 mm
Visual area dimensions70 x 38 mm
Operating temperatureFrom -25°C to +60°C
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“1 Introduction 1.1 Reference documents [1] Mecc Alte EAAM0584xxXA Parameters table HS315. [2] Mecc Alte EAAM0458xxEN Software Manual BoardPrg4.xx [3] Mecc Alte EAAS0341xxEN Serial communication and…”

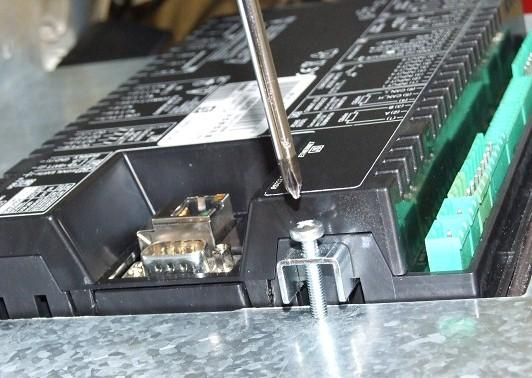

Mecc Alte HS315 – Photo (c49a35792a65_S10-242 S. 15)
Photo · c49a35792a65_S10-242 · S. 15

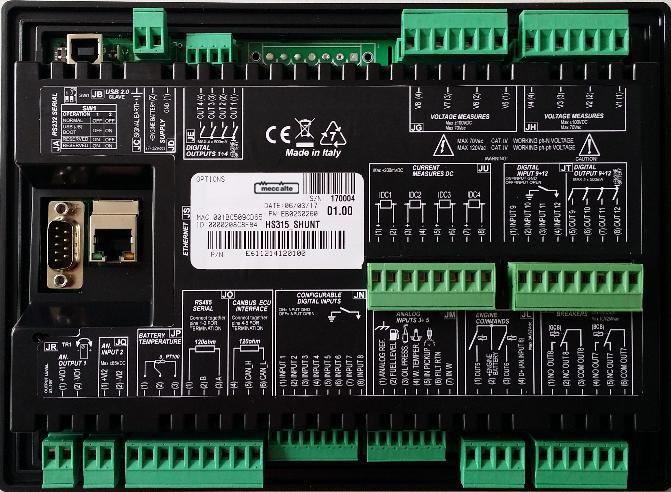

Mecc Alte HS315 – Photo (c49a35792a65_S10-242 S. 15)
Photo · c49a35792a65_S10-242 · S. 15
Mecc Alte HS315 – Photo (c49a35792a65_S10-242 S. 16)
Photo · c49a35792a65_S10-242 · S. 16

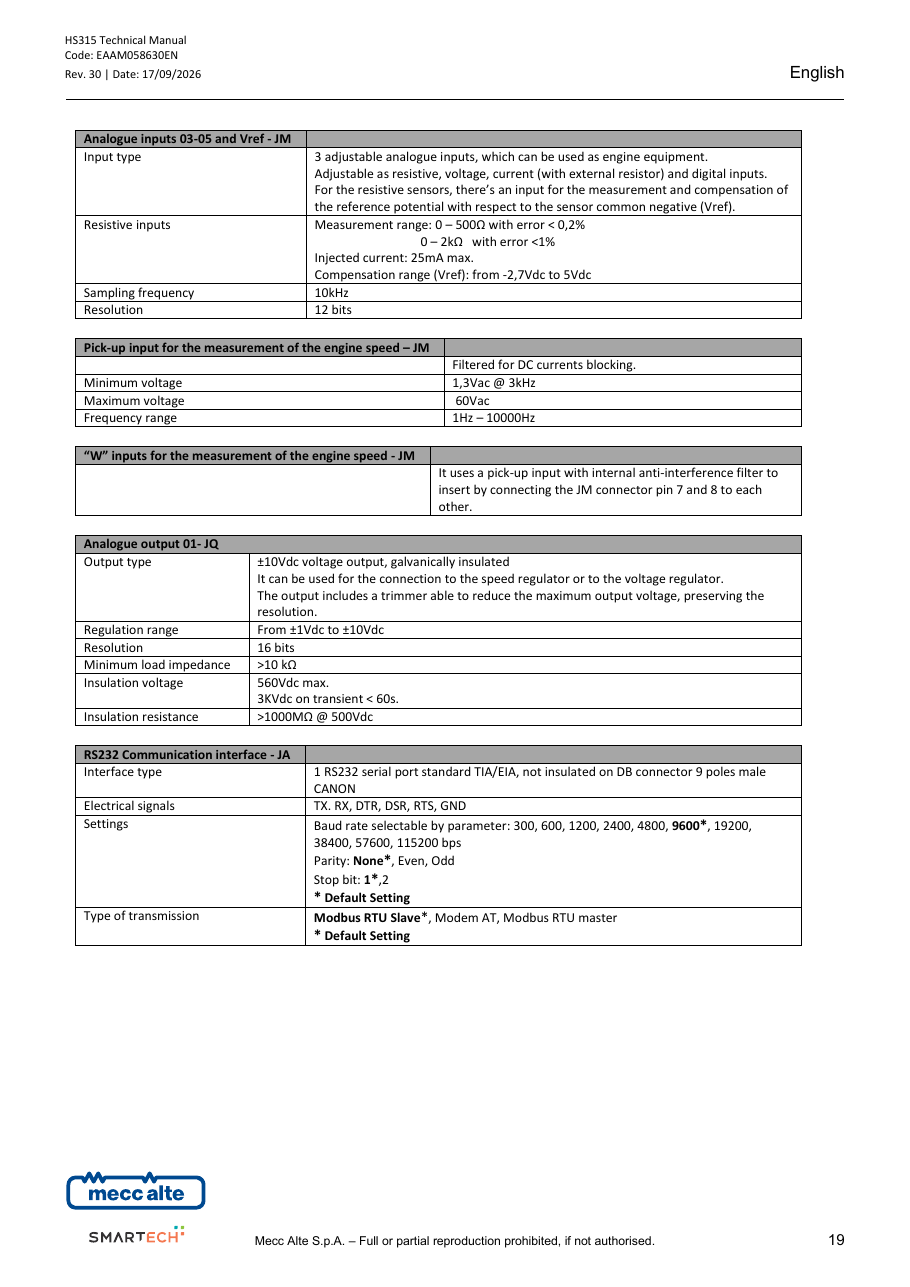

Mecc Alte HS315 – Drawing (c49a35792a65_S10-242 S. 10)
Drawing · c49a35792a65_S10-242 · S. 10

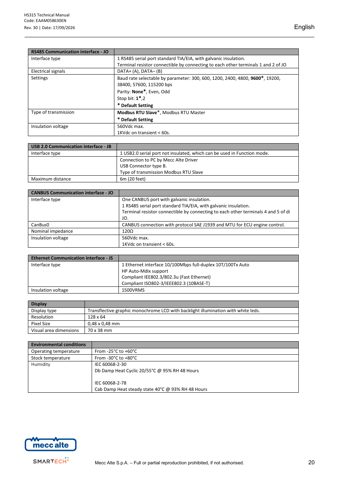

Mecc Alte HS315 – Drawing (c49a35792a65_S10-242 S. 11)
Drawing · c49a35792a65_S10-242 · S. 11

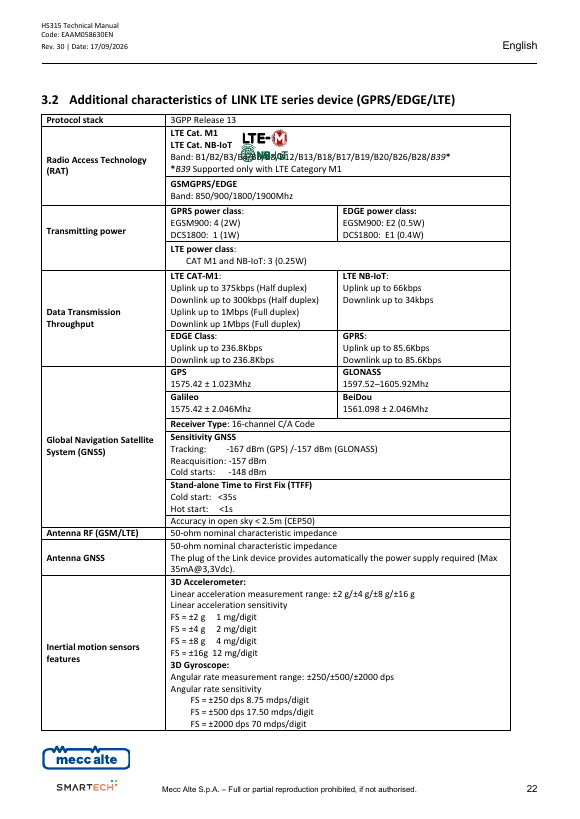

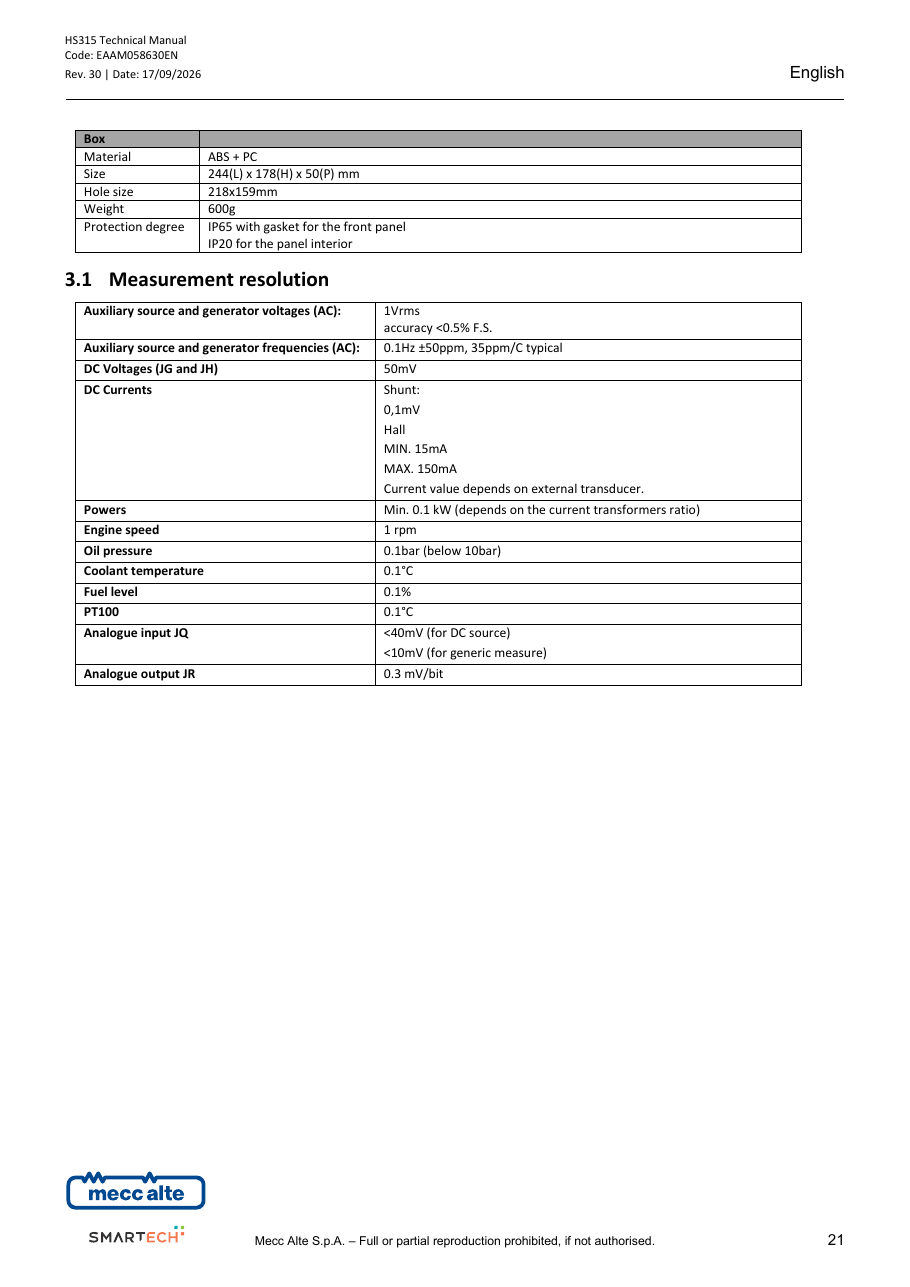

Mecc Alte HS315 – Drawing (c49a35792a65_S10-242 S. 12)
Drawing · c49a35792a65_S10-242 · S. 12
Mecc Alte HS315 – Page preview (c49a35792a65_S10-242 S. 13)
Page preview · c49a35792a65_S10-242 · S. 13
Mecc Alte HS315 – Page preview (c49a35792a65_S10-242 S. 14)
Page preview · c49a35792a65_S10-242 · S. 14
Source: Mecc Alte HS315 datasheet, p. 1
