Detector Electronics Corporation (Det-Tronics)

X3301

Flame Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Ambient temperature limits–40°C to +75°C
Max. loop resistance 0-20 mA output500 ohms from 18 to 19.9 Vdc
Operating Voltage24 Vdc nominal (18 Vdc minimum, 30 Vdc
Power Consumption4 watts minimum (without heater), 17 watts at 30 Vdc
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The X3301 is a multispectrum infrared (IR) flame detector. It provides unsurpassed detection of fires from light to heavy hydrocarbon fuels combined with the highest degree of false alarm rejection.

Applications

  • turbine enclosures
  • compressor engines
  • generators
  • heat exchangers
Source: Detector Electronics Corporation (Det-Tronics) X3301 datasheet, p. 6

Features

  • Automatic Optical Integrity (O.I.) feature
  • Microprocessor controlled heated optics
  • Explosion-proof ratings
  • Suitable for indoor and outdoor applications

Options

  • 0–20 mA output
  • Pulse output
  • Eagle Quantum Premier® (EQP) compatible model
  • HART communication

Standards

  • NFPA-72
  • NFPA-33
Source: Detector Electronics Corporation (Det-Tronics) X3301 datasheet, p. 19

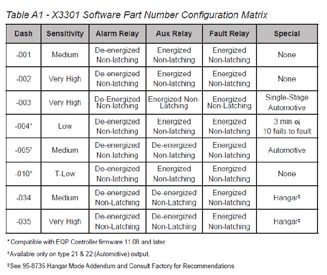

Detector Electronics Corporation (Det-Tronics) X3301 – Photo (030cec7b20cf_S3-48 S. 21)
Photo · 030cec7b20cf_S3-48 · S. 21
Detector Electronics Corporation (Det-Tronics) X3301 – Drawing (9fd3970639d3_S1-1 S. 1)
Drawing · 9fd3970639d3_S1-1 · S. 1

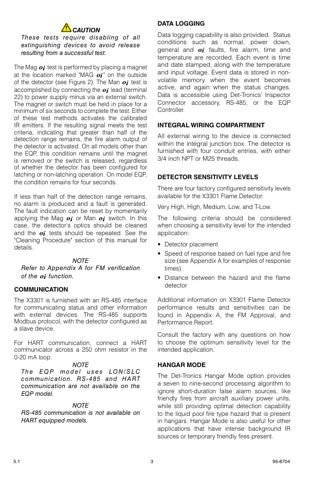

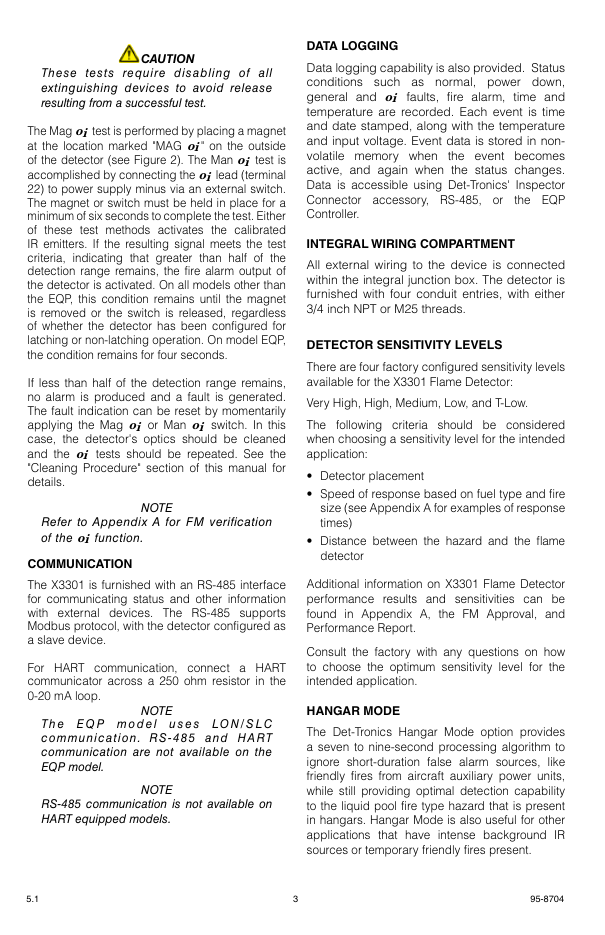

Detector Electronics Corporation (Det-Tronics) X3301 – Drawing (030cec7b20cf_S3-48 S. 3)
Drawing · 030cec7b20cf_S3-48 · S. 3
Detector Electronics Corporation (Det-Tronics) X3301 – Drawing (030cec7b20cf_S3-48 S. 4)
Drawing · 030cec7b20cf_S3-48 · S. 4

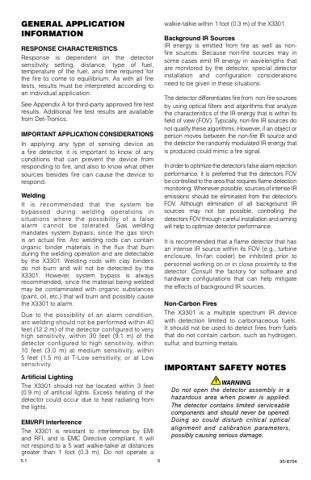

Detector Electronics Corporation (Det-Tronics) X3301 – Page preview (030cec7b20cf_S3-48 S. 5)
Page preview · 030cec7b20cf_S3-48 · S. 5

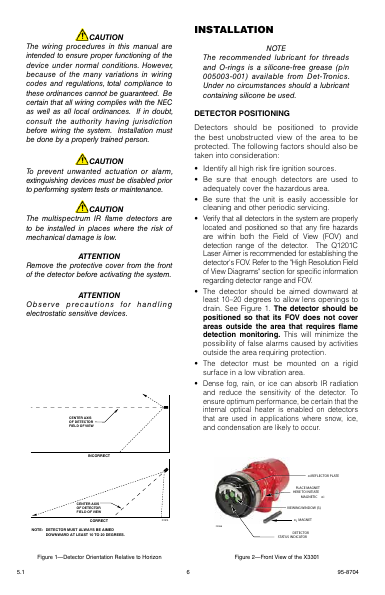

Detector Electronics Corporation (Det-Tronics) X3301 – Page preview (030cec7b20cf_S3-48 S. 6)
Page preview · 030cec7b20cf_S3-48 · S. 6

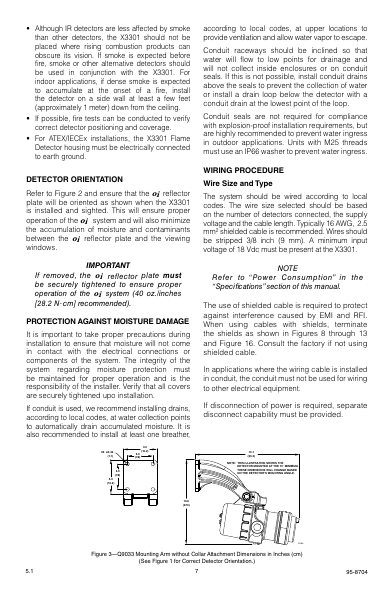

Detector Electronics Corporation (Det-Tronics) X3301 – Page preview (030cec7b20cf_S3-48 S. 7)
Page preview · 030cec7b20cf_S3-48 · S. 7

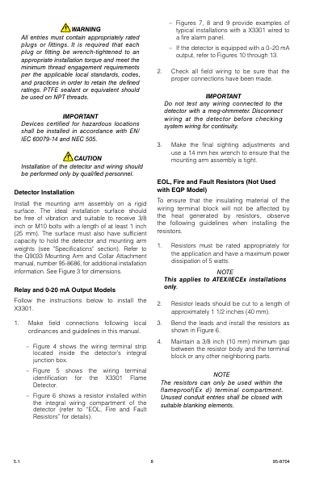

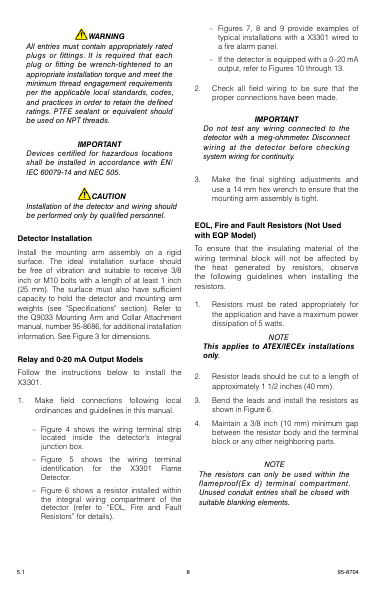

Detector Electronics Corporation (Det-Tronics) X3301 – Page preview (030cec7b20cf_S3-48 S. 8)
Page preview · 030cec7b20cf_S3-48 · S. 8
Source: Detector Electronics Corporation (Det-Tronics) X3301 datasheet, p. 3
