Library› Safety & LSA› Fire Detection Systems› Flame Detector› Det-Tronics U7602E
Det-Tronics

U7602E

Flame Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Not compliant toFM 3260 (2000)
TEMPERATURE RANGEStandard Model: –40°F to +167°F (–40°C to +75°C)
HUMIDITY RANGE0 to 100% relative humidity
POWER ON TIME DELAY0.5 second
INGRESS PROTECTIONNEMA/TYPE 4X (indoor and outdoor use). IP66.
VibrationMeets MIL-STD-810C vibration requirements.
DimensionsSee Figures 12 and 13.
Ambient Temperature Limits–40°F to +167°F (–40°C to +75°C)
Automatic Fire Alarm Signaling Performanceverified per FM 3260
Explosion-proofClass I, Div. 1, Groups B, C and D Hazardous (Classified) Locations per FM 3615
Enclosure ratingNEMA/Type 4X per NEMA 250
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A flame detector that uses ultraviolet technology to detect flames and can be used in hazardous areas.

Applications

  • hazardous environments
Source: Det-Tronics U7602E datasheet, p. 14

Features

  • data logging capability
  • red LEDs for status indication
  • non-volatile memory for event recording

Options

  • data logger module
  • detector inspector interface

Standards

  • FM 3260 (2000)

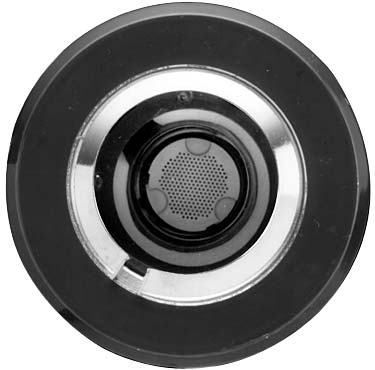

Det-Tronics U7602E – Photo (9f9460ca8ec5_S3-17 S. 4)
Photo · 9f9460ca8ec5_S3-17 · S. 4

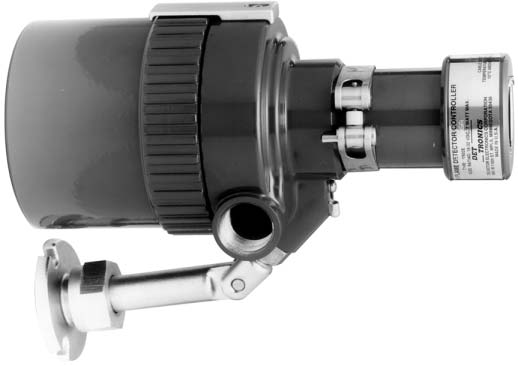

Det-Tronics U7602E – Photo (9f9460ca8ec5_S3-17 S. 4)
Photo · 9f9460ca8ec5_S3-17 · S. 4

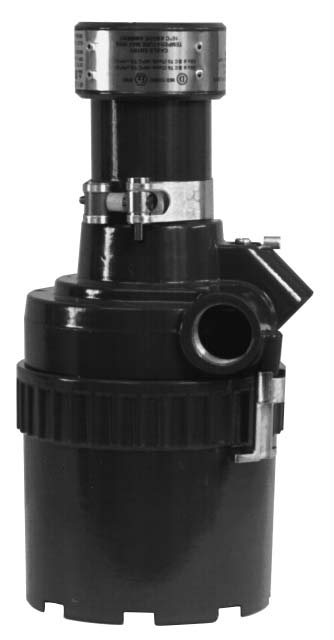

Det-Tronics U7602E – Photo (9f9460ca8ec5_S3-17 S. 5)
Photo · 9f9460ca8ec5_S3-17 · S. 5

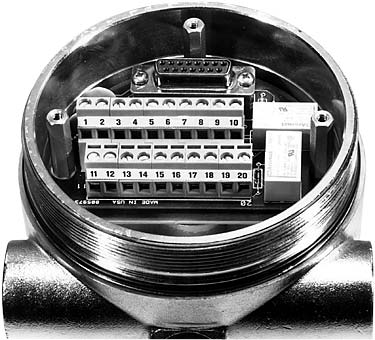

Det-Tronics U7602E – Photo (9f9460ca8ec5_S3-17 S. 5)
Photo · 9f9460ca8ec5_S3-17 · S. 5

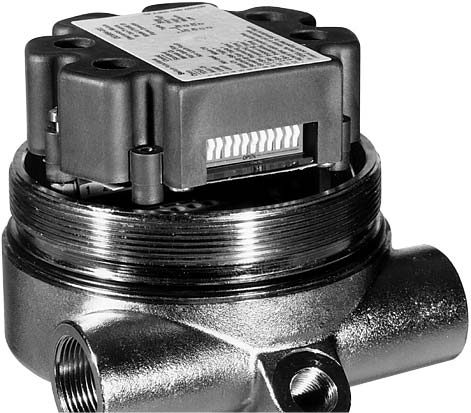

Det-Tronics U7602E – Photo (9f9460ca8ec5_S3-17 S. 7)
Photo · 9f9460ca8ec5_S3-17 · S. 7

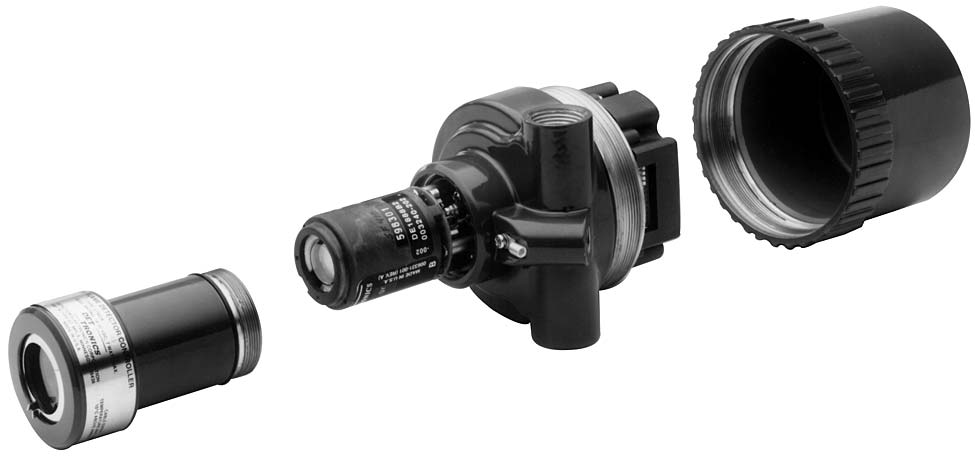

Det-Tronics U7602E – Photo (9f9460ca8ec5_S3-17 S. 9)
Photo · 9f9460ca8ec5_S3-17 · S. 9

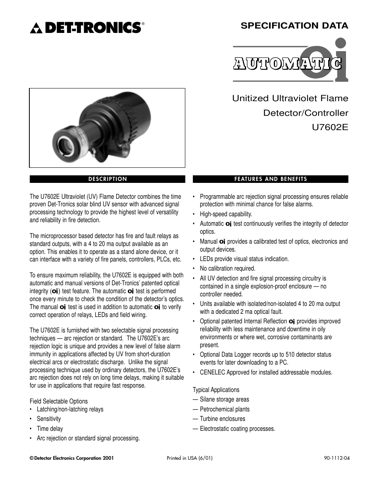

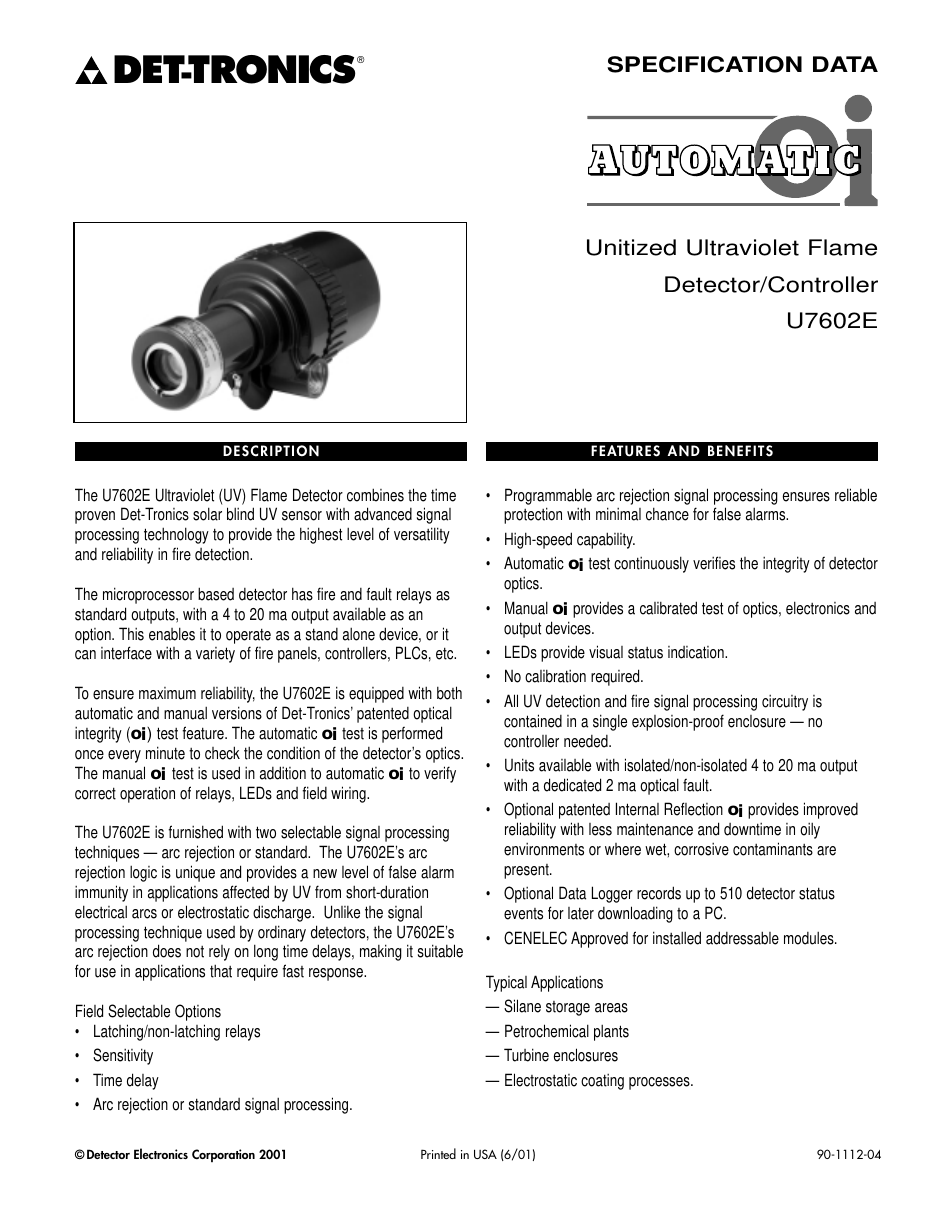

Det-Tronics U7602E – Drawing (eba5f5ea4e02_S1-1 S. 1)
Drawing · eba5f5ea4e02_S1-1 · S. 1

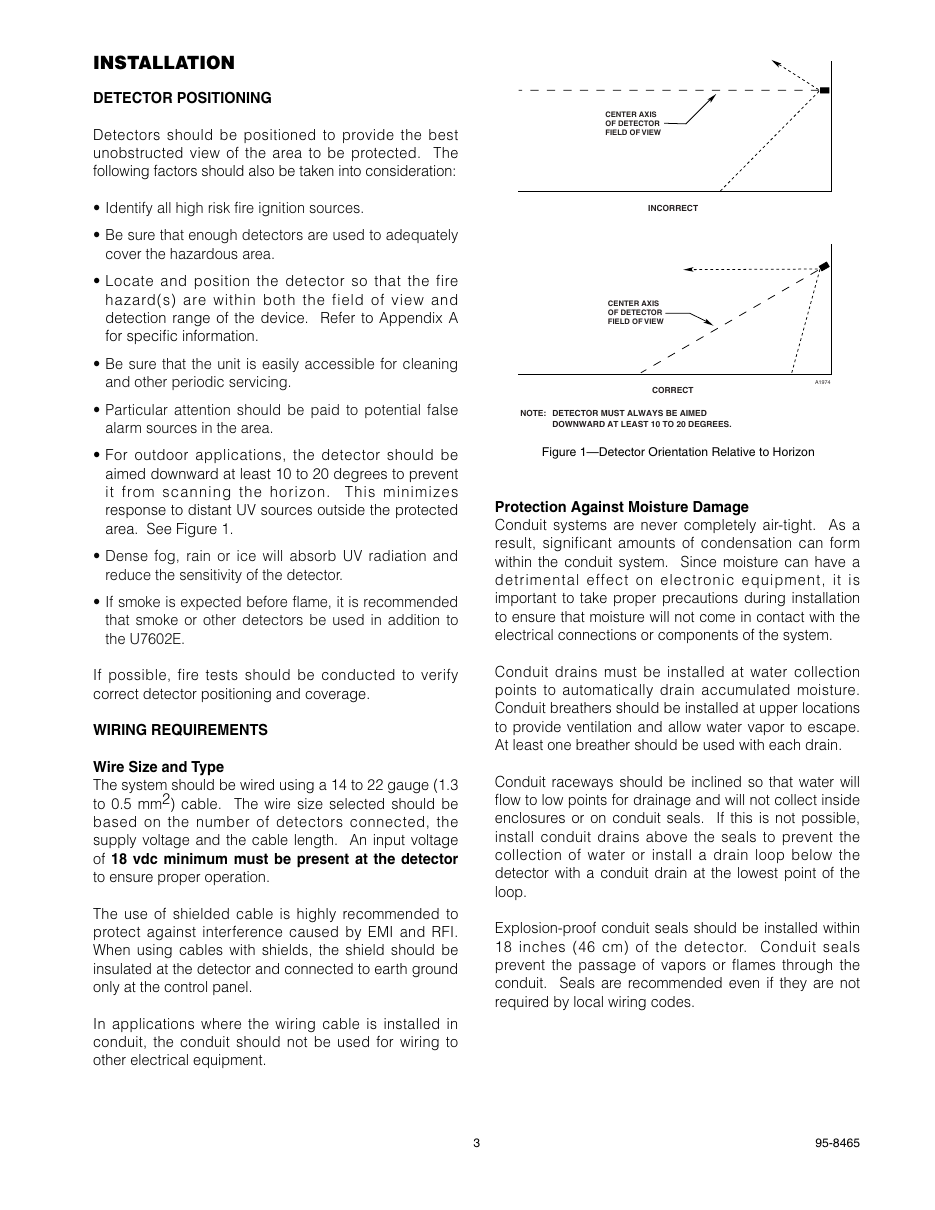

Det-Tronics U7602E – Drawing (9f9460ca8ec5_S3-17 S. 3)
Drawing · 9f9460ca8ec5_S3-17 · S. 3
Source: Det-Tronics U7602E datasheet, p. 3
