Library› Navigation› Navigation & Bridge Equipment› Echo Sounder› R2Sonic SONIC 2024
R2Sonic

SONIC 2024

Echo Sounder · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Frequency Range170 kHz – 450 kHz
Optional Frequency700 kHz
Beam Width0.3° x 0.6°
Selectable Swath10° to 160°
Sounding Depth400m+
Power Consumption50W
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Features: • Wideband 170 kHz – 450 kHz • Optional UHR™ 700 kHz • Beam Widths to 0.3° x 0.6°* • Selectable swath 10° to 160° • Sounding Depth to 400m+ • Embedded Processor/Controller • Low Weight,…”

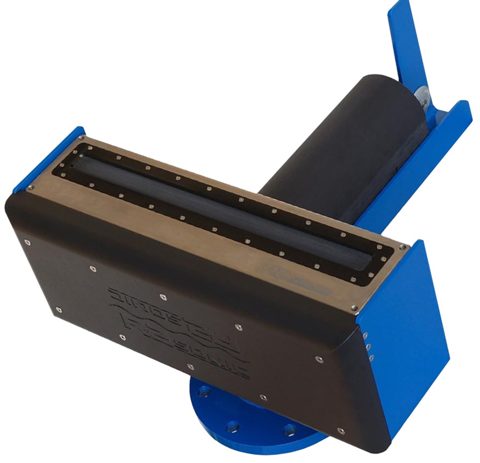

R2Sonic SONIC 2024 – Photo (d3e4240f9547_S1-2 S. 1)
Photo · d3e4240f9547_S1-2 · S. 1

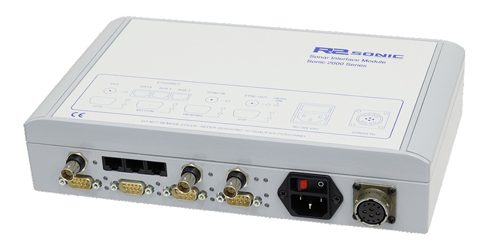

R2Sonic SONIC 2024 – Photo (d3e4240f9547_S1-2 S. 2)
Photo · d3e4240f9547_S1-2 · S. 2

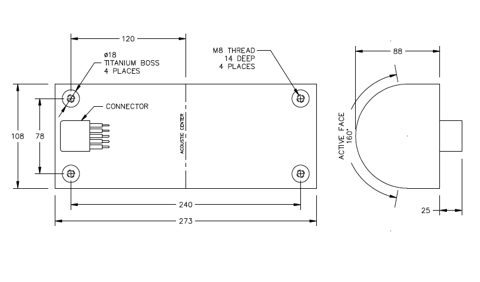

R2Sonic SONIC 2024 – Photo (d3e4240f9547_S1-2 S. 2)
Photo · d3e4240f9547_S1-2 · S. 2

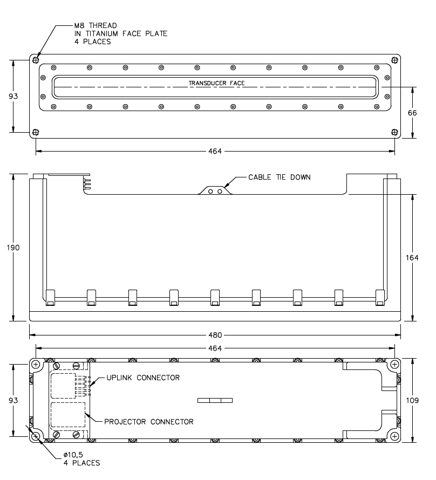

R2Sonic SONIC 2024 – Photo (d3e4240f9547_S1-2 S. 2)
Photo · d3e4240f9547_S1-2 · S. 2
R2Sonic SONIC 2024 – Photo (d3e4240f9547_S1-2 S. 2)
Photo · d3e4240f9547_S1-2 · S. 2

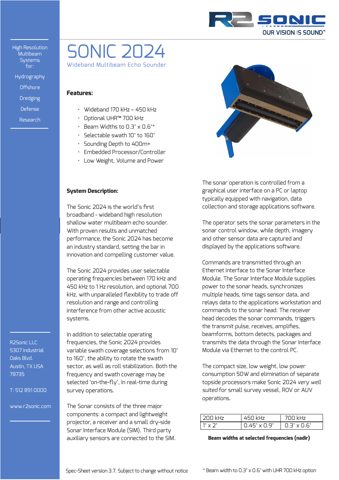

R2Sonic SONIC 2024 – Drawing (d3e4240f9547_S1-2 S. 1)
Drawing · d3e4240f9547_S1-2 · S. 1

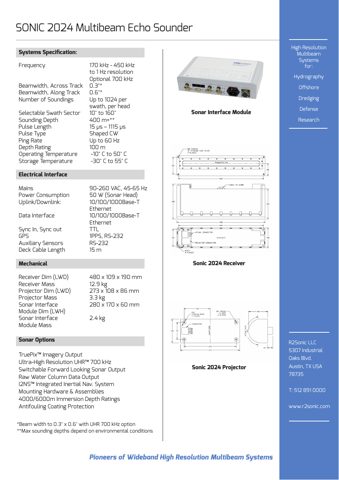

R2Sonic SONIC 2024 – Drawing (d3e4240f9547_S1-2 S. 2)
Drawing · d3e4240f9547_S1-2 · S. 2
Source: R2Sonic SONIC 2024 datasheet, p. 1
