DCD-CE3M

Heat Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‍⁠⁠‍⁠‍⁠⁠‍‍‌​​‍‍​​
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Operating Voltage9.5 – 30 V dc🔖
Quiescent Current (typ)35 °A🔖
Maximum Current in Alarm (typ)40 mA🔖
Remote Indicator Drive20 mA (max) / 9.5-14 mA (typ)🔖
Operating Temperature Range-10 °C to +50 °C🔖
Storage Temperature Range-30 °C to +70 °C🔖
Maximum Humidity95% RH - Non Condensing (at 40 °C)🔖
Ingress Protection RatingIP63🔖
Colour / Case MaterialIvory or White / Polycarbonate🔖
Weight76 g🔖
Diameter100 mm🔖
Height38 mm🔖
Compatible BaseYBN-R/6M🔖
Base Fixing Centres48 ~ 74 mm🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The DCD-CE3M is a Marine Approved Rate of Rise Heat Detector with a 90°C fixed temperature element, suitable for medium ambient temperatures and areas with steam or cooking fumes.

Applications

  • drying rooms
  • galley

Features

  • electronic linear heat detection
  • remote indicator output
  • wide voltage range
  • approved by LPCB and GL
  • SIL Level 2 approved variants available

Options

  • Instrinsically Safe Conventional Rate of Rise Heat Detector

Standards

  • EN54:2000

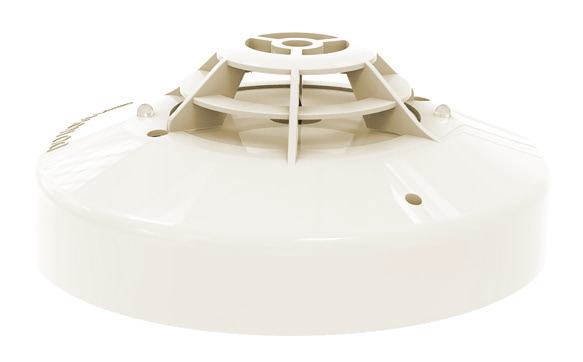

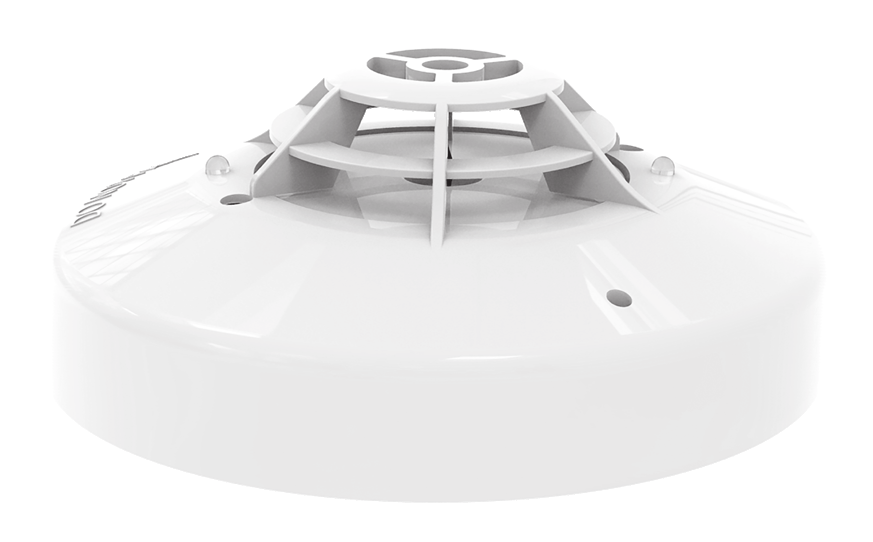

Hochiki Marine DCD-CE3M – Photo (f6260674a34f_S1-1 S. 1)
Photo · f6260674a34f_S1-1 · S. 1
Hochiki Marine DCD-CE3M – Photo (f6260674a34f_S1-1 S. 1)
Photo · f6260674a34f_S1-1 · S. 1
Hochiki Marine DCD-CE3M – Photo (f6260674a34f_S1-1 S. 1)
Photo · f6260674a34f_S1-1 · S. 1
Hochiki Marine DCD-CE3M – Photo (f6260674a34f_S1-1 S. 1)
Photo · f6260674a34f_S1-1 · S. 1
Hochiki Marine DCD-CE3M – Photo (ec358aa207d7_S1-1 S. 1)
Photo · ec358aa207d7_S1-1 · S. 1
Hochiki Marine DCD-CE3M – Photo (Hochiki Marine datasheet S. 1)
Photo · Hochiki Marine datasheet · S. 1

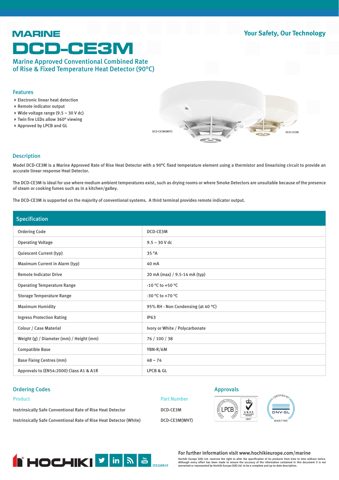

Hochiki Marine DCD-CE3M – Drawing (f6260674a34f_S1-1 S. 1)
Drawing · f6260674a34f_S1-1 · S. 1
Hochiki Marine DCD-CE3M – Drawing (ec358aa207d7_S1-1 S. 1)
Drawing · ec358aa207d7_S1-1 · S. 1

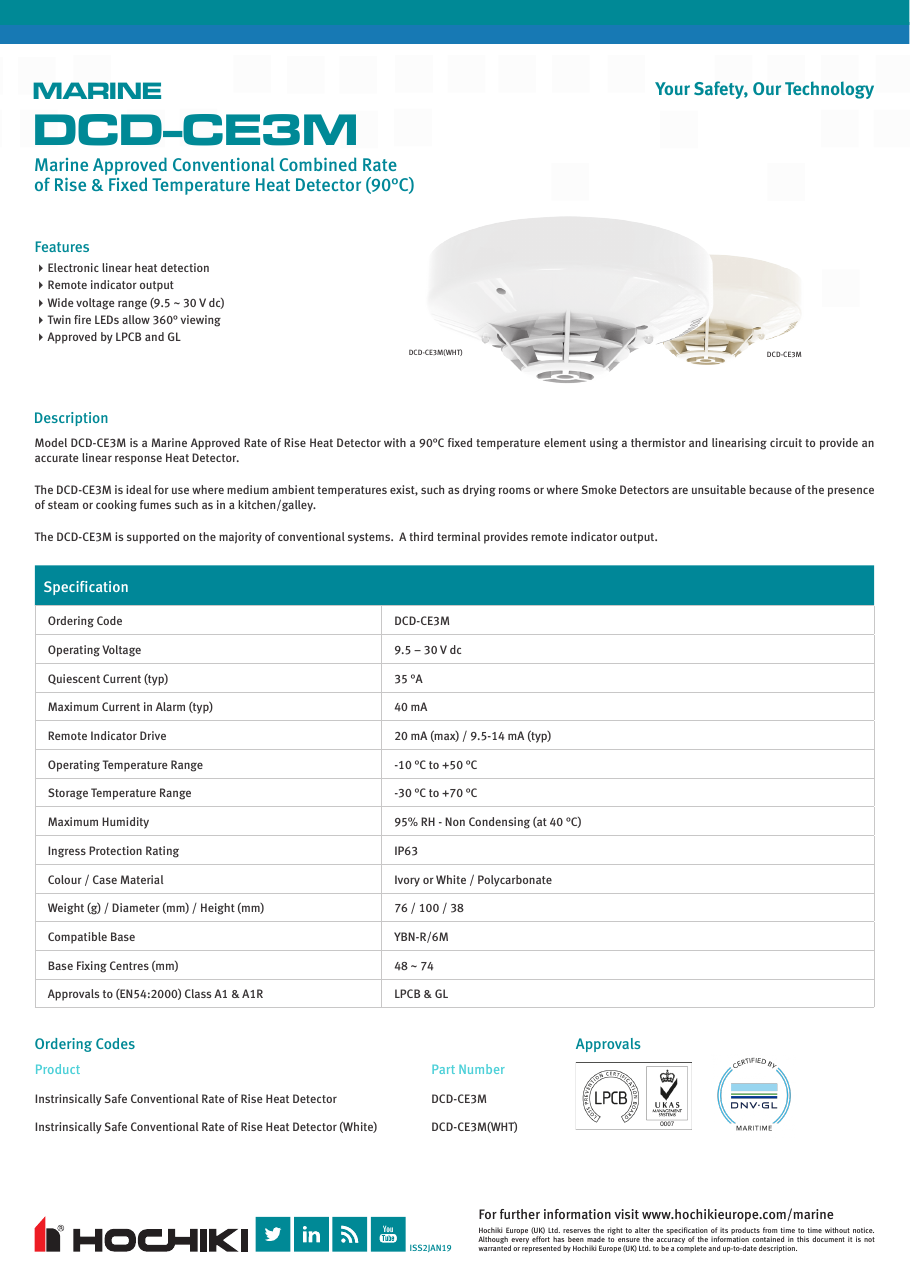

Source: Hochiki Marine DCD-CE3M datasheet, p. 1
