Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Hochiki Marine SOC-E3NM
Hochiki Marine

SOC-E3NM

Smoke Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Operating Voltage12V – 30 VDC
Quiescent Current (typ)35 µA
Maximum Current Alarm40 mA
Out of Sensitivity Current (Red Flashing LED)120 µA
Remote Indicator Drive20 mA (max)
Operating Temperature Range-10 °C to + 50 °C
Storage Temperature Range-30 °C to + 60 °C
Maximum Humidity95% RH - Non Condensing (at 40 °C)
Ingress Protection RatingIP42
Colour / Case MaterialIvory or White / ABS
Weight95 g
Diameter100 mm
Height45 mm
Base Fixing Centres48 ~ 74 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Marine Approved Conventional Photoelectric Smoke Detector Features  Removable, High Performance chamber  Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology Remote …”

Hochiki Marine SOC-E3NM – Photo (9a966e74235c_S1-1 S. 1)
Photo · 9a966e74235c_S1-1 · S. 1

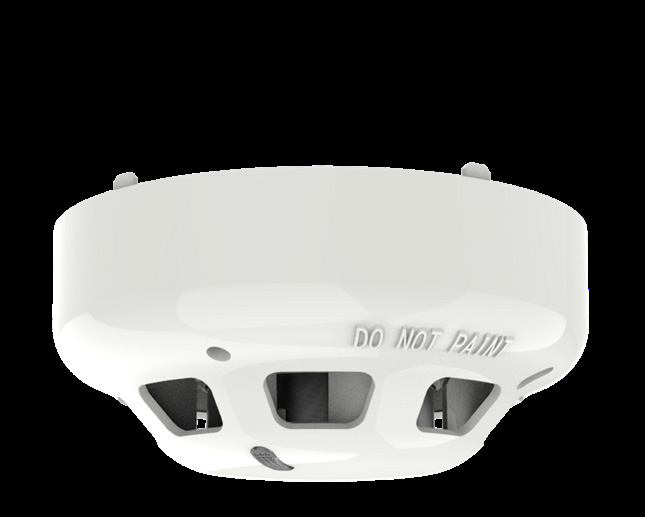

Hochiki Marine SOC-E3NM – Photo (9a966e74235c_S1-1 S. 1)
Photo · 9a966e74235c_S1-1 · S. 1

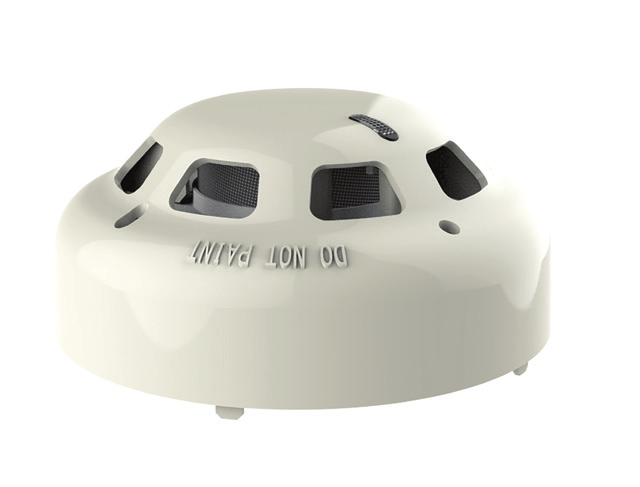

Hochiki Marine SOC-E3NM – Photo (9a966e74235c_S1-1 S. 1)
Photo · 9a966e74235c_S1-1 · S. 1

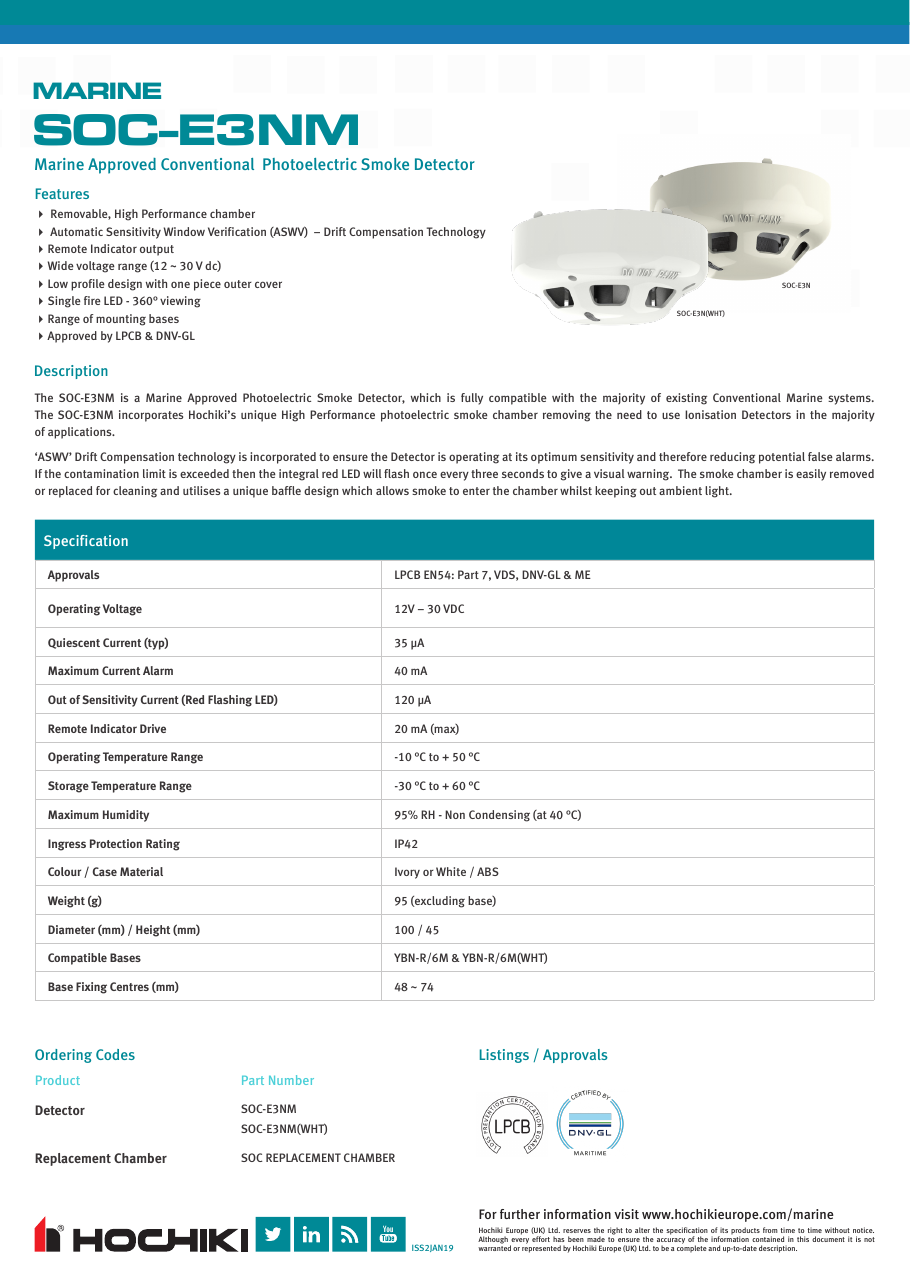

Hochiki Marine SOC-E3NM – Drawing (9a966e74235c_S1-1 S. 1)
Drawing · 9a966e74235c_S1-1 · S. 1
Source: Hochiki Marine SOC-E3NM datasheet, p. 1
