Fire & Gas Detection Technologies

FLS-IR3-HD

Flame Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Response CharacteristicsFuel, Size, Sensitivity, Distance, Avrg Resp. Time (s) ft. (m)
N-heptane1 x 1 ft., Extreme, 262 (80), 9.0
Gasoline2 x 2 ft., Extreme, 328 (100), 5.3
Methane32-in Plume, Extreme, 148 (45), 3.3
LPG32-in Plume, Extreme, 180 (55), 4.8
Diesel1 x 1 ft., Extreme, 164 (50), 2.9
Jp52 x 2 ft., Extreme, 295 (90), 9.2
Kerosene1 x 1 ft., Extreme, 164 (50), 4.1
Methanol1 x 1 ft., Extreme, 131 (40), 4.1

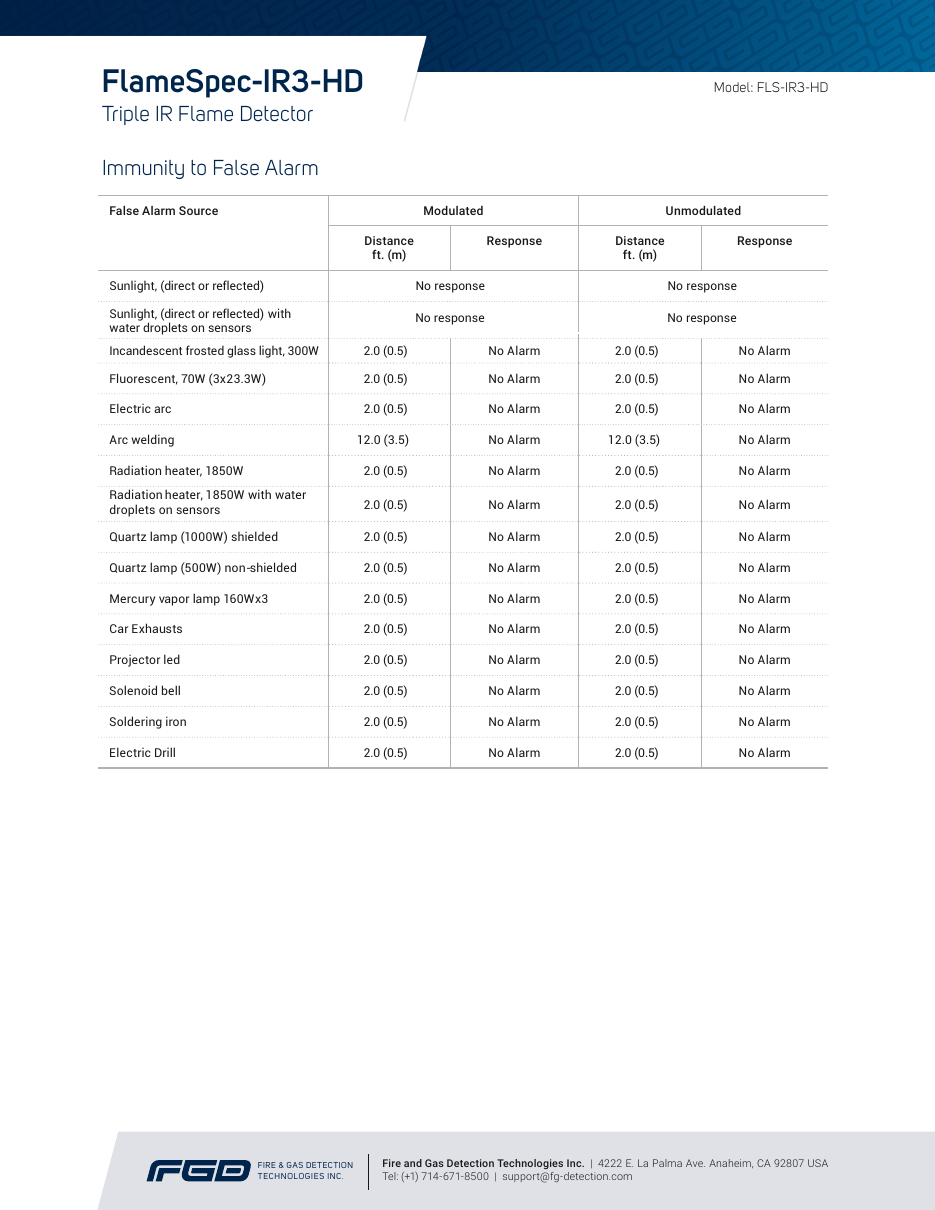

Immunity to False Alarm - Incandescent frosted glass light, 300W2.0 (0.5) ft. (m)
Immunity to False Alarm - Fluorescent, 70W (3x23.3W)2.0 (0.5) ft. (m)
Immunity to False Alarm - Electric arc2.0 (0.5) ft. (m)
Immunity to False Alarm - Arc welding12.0 (3.5) ft. (m)
Immunity to False Alarm - Radiation heater, 1850W2.0 (0.5) ft. (m)
Immunity to False Alarm - Quartz lamp (1000W) shielded2.0 (0.5) ft. (m)
Immunity to False Alarm - Quartz lamp (500W) non-shielded2.0 (0.5) ft. (m)
Immunity to False Alarm - Mercury vapor lamp 160Wx32.0 (0.5) ft. (m)
Immunity to False Alarm - Car Exhausts2.0 (0.5) ft. (m)
Immunity to False Alarm - Projector LED2.0 (0.5) ft. (m)
Immunity to False Alarm - Solenoid bell2.0 (0.5) ft. (m)
Immunity to False Alarm - Soldering iron2.0 (0.5) ft. (m)
Immunity to False Alarm - Electric Drill2.0 (0.5) ft. (m)

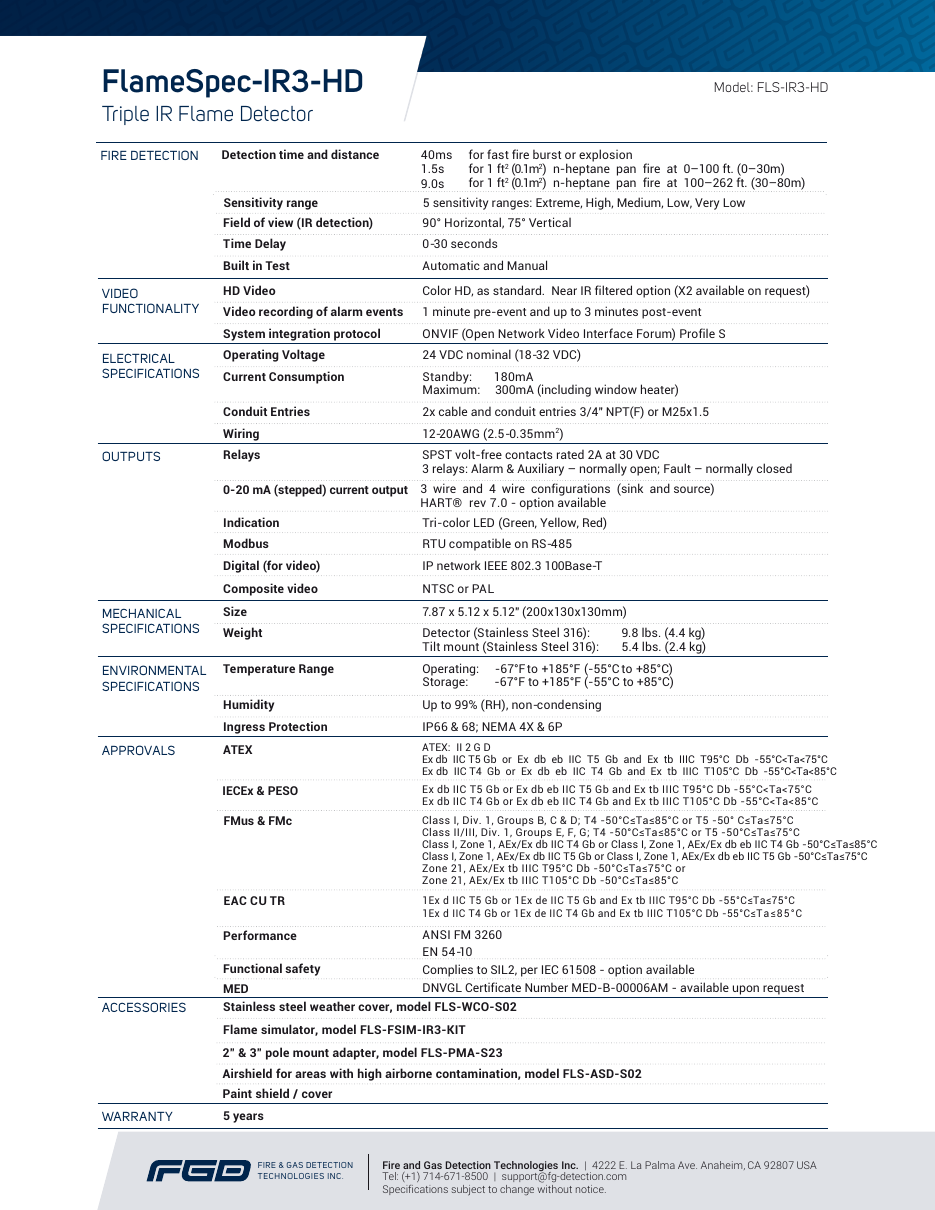

Field of view (IR detection)90° Horizontal, 75° Vertical
Time Delay0-30 seconds
Operating Voltage24 VDC nominal (18-32 VDC)
Size7.87 x 5.12 x 5.12″ (200x130x130mm)
WeightDetector (Stainless Steel 316): 9.8 lbs. (4.4 kg)
Temperature RangeOperating: -67°F to +185°F (-55°C to +85°C)
HumidityUp to 99% (RH), non-condensing
Ingress ProtectionIP66 & 68; NEMA 4X & 6P
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Fire and Gas Detection Technologies Inc. | 4222 E. La Palma Ave. Anaheim, CA 92807 USA Tel: (+1) 714-671-8500 | support@fg-detection.com”

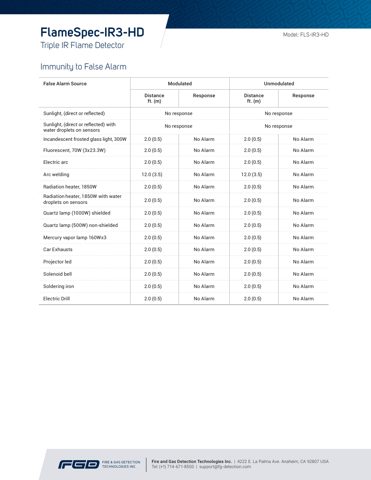

Fire & Gas Detection Technologies FLS-IR3-HD – Drawing (66e6ef529758_S2-4 S. 2)
Drawing · 66e6ef529758_S2-4 · S. 2

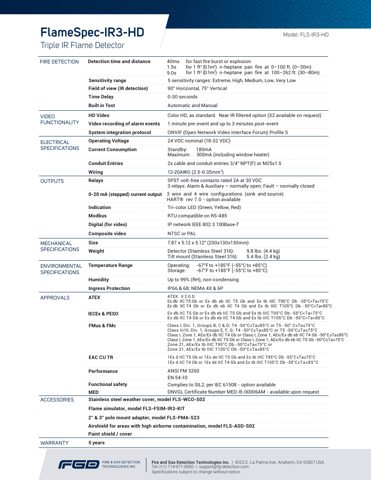

Fire & Gas Detection Technologies FLS-IR3-HD – Drawing (66e6ef529758_S2-4 S. 3)
Drawing · 66e6ef529758_S2-4 · S. 3
Source: Fire & Gas Detection Technologies FLS-IR3-HD datasheet, p. 1
