Library› Electrical› Power Generation› Generator Set› Kohler 32EKOZD
Kohler

32EKOZD

Generator Set · Power Generation

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight, kg (lb.) Wet531 (1170) kg (lb.)
Weight, kg (lb.) Dry514 (1134) kg (lb.)
Displacement, L (cu. in.)2.48 (151.5)
Bore and stroke, mm (in.)88 x 102 (3.46 x 4.02)
Compression ratio17:1
Rated RPM1800 rpm
Max. power at rated RPM, HP52.4 HP
Steady stater0.5%
Battery, voltage12 or 24 volt
Battery charging alternator72 amp @ 12 volts
Air Requirements, L/min. (cfm)2618 (92)
Generator cooling requirements, L/min. (cfm)10760 (380)
Max. air intake restriction, kPa (in. H2O)4.5 (18)
Exhaust flow, m3/min. (cfm)5.7 (202)
Exhaust temp., qC (qF) at full load455 (851)
Max. allowed exhaust back pressure, kPa (in. H2O)11 (44.2)
Fuel Consumption, Diesel, Lph (gph) at % load, 100%11.3 (2.99)
Fuel Consumption, Diesel, Lph (gph) at % load, 75%8.5 (2.24)
Fuel Consumption, Diesel, Lph (gph) at % load, 50%5.7 (1.51)
Fuel Consumption, Diesel, Lph (gph) at % load, 25%3.2 (0.85)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A diesel-powered marine generator set designed for auxiliary power generation on marine vessels.

Applications

  • auxiliary power generation
  • marine vessels

Features

  • diesel fueled
  • four cylinder
  • four cycle
  • closed cooling system
  • heat exchanger
  • electric fuel lift pump
  • single lifting eye
  • class H insulation

Options

  • Decision-Maker 3500 Paralleling Controller

Standards

  • ISO 8528

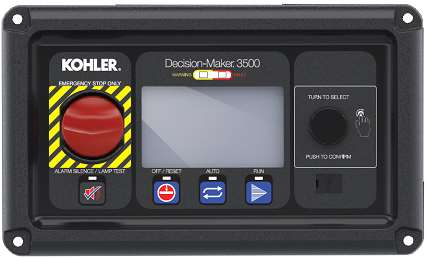

Kohler 32EKOZD – Photo (c1d5354204a2_S1-3 S. 3)
Photo · c1d5354204a2_S1-3 · S. 3

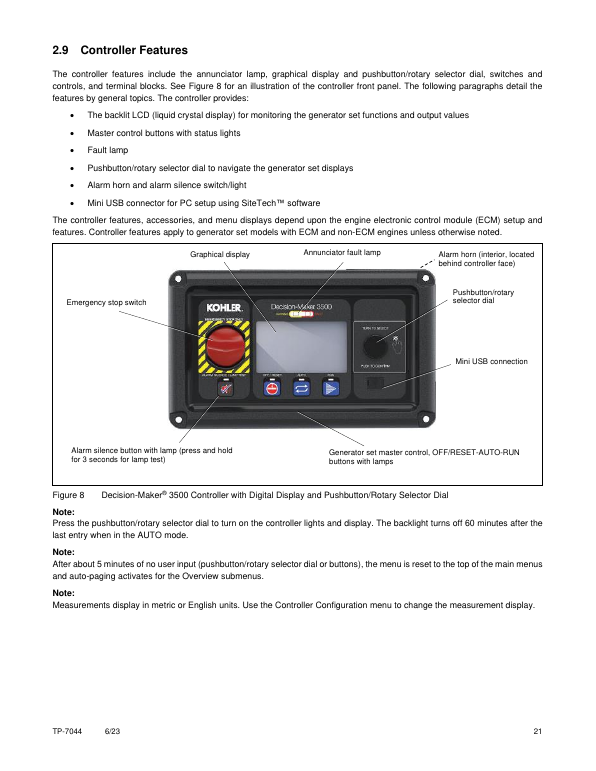

Kohler 32EKOZD – Drawing (4b56e662547b_S11-89 S. 12)
Drawing · 4b56e662547b_S11-89 · S. 12

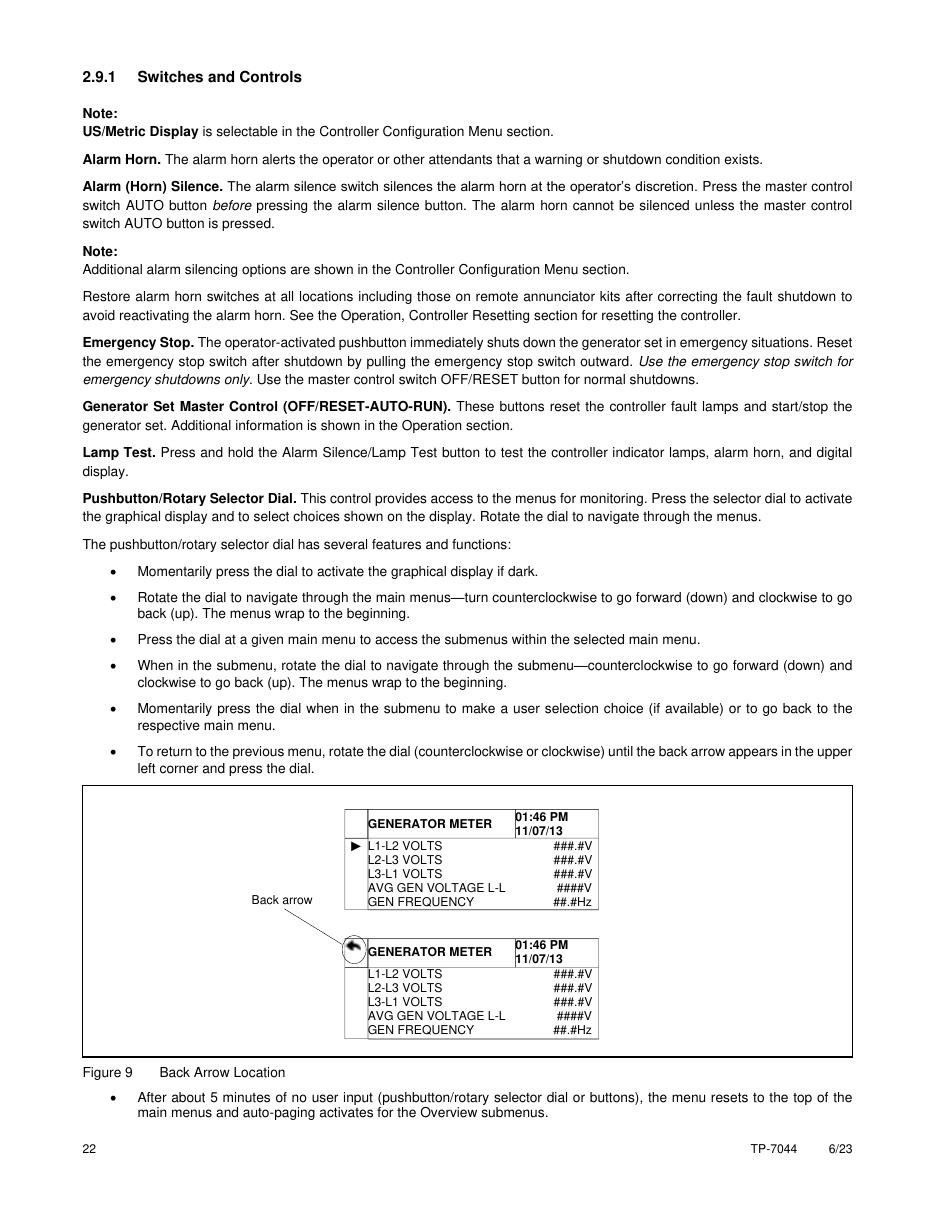

Kohler 32EKOZD – Drawing (4b56e662547b_S11-89 S. 13)
Drawing · 4b56e662547b_S11-89 · S. 13

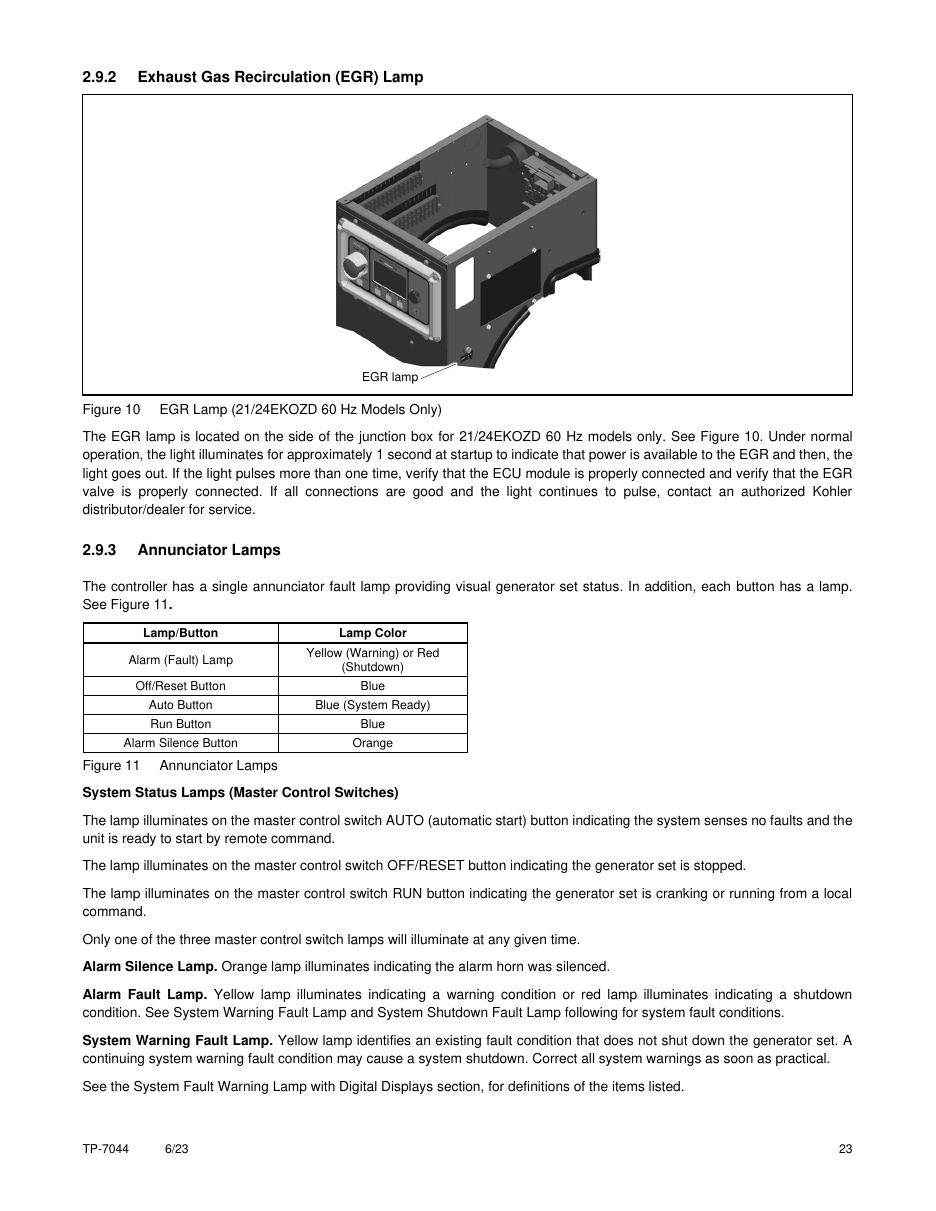

Kohler 32EKOZD – Drawing (4b56e662547b_S11-89 S. 14)
Drawing · 4b56e662547b_S11-89 · S. 14
Kohler 32EKOZD – Page preview (4b56e662547b_S11-89 S. 11)
Page preview · 4b56e662547b_S11-89 · S. 11

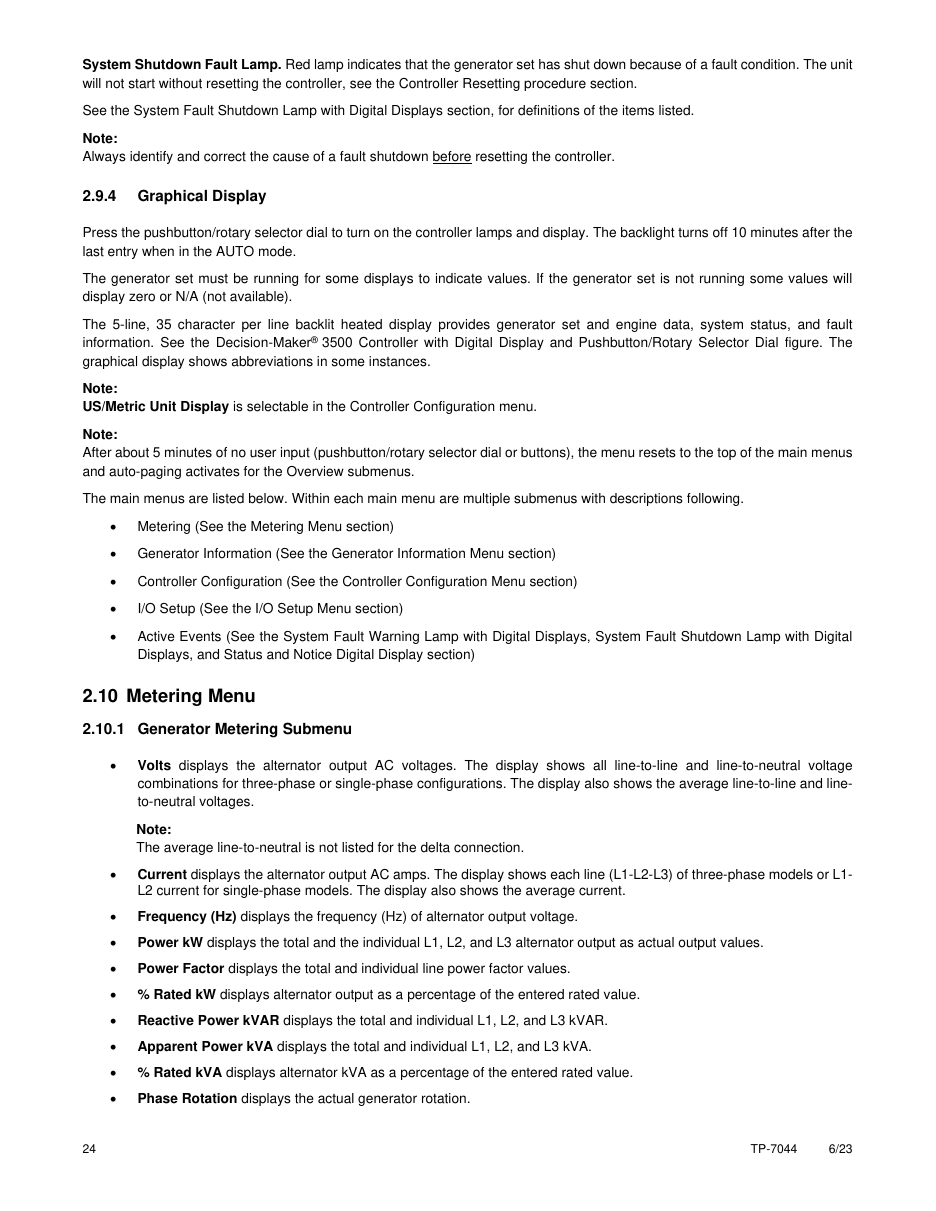

Kohler 32EKOZD – Page preview (4b56e662547b_S11-89 S. 15)
Page preview · 4b56e662547b_S11-89 · S. 15

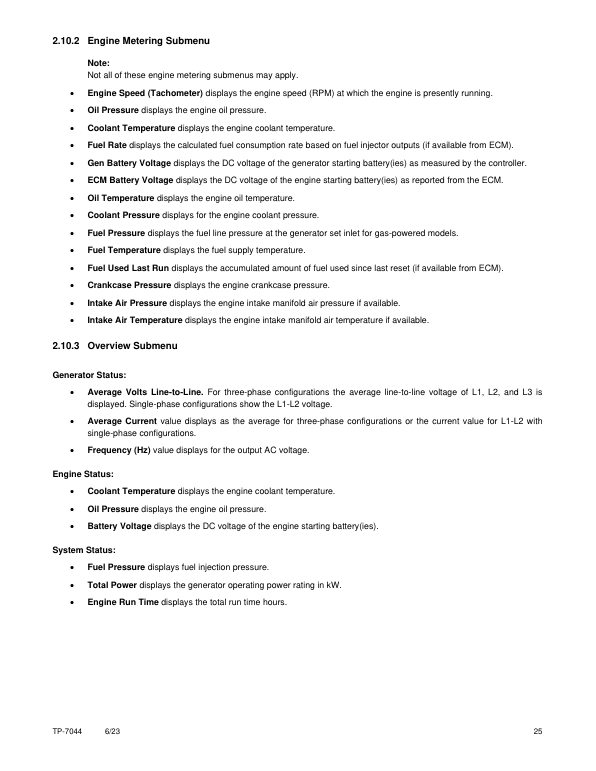

Kohler 32EKOZD – Page preview (4b56e662547b_S11-89 S. 16)
Page preview · 4b56e662547b_S11-89 · S. 16

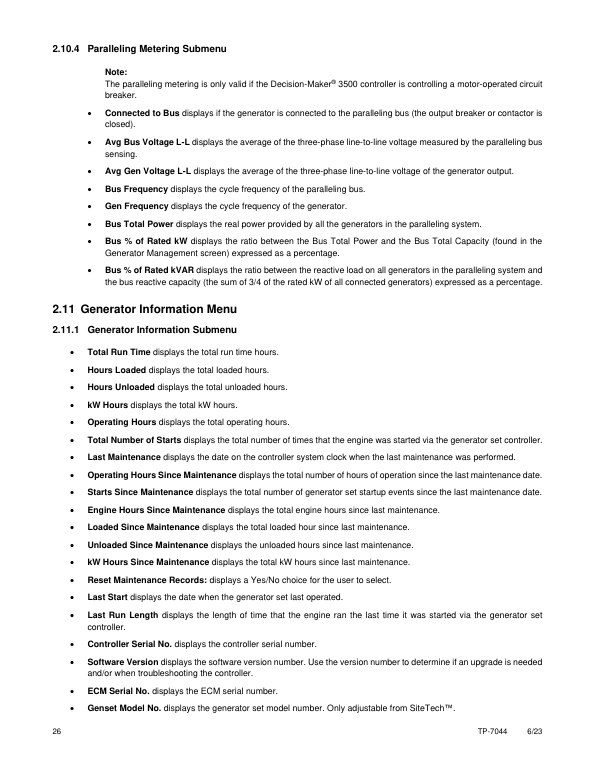

Kohler 32EKOZD – Page preview (4b56e662547b_S11-89 S. 17)
Page preview · 4b56e662547b_S11-89 · S. 17
